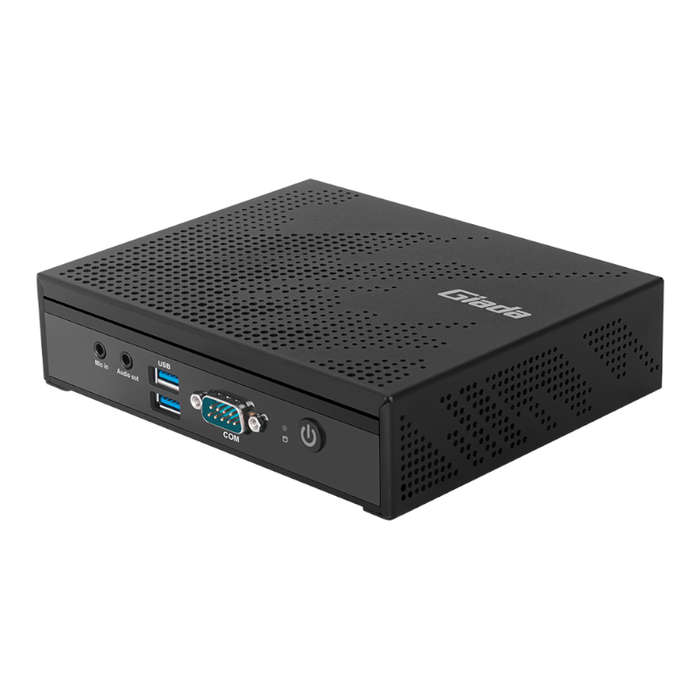

The Giada VM27 is based on Intel IOTG roadmap with 7+ years lifespan. It supports Pentium quad-core N6415 and Celeron dual-core N6210 processors. The onboard dual-channel LPDDR4 and eMMC5.1 storage ensure its stable operating in harsh environments. The player adopts Intel UHD Graphics for 10th Gen Intel Processors and it has up to 2x performance improvement in graphics over previous generation. It supports vivid dual 1080p video or one 4K video decoding. Its HDMI 2.0a and DisplayPort 1.2 ports can also support resolutions up to 4096 x 2160@60Hz. With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada device applicable in mission critical applications.
FEATURES:
Intel Celeron N6210 Processor
1 x DP, 1 x HDMI, Supporting 4K Display
Onboard DDR4 4GB
1 x RJ45 Gigabit LAN and 1 x E-Key M.2 (2230) for WiFi/BT
Long life cycle
Fanless Design
SPECIFICATIONS:
Processor:
CPU: Intel Celeron N6210
Frequency: 2.60 GHz
Cores: 2
Chipset: SoC
Memory:
Type: DDR4-2666 MHz
Socket: Onboard
Size: 4GB
Storage:
Socket: 1 x Full-size Mini-PCIe for MSATA
Onboard: 64GB, Onboard eMMC5.1
Graphics:
GPU: Intel UHD Graphics
Graphic Engine: DirectX 12.1, OpenGL 3.0, OpenCL 1.1, Intel Quick Sync Video
DisplayPort: 1 x DP (Max.4096 x 2160 @60 Hz)
HDMI: 1 x HDMI (Max.4096 x 2160@60Hz)
Network:
Controller: Realtek RTL 8111H Gigabit Ethernet
Interface: 1 x RJ45
Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT Support Wi-Fi 5, Wi-Fi 6
Mobile Network: NA
I/O:
USB: 4x USB 3.2 (10Gbps)
Serial Port: 1 x RS232
Audio: 1 x MIC-IN, 1 x AUDIO-OUT
Antenna: 2 x Connector for Wi-Fi/BT
Button: 1 x Power on, 1 x CLR-CMOS
System:
TPM: FTPM
Watchdog Timer: Yes
Auto Power on: Yes
RTC: Set up independently every day
Remo on: Yes
Fanless: Yes
Operation System:
Windows: Windows 10 (64Bit), Windows 11 (64bit)
Linux: Linux Ubuntu (64bit)
Power:
Power Type: DC-IN
Input Voltage: 19V/2.37A
Environment:
Operating Temperature: 0 C ~45 C (32 F~113 F) @0.7m/s Air Flow
Relative Humidity: 95% @ 45 C (non-condensing)
Certification: CE, FCC Class B
Construction: Metal
Fanless: Yes
Colour: Black
Dimensions: 15.4 x 12.5 x 4 cm
WHAT'S IN THE BOX:
Giada VM27 Intel Celeron Ultra-compact Fanless Signage Player - Black x1
WiFi Antenna x2
AC Power Adapter x1
Power Cable x1
User Manual x1
What's in the box
1 x Giada VM27 Intel Celeron Ultra-compact Fanless Signage Player - Black
2 x WiFi Antenna
1 x AC Power Adapter
1 x Power Cable
1 x User Manual
