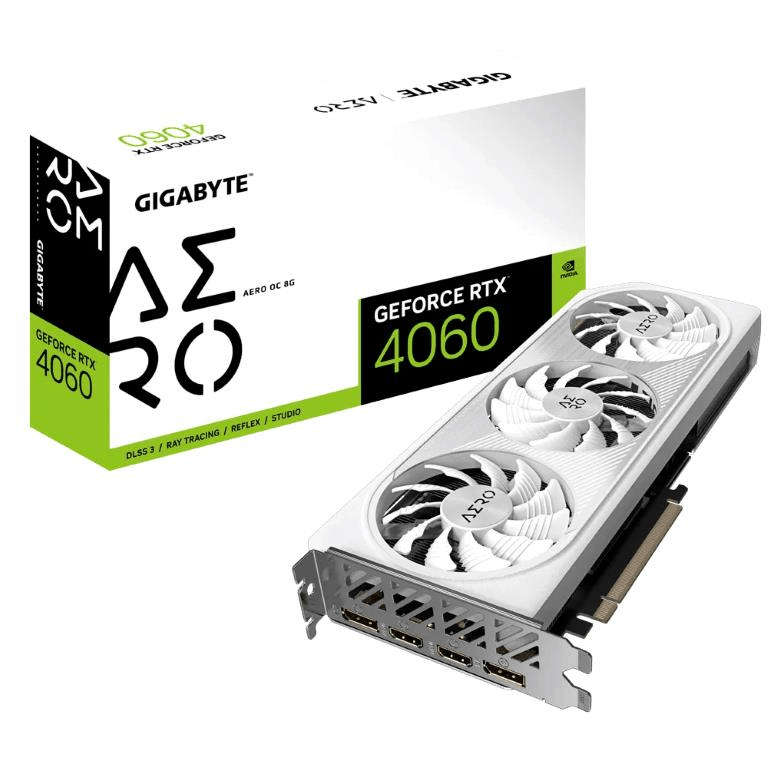

Gigabyte AERO GeForce RTX 4060 OC 8GB GDDR6 Graphics Card
Graphene Nano Lubricant
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Optimized Thermal Module
The pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.
Screen Cooling
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
Friendly PCB Design
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Features:
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX 4060
- Integrated with 8GB GDDR6 128bit memory interface

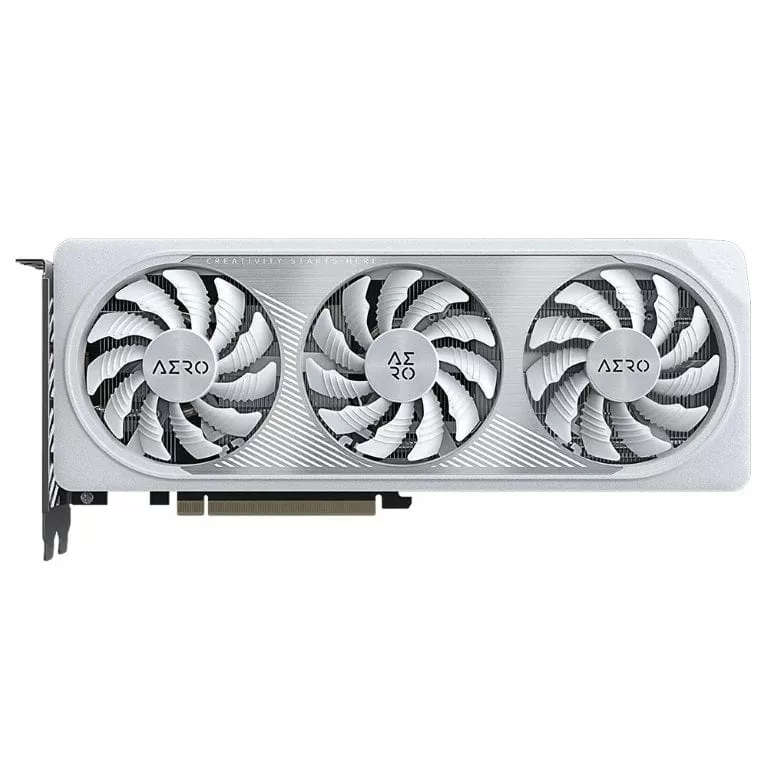

- WINDFORCE Cooling System
- RGB Fusion
- Dual BIOS

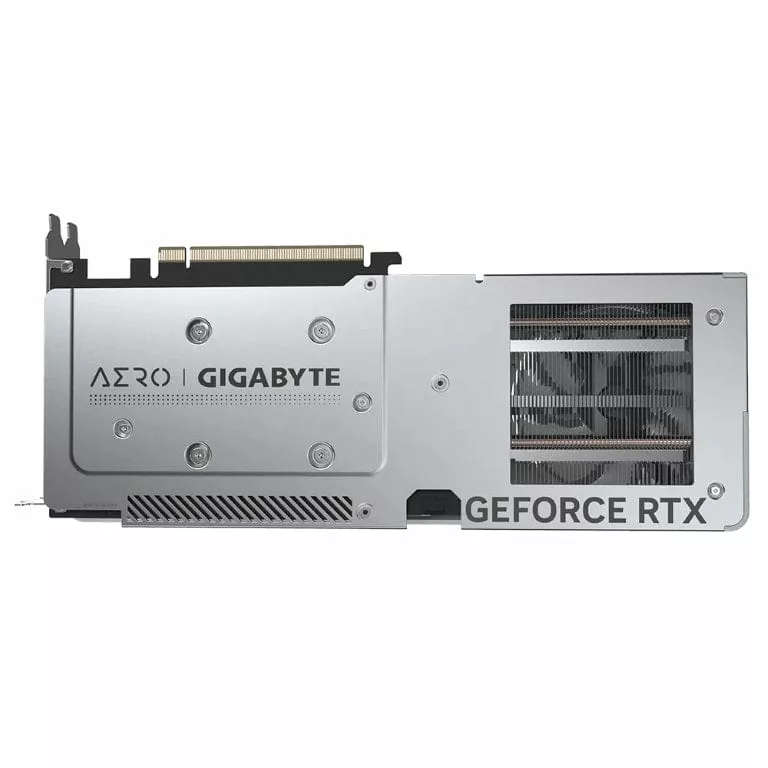

- Protection metal back plate
Specifications:
Graphics Processing: GeForce RTX 4060
Core Clock: 2550 MHz (Reference card: 2460 MHz)
CUDA® Cores: 3072
Memory Clock: 17 Gbps
Memory Size: 8 GB
Memory Type: GDDR6
Memory Bus: 128 bit
Card Bus: PCI-E 4.0
Digital max resolution: 7680x4320
Multi-view: 4
Card size: L=281 W=114 H=38 mm
PCB Form: ATX
DirectX: 12 Ultimate
OpenGL: 4.6
Recommended PSU: 450W
Power Connectors: 8 pin*1
