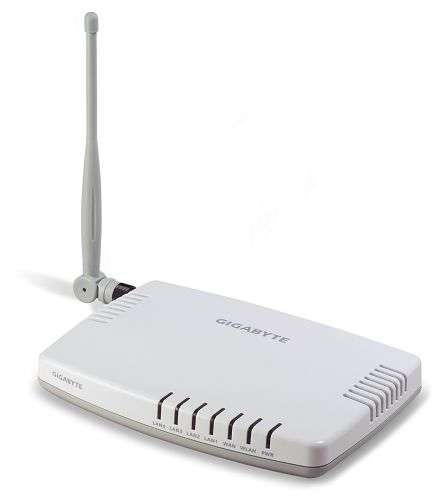

Gigabyte Aircruiser G Router (GN-BR01G)
The AirCruiser G Router is a smart choice for first-time wireless users, offering a complete range of wireless networking features that are ideally suited for smaller office and home environments.
The GNBR01G is fully compliant with 802.11b and 802.11g specifications so it accommodates wireless client connectivity with either wireless network technology.
It comes equipped with four 10/100Mbps Ethernet LAN ports that are auto-sensing and auto-MDIX, allowing the switch to automatically detect and configure the cable type connected to the port. To manage these connections the GN-BR01G has a built-in DHCP server to auto-assign IP addresses, plus SmartDHCP Technology exclusively from GIGABYTE ensures that the devices on your network will never be assigned a duplicate address.
The GN-BR01G supports several wireless security options including WEP encryption (64/128-bit), 802.1x Authentication and the wireless industry standard Wi-Fi Protected Access™ (WPA).
By employing the highest available wireless security measures, the AirCruiser G Router provides peace of mind that all wireless data and communication are protected. With GIGABYTE’s AirCruiser G Router deployed in your home or office network, you’ll be able to enjoy sharing a broadband Internet connection over a secure wireless network within minutes courtesy of the pre-loaded SmartSetup 3 router configuration software – and all up to 5 times faster than a 802.11b wireless LAN!
Specifications:
* IEEE Standards • IEEE 802.11g • IEEE 802.11b operating at 2.4GHz band
* Wireless Data Rate Up to 54 Mbps
* WAN/LAN Data Rate 10/100 Mbps
* Modulation Technology CCK, DBPSK, DQPSK, OFDM
* Frequency Range 2.412 to 2.483GHz
* Transmit Output Power 18dBm (max)
* Security • 64/128-bit WEP • WPA • 802.1x Authentication
* Web Management setup Yes
* Support DNS Relay Yes
* DHCP Server Yes
* Support Virtual Server Yes
* Support DMZ Yes
* Support PPPoE/Dynamic Yes
* Protocol support TCP/IP, NAT, UDP, ICMP
* UPnP Support Yes
* Multi-Languages Yes
* Support VPN Yes, pass-through (IPSec/PPTP)
* Physical Interface 1 WAN, 4 LAN
* Mechanical Type Desk & Wall-mount
* Power Supplier External - 7.5V/800mA
* Connector Type RJ45
* Auto MDI/MDIX Yes
* Antenna External Detachable 2 dBi
* LED Indicators Power/Status, WLAN, LAN*4, WAN*1
* Dimension 110*160*25mm
* Gross Weight 240+/-5g
* Certifications FCC, CE, DGT, SRMC
Contents include the following:
- Router plus antenna
- Power adaptor
- All manuals
- Installation CD
- Original Box
If there are any questions, please feel free to contact me via Q&A
