GIGABYTE AMD A520M-K for 3rd/4th/5th Generation AMD Ryzen™ processors; 2x Dual DDR4; 1x M2; HDM...

• CPU Support: AMD Socket AM4, support for: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 and Ryzen 3000 G-Series Processors

• Chipset: AMD A520

• Memory:
  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules

• Onboard Graphics: Integrated Graphics Processor

• Audio: Realtek Audio CODEC High Definition Audio

• LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps)

• Expansion Slots:
  1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
  1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

• Storage Interface:
  1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
  4 x SATA 6Gb/s connectors (Support for RAID 0, RAID 1, and RAID 10)

• USB:
  4 x USB 3.2 Gen 1 ports on the back panel
  2 x USB 3.2 Gen 1 ports available through the internal USB header
  6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

• Internal I/O Connectors:
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x system fan header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  1 x speaker header
  1 x Clear CMOS jumper
  1 x chassis intrusion header

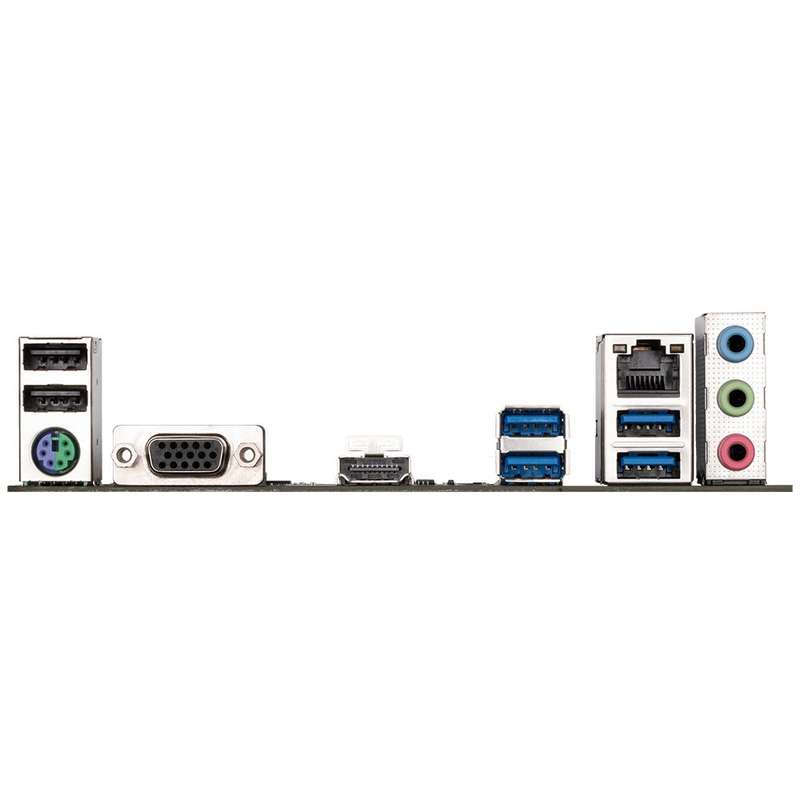

• Back Panel Connectors:
  1 x PS/2 keyboard/mouse port
  1 x D-Sub port
  1 x HDMI port
  4 x USB 3.2 Gen 1 ports
  2 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks

What's in the box
1 x Gigabyte A520M-K V2 AMD mATX Motherboard
