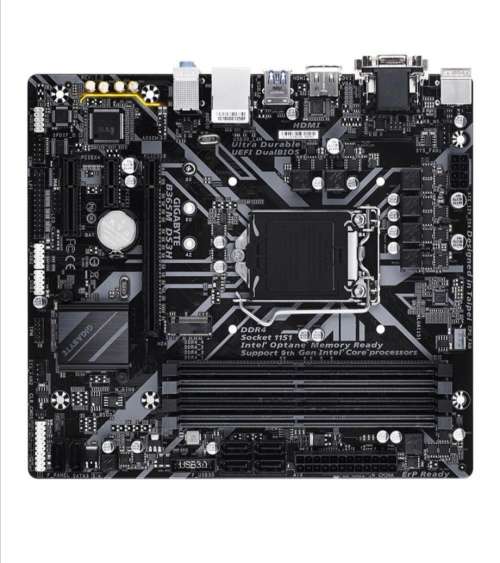

Gigabyte B365M DS3H Motherboard GA- B365M- DS3H

Gigabyte B365M DS3H Motherboard

GA- B365M- DS3H

Features:

- Supports 9th and 8th Gen Intel Core Processors

- Dual Channel Non- ECC Unbuffered DDR4

- New Hybrid Digital PWM Design

- High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

- Ultra- Fast M.2 with PCIe Gen3 X4 & SATA interface

- RGB FUSION supports RGB LED strips in 7 colors

- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

- CEC 2019 Ready, Save the Power as Easy as One Click

- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

- Anti- Sulfur Resistors Design

- Ultra Durable 15KV Surge LAN Protection

- Intel Optane Memory Ready

- GIGABYTE UEFI DualBIOS

Specifications:

CPU Support

- Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package

Chipset:

- Intel B365 Express Chipset

Memory Support:

- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory

- Dual channel memory architecture.

Support for DDR4 2666/2400/2133 MHz memory modules

Support for ECC Un- buffered DIMM 1Rx8/2Rx8 memory modules (operate in non- ECC mode)

Support for non- ECC Un- buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics:

Integrated Graphics Processor- Intel HD Graphics support:

- 1 x D- Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x DVI- D port, supporting a maximum resolution of 1920x1200@60 Hz

- The DVI- D port does not support D- Sub connection by adapter.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

- Support for HDMI 1.4 version and HDCP 2.2.

Support for up to 3 displays at the same time

Maximum shared memory of 1 GB

Audio:

- Realtek ALC887 codec

- High Definition Audio

- 2/4/5.1/7.1- channel

- To configure 7.1- channel audio, you have to use an HD front panel audio module and enable the multi- channel audio feature through the audio driver.

- Support for S/PDIF Out

LAN:

- Realtek GbE LAN chip (10/100/1000 Mbit)

Expansion Slots:

- 1 x PCI Express x16 slot, running at x16

- For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

- 1 x PCI Express x4 slot

- 1 x PCI Express x1 slot

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface:

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)

- 6 x SATA 6Gb/s connectors

- Support for RAID 0, RAID 1, RAID 5, and RAID 10

USB:

- 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors:

1 x 24- pin ATX main power connector

1 x 8- pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x RGB LED strip header

1 x M.2 Socket 3 connector

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC- TPM2.0_S module only)

1 x serial port header

1 x parallel port header

1 x Clear CMOS jumper

Back Panel Connectors:

1 x PS/2 keyboard/mouse port

1 x D- Sub port

1 x DVI- D port

1 x HDMI port

4 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ- 45 port

3 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring:

- Voltage detection

- Temperature detection

- Fan speed detection

- Overheating warning

- Fan fail warning

- Fan speed control

BIOS:

- 2 x 128 Mbit flash

- Use of licensed AMI UEFI BIOS

- Support for DualBIOS

- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Bundled Software:

- Norton Internet Security (OEM version)

Operating System:

- Support for Windows 10 64- bit

Form Factor:

- Micro ATX Form Factor; 22.6cm x 20.5cm

Unique Features:

- Support for APP Center

- 3D OSD

- @BIOS

- AutoGreen

- Cloud Station

- EasyTune

- Easy RAID

- Fast Boot

- Game Boost

- ON/OFF Charge

- Platform Power Management

- RGB Fusion

- Smart Backup

- Smart Keyboard

- Smart TimeLock

- Smart HUD

- Smart Survey

- System Information Viewer

- USB Blocker

- Support for Q- Flash

- Support for Xpress Install

What's in the box

1x Motherboard
