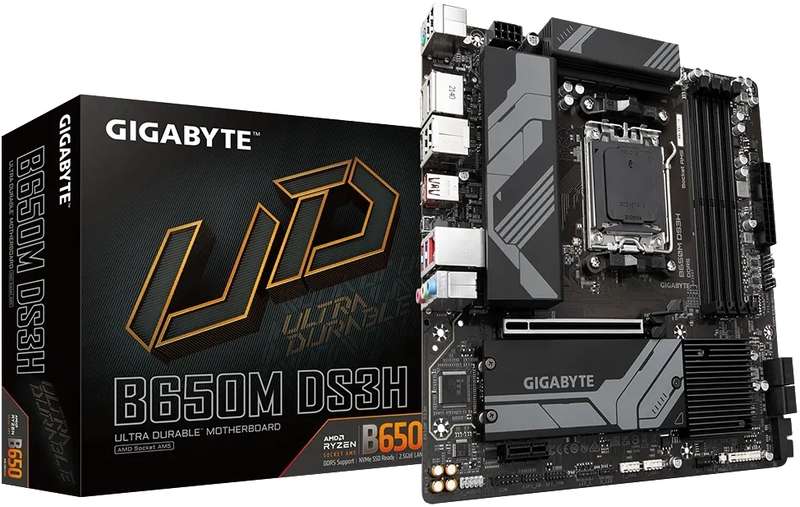

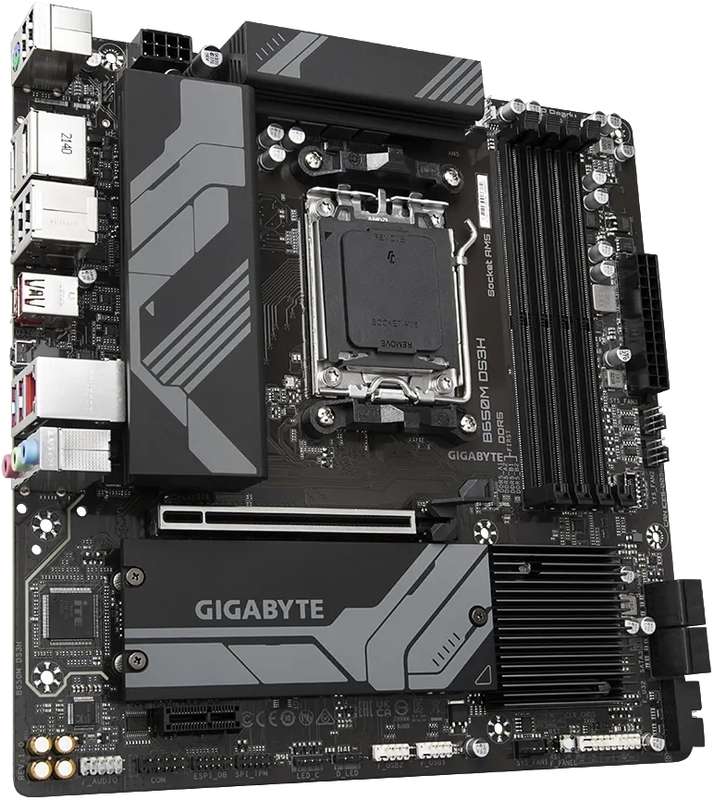

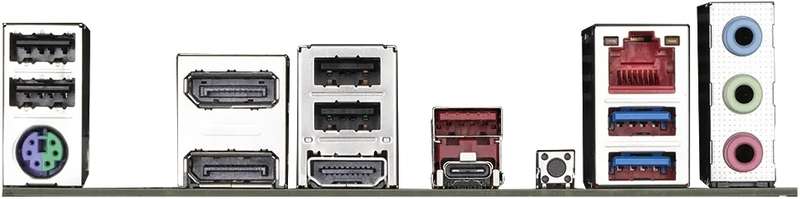

Gigabyte B650M DS3H AMD Ryzen 7000 Series Socket AM5 mATX Motherboard, AMD B650 Chipset, 4 x DDR5 DIMM Memory slots, 2 x DisplayPorts supporting a Maximum Resolution of 3840X2160@144 Hz, 1x HDMI Port, High Definition audio, Realtek 2.5GbE LAN Chip, 1x PCI Express x16 slot supporting PCI-e 4.0 and running at x16, 1x PCI Express x1 slot supporting PCI-e 3.0 and running at x1, 2x M.2 connectors, 4x SATA 6Gb/s connectors, USB Type-C Port with USB 3.2 Gen 2 support, USB 3.2 Gen 2 Type-A Ports, USB 2.0 Ports, 1x PS/2 Keyboard/Mouse Port, 1x Q-Flash Plus button, 3x audio jacksOverview:B650M DS3H (rev. 1.0)AMD B650 ChipsetAMD Socket AM5:Supports AMD Ryzen 7000 Series ProcessorsUnparalleled Performance:Direct 6+2+1 Phases Digital VRM SolutionDual Channel DDR5:4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module SupportSuperSpeed Storage:2*PCIe 4.0 x4 M.2 ConnectorsAdvanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & 25110 M.2 SSD PerformancePCIe x16 EZ-Latch with Quick Release & Screwless DesignFast Networks:2.5GbE LANExtended Connectivity:2*DP, HDMI, 2*USB-C 10Gb/sSmart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics CardFeatures:UNPARALLELED PERFORMANCEWith the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.Thermal DesignGIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.CONNECTIVITY2.5GbE LANFront & Rear USB-C 10Gb/sHi-Fi AudioCONNECTIVITYGIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage.PERSONALIZATIONRGB FUSIONUEFI BIOSGIGABYTE Control CenterMulti-KeyPERSONALIZATIONGIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.ULTRA DURABLEDIY FriendlyQ-Flash PlusULTRA DURABLEGIGABYTE Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.Specifications:CPU 1. AMD Socket AM5, support for: AMD Ryzen 7000 Series ProcessorsChipset 1. AMD B650Memory 1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT / s memory modules2. 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory3. Dual channel memory architecture4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO ) and Extreme Memory Profile (XMP) memory modulesOnboard Graphics Integrated Graphics Processor:1. 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)Support for up to 3 displays at the same timeAudio 1. Realtek Audio CODEC2. High Definition Audio3. 2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.LAN 1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Expansion Slots CPU:1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)Chipset:1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)Storage Interface CPU:1. 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)Chipset:1. 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devicesUSB CPU:1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panelCPU + USB 2.0 Hub:1. 4 x USB 2.0/1.1 ports on the back panelChipset:1. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header2. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)3. 4 x USB 2.0/1.1 ports available through the internal USB headersInternal I/O Connectors 1. 1 x 24-pin ATX main power connector2. 1 x 8-pin ATX 12V power connector3. 1 x CPU fan header4. 3 x system fan headers5. 1 x addressable LED strip header6. 1 x RGB LED strip header7. 2 x M.2 Socket 3 connectors8. 4 x SATA 6Gb/s connectors9. 1 x front panel header10. 1 x front panel audio header11. 1 x USB Type-C header, with USB 3.2 Gen 2 support12. 1 x USB 3.2 Gen 1 header13. 2 x USB 2.0/1.1 headers14. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)15. 1 x serial port header16. 1 x reset button17. 1 x reset jumper18. 1 x Clear CMOS jumperBack Panel Connectors 1. 4 x USB 2.0/1.1 ports2. 1 x PS/2 keyboard/mouse port3. 2 x DisplayPorts4. 1 x HDMI port5. 1 x USB 3.2 Gen 2 Type-A port (red)6. 1 x USB Type-C port, with USB 3.2 Gen 2 support7. 1 x Q-Flash Plus button8. 1 x RJ-45 port9. 2 x USB 3.2 Gen 1 ports10. 3 x audio jacksI/O Controller 1. iTE I/O Controller ChipH/W Monitoring 1. Voltage detection2. Temperature detection3. Fan speed detection4. Fan fail warning5. Fan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS 1. 1 x 256 Mbit flash2. Use of licensed AMI UEFI BIOS3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features 1. Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.2. Support for Q-Flash3. Support for Q-Flash PlusBundled Software 1. Norton Internet Security (OEM version)2. LAN bandwidth management softwareOperating System 1. Support for Windows 11 64-bit2. Support for Windows 10 64-bitForm Factor 1. Micro ATX Form Factor, 24.4cm x 24.4cm
