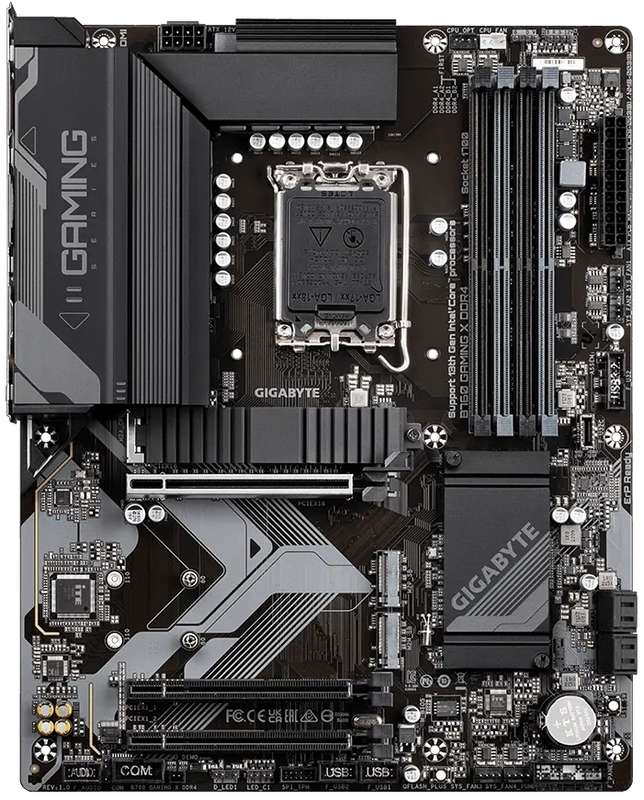

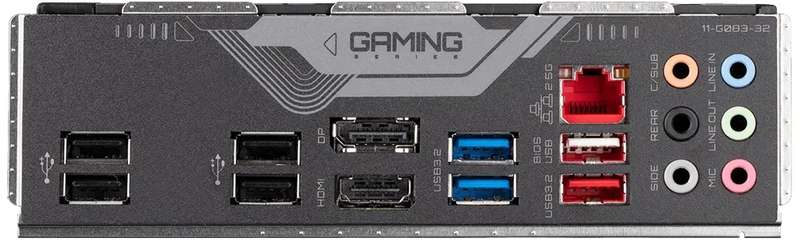

Gigabyte B760 Gaming X DDR4 Intel 12th / 13th Gen Socket LGA 1700 ATX Motherboard, Intel B760 Express Chipset, 4 x DDR4 DIMM Memory slots, 1 x DisplayPort, 1x HDMI Port, Realtek 2.5GbE LAN Chip, 1x PCI Express x16 slot supporting PCI-e 4.0 and running at x16, 2x PCI Express x16 slots supporting PCI-e 3.0 and running at x1, 4x SATA 6Gb/s connectors, 3x M.2 connectors, USB 3.2 Gen 2 Type-A Port, USB 3.2 Gen 1 Ports, USB 2.0/1.1 Ports, USB Type-C Header with USB 3.2 Gen 2 support, 1x Q-Flash Plus Button, 6 x audio jacksOverview:B760 GAMING X DDR4 (rev. 1.0)Intel B760 ChipsetIntel Socket LGA 1700:Support 13th and 12th Gen Series ProcessorsUnparalleled Performance:Hybrid 8+1+1 Phases Digital VRM SolutionDual Channel DDR4:4*DIMMs XMP Memory Module SupportNext Generation Storage:3*PCIe 4.0 x4 M.2 ConnectorsAdvanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power Stability & M.2 SSD PerformanceEZ-Latch:PCIe 4.0x16 Slot with Quick Release DesignFast Networks:2.5GbE LANExtended Connectivity:Front USB-C 10Gb/s, DP, HDMISmart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOPQ-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics CardFeatures:UNPARALLELED PERFORMANCEWith the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.THERMALFully Covered MOSFET HeatsinkM.2 Thermal GuardSmart Fan 6OUTSTANDING THERMAL DESIGNGIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.CONNECTIVITY2.5GbE LANFront USB-C10Gb/sHi-Fi AudioGIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.PERSONALIZATIONRGB FUSIONUEFI BIOSGIGABYTE Control CenterMulti-KeyGIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.ULTRA DURABLEDIY FriendlyQ-Flash PlusGIGABYTE Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE moSpecifications:CPU 1. LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors2. L3 cache varies with CPUChipset 1. Intel B760 Express ChipsetMemory 1. Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT / s memory modules2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory3. Dual channel memory architecture4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules6. Support for Extreme Memory Profile (XMP) memory modulesOnboard Graphics Integrated Graphics Processor-Intel HD Graphics support:1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.32. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)Audio 1. Realtek Audio CODEC2. High Definition Audio3. 2/4/5.1/7.1-channel4. Support for S/PDIF Out* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.LAN 1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Expansion Slots CPU:1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)Storage Interface CPU:1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)2. 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesUSB Chipset:1. 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel3. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)4. 1 x USB 2.0/1.1 port on the back panelChipset+2 USB 2.0 Hubs:1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)Internal I/O Connectors 1. 1 x 24-pin ATX main power connector2. 1 x 8-pin ATX 12V power connector3. 1 x CPU fan header4. 1 x CPU fan/water cooling pump header5. 3 x system fan headers6. 1 x system fan/water cooling pump header7. 2 x addressable LED strip headers8. 2 x RGB LED strip headers9. 3 x M.2 Socket 3 connectors10. 4 x SATA 6Gb/s connectors11. 1 x front panel header12. 1 x front panel audio header13. 1 x S/PDIF Out header14. 1 x USB Type-C header, with USB 3.2 Gen 2 support15. 1 x USB 3.2 Gen 1 header16. 2 x USB 2.0/1.1 headers17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)18. 1 x serial port header19. 1 x Q-Flash Plus button20. 1 x reset button21. 1 x reset jumper22. 1 x Clear CMOS jumperBack Panel Connectors 1. 1 x USB 3.2 Gen 2 Type-A port (red)2. 2 x USB 3.2 Gen 1 ports3. 5 x USB 2.0/1.1 ports4. 1 x DisplayPort5. 1 x HDMI port6. 1 x RJ-45 port7. 6 x audio jacksI/O Controller 1. iTE I/O Controller ChipH/W Monitoring 1. Voltage detection2. Temperature detection3. Fan speed detection4. Water cooling flow rate detection5. Fan fail warning6. Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.BIOS 1. 1 x 256 Mbit flash2. Use of licensed AMI UEFI BIOS3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features 1. Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.2. Support for Q-Flash3. Support for Q-Flash PlusBundled Software 1. Norton Internet Security (OEM version)2. LAN bandwidth management softwareOperating System 1. Support for Windows 11 64-bit2. Support for Windows 10 64-bitForm Factor 1. ATX Form Factor, 30.5cm x 24.4cm
