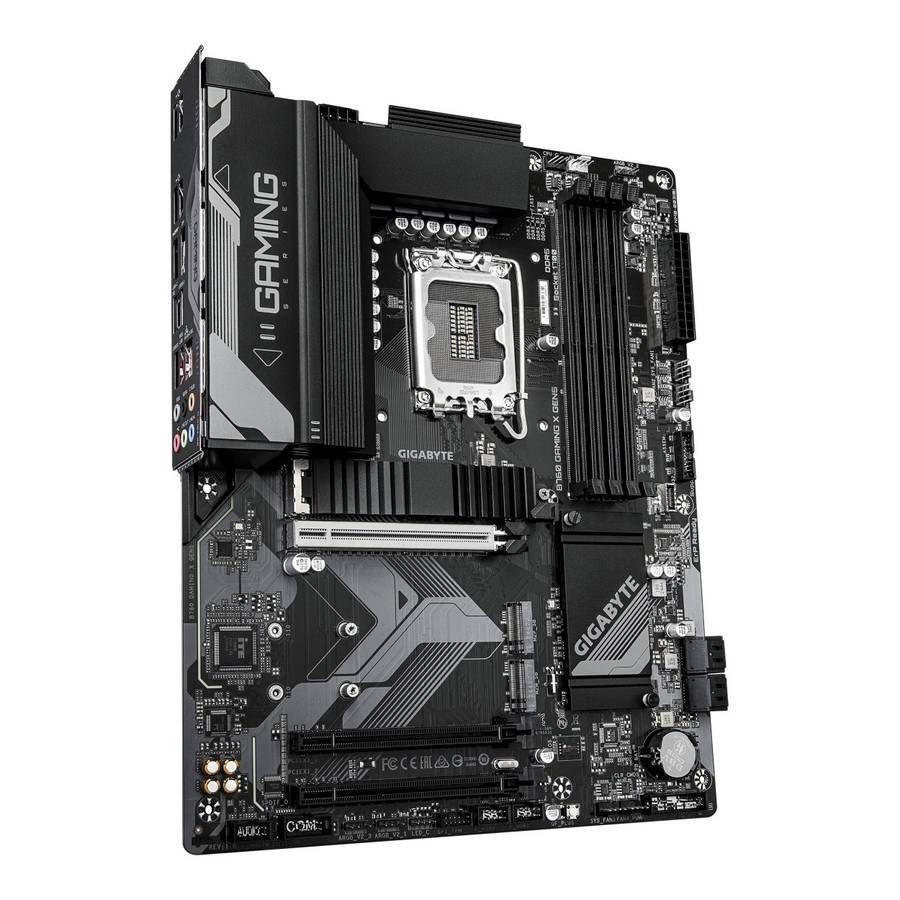

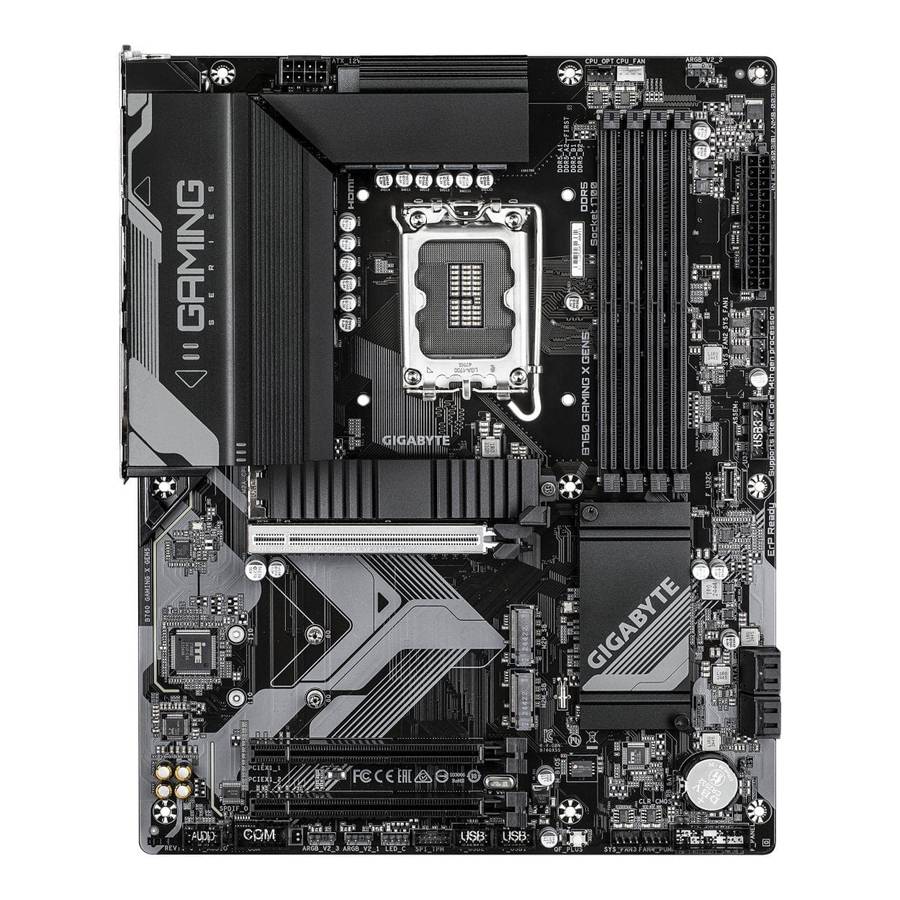

Gigabyte B760 Gaming X Gen5 Intel LGA 1700 ATX Motherboard
Features:
- PCIe Gen5 Performance : Perfect Sync to Win
- Supports Intel® Core™ 14th/ 13th/12 processors
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- EZ-Latch : PCIe 5.0x16 Slot with Quick Release Design
- PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support
- Unparalleled Performance : Hybrid 8+1+1 Phases VRM Solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- Fast Networks : 2.5GbE LAN
- Extended Connectivity : Front USB-C® 10Gb/s, DP, HDMI
- Next Generation Storage : 3*PCIe 4.0 x4 M.2 Connectors
- Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card
Express to PCIE5 Performance
The new GIGABYTE B760 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
Fully Covered Thermal Design
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience.
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GIGABYTE motherboards are engineered to endure and excel.
Unlock DDR5 Performance
GIGABYTE is offering a tested and proven platform with extreme memory performance boost.
Optimal Power
Maximum Turbo Boost and overclocking performance
Technical Specifications:
CPU: LGA1700 socket, supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® processors
Chipset: Intel® B760 Express Chipset
Memory: 4 x DDR5 DIMM slots, up to 256 GB, dual channel. Supports DDR5 7600(O.C.)—4800/4000 MT/s, ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode), non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, and XMP memory modules
Onboard Graphics: Intel® HD Graphics support. 1 x DisplayPort, max resolution 4096x2304-60Hz, DisplayPort 1.2, HDCP 2.3; 1 x HDMI, max resolution 4096x2160-60Hz, HDMI 2.1, HDCP 2.3
Audio: Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out supported
LAN: Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots: 1 x PCIe x16 (CPU, PCIe 5.0 x16), 2 x PCIe x16 (Chipset, PCIe 3.0 x1)
Storage Interface: 3 x M.2 (1 CPU, 2 Chipset, PCIe 4.0 x4/x2, type 22110/2280); 4 x SATA 6Gb/s (RAID 0/1/5/10)
USB: 1 x USB Type-C® (USB 3.2 Gen 2, internal header); 1 x USB 3.2 Gen 2 Type-A (red, back panel); 1 x USB Type-C® (USB 3.2 Gen 1, back panel); 3 x USB 3.2 Gen 1 (1 back, 2 internal); 1 x USB 2.0/1.1 (back panel); 8 x USB 2.0/1.1 (4 back, 4 internal)
Internal I/O Connectors: 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 1 x CPU fan/water cooling pump, 3 x system fan, 1 x system fan/water cooling pump, 3 x addressable RGB Gen2 LED, 1 x RGB LED, 3 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x S/PDIF Out, 1 x USB Type-C® (USB 3.2 Gen 2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x TPM header, 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper

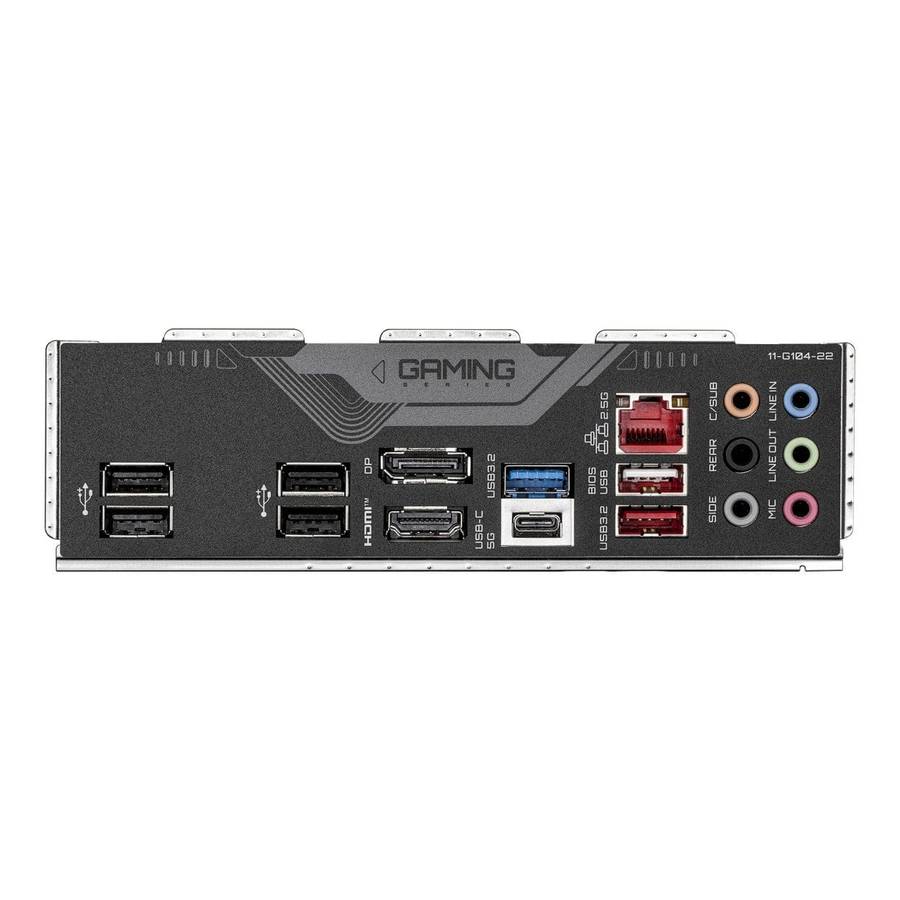

Back Panel Connectors: 1 x USB 3.2 Gen 2 Type-A (red), 1 x USB Type-C® (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1, 5 x USB 2.0/1.1, 2 x antenna connectors (2T2R), 1 x DisplayPort, 1 x HDMI, 1 x RJ-45, 6 x audio jacks
I/O Controller: iTE® I/O Controller Chip
H/W Monitoring: Voltage, temperature, fan speed, water cooling flow rate, fan fail warning, fan speed control
BIOS: 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software: Norton® Internet Security (OEM)
Operating System: Windows 11 64-bit, Windows 10 64-bit
Form Factor: ATX, 30.5 x 24.4 cm
What's in the Box:
- 1 x B760 Gaming X Gen5 Motherboard
- 1 x I/O Shield
- 1 x User Manual
