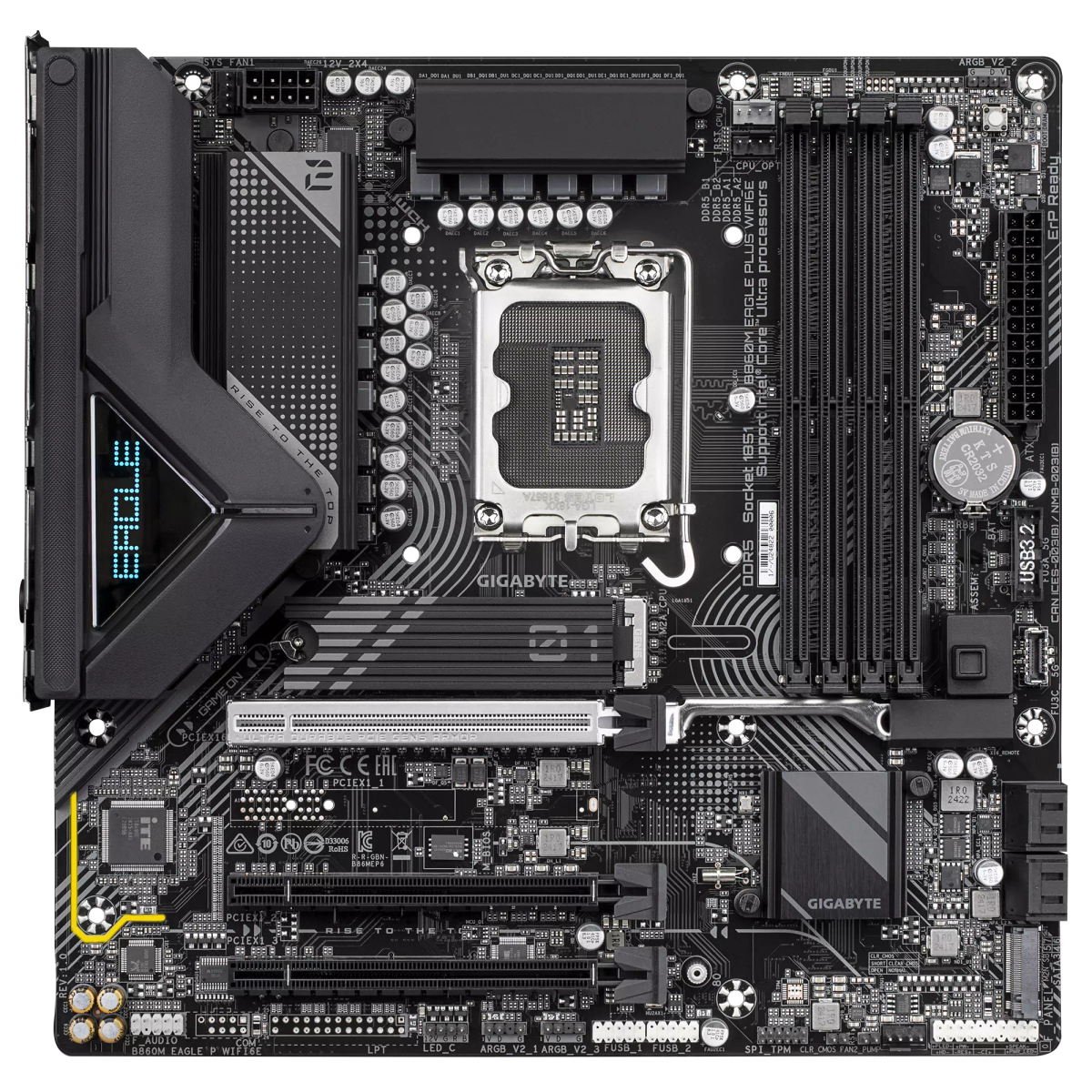

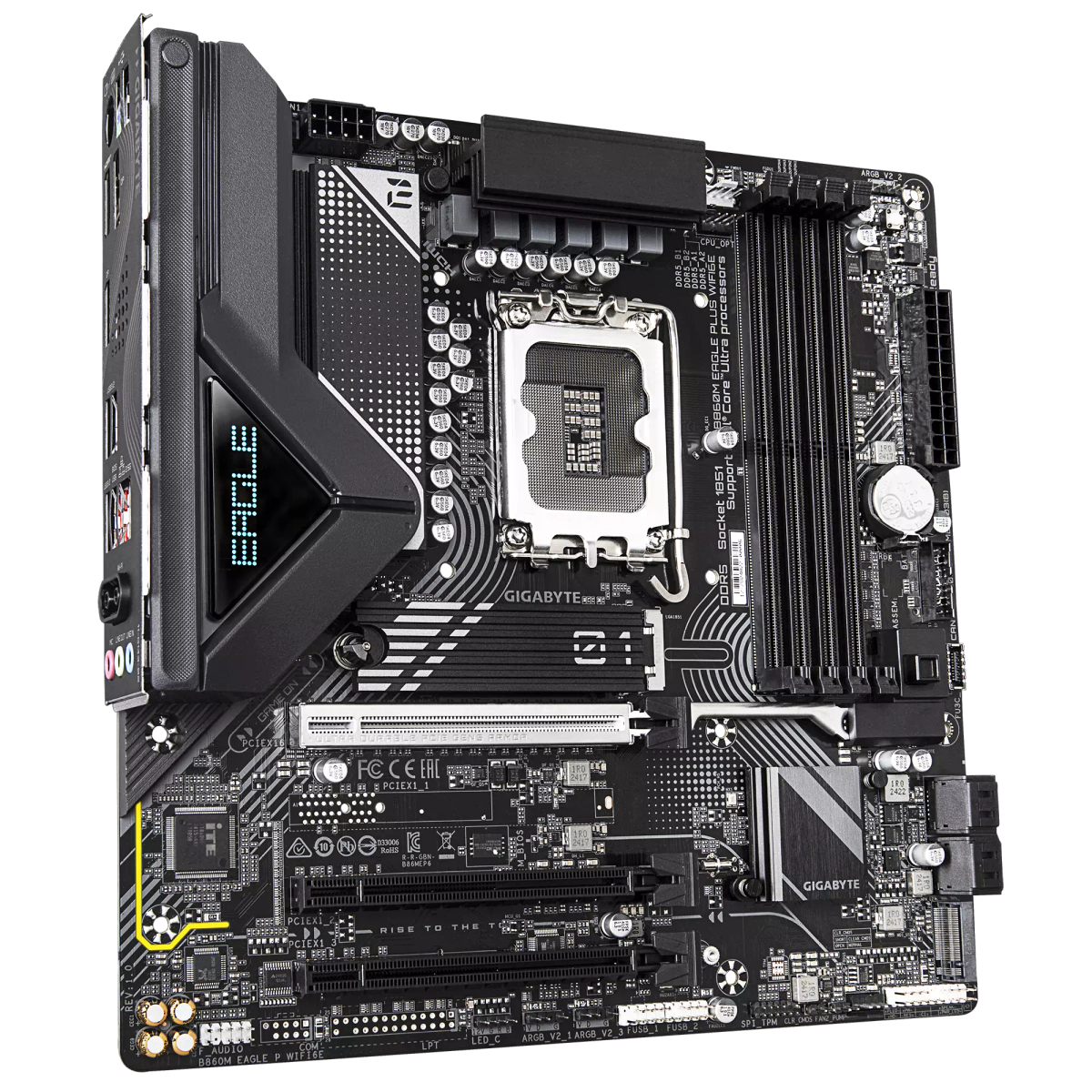

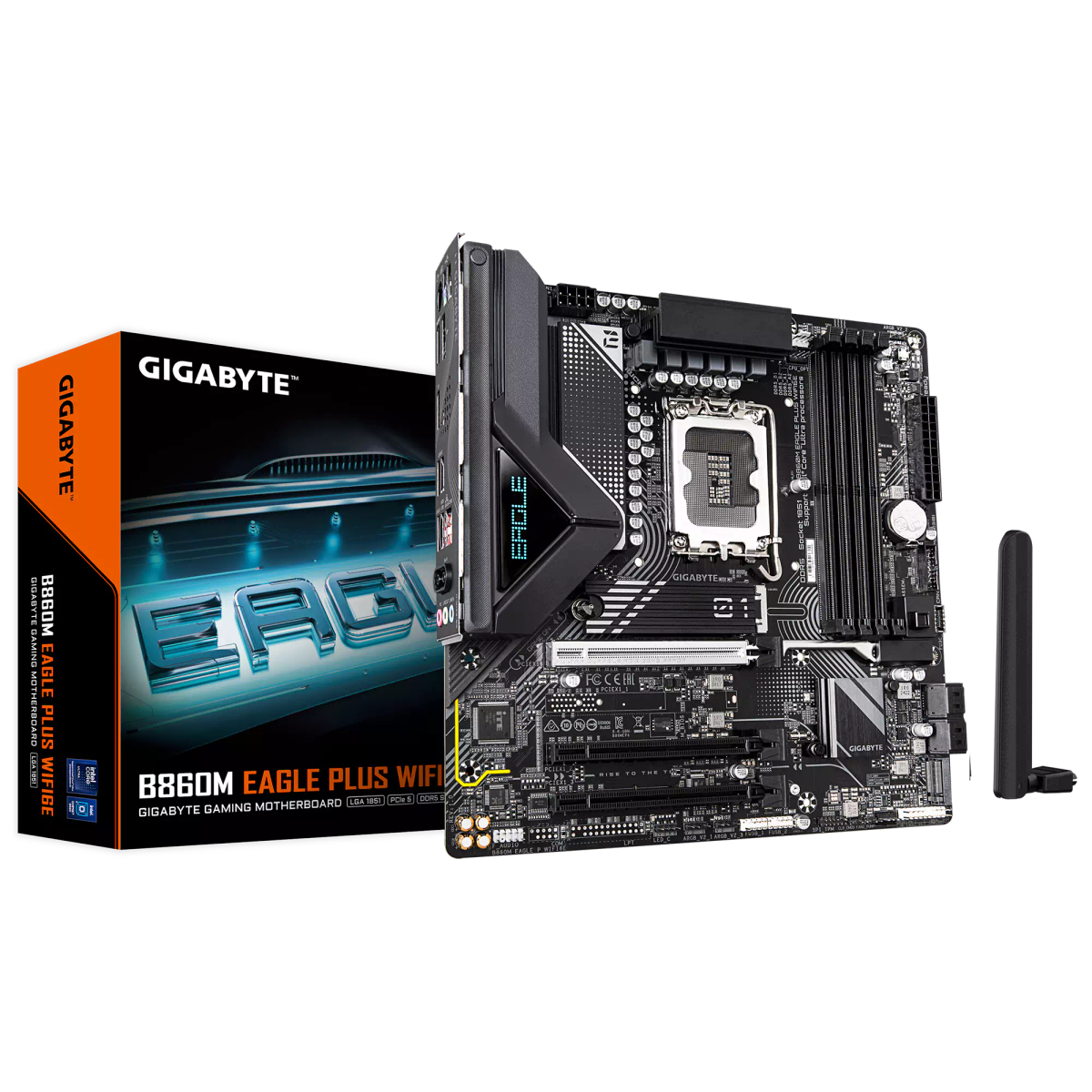

Gigabyte B860M Eagle Plus WiFi - 4x DDR5, 2x M.2, LGA1851, mATX
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
The B860M EAGLE PLUS WIFI6E delivers an impressive combination of performance, connectivity, and value in a compact Micro-ATX form factor. Built for Intel's latest Core Ultra processors, it supports high-speed DDR5 memory, PCIe 5.0 graphics, integrated Wi-Fi 6E, and 2.5GbE networking, giving users a fast and future-ready platform for gaming, productivity, and everyday computing.
Designed with long-term reliability in mind, the motherboard features efficient cooling, multiple M.2 storage options, and a user-friendly layout that simplifies building and upgrading your system. Whether you're assembling a capable gaming PC or a versatile home workstation, the B860M EAGLE PLUS WIFI6E provides dependable performance and excellent overall value.
Key Features
| ARGB Headers | 3x Addressable RGB Gen2 |
|---|---|
| Audio Channels | 7.1 |
| Audio Chipset | Realtek Audio |
| Audio Ports | 1x Line-Out<br />1x Mic-in<br />1x Line-In |
| Bluetooth | Bluetooth 5.3 |
| Brand | Gigabyte |
| Chipset | Intel B860 |
| Color | Black |
| CPU Socket | LGA1851 |
| Dimensions | 244mm x 244mm |

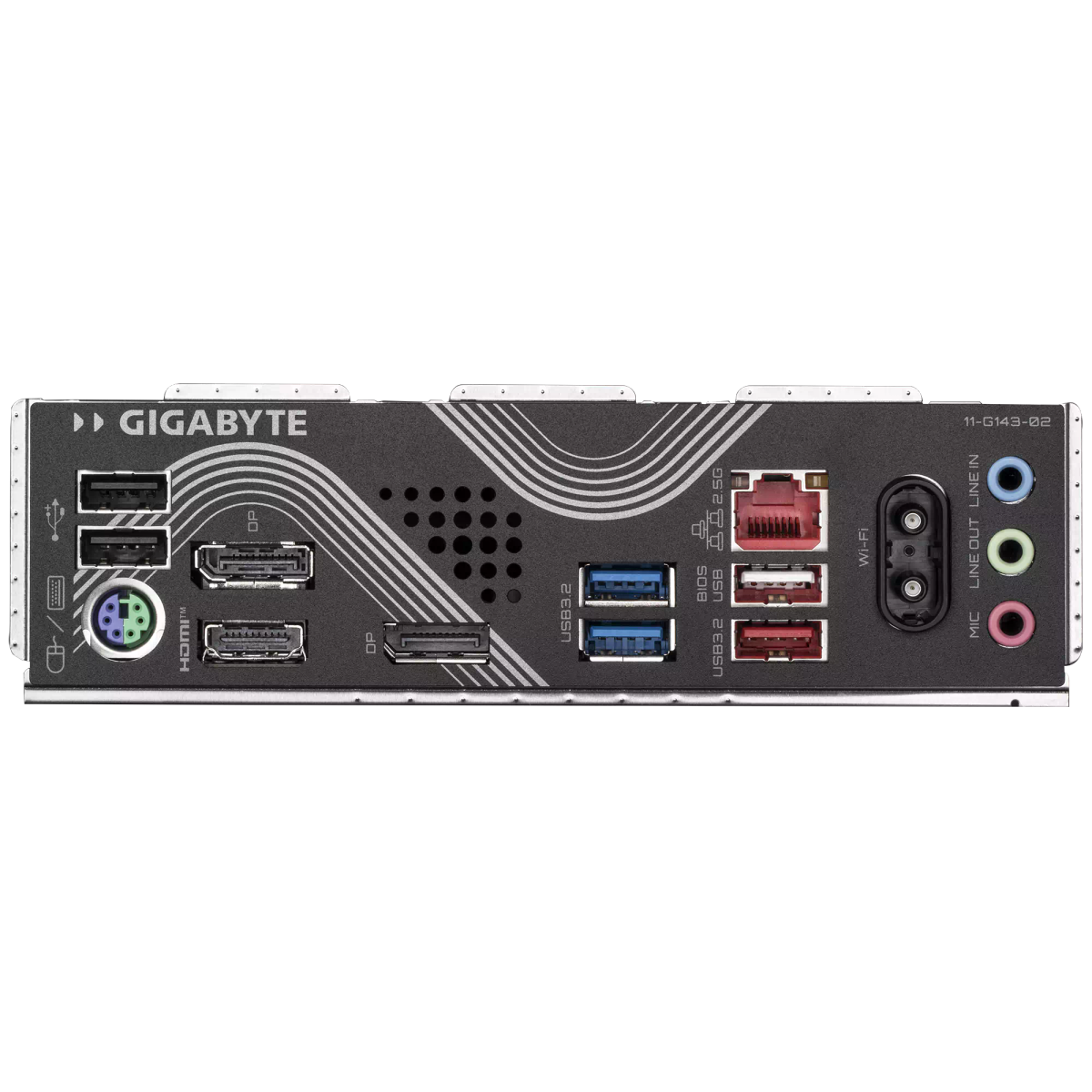

| Display Ports | 2x Display Port<br />1x HDMI |
| Dual Channel Support | Yes |
| Fan Headers | 1x CPU fan header<br />1x CPU fan/water cooling pump header<br />1x system fan header<br />1x system fan/water cooling pump header |
| Form Factor | Micro ATX |
| LAN | Realtek 2.5GbE LAN |
| LAN Ports | 1x RJ45 |
| M.2 Slots | 1x PCIe 5.0<br />1x PCIe 4.0 |
| Maximum Capacity | 256GB (64GB per module) |
| Memory Overclocking | Intel XMP |
| Memory Slots | 4x DIMM |
| Memory Speed | Up to DDR5-9066(OC)/6400 |
| Memory Type | DDR5 |
| Model | B860M EAGLE PLUS WIFI6E |
| Onboard Graphics | Intel HD Graphics |
| PCIe x1 Slots | N/A |
| PCIe x16 Slots | 1x PCIe 5.0 x16<br />2x PCIe 4.0 x1 |
| Power Connector | 1x 24-pin ATX<br />1x 8-pin ATX 12V |
| RAID Support | SATA: RAID 0/1/5/10 |
| Requirements | CPU with integrated graphics required |
| RGB Headers | 1x RGB |
| S/PDIF Support | No |
| SATA Ports | 4x SATA 6Gb/s |
| Serial / LPT Header | N/A |
| Supported CPUs | Intel Core Ultra Series 2 |
| TPM Header | GC-TPM2.0 SPI V2 |
| USB Headers | 1x USB 3.2 Gen 1 Type-C<br />1x USB 3.2 Gen1<br />2x USB2.0/1.1 |
| USB Ports | 1x USB 3.2 Gen 2 Type-A<br />2x USB 3.2 Gen 1 Type-A<br />3x USB 2.0 Type-A |
| Video Outputs | 2x Display Port<br />1x HDMI |
| Warranty | 3 Years |
| WiFi | Wi-Fi 6E |
| WiFi Antenna | Yes - WIFI EZ-Plug |
