Parts Supplied
--------------------

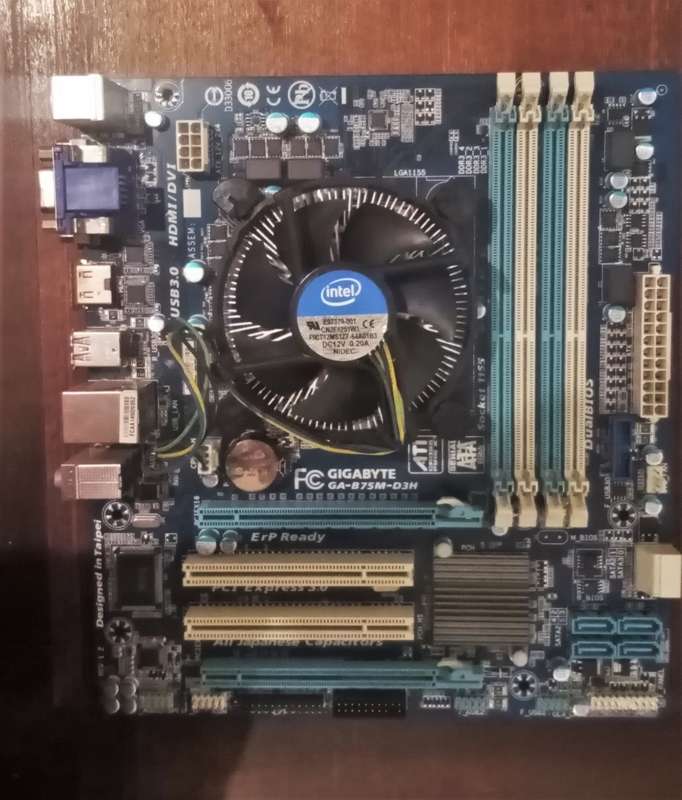

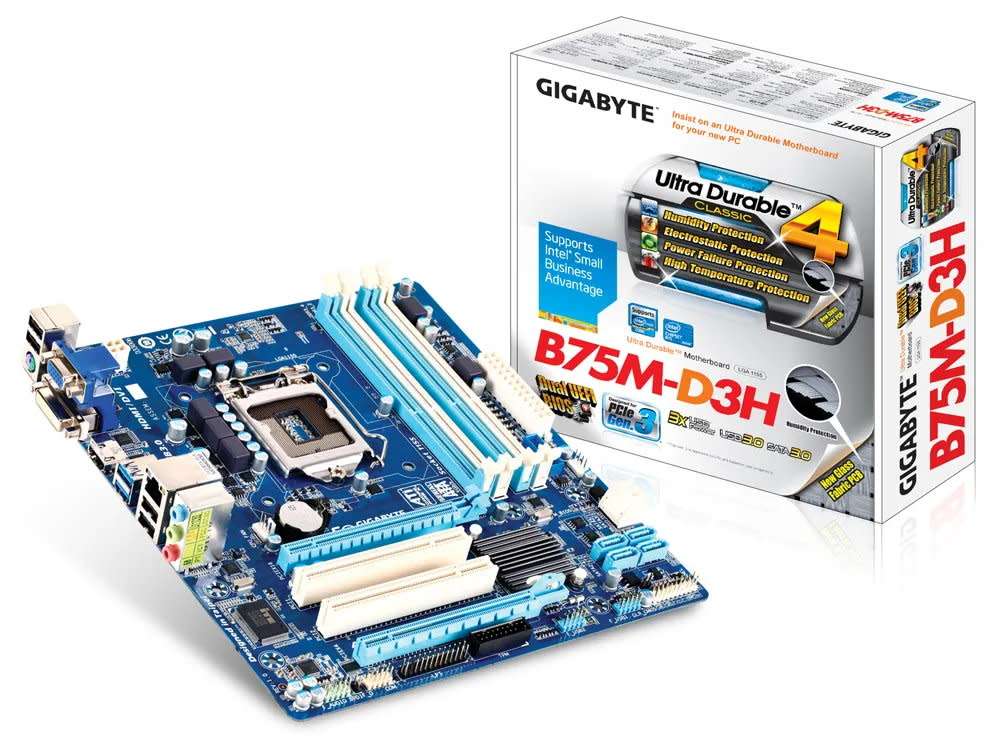

Gigabyte GA-B75M-D3H (Rev 1.0) Micro ATX Motherboard + Backplate
Intel i3 2125 CPU
8gb DDR3 1333Mhz Memory
PCI LAN Card (Replaces Faulty LAN port on the motherboard)
Original BOX / User Manual (NOT SUPPLIED)
***
PLEASE NOTE : The motherboard, memory & CPU is testing and working 100% except there is a fault on the motherboard LAN RJ45 port. If you do not use LAN for internet or networking this will have no effect on you. If you wish to use LAN a separate LAN card has been supplied which has been testing and works!
***
PLEASE NOTE : This system was testing on Windows 7 and 8.1 and is working perfectly. I DO NOT know if this system will work for Windows 10.
Motherboard Operating System Support : Microsoft® Windows 7/8
Drivers for Windows 7, 8.1 & 10 are available from the Gigabyte website.
https://www.gigabyte.com/Motherboard/GA-B75M-D3H-rev-10/support#support-dl-driver
Drivers for Windows 11 are not available.
Please do not checkout/order items if you do not intend to buy and make the payment within 48 hours as this avoids all unnecessary problems related to Seller Non-Compliance. Ask any questions FIRST if unsure about anything and I will come back to you as soon as possible. If you don't ask any questions it will be assumed you understand and accept everything. All items carry a one month guarantee and refund will be given after the item is returned to seller.
***
Micro ATX Form Factor 24.4cm x 22.0cm
CPU Intel CPU i3 2125 Sandy Bridge LGA1155
The i3 has an Integrated GPU (Intel HD Graphics 3000)
Intel CPU i3 2125 2nd Gen. Sandy Bridge is supplied with the motherboard.
CPU - The fastest chips that can be installed are LGA1155 3rd Gen. Ivy Bridge
(Core i7-3770, Core i5-3570, Core i3-3250)
To compare your current CPU Speed to this CPU use www.cpu-monkey.com and input your CPU and this one (i3 2125 ) and scroll down to "Average performance in benchmarks" and look at "Single core" and "Multi core" performance.

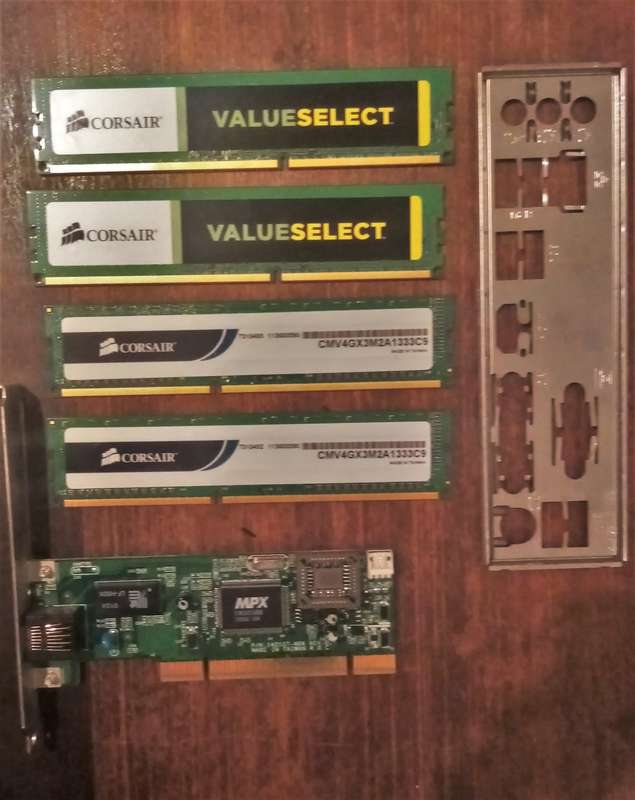

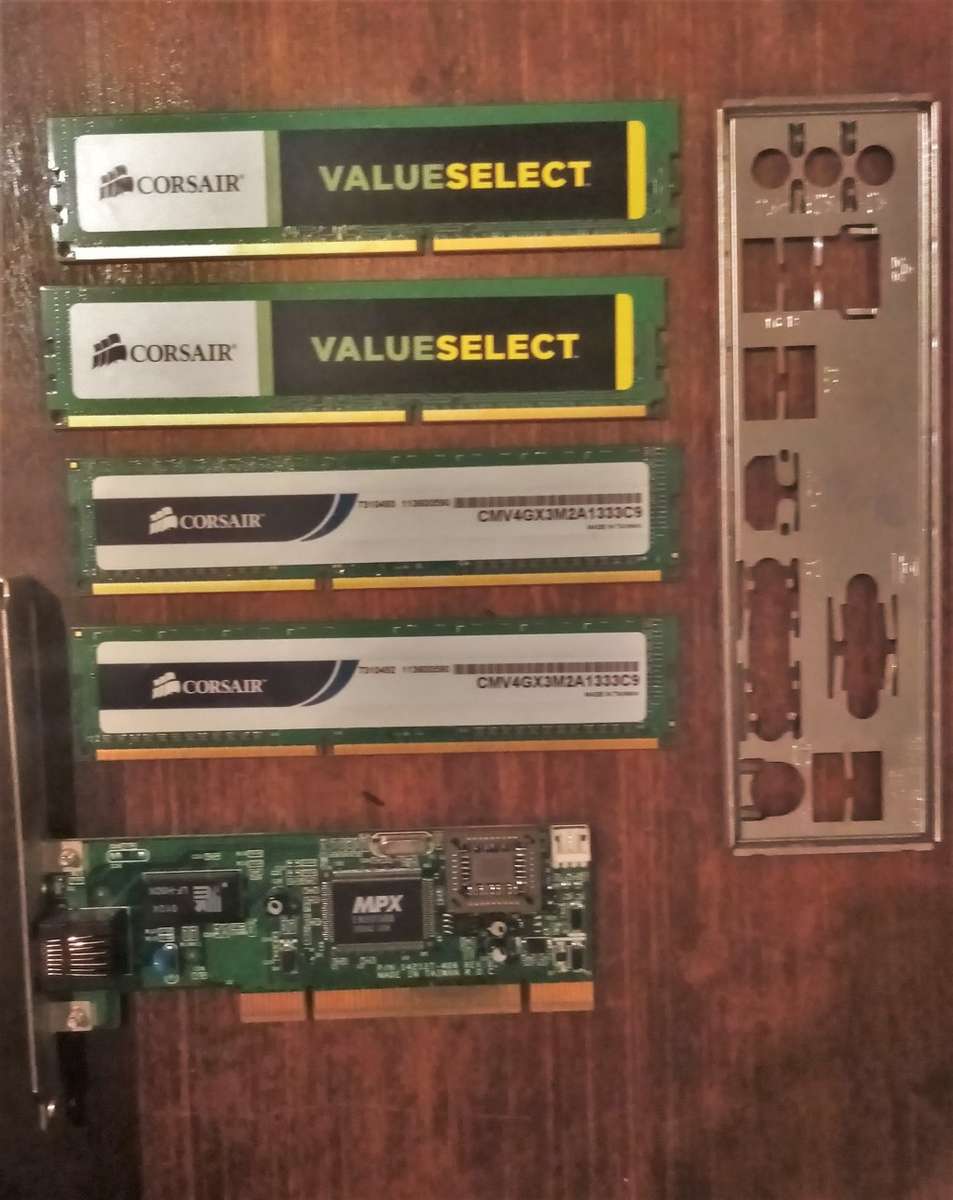

Memory Supplied with Motherboard : 8GB DDR3 1333Mhz Corsair Ram (2GB x 4)
Memory 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
Maximum Memory Speeds DDR3 1600/1333/1066 MHz memo modules
Dual channel memory architecture
UEFI BIOS has a 3TB+ HDD boot up capability
PCI Express Gen 3.0 support
Monitor ports D-Sub (VGA), HDMI, DVI interface maximum resolution of 1920x1200
Intel® B75 Chipset
Audio : Realtek ALC887 codec
Support for S/PDIF Out
LAN : 1 x Realtek GbE LAN chip (10/100/1000 Mbit) (NOT WORKING)
LAN : An PCI LAN card has been supplied (WORKING)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
2 x PCI slots
Internal I/O Connectors
1 x SATA 6Gb/s connector
5 x SATA 3Gb/s connectors

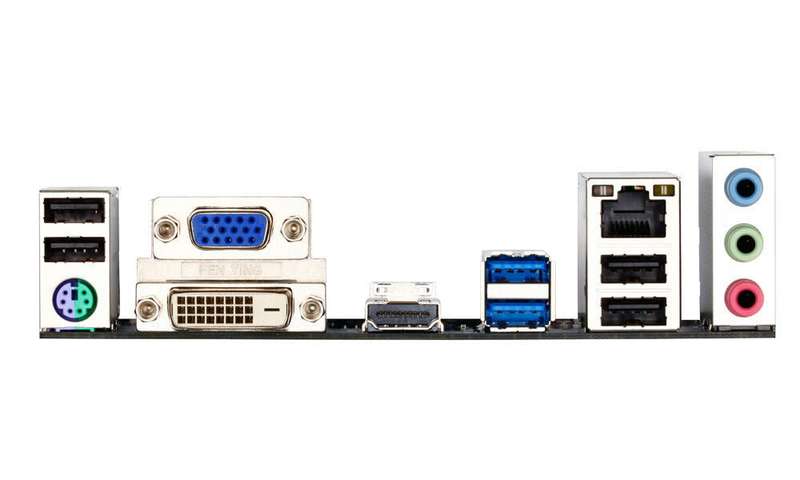

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
2 x USB 3.0/2.0 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)
USB
Up to 8 USB 2.0/1.1 ports (4 ports on back panel, 4 ports via internal USB headers)
Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports via internal USB headers)
