Gigabyte GA-BX2000 Pentium II 400Mhz 256mb 3DFX Voodoo Banshee

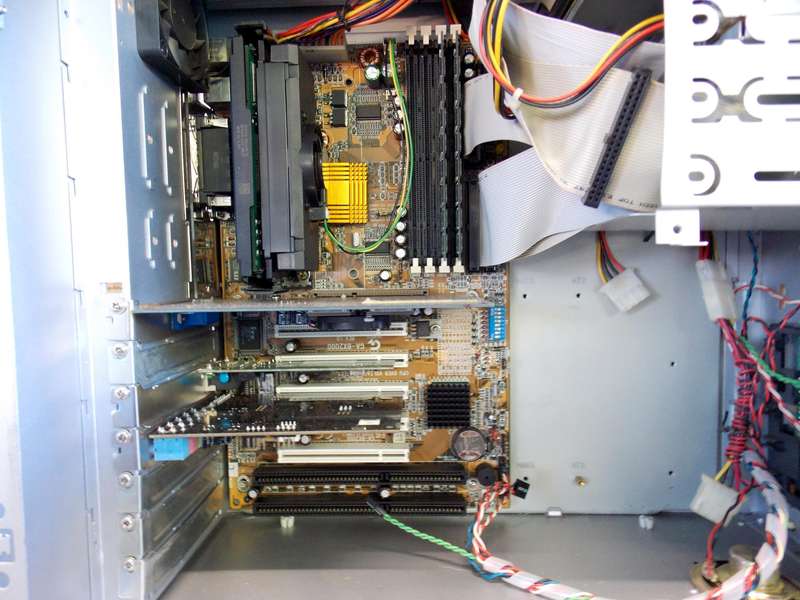

Motherboard Specs:

• Manufacturer: Gigabyte
• Model: GA-BX2000 Revision 1.0
• Intel 440BX Chipset
• 4x Memory Slots (Supports SDR 100Mhz Memory)
• 1x Floppy interface
  2x IDE interface
  1x PS/2 keyboard
  1x PS/2 mouse
  1x Parallel
  1x SB_Link
  2x Serial
  2x USB 1.x
  2x 16-bit ISA
  1x 3.3V AGP
  5x 32-bit PCI

CPU Specs:

• Intel Pentium II 400Mhz Slot 1
• 512kb Cache 100Mhz Bus

Memory Specs:

• 128mb PC100 SDR Modules x2
• Total Memory: 256mb

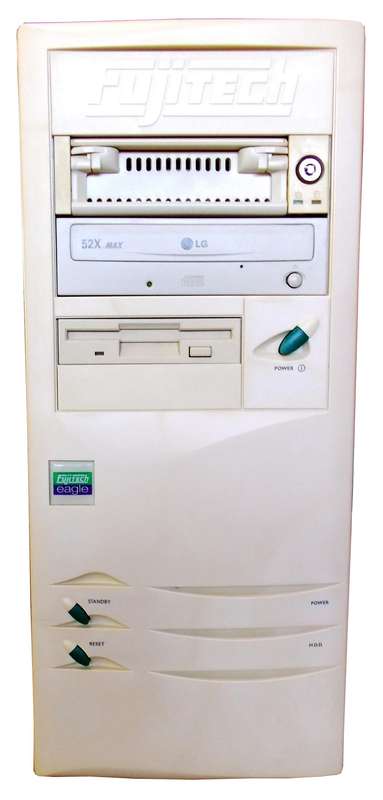

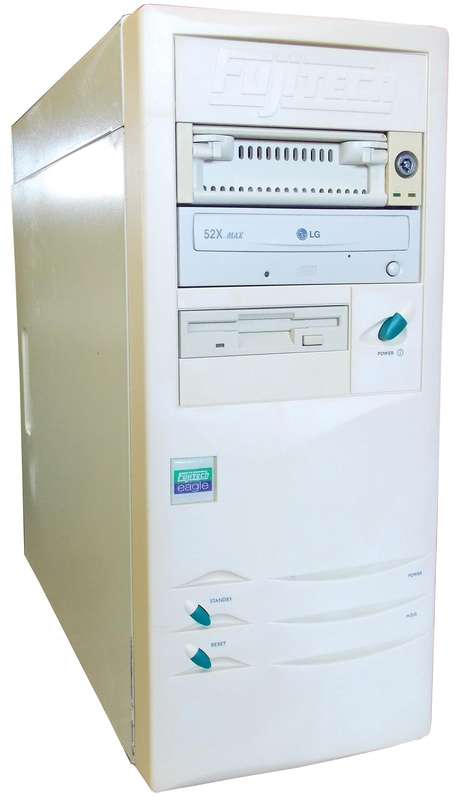

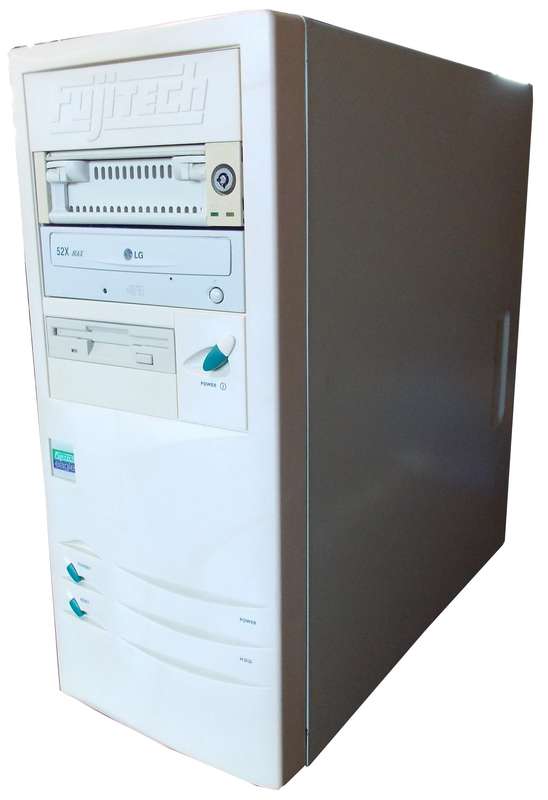

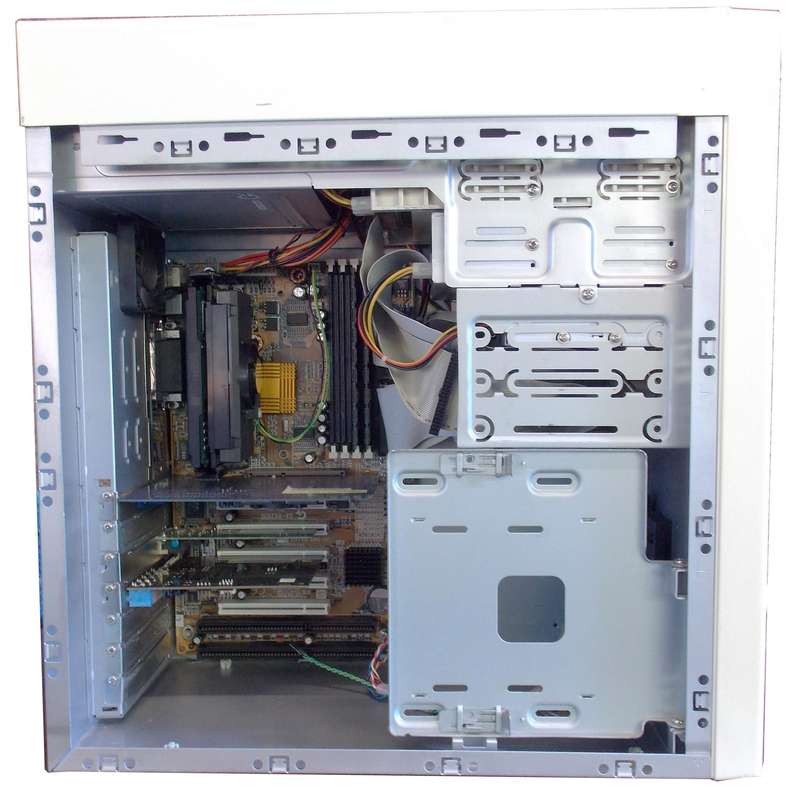

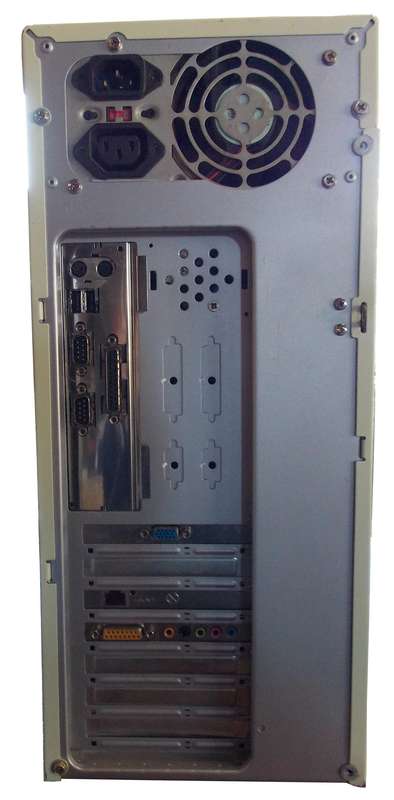

Case Specs:

• Fujitech Eagle ATX Tower
• Dimensions: 43cm Height 19cm Width 42cm Length
• 3-Bay 5.25 inch 2-Bay 3.5 Inch
• 1x Internal 3.5 inch for HDD
• Movable side bracket panel fits a 3.5 inch HDD
• Power, Stand By and Reset Switches
• Power LED (Molex Powered) HDD LED
• Side Panel and Cover are removable
• 1x 5.25 inch Drive Bay Cover included

Power Supply Specs:

• FSP 300w ATX 20-Pin Power Supply
• Includes 4-Pin CPU and P1 Connectors

Network Card Specs

• Realtek RTL8139 PCI

Sound Card Specs:

• Genius Sound Maker Value 5.1 PCI
• CMI 8738 Chipset C3DX
• Sound Blaster Compatible running under Windows 9x
• NOT Sound Blaster compatible in Native DOS

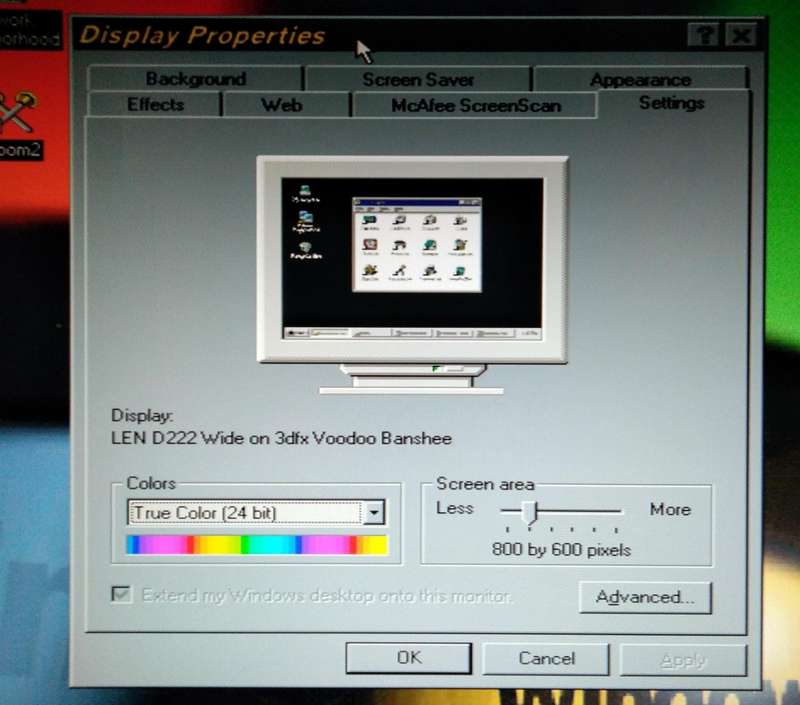

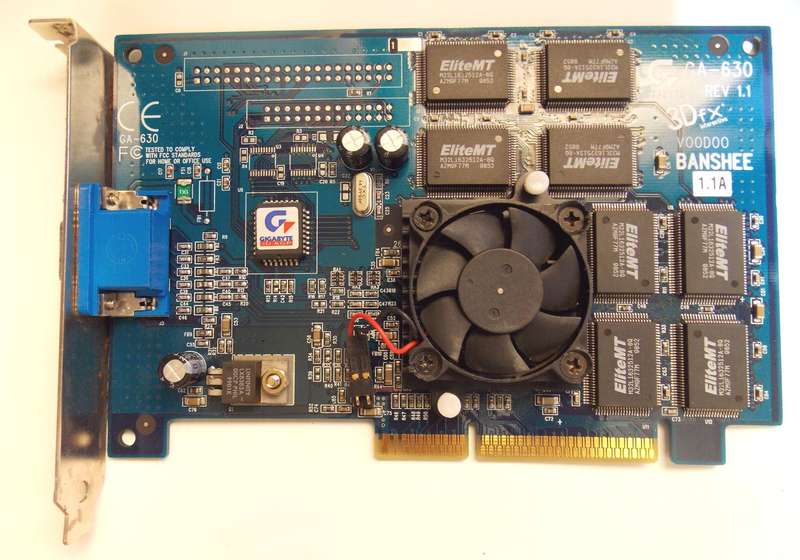

Video Card Specs

• Gigabyte Model: GA-630
• Chipset: 3DFX Voodoo Banshee
• 16mb RAM
• AGP 1x
• Revision 1.1A
• Core Clock: 110Mhz
• Memory Clock: 130Mhz

Hard Drive Specs:

• Western Digital Protege WD200EB-00CPFO
• Capacity: 20GB 5400RPM 2mb Cache
• Installed in a 5.25 inch HDD Enclosure
• Lock/Unlock Key is included

CD Drive Specs:

• LG CD Reader IDE 52x

Floppy Drive Specs:

• Samsung 1.44mb 3.5 Inch Floppy Drive

NOTES:

• Case Panel and Cover are a very tight fit, difficult to remove and install
• The WD Hard Drive is in perfect working order but it is very noisy

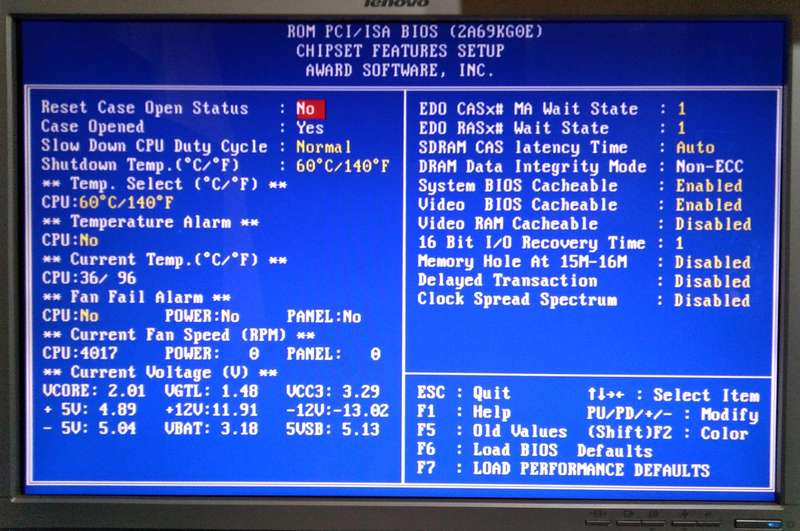

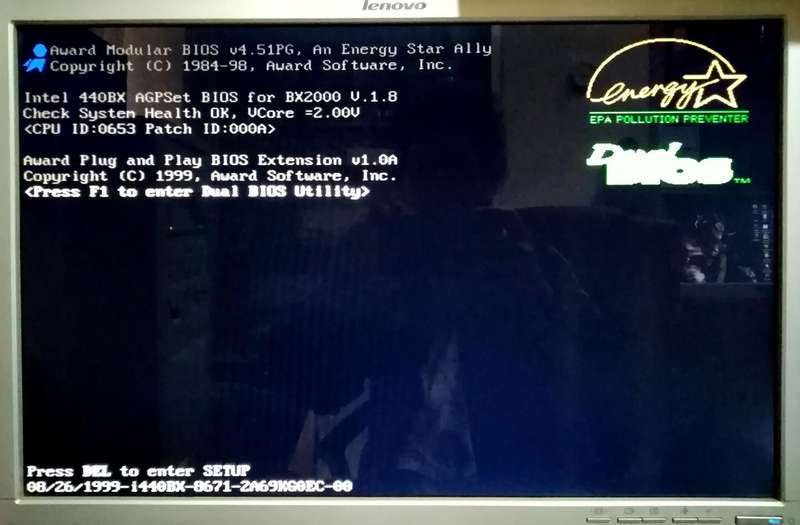

• Motherboard has a Dual BIOS system, if the battery is removed it produces a Hi/Low beep error until the system is re-initialised and rebooted

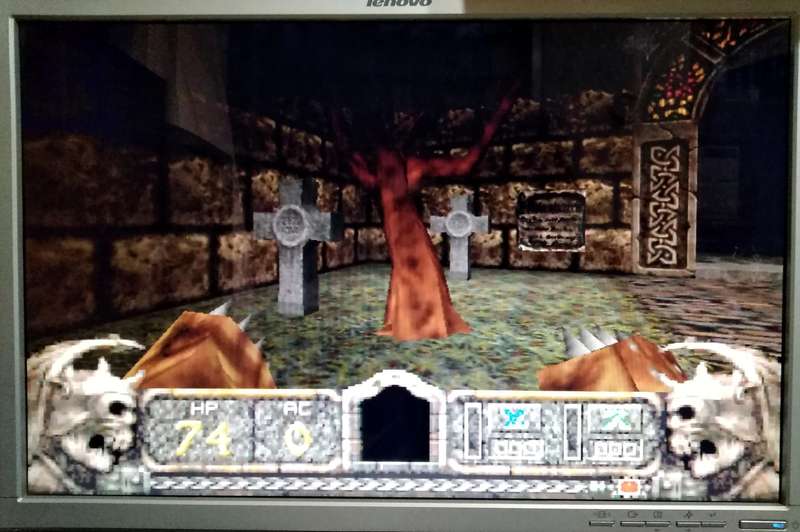

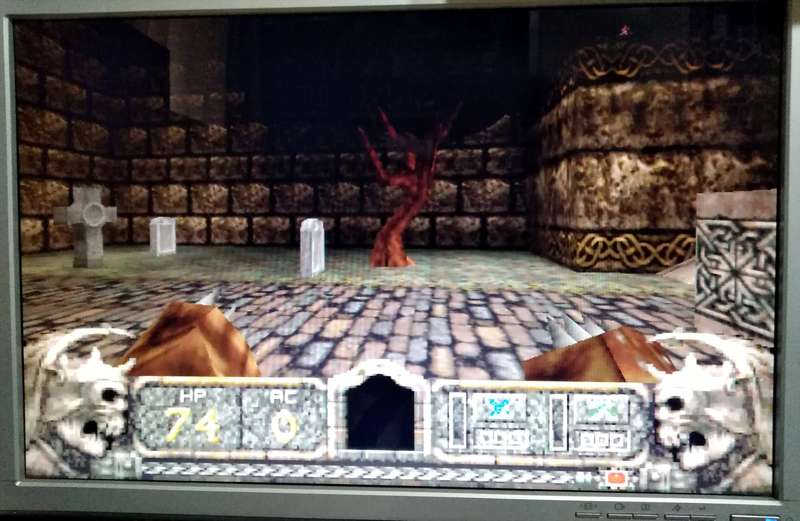

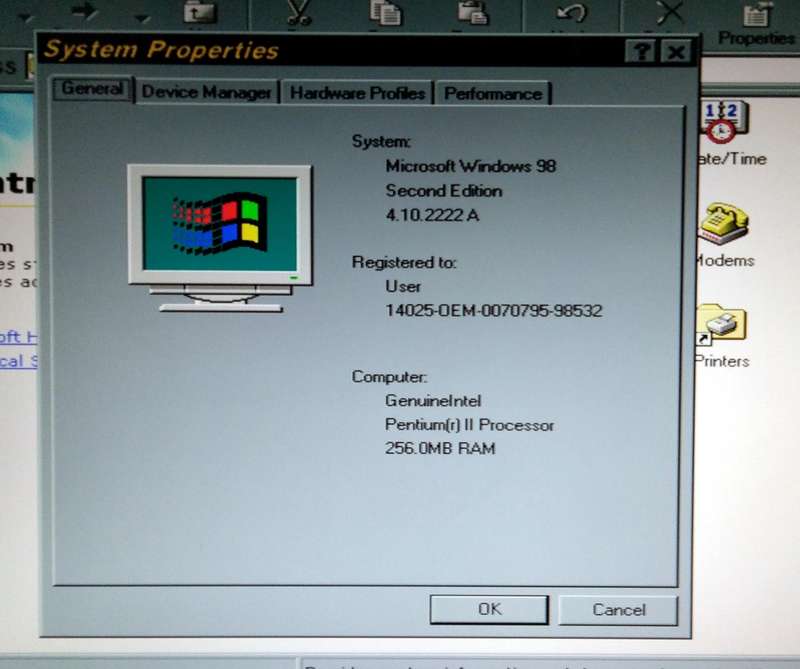

• Windows 98SE installed with MS Plus and 2 games are setup (DOOM II for DOS and Hexen II for Windows) to Showcase the Video Card

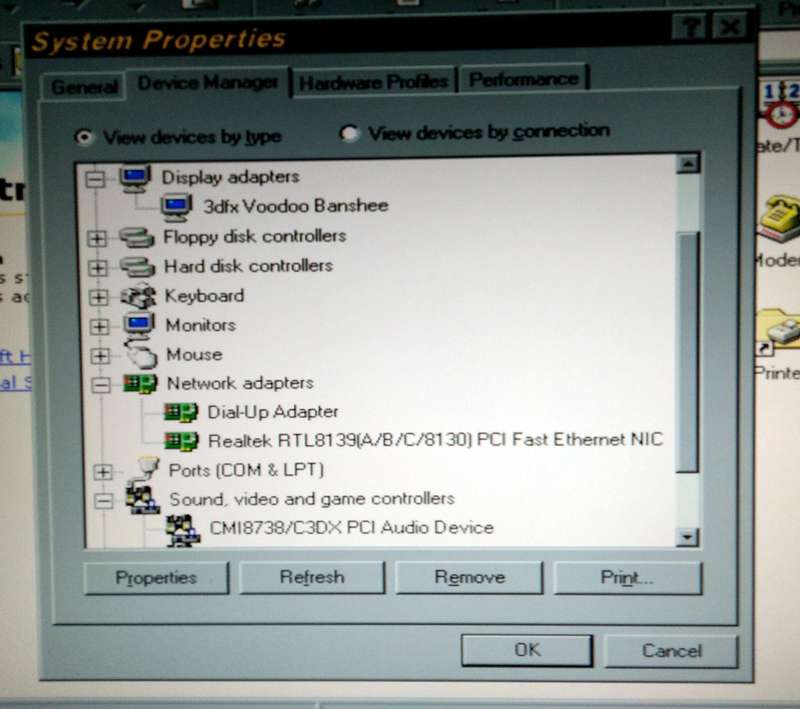

• Drivers are included on the hard drive in the Drivers Folder
• Network setup for File Sharing, if Internet is required you have to set the TCP/IP to Auto in Control Panel-Network

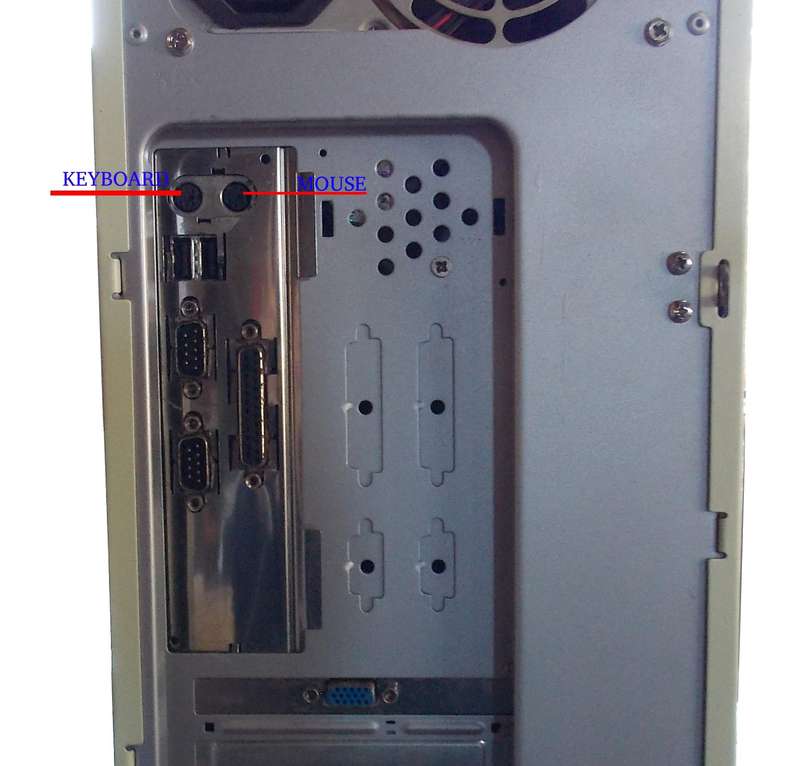

• IMPORTANT to Note the Keyboard and Mouse connections as indicated in the image
