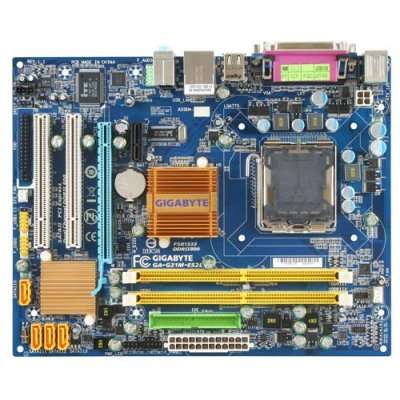

Gigabyte GA-G31M + Intel Prescott 3.06Ghz + 1GB DDR-667 Ram

Motherboard Specs:

CPU Specs

Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/ Intel® Pentium® processor Extreme Edition/Intel® Pentium® D processor/ Intel® Pentium® 4 processor Extreme Edition/Intel® Pentium® 4 processor/ Intel® Celeron® processor in the LGA 775 package
(Go to GIGABYTE's website for the latest CPU support list.)
L2 cache varies with CPU

Front Side Bus 1333/1066/800 MHz FSB

Chipset North Bridge: Intel® G31 Express Chipset
South Bridge: Intel® ICH7

Memory 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
Dual channel memory architecture
Support for DDR2 800/667 MHz memory modules


Onboard Graphics Integrated in the North Bridge

Audio Realtek ALC883 codec
High Definition Audio
2/4/5.1/7.1-channel (Note)
Support for S/PDIF Out
Support for CD In

LAN RTL 8111C chip (10/100 Mbit)

Expansion Slots 1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots

Storage Interface South Bridge:
1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
iTE IT8718 chip:
1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB Integrated in the South Bridge
Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x floppy disk drive connector
1 x IDE connector
4 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x CD In connector
1 x S/PDIF Out header
2 x USB 2.0/1.1 headers
1 x chassis intrusion header
1 x power LED header

Back Panel Connectors 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x parallel port
1 x serial port
1 x D-Sub port
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller iTE IT8718 chip

• Frequency: 3066mhz
• Bus speed: 533mhz
• Clock Multiplier: 23
• Core: Prescott
• Core Stepping: G1
• Transistors: 125 million
• Data Width: 64-Bit
• Level 1 Cache 16kb
• Level 2 Cache 1mb 8 way set associative cache with error-correction code
  • MMX
  • SSE
  • SSE2
  • SSE3
  • Extended Memory 64 Technology (EM64T)
  • Execute Disable bit capability
  • Hyper-Threading technology
  • Bus frequency is 133 MHz. Because the processor uses Quad Data Rate bus the effective bus speed is 533 MHz
