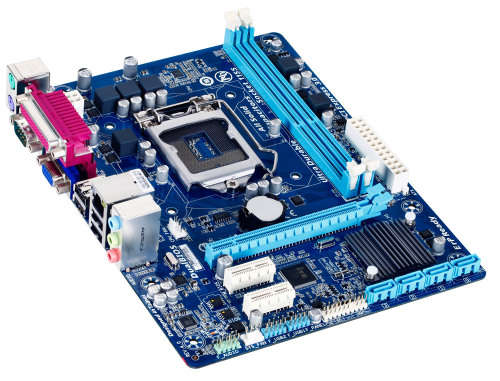

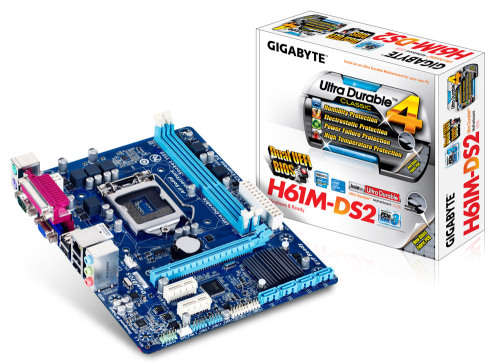

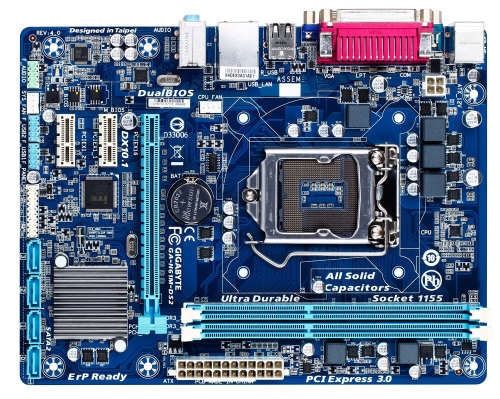

GIGABYTE GA-H61M-DS2 (rev. 4.0) Motherboard

GIGABYTE GA-H61M-DS2 (rev. 4.0) Motherboard

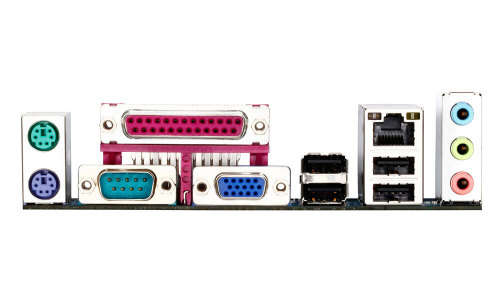

- The motherboard has been tested and its working 100%. Comes with back panel (i/o shield) and 2 sata cables

Specs :

CPU - Support for Intel® Core i7, Core i5, Core i3,Pentium, Celeron processors in the LGA1155 package

L3 cache varies with CPU

Accepts 2nd-gen (Sandy Bridge) and 3rd-gen (Ivy Bridge) CPUs. BIOS update may be needed for some CPUs.

Chipset

Intel® H61 Express Chipset

Memory

Support for DDR3 1333/1066/800 MHz memory modules
Onboard Graphics

Integrated Graphics Processor:

1 x D-Sub port
Audio

Realtek ALC887 audio codec
High Definition Audio
LAN

1 x Atheros 8151 LAN chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slot
Form Factor

Micro ATX Form Factor; 24.4cm x 20cm
