GIGABYTE GA-H97M-D3H



·         Supports 4^th and 5^th Generation Intel^® Core™ processors

·         Extreme multi graphics support

·         HD Audio support with Audio Noise Guard and High Quality Audio Capacitors

·         Highly efficient MOSFET design

·         LAN with high ESD Protection

·         GIGABYTE LAN Optimizer

·         Long lifespan Durable Solid caps

·         APP Center including EasyTune™ and Cloud Station™ utilities

·         GIGABYTE UEFI DualBIOS™

·         Intel^® Small Business Advantage

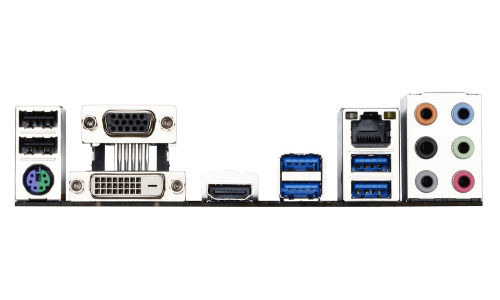

Gigabyte ga-H97M-D3H : all-in-one LGA1150(Haswell) mb - 3D UEFi dual BiOS + ultra durable 4 plus ( 2 layers copper + humidity protection via Glass Fabric PCB + 15µ gold plated CPU socket + ESD Protection + power failure protection via dual BiOS + high temperature protection via all solid cap + low RDs(on) MoSFET ) + Lan optimizer , with USB blocker2 security to block unwanted USB connection + on/off charge technology ( charge usb device when PC is off ) , support intel SRT+SCT+ Rapid Start Technology ; intel H97 chipset , 4x dual channel DDR3 1600 up to 32Gb , 6x SATA6G with raid 0/1/0+1/5/10 , on-board tripple-display VGA with tripple-output ( 1x HDMi + 1x DVI-D + 1x D-sub ) + Realtek ALC887 7.1 audio ( s/pdif out via optional cable ) + Realtek gigabit lan ; 2x PCi + 2x pci-e 16x (@16x+4x) for Quad-GPU CrossFireX ( no SLi ) , with 4x USB3.0 + 2x USB2.0 ( one fuse per USB ) , support optional serial + parallel add-on cable , 1x PS2 - micro-atx
