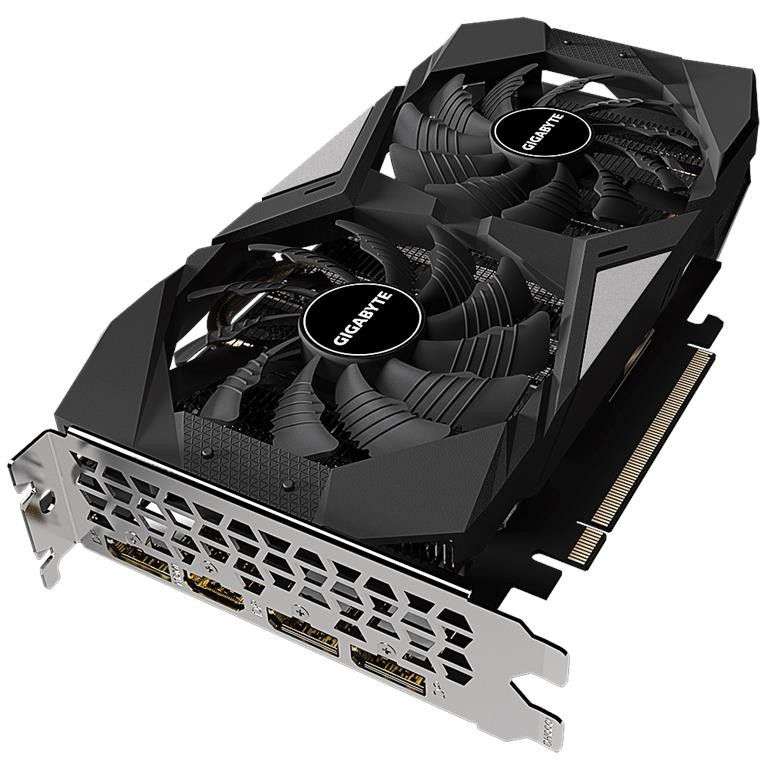

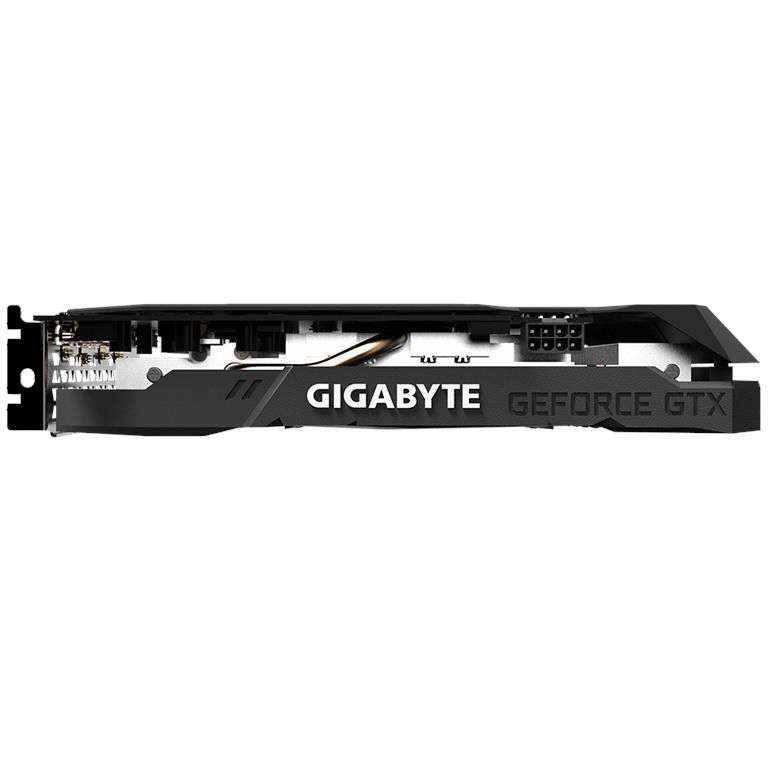

Gigabyte GeForce GTX 1660 Super OC 6GB Graphics Card
GV-N166SOC-6GD
Features
Powered by GeForce GTX 1660 Super
Integrated with 6GB GDDR6 192-bit memory interface
Windforce 2X Cooling System with Alternate Spinning fans
90 mm Unique Blade Fans
Protection Back Plate
Core Clock
1830 MHz (Reference Card: 1785 MHz)
Windforce 2X Cooling System
Windforce 2X Cooling System features 2x 90mm Unique Blade Fans, Alternate Spinning fan, a composite copper heat pipe direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
Alternate Spinning
The Gigabyte "Alternate Spinning" is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. Gigabyte turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
Unique Blade Fan
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
Aorus ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game's requirements.
SPECS :
Graphics Processing
GeForce GTX 1660 Super
Core Clock
1830 MHz (Reference Card: 1785 MHz)
CUDA Cores
1408
Memory Clock
14000 MHz
Memory Size
6 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
336 GB/s
Card Bus
PCI-E 3.0 x 16
Digital max resolution
7680x4320@60Hz
Multi-view
4
Card size
L=225.65 W=122.02 H=40.5 mm
PCB Form
ATX
DirectX
12
OpenGL
4.6
Recommended PSU
450W
Power Connectors
1 x 8 Pin

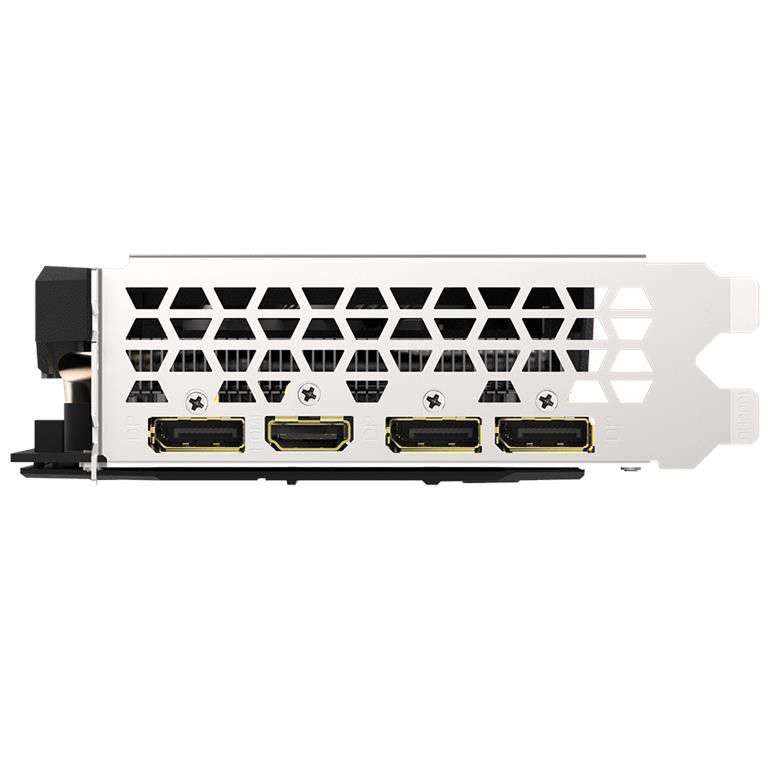

Output
3 x DisplayPort 1.4
1 x HDMI 2.0b

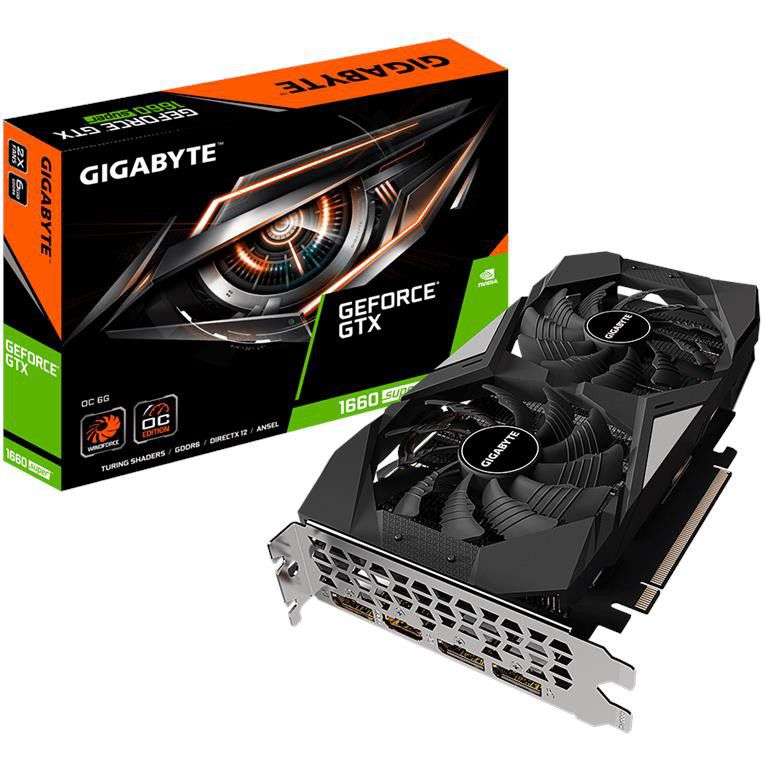

What's in the box
1 x Quick guide
1 x Driver CD
1 x Graphics Card
