Brand New & Sealed with Manufacturer Warranty

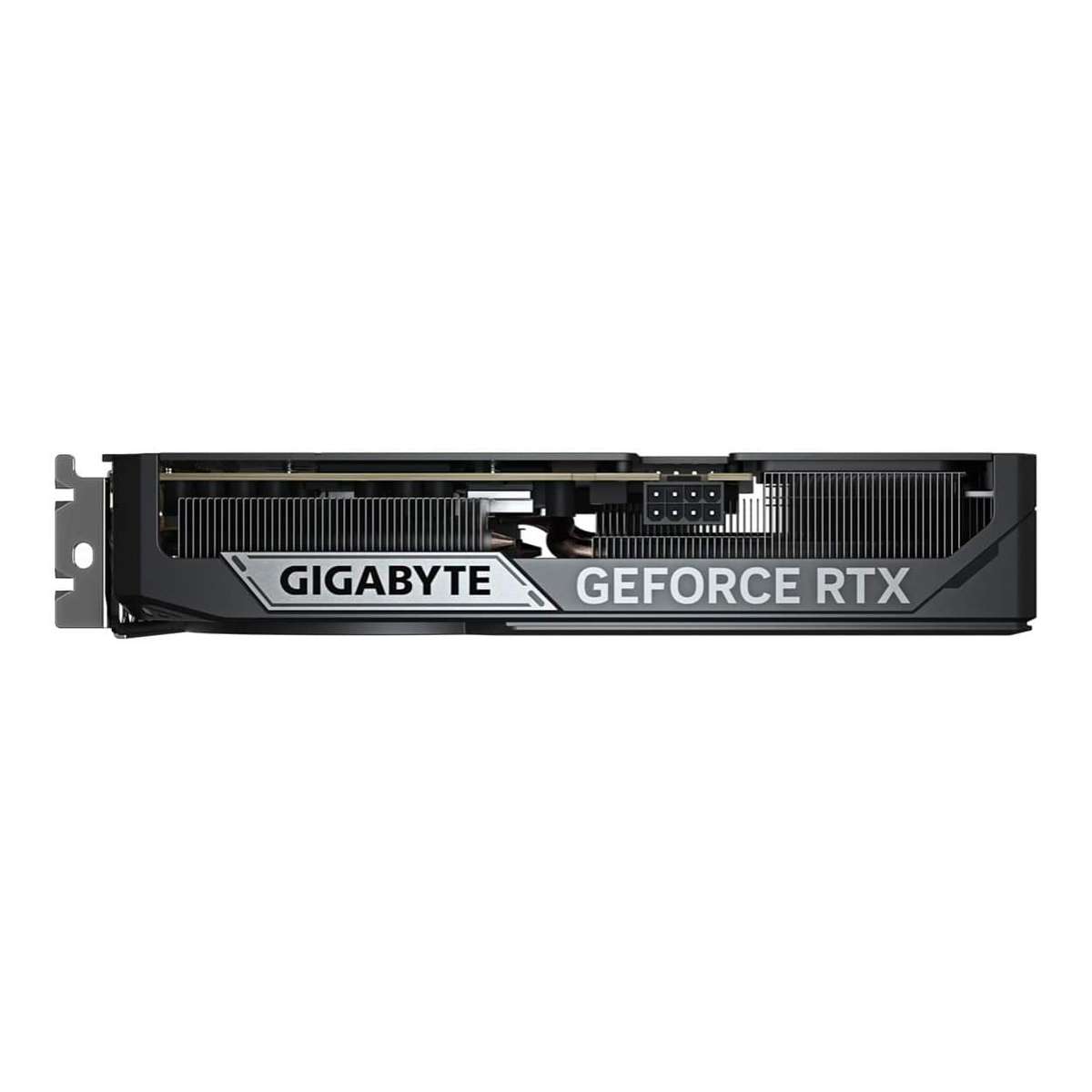

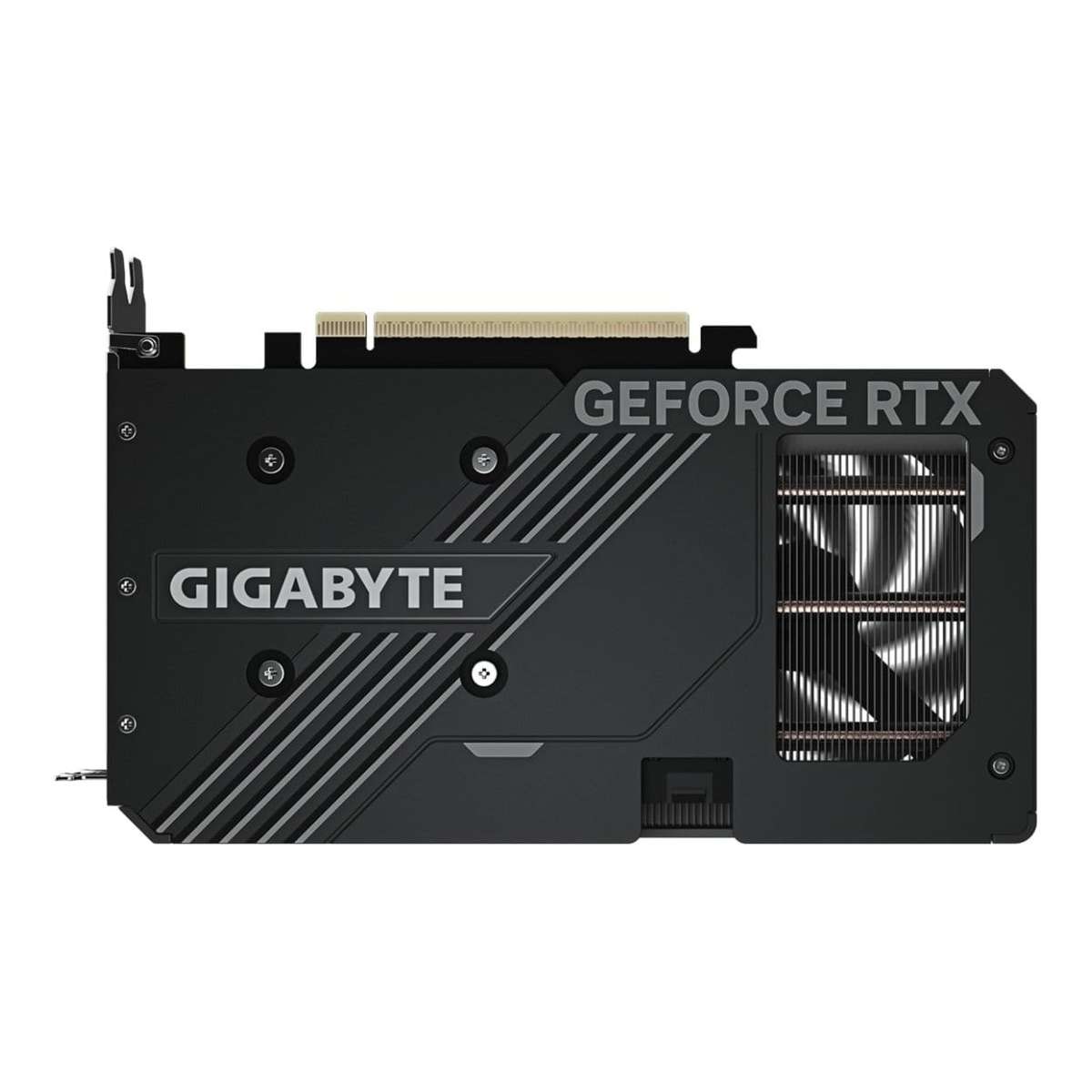

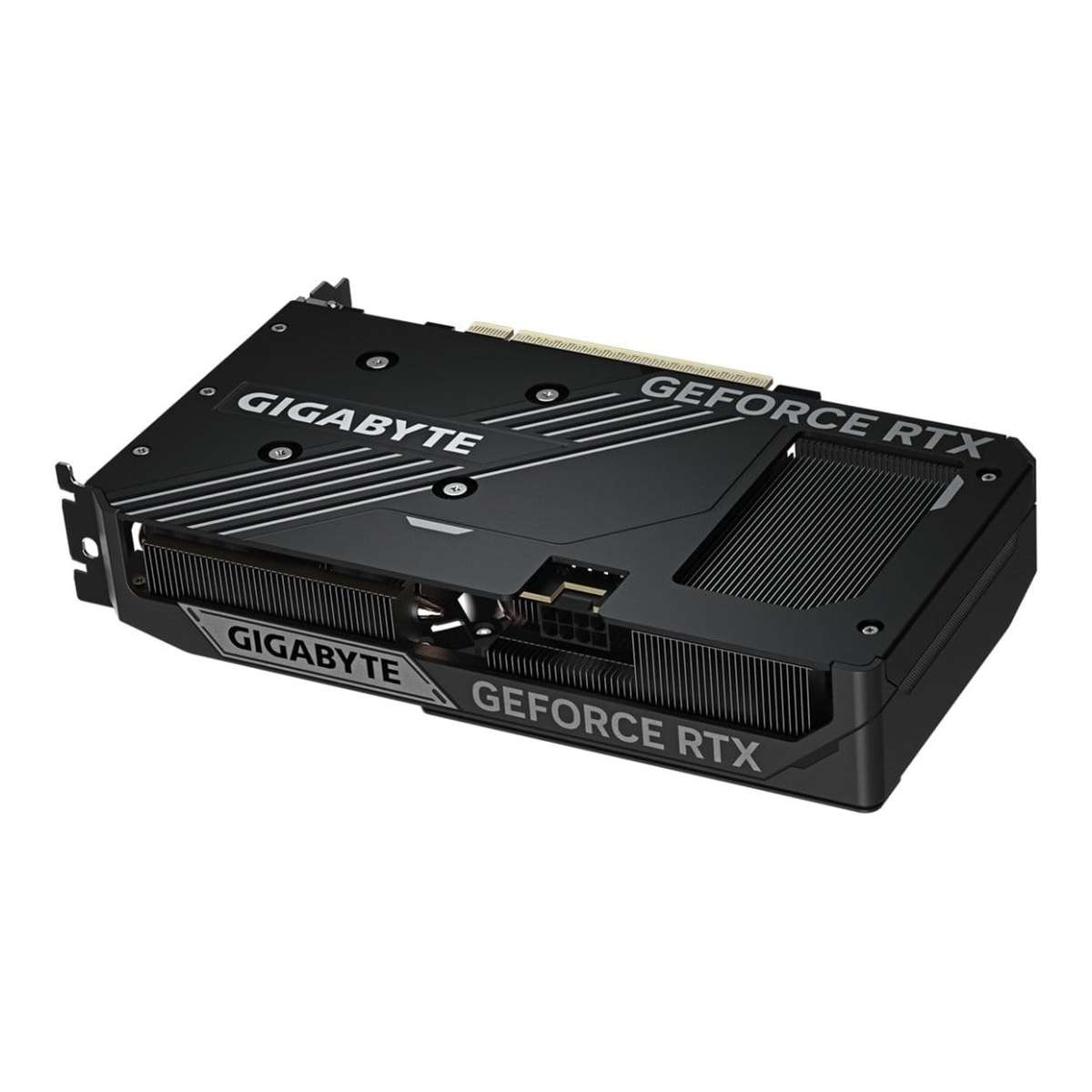

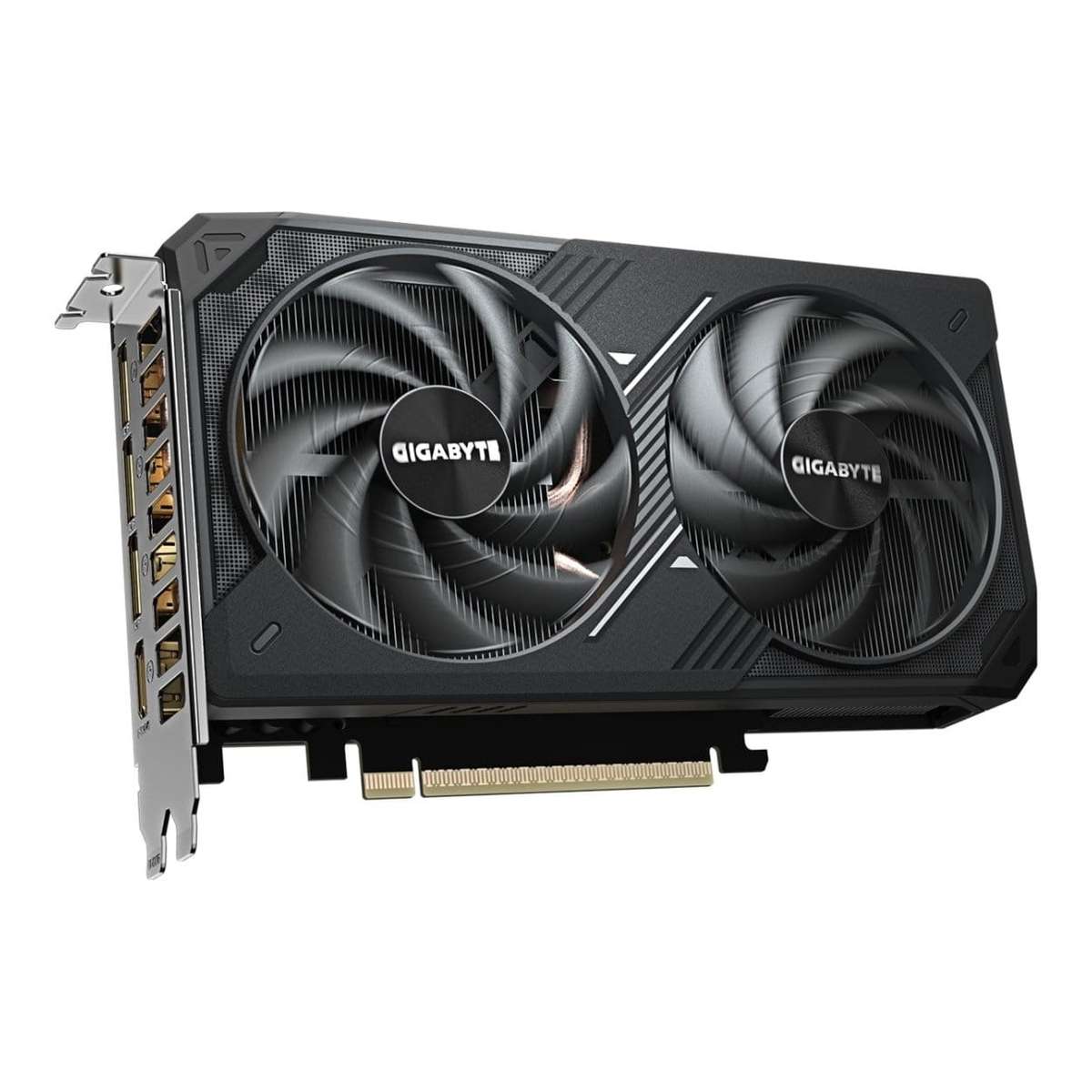

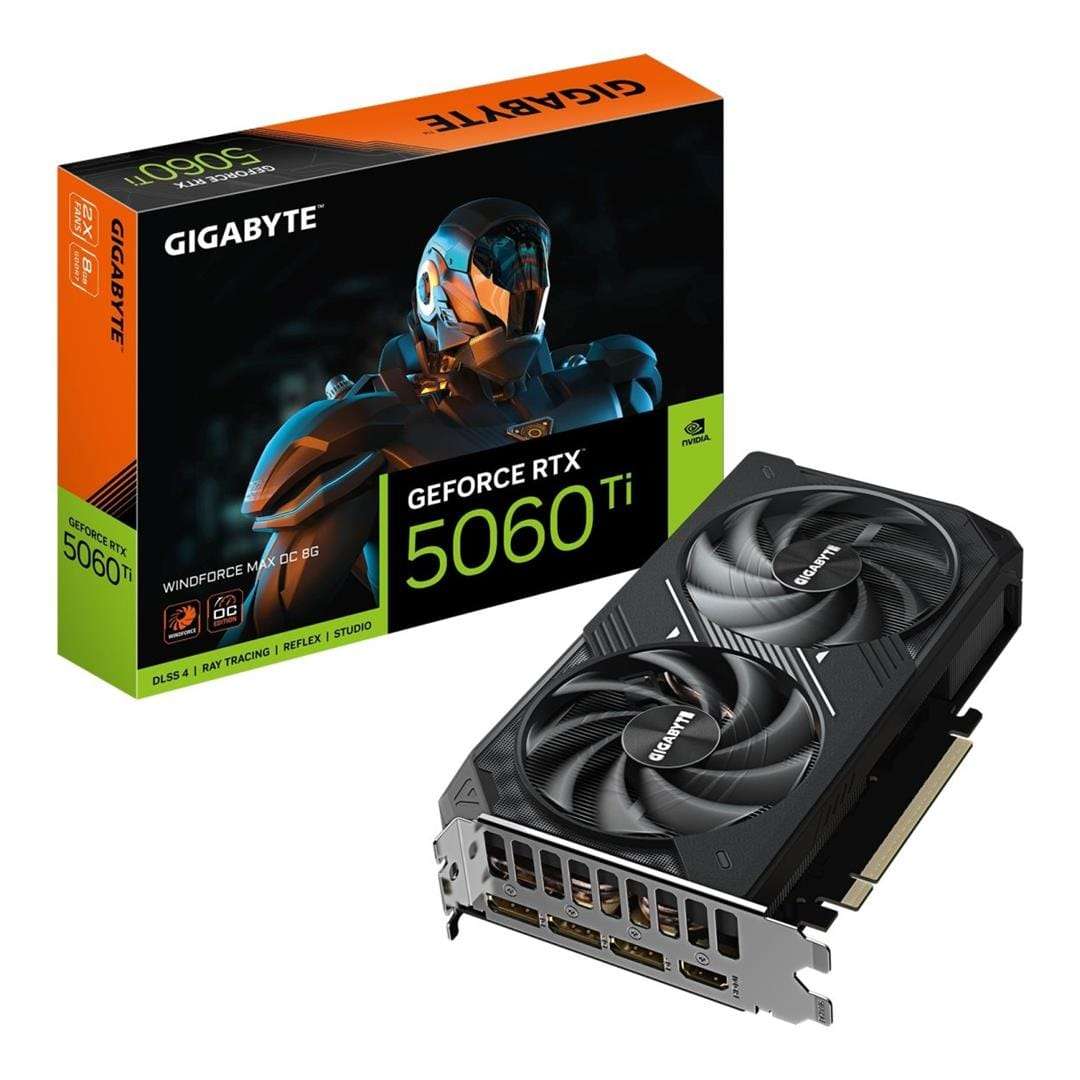

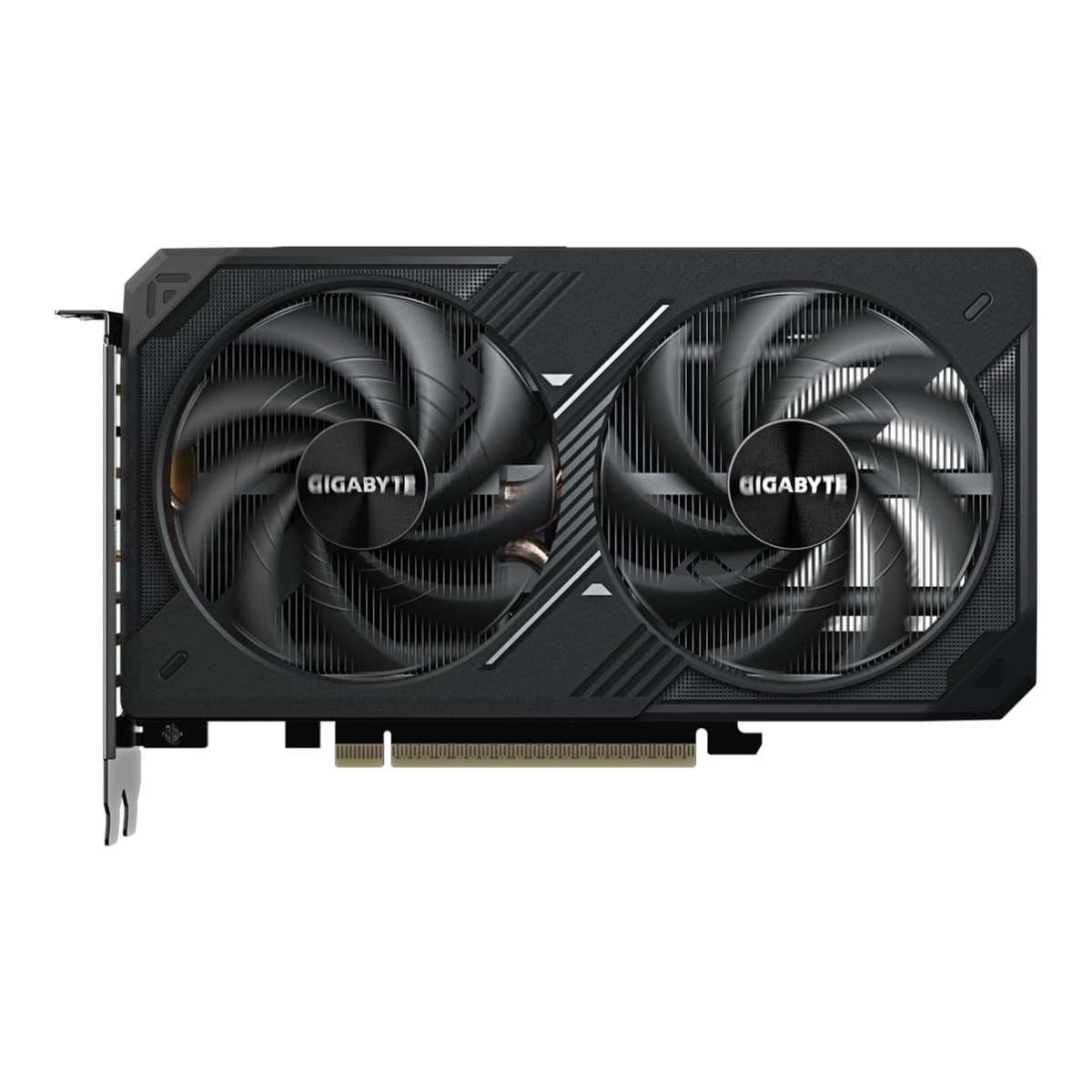

Gigabyte GeForce RTX 5060 Ti Windforce Max OC 8G 8GB GDDR7 Graphics Card GV-N506TWF2MAX OC-8GD
Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.
Features:
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.
HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SERVER-GRADE THERMAL CONDUCTIVE GEL
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
COPPER PLATE & COMPOSITE COPPER HEAT PIPE
The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
Technical Specifications:
Graphics
Graphics Processing Unit: GeForce RTX™ 5060 Ti
Core Clock: 2587 MHz (Reference Card: 2572 MHz)
CUDA® Cores: 4608
Memory
Memory Size: 8 GB
Memory Type: GDDR7
Memory Speed: 28 Gbps
Memory Bus: 128-Bit
Interface
Card Bus: PCI-E 5.0
PCB Form: ATX
Graphics Technologies
DirectX Support: DirectX 12 API
OpenGL Support: 4.6
Maximum Digital Resolution: 7680 × 4320
Multi-View Support: 4 Displays
Connectivity

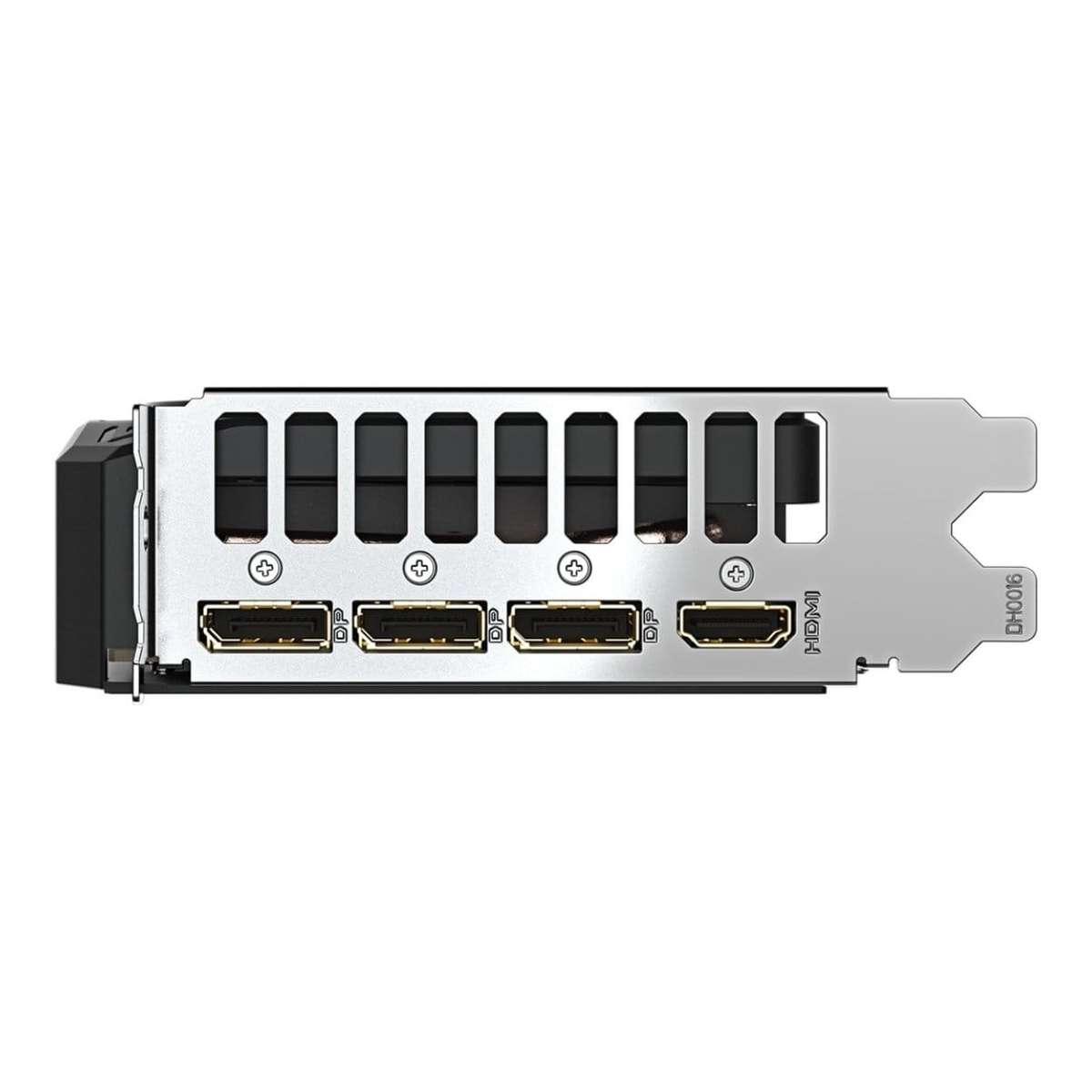

Video Outputs
Power
Recommended Power Supply: 650 W
Power Connectors
Physical
Card Dimensions (L × W × H): 208 × 120 × 40 mm
What's in the Box:
