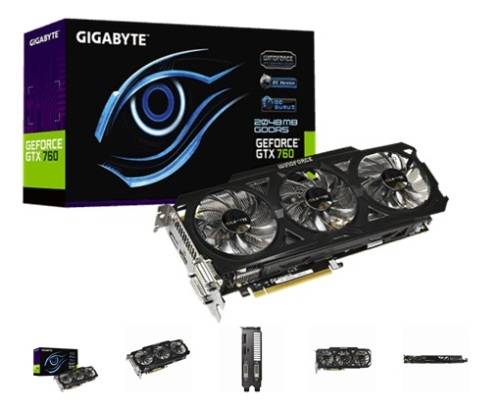

Gigabyte GTX760 2GB WindForce 3x GDDR5 256bit PCIE 3.0 Graphics Card

Gigabyte GV-N760OC-2GD WindForce 3x GTX760 2GB GDDR5 256bit PCIE 3.0 Desktop Graphics Card

Details:

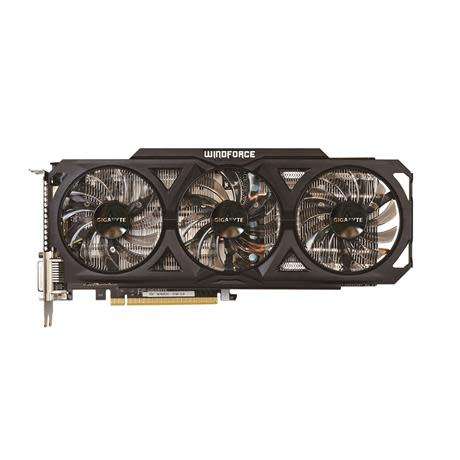

WINDFORCE 3X Cooling system with Composite Heat-Pipes
Powered by NVIDIA GeForce GTX 760 GPU
Integrated with 2GB GDDR5 memory, 256-bit memory interface
Features Dual-link DVI-I/ DVI-D / HDMI / DisplayPort
BASE:1085MHz / BOOST:1150 MHz
System power supply requirement: 500W

Features:

Patented "Triangle Cool" Technology
GIGABYTE introduces the latest exclusive "Triangle Cool" Technology to reach a better cooling performance. The latest patented technology combines fin with clip module in a special triangle shape. With the original anti-turbulence structure plus the new triangle cooling design, it enhances the efficiency of heat dissipation dramatically by minimizing the flow of turbulence between fans. Therefore, the "Triangle Cool" Technology provides a more efficient air flow for the cooling system.

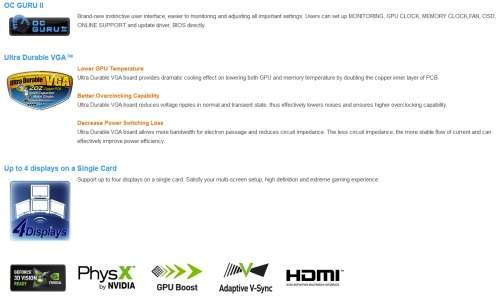

OC GURU ll

Brand-new instinctive user interface
Easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK,FAN, OSD, ONLINE SUPPORT and update driver, BIOS directly.
Ultra Durable VGA

Lower GPU Temperature
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.

Better Overclocking Capability
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.

Decrease Power Switching Loss
Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.

Up to 4 displays on a Single Card
Support up to four displays on a single card. Satisfy your multi-screen setup, high definition and extreme gaming experience.


Specifications:

Chipset     GeForce GTX 760
Core Clock     Base / Boost clock:1085 / 1150 MHz
Memory Clock     6008 MHz
Process Techn     28 nm
Memory Size     2048MB
Memory Bus     256 bit
Card Bus     PCI-E 3.0
Memory Type     GDDR5
DirectX     11.1
OpenGL         4.3
PCB Form     ATX
Digital max res    2560 x 1600
Analog max res     2048 x 1536
Multi-view     4

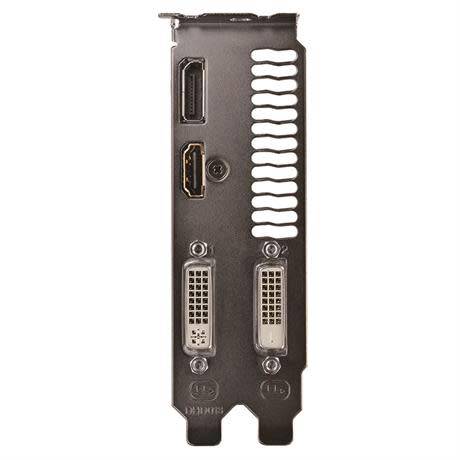

I/O         DVI-I*1
        DVI-D*1
        DisplayPort*1
        HDMI*1
Card size     L=275mm W=136.6mm H=43mm
Power req     500W
