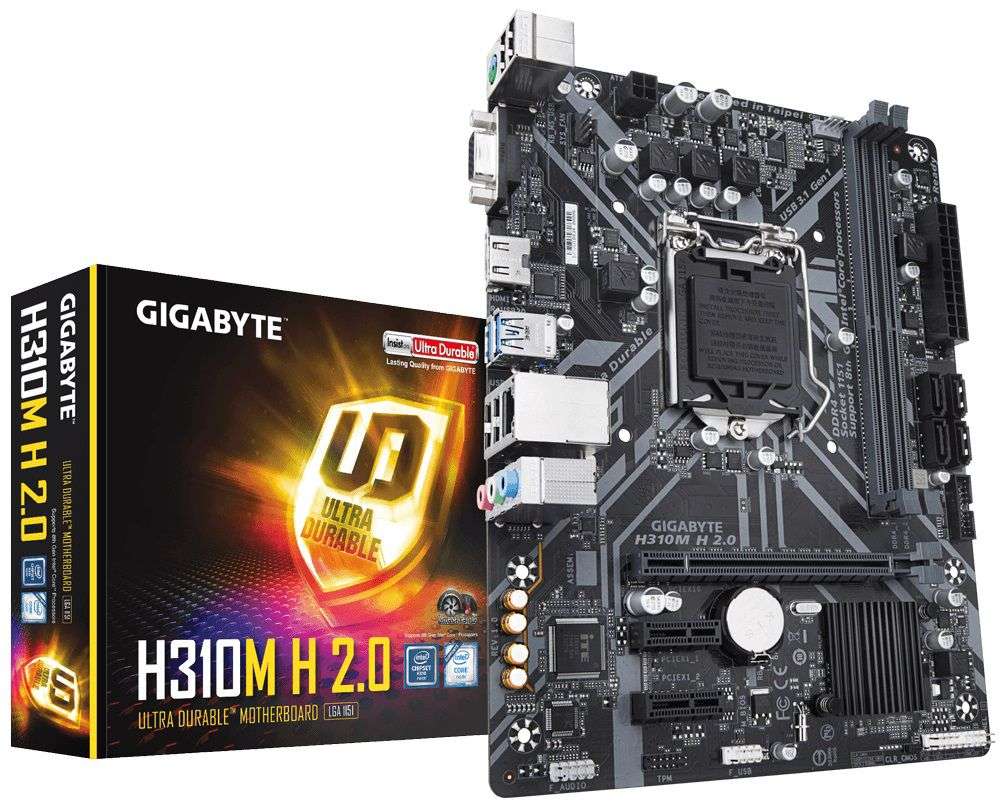

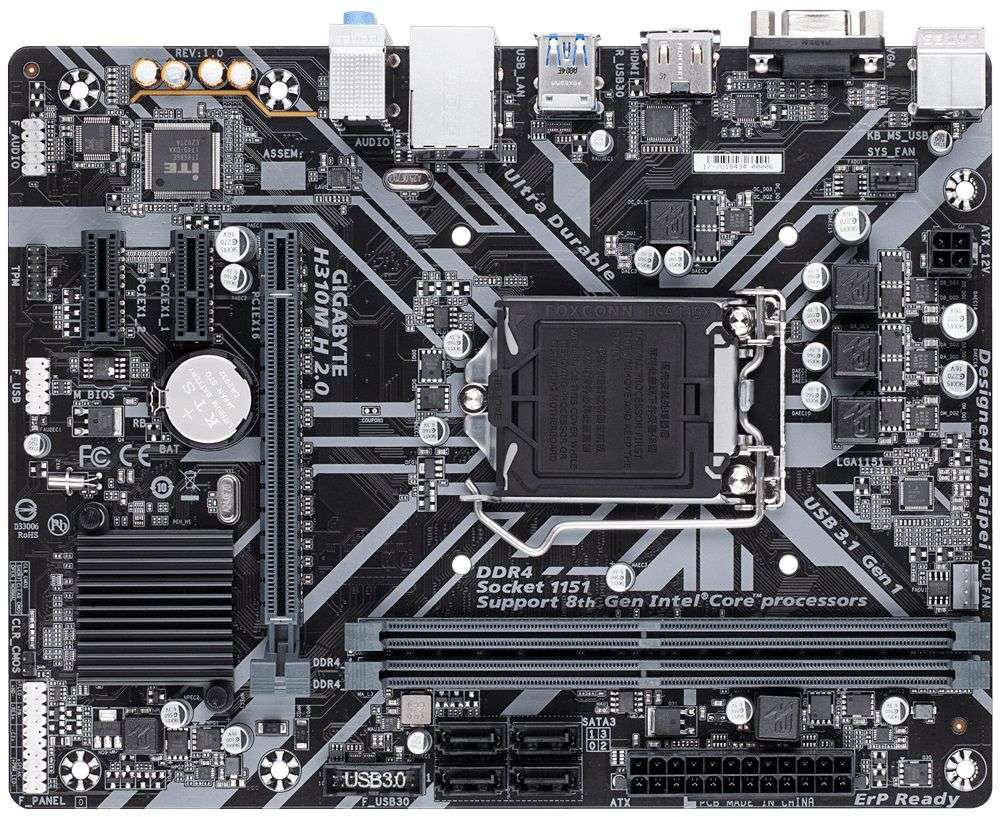

Gigabyte H310M H 2.0 Motherboard

Gigabyte H310M H 2.0 Motherboard
GA-H310M-S2H2

-Supports 9th and 8th Gen Intel Core Processors
- Dual Channel Non-ECC Unbuffered DDR4
- 8-Channel HD Audio with High Quality Audio Capacitors
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- CEC 2019 Ready, Save Power With a Simple Click
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- All new GIGABYTE APP Center, simple and easy use
- Anti-Sulfur Resistors Design

CPU
- Support for :
- 9th and 8th Generation
- 10th Generation Intel Core i9 processors
- Intel Core i7 processors
- Intel Core i5 processors
- Intel Core i3 processors
- Intel Pentium processors
- Intel Celeron processors in the LGA1151

Chipset
- Intel H310 Express Chipset

Memory
- 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
- Dual channel memory architecture
- Support for DDR4 2666/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules

Audio
- Realtek ALC887 codec

LAN
- Realtek GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
- 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
- 2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)

Storage Interface
Chipset:
- 4 x SATA 6Gb/s connectors
USB
Chipset:
- 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.1 Gen 1 header
- 1 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (26 pin, for the GC-

TPM2.0_S module only)
- 1 x Clear CMOS jumper

Back Panel Connectors
- 1 x PS/2 keyboard/mouse port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.1 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks

I/O Controller
- iTE I/O Controller Chip

H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control

Operating System
- Support for Windows 10 64-bit

Warranty
- 3 Years

What's in the box
1 x Motherboard
1 x Instruction Manual
1 x Accessories and Cables
