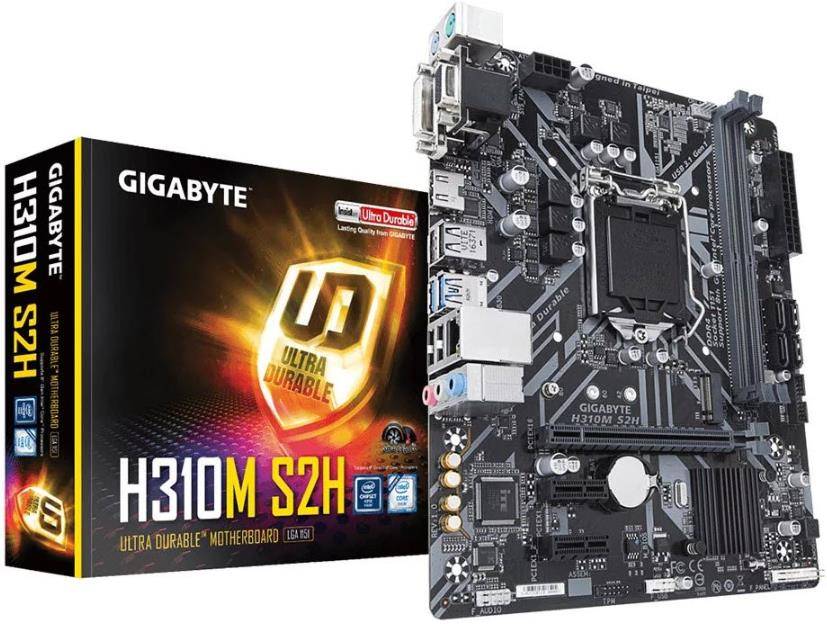

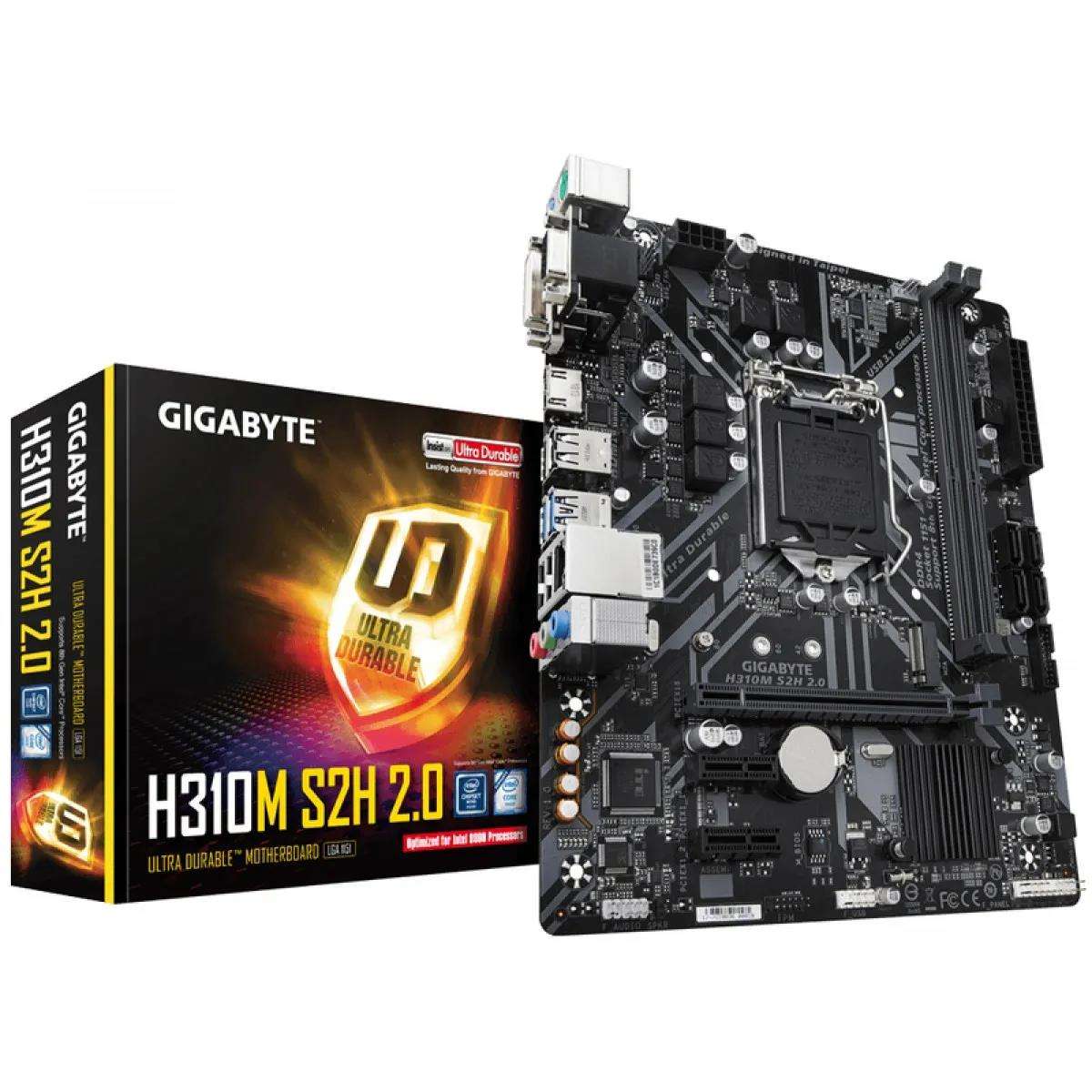

CPU |
1. Support for 9th and 8th Generation Intel Core i9 processors/Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package |
2. L3 cache varies with CPU |
Chipset |
1. Intel H310 Express Chipset |
Memory |
1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory |
2. Dual channel memory architecture |
3. Support for DDR4 2666/2400/2133 MHz memory modules |
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
6. Support for Extreme Memory Profile (XMP) memory modules |
* To support 2666 MHz or XMP memory, you must install an 8 Generation Intel Core i7/i5 processor. |
Onboard Graphics |
Integrated Graphics Processor-Intel HD Graphics support: |
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz |
* The DVI-D port does not support D-Sub connection by adapter. |
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz |
* Support for HDMI 1.4 version and HDCP 2.2. |
Maximum shared memory of 1 GB |
Maximum support of 2 independent display at one time. |
Audio |
1. Realtek ALC887 codec |
2. High Definition Audio |
3. 2/4/5.1/7.1-channel |
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
LAN |
1. Realtek GbE LAN chip (10/100/1000 Mbit) |
Expansion Slots |
1. 1 x PCI Express x16 slot, running at x16 |
(The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
2. 2 x PCI Express x1 slots |
(The PCI Express x1 slots conform to PCI Express 2.0 standard.) |
Storage Interface |
Chipset: |
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
2. 4 x SATA 6Gb/s connectors |
* Refer to "1-7 Internal Connectors, " for the installation notices for the M.2 and SATA connectors. |
USB |
Chipset: |
1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
Internal I/O Connectors |
1. 1 x 24-pin ATX main power connector |
2. 1 x 8-pin ATX 12V power connector |
3. 1 x CPU fan header |
4. 1 x system fan header |
5. 1 x M.2 Socket 3 connector |
6. 4 x SATA 6Gb/s connectors |
7. 1 x front panel header |
8. 1 x front panel audio header |
9. 1 x USB 3.1 Gen 1 header |
10. 1 x USB 2.0/1.1 header |
11. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) |
12. 1 x speaker header |
13. 1 x Clear CMOS jumper |
Back Panel Connectors |
1. 1 x PS/2 keyboard port |
2. 1 x PS/2 mouse port |
3. 1 x D-Sub port |
4. 1 x DVI-D port |
5. 1 x HDMI port |
6. 2 x USB 3.1 Gen 1 ports |
7. 4 x USB 2.0/1.1 ports |
8. 1 x RJ-45 port |
9. 3 x audio jacks |
I/O Controller |
1. iTE I/O Controller Chip |
H/W Monitoring |
1. Voltage detection |
2. Temperature detection |
3. Fan speed detection |
4. Overheating warning |
5. Fan fail warning |
6. Fan speed control |
* Whether the fan speed control function is supported will depend on the cooler you install. |
BIOS |
1. 1 x 128 Mbit flash |
2. Use of licensed AMI UEFI BIOS |
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Unique Features |
1. Support for APP Center |
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depen... |
