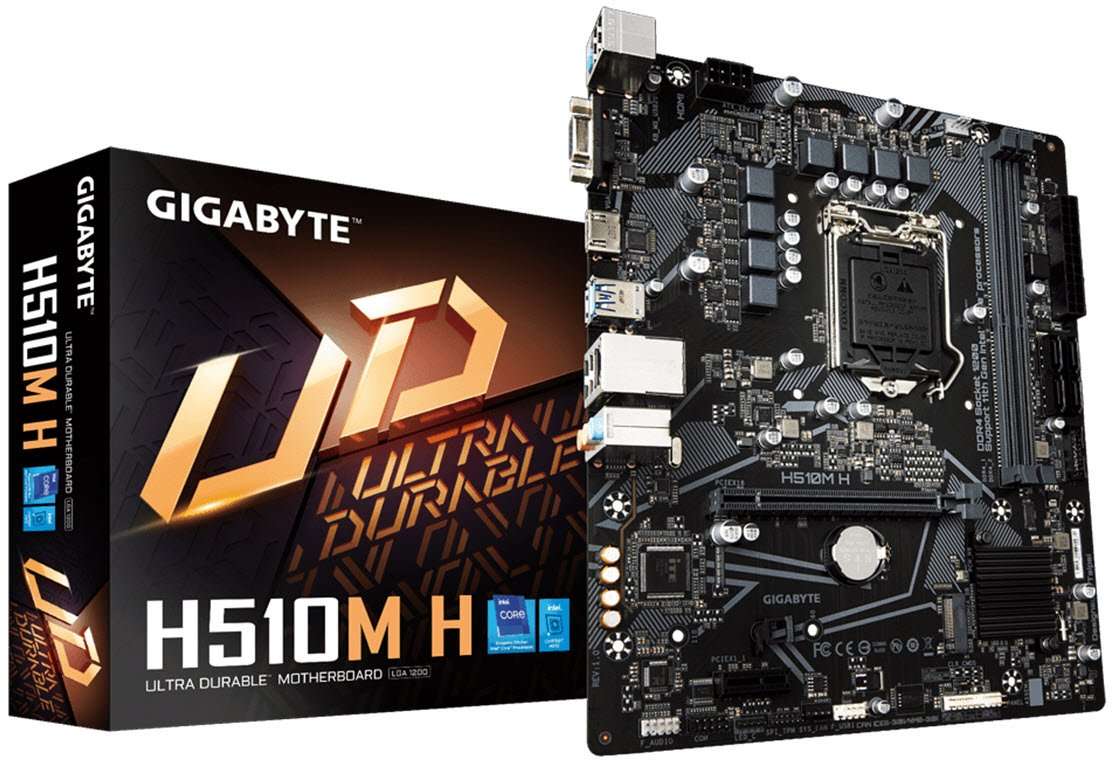

Gigabyte H510M-H - H510 Express Chipset: Socket LGA 1200, Supports 10/11th Generation Intel Core Processors, Memory: 2x Dual Channel DDR4 DIMM Slots (64GB Max - 11th Gen DDR4 3200, 10th Gen DDR4 2933), Expansion Slots: 1x PCI-Express 4.0 (x16 Speed), 1x PCI-Express 3.0 (1x Speed) Storage and USB : 4x SATA 3 (6 Gb/s) connection, 1x M.2 PCIe 3.0 (Socket 3, M Key), 4x USB 3.2 Gen 1 (2x Back, 2x Cable), 6x USB 2.0 Ports (2x Back, 4x Cable), Misc. :1x Realtek GBE Lan (1000/100 Mbit), Rear IO Panel Display Ports Available: 1x VGA, 1x HDMI
Features:
6+2 Phases Hybrid Power DesignCleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
6+2 Phases Low RDS(on) MOSFETsSolid capacitors to improve transient response and minimize oscillation.8-pin Solid Pin CPU Power Connector.Smart Fan 6Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
High Current SupportEach fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision ControlUp to 7 temperature/fan speed control points for precise fan curve
Dual Curve ModeSlope/Stair dual mode for different user scenario
Fan StopFan can stop completely below users' specified temperature point
Improve fan curve UIWe increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
Slope/Stair dual graph modeFan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
Manual InputFor advanced users, we provide fan speed manual input for more precise control.
EZ TuningUse can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
Fan curve profileFan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
Fan StopAchieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperatureall of it can be customized to your liking.
Single 32GB SupportThe maximum memory capacity on the H510 motherboard is 64 GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 64GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
1 x PCIe 4.0 SlotReinforced PCIe 4.0 x 16.
PCIe 4.0 Ready PCBLow signal Loss PCB.
High-End Audio CapacitorsGIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise GuardGIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.
Exclusive Realtek 8118 Gaming LANRealtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
NVMe PCIe Gen3 x4 22110 M.2 ConnectorGIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Solid Pin Power ConnectorsH510 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
Larger contact area for electricityMore metal quantity to sustain higher power and generated heatUltra durable and longer lifespanSTART SULFURIZATION PROTECTIONSulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
BIOSThe BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
APP CENTERGIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTuneGIGABYTE's EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information ViewerGIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
Specifications:CPU LGA1200 package:1. 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors2. 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.3. L3 cache varies with CPUChipset 1. Intel H510 Express ChipsetMemory 1. 11th Generation Intel Core i9/i7/i5 processors:Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules2. 10th Generation Intel Core i9/i7 processors:Support for DDR4 2933/2666/2400/2133 MHz memory modules3. 10th Generation Intel Core i5/i3/Pentium/Celeron processors:Support for DDR4 2666/2400/2133 MHz memory modules4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory5. Dual channel memory architecture6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules8. Support for Extreme Memory Profile (XMP) memory modulesOnboard Graphics Integrated Graphics Processor-Intel HD Graphics support:1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.3.Audio 1. Realtek Audio CODEC2. High Definition Audio3. 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default
