Gigabyte H510M H. Processor manufacturer: Intel, Processor socket: LGA 1200, Compatible processor series: Intel® Celeron®, Intel® Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel® Pentium®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2,PCI Express 3.0,SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A.
Features
- Maximum internal memory : 64
- ECC : Yes
- Supported memory types : DDR4-SDRAM
- Number of memory slots : 2
- Memory slots type : DIMM
- Non-ECC : Yes
- Unbuffered memory : Yes
- Memory channels : Dual-channel
- Supported memory clock speeds : 2133,2400,2666,2933,3000,3200
- Wi-Fi : No
- Ethernet LAN : Yes
- Ethernet interface type : Gigabit Ethernet
- PCI Express x1 slots : 1
- PCI Express x16 slots : 1
- Number of M.2 (M) slots : 1
- Processor manufacturer : Intel
- Processor socket : LGA 1200
- Compatible processor series Intel Celeron : Intel Core i3,Intel Core i5,Intel Core i7 ,Intel Core i9,Intel Pentium
- Supported processor sockets : LGA 1200 (Socket H5)
Graphics
- Maximum resolution : 4096 x 2160
- Parallel processing technology support : Not supported
- HDCP : Y
- Component for : PC
- Motherboard form factor : Micro ATX
- Motherboard chipset family : Intel
- Audio output channels : 7.1
- PC health monitoring : FAN,Temperature,Voltage
- Windows operating systems supported : Windows 10 x64
- Motherboard chipset : Intel H510 Express
- USB 2.0 connectors : 1
- Serial port headers : 1
- USB 3.2 Gen 1 (3.1 Gen 1) connectors : 1
- Number of chassis fan connectors : 1
- TPM connector : Yes
- Number of SATA III connectors : 4
- Front panel audio connector : Yes
- Front panel connector : Yes
- ATX Power connector (24-pin) : Yes
- CPU fan connector : Yes
- EPS power connector (8-pin) : Yes
- 12V power connector : Yes
- RGB LED pin header : Yes
- USB 2.0 ports quantity : 4
- VGA (D-Sub) ports quantity : 1
- Ethernet LAN (RJ-45) ports : 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity : 2
- PS/2 ports quantity : 1
- HDMI ports quantity : 1
- Microphone in : Yes
- HDMI version : 1.4
- USB connector type : USB Type-A
- Headphone outputs : 3
- BIOS type : UEFI AMI
- BIOS memory size : 256
- ACPI version : 5.0
- Clear CMOS jumper : Yes
- Desktop Management Interface (DMI) version : 2.7
- System management BIOS (SMBIOS) version : 2.7
- Supported storage drive types : HDD & SSD
- Supported storage drive interfaces : M.2,PCI Express 3.0,SATA III
- Number of storage drives supported : 5

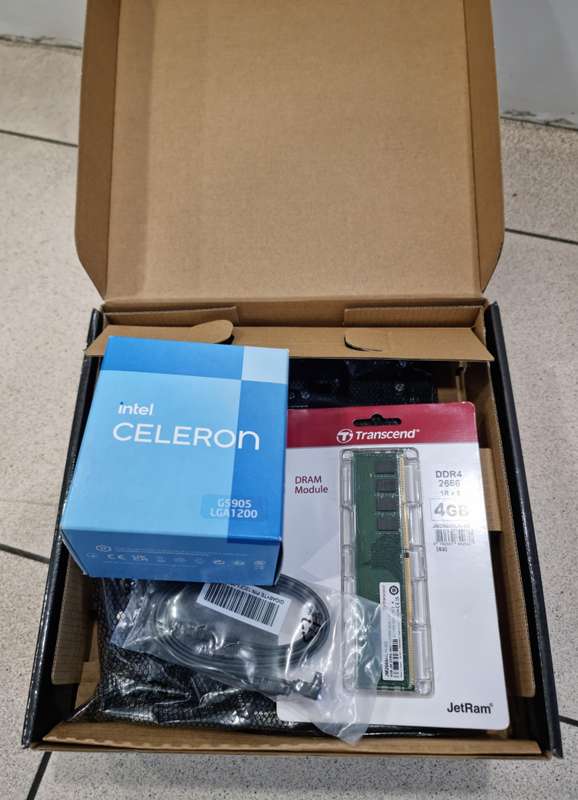

What's in the box

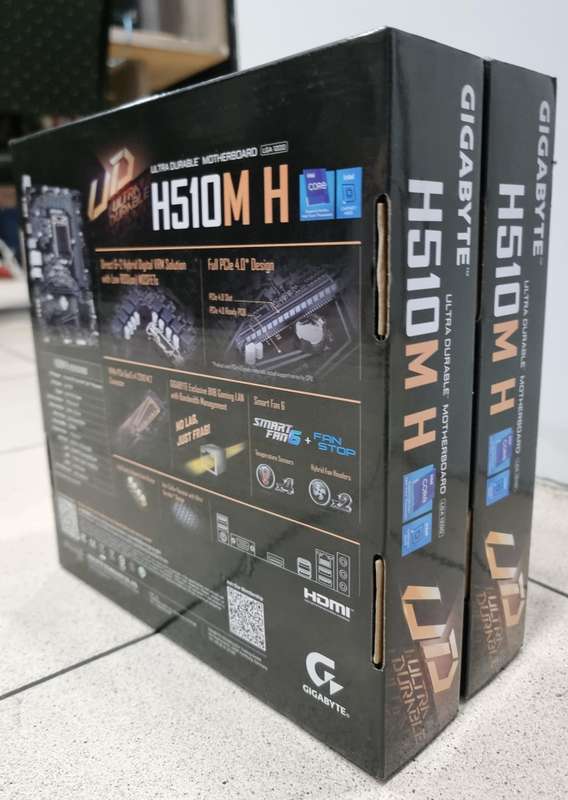

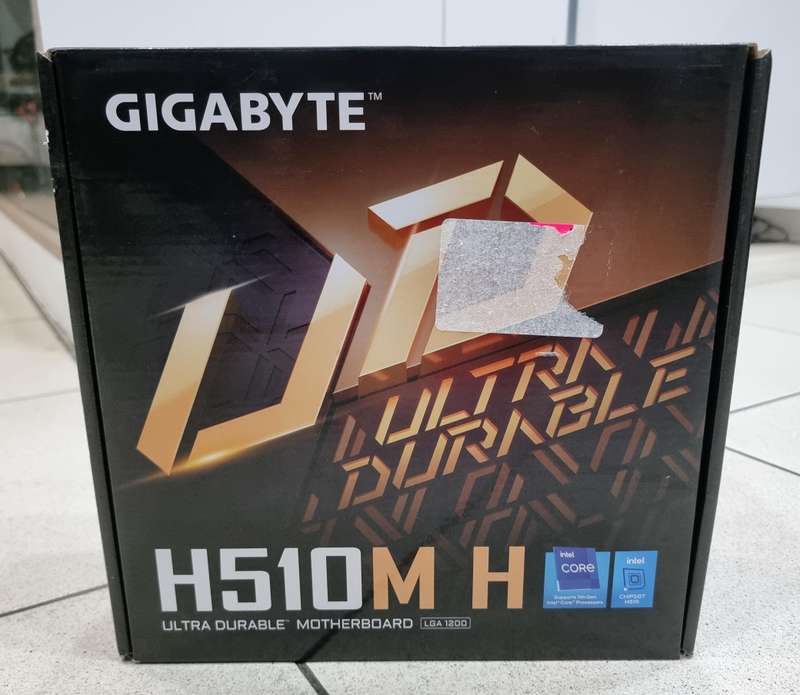

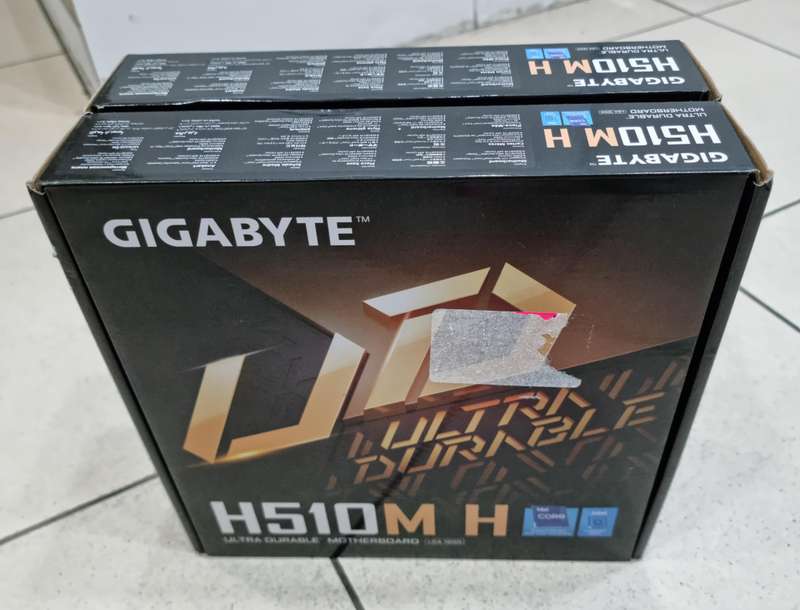

1 x Gigabyte H510M H Intel Processor LGA 1200
Brand New 4GB RAM DDR4
Brand New Intel® Celeron® 10th Gen processor
1 x User Manual
