| SPECIFICATIONS | |

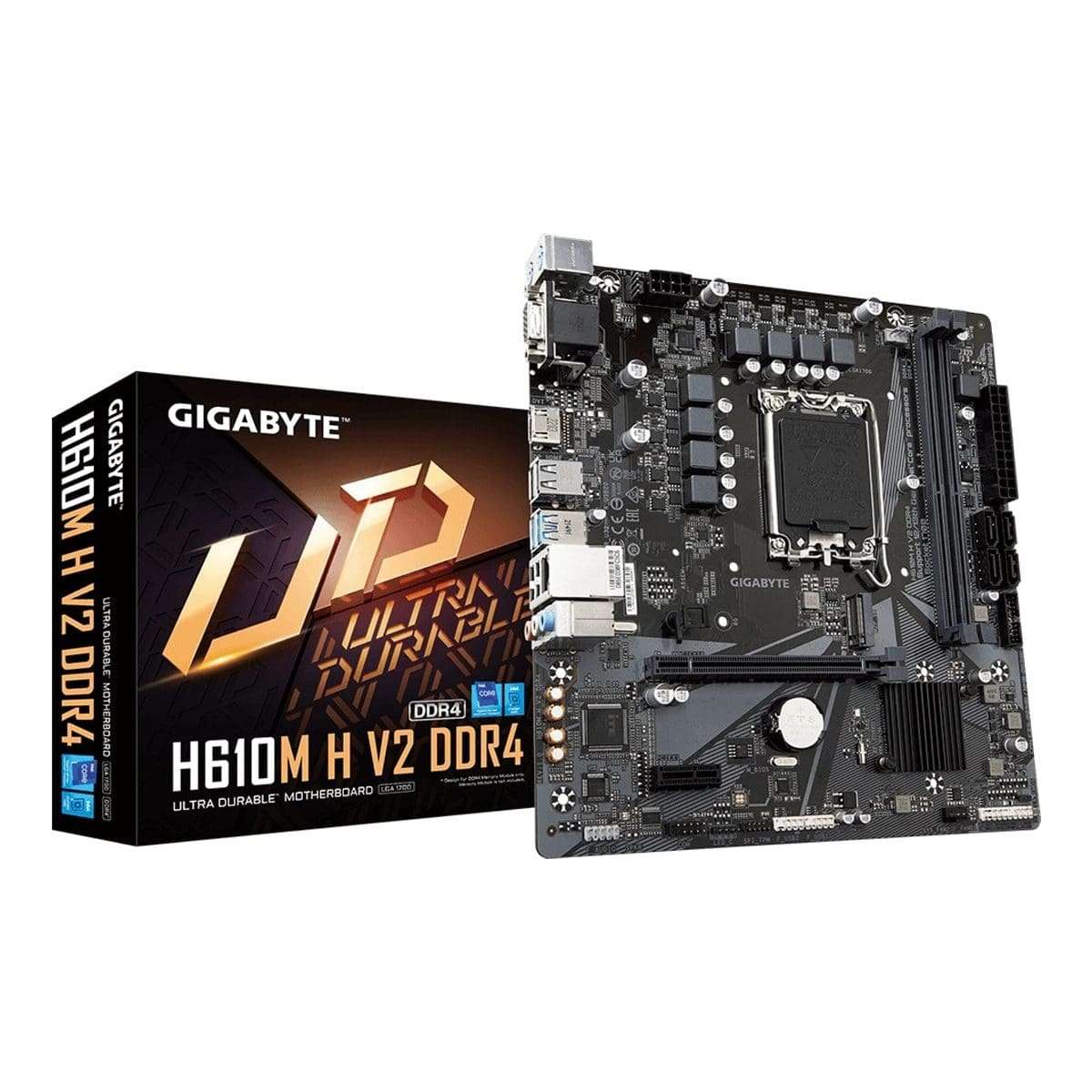

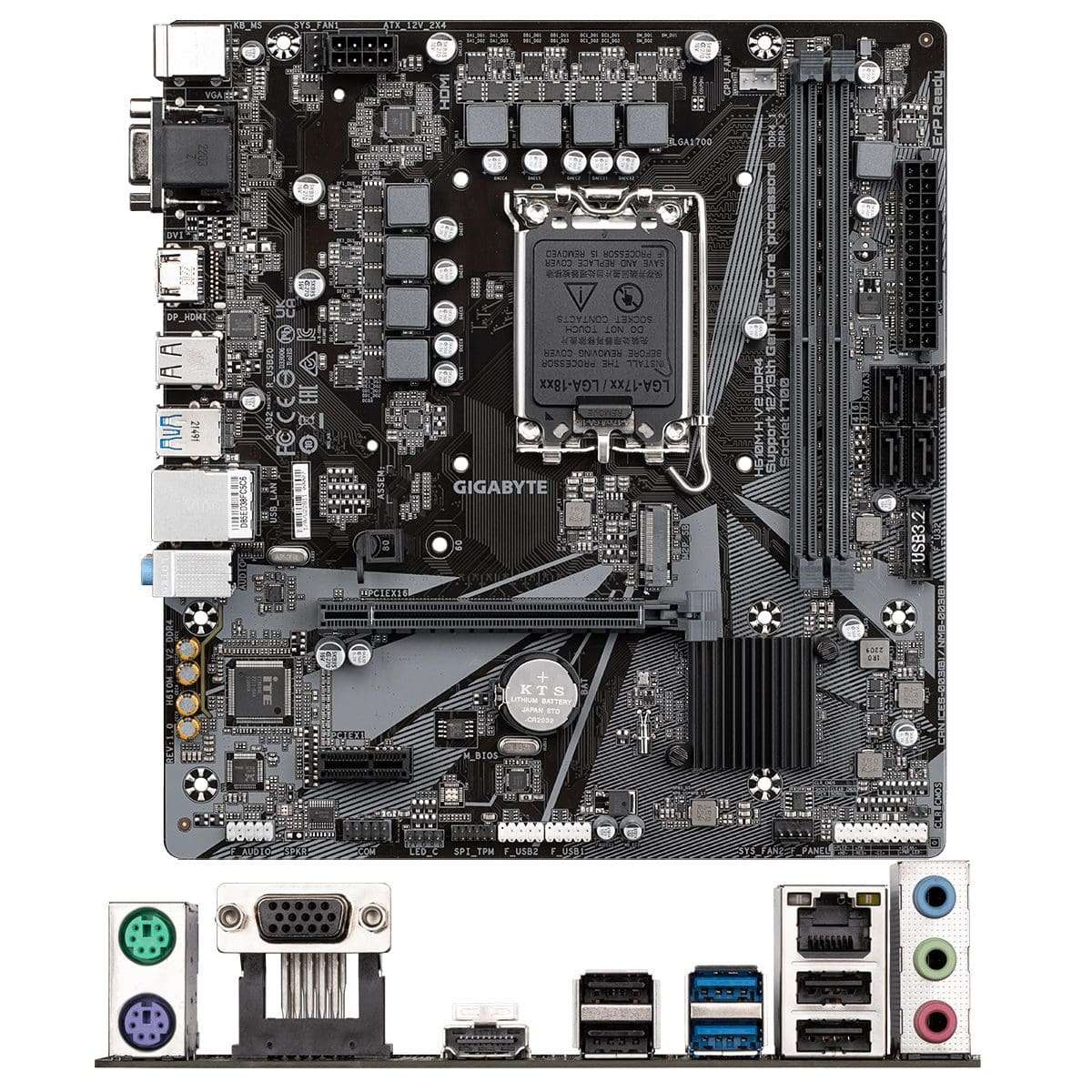

| Brand | Gigabyte |
| Series | H610M H V2 DDR4 |
| Model | GA-H610M-H-V2-DDR4 |
| CPU | LGA1700 socket: Support for 13th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors* |
| L3 cache varies with CPU | |
| Chipset | Intel H610 Express Chipset |
| Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules |
| 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz | |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| ** Support native HDMI 2.1 TMDS compatible ports | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | Realtek Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| LAN | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Expansion Slots | CPU: |
| 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 | |
| Chipset: | |
| 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Storage Interface | Chipset: |
| 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) | |
| 4 x SATA 6Gb/s connectors | |
| USB | Chipset: |
| 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) | |
| 4 x USB 2.0/1.1 ports on the back panel | |
| Chipset+USB 2.0 Hub: | |
| 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 2 x system fan headers | |
| 1 x M.2 Socket 3 connector | |
| 4 x SATA 6Gb/s connectors | |
| 1 x RGB LED strip header | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |
| Back Panel Connectors | 1 x PS/2 keyboard port |
| 1 x PS/2 mouse port | |
| 1 x D-Sub port | |
| 1 x HDMI port | |
| 2 x USB 3.2 Gen 1 ports | |
| 4 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan speed control function is supported will depend on the cooler you install. | |
| Form Factor | Micro ATX Form Factor |
| 23.0cm x 21.5cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
