- Supports Intel Core 14th/ 13th /12th processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+1+1 Hybrid Digital VRM Design
- GbE LAN with Bandwidth Management
- NVMe PCIe 3.0 x4 M.2
- High Quality Audio Capacitors and Audio Noise Guard
- Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use
- Anti-Sulfur Resistors Design
Specifications:
CPU Support:
Socket: LGA1700
Supports 14th, 13th, and 12th Generation Intel Core , Pentium Gold, and Celeron Processors
Chipset:
Intel H610 Express Chipset
Memory:
Supports DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual-channel memory architecture
Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Supports Extreme Memory Profile (XMP) memory modules
Onboard Graphics:
Integrated Graphics Processor-Intel HD Graphics support
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Supports HDMI 2.1 version and HDCP 2.3)
Audio:
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
LAN:
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
Expansion Slots:
CPU: 1 x PCI Express x16 slot (PCIe 4.0)
Chipset: 1 x PCI Express x1 slot (PCIe 3.0)
Storage Interface:
Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors
USB:
Chipset: 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports
Internal I/O Connectors:
Various headers for power, fan, USB, audio, etc.

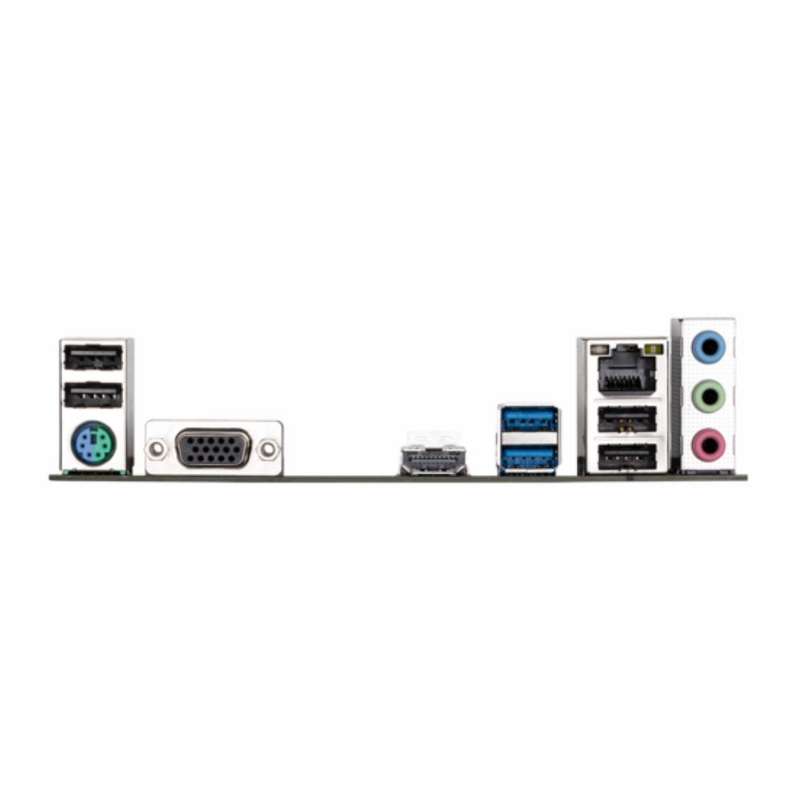

Back Panel Connectors:
PS/2 keyboard/mouse port, D-Sub port, HDMI port, USB ports, RJ-45 port, audio jacks
BIOS:
128 Mbit flash
Licensed AMI UEFI BIOS
Unique Features:
Support for APP Center (functions may vary by motherboard model)
@BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash
Operating System Support:
Windows 11 64-bit
Windows 10 64-bit
Form Factor:
Micro ATX Form Factor; 22.3cm x 19.3cm
What's in the box

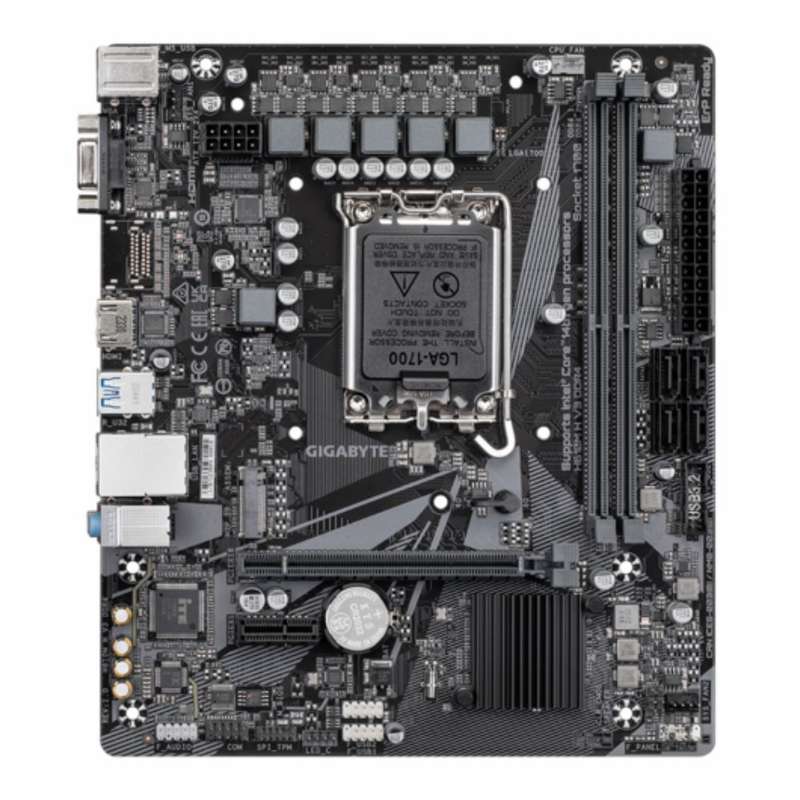

1 x Gigabyte H610M H V3 DDR4 Intel LGA 1700 mATX Motherboard
