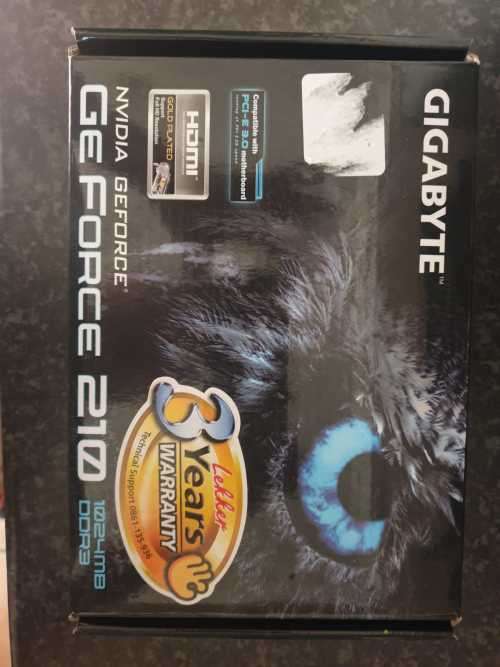

UNUSED BUT OPENED BOX
GIGABYTE HD Experience Series
Powered by NVIDIA GeForce 210 GPU
Integrated with industry's best 1GB DDR3 memory and 64-bitmemory interface
Features Dual link DVI-I/ D-SUB/HDMI with HDCP protection
Support NVIDIA® CUDA Technology
Support NVIDIA® PhyX Technology
Minimum 300W or greater system power supply with
Gold plated HDMI
Gold plated, durable large contact area connectors have beenused for optimum signal transfer between connections
PhysX Technology
NVIDIA® PhysX is the next big thing in gaming!Deliveringphysics in games is no easy task. It's an extremely compute-intensiveenvironment based on a unique set of physics algorithms that require tremendousamounts of simultaneous mathematical and logical calculations. The best way toget real-time physics, such as explosions that cause dust and debris,characters with life-like motion or cloth that drapes and tears naturally iswith an NVIDIA®PhysX-ready GeForce® processor. PhysX software is widelyadopted by over 150 games, is used by more than 10,000 registered users and issupported on Sony Playstation 3, Microsoft Xbox 360, Nintendo Wii and PC.PhysX technology will take gaming to a whole new level.
CUDA Technology
NVIDIA® CUDA technology unlocks the power of the hundredsof cores in your NVIDIA® GeForce® graphics processor (GPU) to accelerate someof the most performance hungry computing applications. The CUDA technologyalready adopted by thousands of programers to speed up those performance hungrycomputing applications.
Microsoft Window7
Microsoft Windows 7 is the next generation operating systemthat will mark a dramatic improvement in the way the OS takes advantage of thegraphics processing unit (GPU) to provide a more compelling user experience. Bytaking advangate of the GPU for both graphics and computing, Windows 7 will notonly make todays's PCs more visual and more interactive but also ensure thatthey have the speed and responsiveness customers want
RoHS Compliant
As a citizen of the global village, GIGABYTE exert ourselvesto be a pioneer in environment care. Give the whole of Earth a promise that ourproducts do not contain any of the restricted substances in concentrations andapplications banned by the RoHS Directive, and are capable of being worked onat the higher temperatures required for lead free solder. One Earth andGIGABYTE Cares!
Specifications:
Chipset: GeForce 210
Core Clock: 590 MHz
Shader Clock: 1405 MHz
Memory Clock: 1200 MHz
Process Technology: 40 nm
Memory Size: 1 GB
Memory Bus: 64 bit
Card Bus: PCI-E 2.0
Memory Type: DDR3
DirectX: 10.1
OpenGL: 3.1
PCB Form: ATX
Digital max resolution: 2560 x 1600
Analog max resolution: 2048 x 1536
I/O
HDMI 1
DVI-I 1
D-sub 1
Card size: 197 mm x 121 mm x 24 mm
Power requirement: 300W
What's in the box
Nvidia GT210 Graphics Card
HDMI+DVI low profile bracket x1
D-SUB low profile bracket x1
