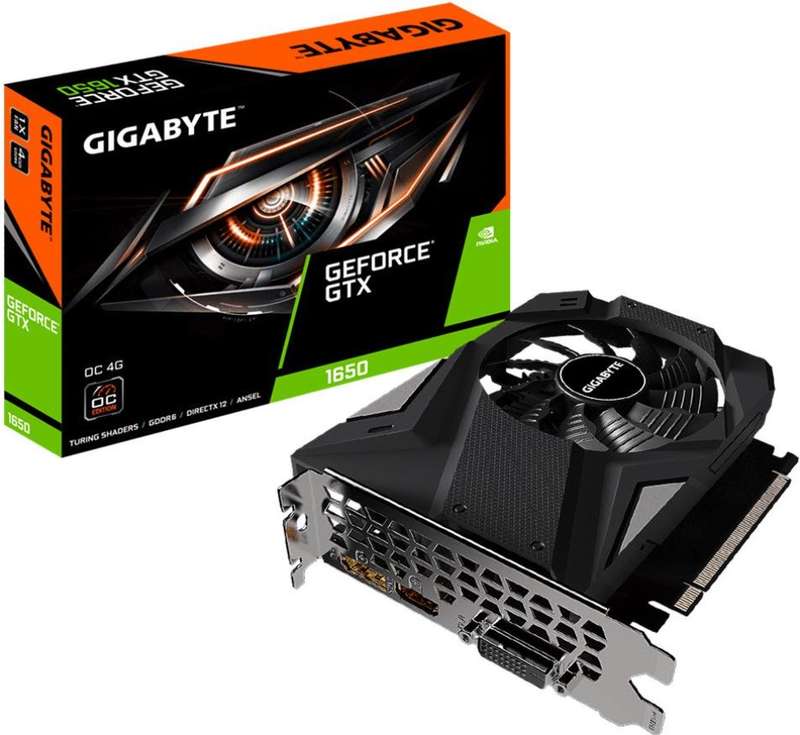

Gigabyte nVidia GeForce GTX 1650 D6 OC - 4GB GDDR6, 128-Bit Memory Bus, PCI Express 3.0, Connections: 1x HDMI, 1x DisplayPort, 1x DVI-D, Core: 1635 MHz, Memory: 12000MHz H=36 L=153 W=116
Features:
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE Custom-designed cooling system features a 80mm unique blade fan, delivering an effective heat dissipation capacity for higher performance at lower temperatures.
COMPACT SIZE FOR EASY INSTALLATION
With less than 170mm in length, the graphics card can be easily installed in any small chassis.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
Ultra Cooling
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
Low Power Loss
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
Longer Life
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.
AORUS Engine
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game's requirements.
Specifications:
Graphics Processing GeForce GTX 1650
Core Clock 1635 MHz (Reference Card: 1590 MHz)
CUDA Cores 896
Memory Clock 12000 MHz
Memory Size 4 GB
Memory Type GDDR6
Memory Bus 128 bit
Memory Bandwidth (GB/sec) 192 GB/s
Card Bus PCI-E 3.0 x 16
Digital max resolution 7680x4320@60Hz
Multi-view 3
Card size L=153 W=116 H=36 mm
PCB Form ATX
DirectX 12
OpenGL 4.6
Recommended PSU 300W
Power Connectors N/A
Output DisplayPort 1.4 *1
HDMI 2.0b *1
DVI-D *1
SLI Support No
Accessories Quick guide
