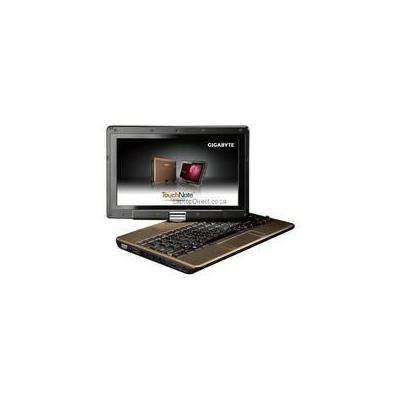

GIGABYTE® TouchBook T1028X Small Notebook 9W1028X-671HZA, Intel® Atom Processor N280 1.66GHz 512Kb Cache 667Mhz FSB, 1024MB DDR2-800 SO-Dimm Memory (1x1024), 160GB SATA 5400rpm Hard Drive, 802.11b/g Wireless LAN, NO optical drive, 10.1" WXGA HD with LED backlight (1366x768 resolution) TFT LCD display, Intel GMA 950 shared graphics, 10/100 Ethernet LAN, 1.3MP Webcam, Bluetooth, Touch Screen, Stylus, Microsoft Windows XP Home Edition, 1 Year Carry in Warranty
T1028
# 10.1" swivel touch screen, Intel® Atom™ Processor N270 1.6GHz(T1028M)
/ N280 1.66GHz (T1028X/G)
# Genuine Windows® XP Home
# 10.1" Touch TFT-LCD WSVGA, 1024x600(T1028M) / 1366x768(T1028X/G), with LED backlit
# Mobile Intel®945GSE Express Chipset+ ICH7M
# 92% full-sized keyboard
# Embedded HSDPA Support
# 2.5" 9.5mm SATA HDD 5400rpm, 160 GB
# Smart Manager Intuitional Setting
# Multi-Touch Mousepad
# Battery Check Design
# Easy Upgrade for HDD and Memory
Specifications
CPU
Intel® Atom™ Processor N270 1.6GHz(T1028M)
Intel® Atom™ Processor N280 1.66GHz (T1028X/G)
Operation System
Microsoft® Windows® XP Home
Chipset
Mobile Intel® 945GSE Express Chipset+ ICH7M
System Memory
1GB SO-DIMM*1 (Max 2GB)
Video Chip
Mobile Intel® 945GSE Express Chipset+ ICH7M
LCD
10.1" Touch TFT-LCD WSVGA, 1024x600(T1028M) / 1366x768(T1028X/G), with LED backlit
HDD
2.5" 9.5mm SATA HDD 5400rpm, 160 GB
I/O Port
USB(2.0)*3, Mic-in, Earphone-out, D-Sub, RJ45, Express Card, 4-in-1 card reader(MMC/SD/MS/MS Pro), DC-in
Audio
Speaker 1.5 watt*2, internal mic-in
Bluetooth
Built-in V2.1
Webcam
1.3M pixels webcam
LAN
Ethernet 10/100BASE-T
Wireless LAN
802.11b/g/n, 802.16 WiMAX(optional)
3.5G Module
HSDPA support (T1028G)
Battery
Li-Ion 4 cells, ~4500mAh Battery, battery life 4hrs(T1028M)
Li-Ion 6 cells, ~7650mAh Battery, battery life 6.5hrs (T1028X/G,T1028M optional)
Dimension
(4 cell):265(W) x 195(D) x 38.5(H)mm
(6 cell):265(W) x 214(D) x 41.4(H)mm
Weight
~1.3kg (with 4-cell battery)
~1.48kg (with 6-cell battery)
Other Description
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still have Win9X/ME drivers available, we will publish on website.
