Gigabyte Z490M Gaming X Motherboard (Lga 1200)

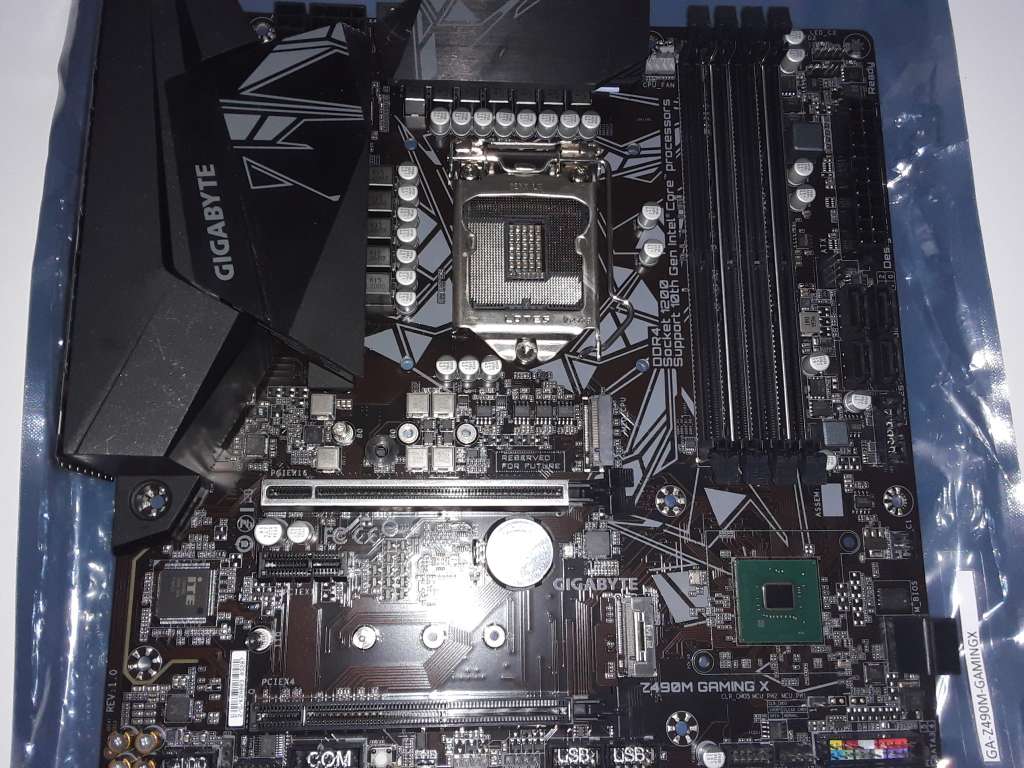

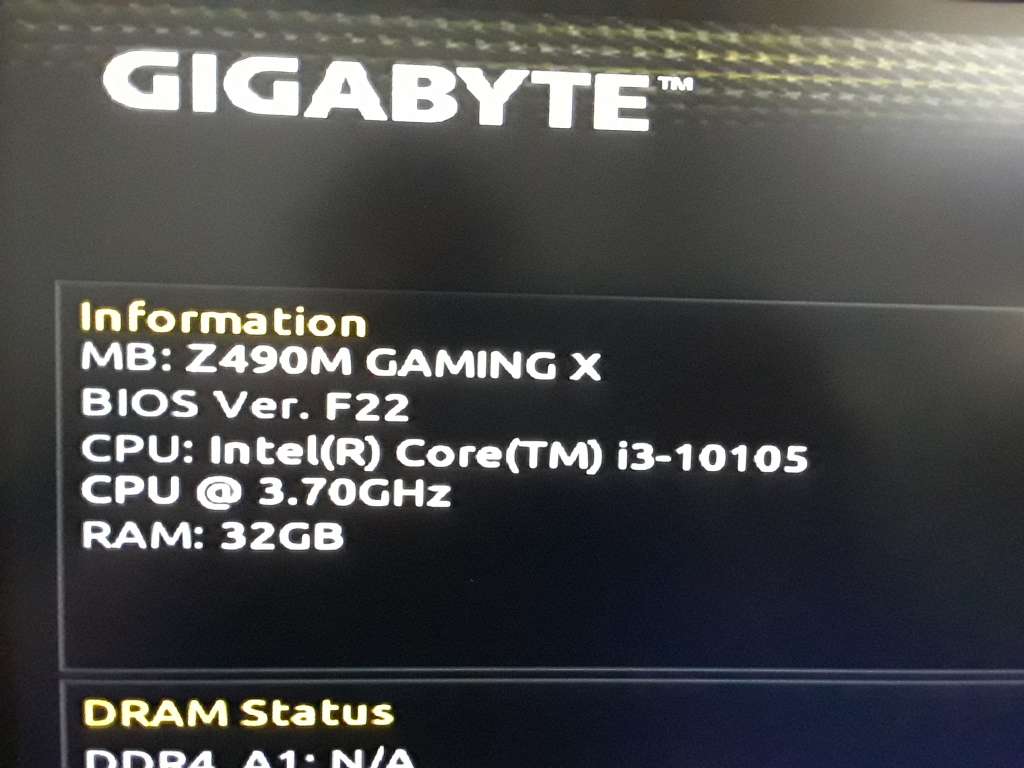

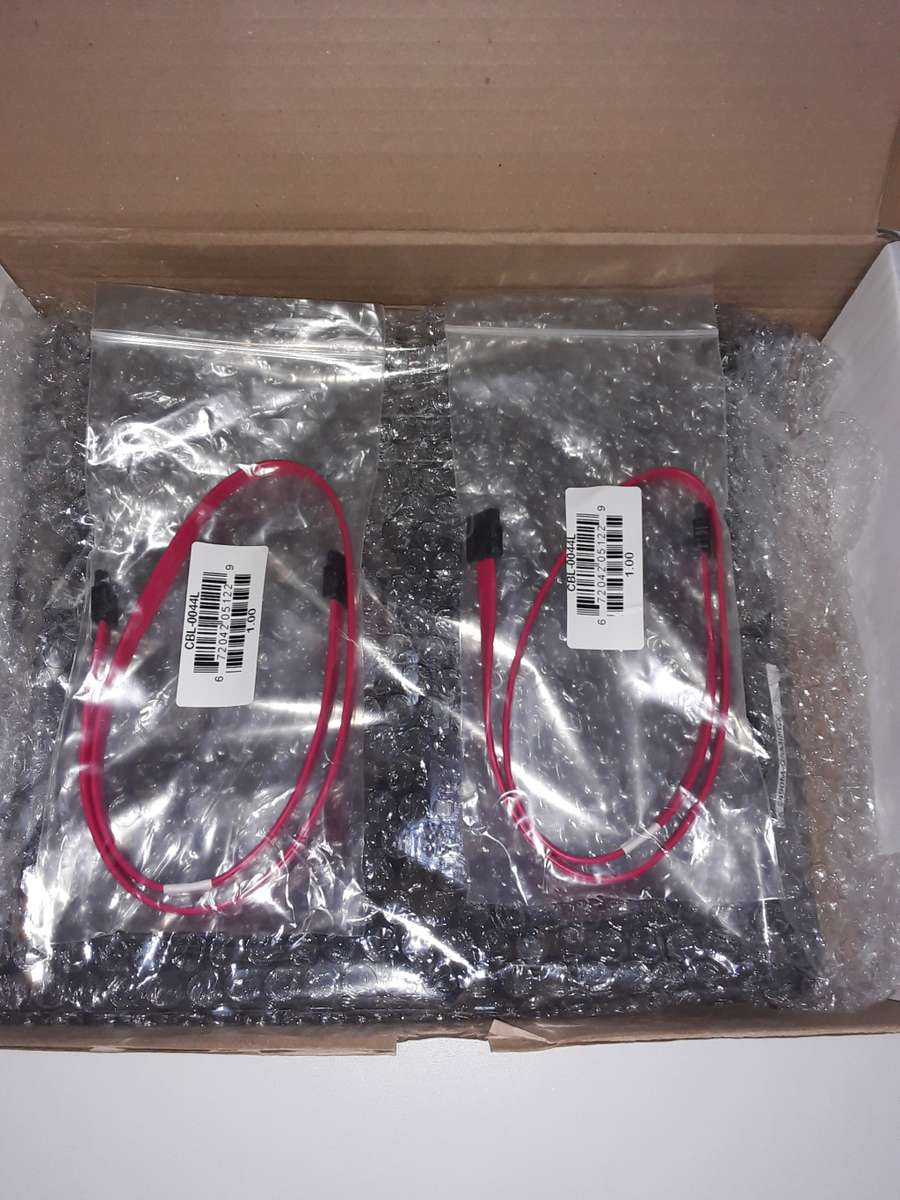

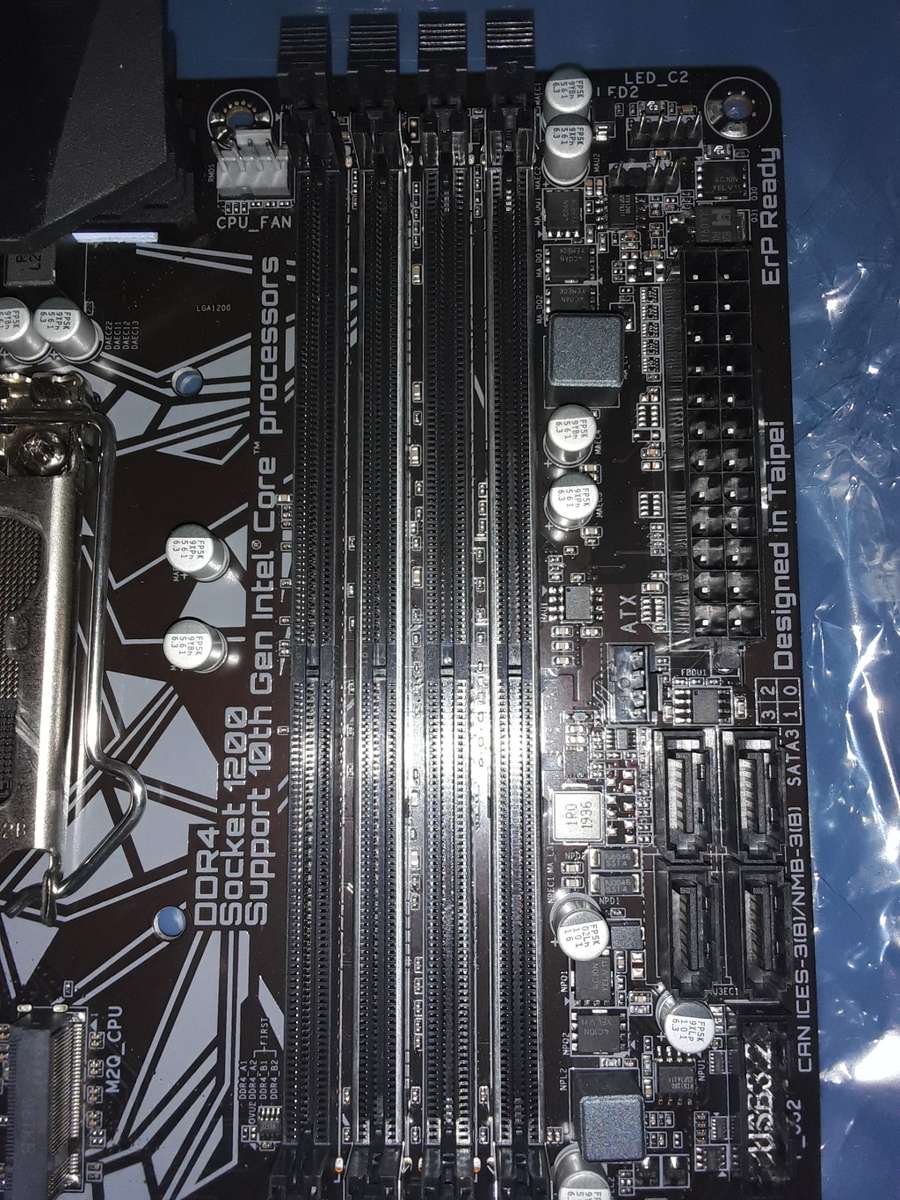

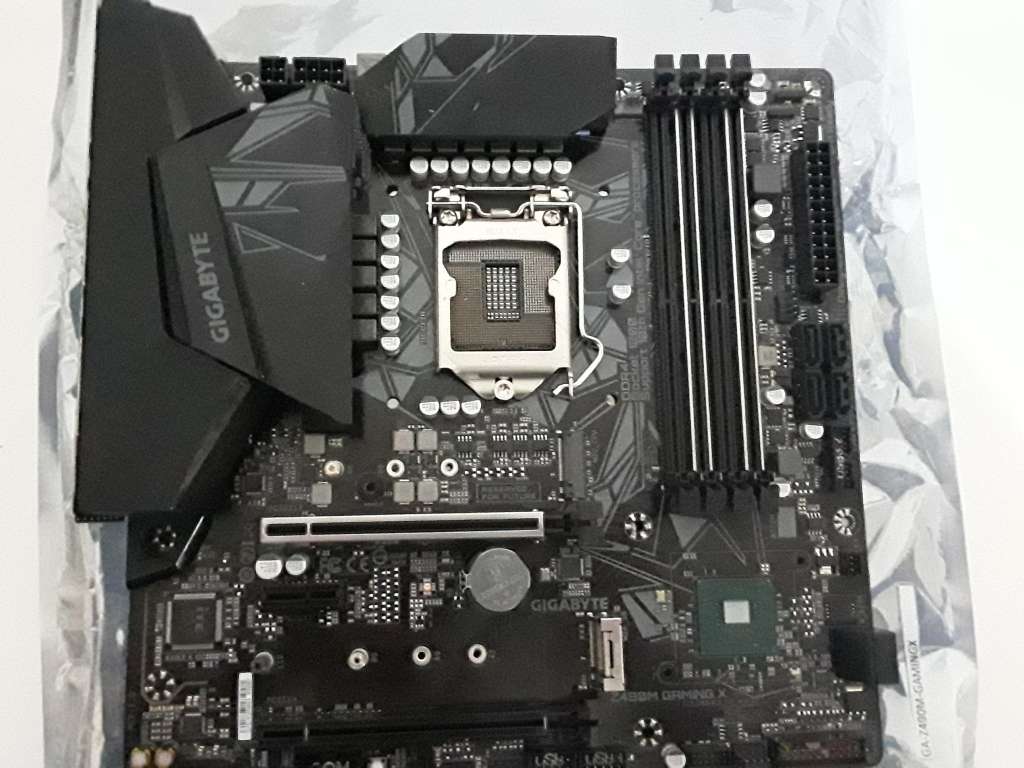

The motherboard was tested, working 100% as seen in the images. It comes with 2 SATA cables. It does not come with its original packaging or the heatsink for m.2, manual and driver DVD. It has a few scuff marks as seen in the images.

SPECIFICATION:

CPU:

1. Support for 10th and 11th Generation Intel Core Processors, Intel Core i9/ Intel Core i7/ Intel Core i5/ Intel Core i3/ Intel Pentium / Intel Celeron in the LGA 1200 package

2. L3 cache varies with Processors

CHIPSET:

Intel Z490 Express Chipset

MEMORY:

1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

2. Dual channel memory architecture

3. Intel Core i9/i7 processors:

Support for DDR4

5000(O.C)/4933(O.C)/4800(O.C)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4300(O.C)/4266(O.C)4133(O.C)/4000(O.C)/3866(O.C)/3800(O.C)/3733(O.C)/3666(O.C)/3600(O.C)/3466(O.C)/3400(O.C)/3333(O.C)/3300(O.C)/3200(O.C)/3000(O.C)/2933/2800/2666/2400/2133 MHz

4. Intel Core i5/i3/Pentium/Celeron processors

Support for DDR4 2666/2400/2133 MHz

5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

7. Support for Extreme Memory Profiles (XMP) memory modules

ONBOARD GRAPHICS:

Integrated Graphics Processor-Intel HD Graphics support:

1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60Hz

* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR

2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz

* Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512 MB

AUDIO:

1. Realtek ALC1200 codec

2. High Definition Audio

3. 2/4/5/7.1-channel

4. Support for S/PDIF Out

LAN:

1. Intel GbE LAN chip (1000 Mbit/100 Mbit)

EXPANSION SLOTS:

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)

3. 1 x PCI Express x1 slot

(All of the PCI Express slots conform to PCI Express 3.0/ 4.0 depending on the generation of processor installed)

Supports up to ASPM L1.2 power management  protocols.

MULTI-GRAPHICS TECHNOLOGY:

1. Support for AMD Quad-GPU Crossfire and 2-way AMD Crossfire technologies

STORAGE INTERFACE:

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/ x2 SSD support) (M2A_SB)

2. 6 x SATA 6GB/s connectors

3. Support for RAID 0, RAID 1, RAID 5 and RAID 10

Intel Optane Memory Ready M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

USB:

CHIPSET:

1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

2. 1 x USB 3.2 Gen 2 Type-A port (RED) on the back panel

3. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB headers

4. 4 x USB 2.0/1.1 ports available through the internal USB headers

INTERNAL I/O CONNECTORS:

1. 1 x 24-pin ATX main power connector

2. 1 x 4-pin ATX 12V power connector

3. 1 x 8-pin ATX 12V power connector

4. 1 x CPU fan header

5. 3 x system fan headers

6. 2 x addressable LED strip headers

7. 2 x RGB LED strip headers

8. 6 x SATA 6GB/s connectors

9. 1 x M.2 Socket 3 connector

10. 1 x front panel header

11. 1 x front panel audio header

12. 1 x S/PDIF Out header

13. 1 x USB 3.2 Gen 1 header

14. 2 x USB 2.0/1.1 headers

15. 2 x Thunderbolt add-in card connectors

16. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0 module only)

17. 1 x serial port header

18. 1 x Clear CMOS jumper

19. Q-Flash Plus button

BACK PANEL CONNECTORS:

1. 1 x PS/2 Keyboard/Mouse port

2. 4 x USB 3.2 Gen 1 ports

3. 1 x DisplayPort

4. 1 x HDMI port

5. 1 x USB 3.2 Gen 2 Type-A port (RED)

6. 1 x USB Type-C port, with USB 3.2 Gen 2 support

7. 1 x RJ-45 port

8. 6 x audio jacks

I/O CONTROLLER:

1. iTE I/O Controller Chip

H/W MONITORING:

1. Voltage detection

2. Temperature

3. Fan speed detection

4. Overheating warning

5. Fan fail warning

6. Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install

BIOS:

1. 1 x 256 Mbit flash

2. Use of licensed AMI UEFI BIOS

3. PNP 1.0a, DMI 2.7, WFM 2.0, SM BIOS 2.7, ACPI 5.0

UNIQUE FEATURES:

1. Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

@BIOS, EasyTune, FastBoot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, System Information Viewer

2. Support for Q-Flash Plus

3. Support for Q-Flash

4. Support for Express Install

BUNDLED SOFTWARE: 1. NORTON Internet Security (OEM version), 2. cFosSpeed

OPERATING SYSTEM: Support for Windows 10 64-bit

FORM FACTOR: MICRO ATX Form Factor, 24.4cm x 24.4cm
