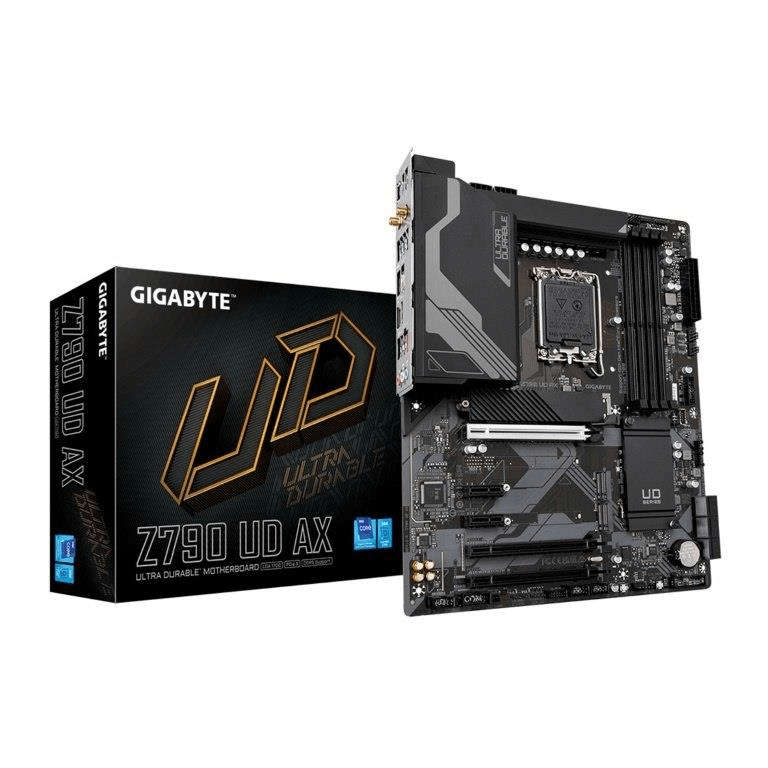

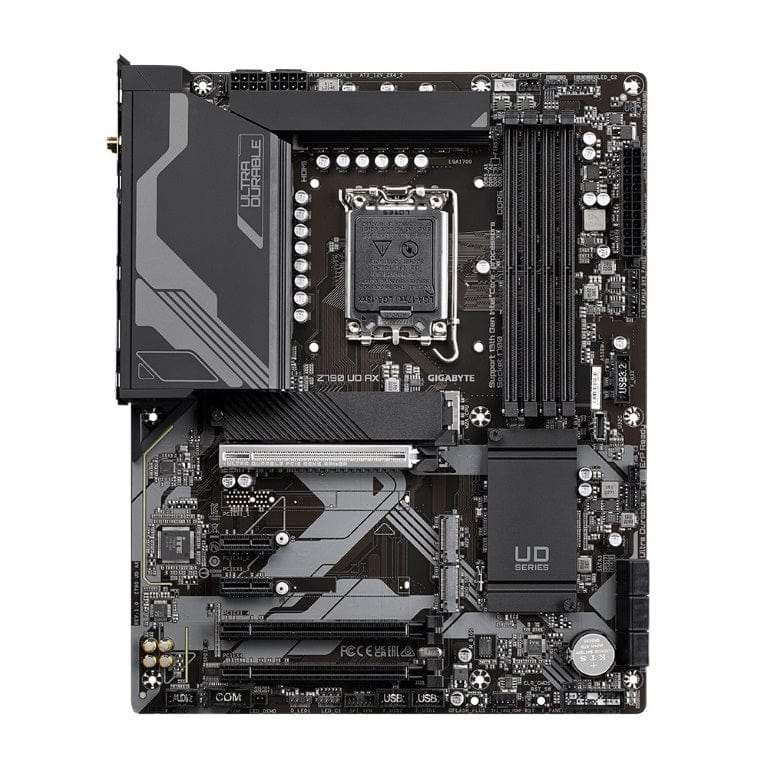

Gigabyte Z790 UD AX Intel LGA 1700 ATX Motherboard GA-Z790-UD-AX
Unparalleled Performance
With the fast-moving technology changes, Gigabyte always follows the latest trends and provides customers with advanced features and latest technologies. Gigabyte motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.
Design Ready for PCIe 5.0
PCIe 5.0 Design supports double the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge GPUs released in the next few years to their full capability.
DDR5 Overclocking Up to 7600 and Beyond
Gigabyte is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their Gigabyte motherboard
Gigabyte PerfDrive
PerfDrive technology integrates multiple Gigabyte exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel Core processors.
4x Large Surface
Increased surface area up to 4x larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
Gigabyte Ultra-Efficient M.2 Thermal Guard
With durability in mind, Gigabyte provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Connectivity
Gigabyte Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4x range over BT 4.2 and with faster transmission.
First adopter on 2.5GbE LAN onboard
2x Faster than ever
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet
Connecting the Future - USB 3.2 Gen 2x2 Type-C
Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
Direct-To-BIOS
Boot into BIOS menu directly without pressing any keyboard button.
Safe Mode
Boot into BIOS safe mode to change specific option without losing other BIOS settings.
Ultra Durable
Gigabyte Ultra Durable design provides product durability and high-quality manufacturing process. Gigabyte motherboards use the best components and reinforce every slots to make each of them solid and durable.
Features
- Supports Intel Core 14th / 13th / 12th processors
- Unparalleled Performance: Twin 16*+1+1 Phases Digital VRM Solution (*8+8 phases parallel power design)
- Dual Channel DDR5: 4x SMD DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage: 3x PCIe 4.0 x4 M.2 Connectors
- EZ-Latch Plus: PCIe 5.0 x16 Slot with Quick Release & Screwless Design
- Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity: DP, HDMI, Front USB-C 5Gb/s, Rear USB-C 20Gb/s
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Technical Specification
Product model: Gigabyte Z790 UD AX
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Motherboard chipset: Intel Z790 Express Chipset
Supported memory type: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speeds: 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
Supported storage drive interfaces: M.2, SATA
Ethernet interface type: Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless LAN: Wi-Fi 6E (802.11ax) with Bluetooth 5.3
Motherboard form factor: ATX
Dimensions: 30.5cm x 24.4cm
Storage Interface
- 2x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
- 6x SATA 6Gb/s connectors
Internal I/O Connectors
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 1x CPU fan header
- 1x water cooling CPU fan header
- 3x system fan headers
- 1x system fan/water cooling pump header
- 2x addressable LED strip headers
- 2x RGB LED strip headers
- 3x M.2 Socket 3 connectors
- 6x SATA 6Gb/s connectors
- 1x front panel header
- 1x front panel audio header
- 1x S/PDIF Out header
- 1x USB Type-C header, with USB 3.2 Gen 1 support
- 1x USB 3.2 Gen 1 header
- 2x USB 2.0/1.1 headers
- 1x serial port header
- 2x Thunderbolt add-in card connectors
- 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1x reset button
- 1x Q-Flash Plus button
- 1x reset jumper
- 1x Clear CMOS jumper

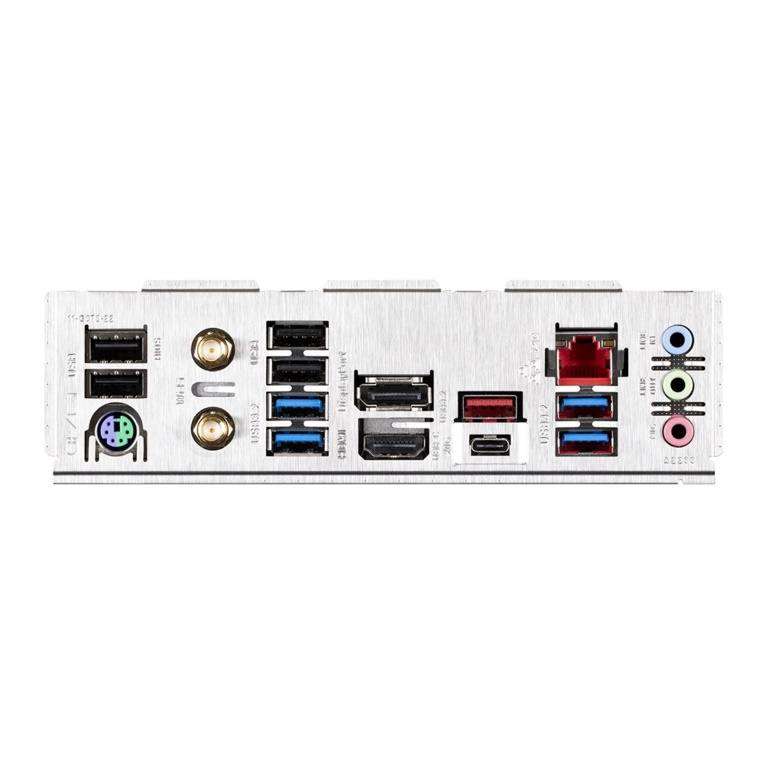

Back Panel Connectors
- 1x USB Type-C port, with USB 3.2 Gen 2x2 support
- 1x USB 3.2 Gen 2 Type-A port (red)
- 4x USB 3.2 Gen 1 ports
- ...
