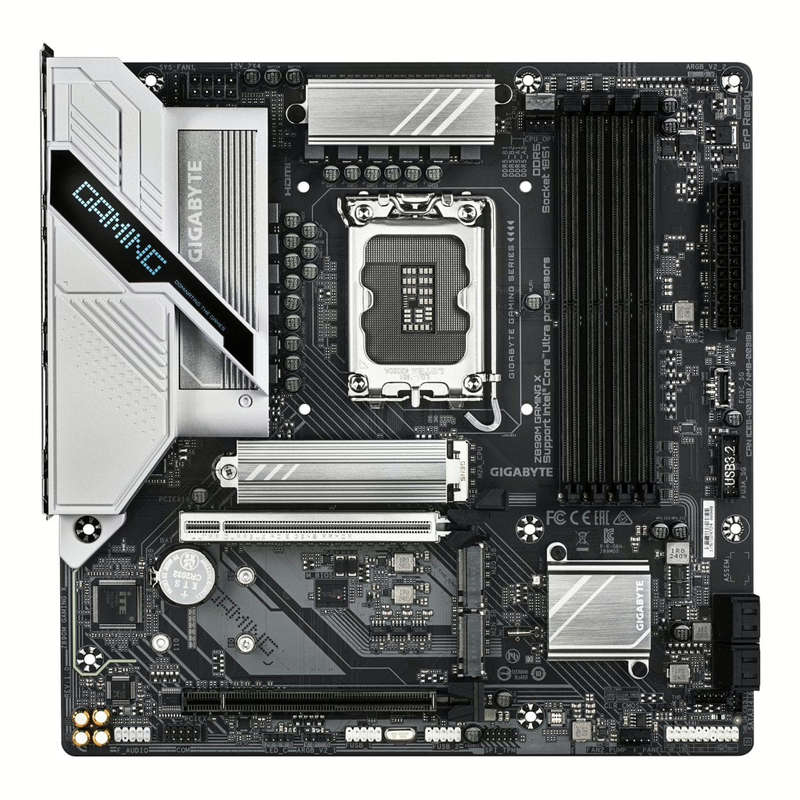

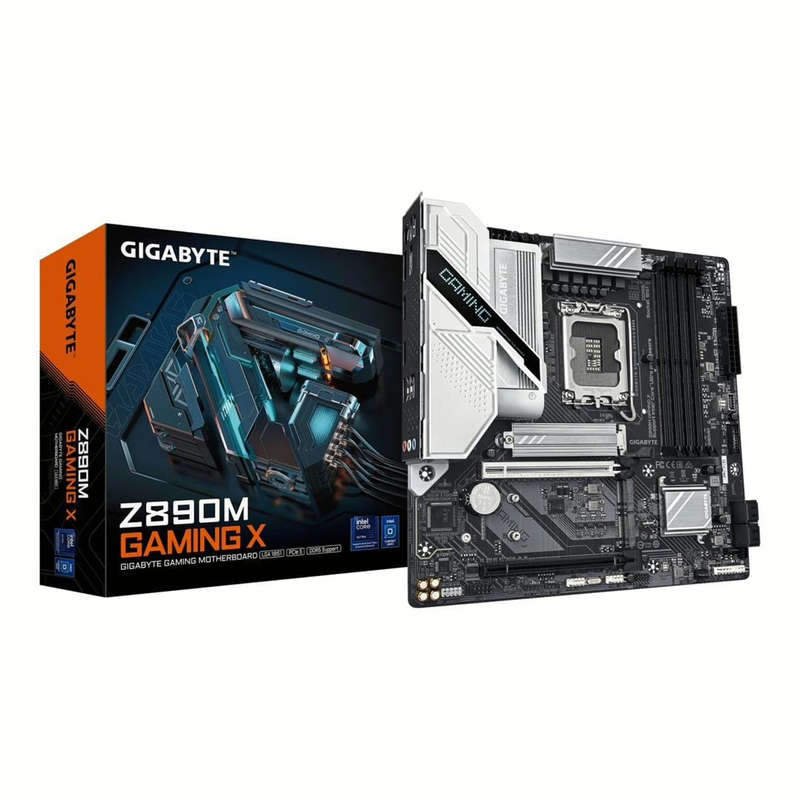

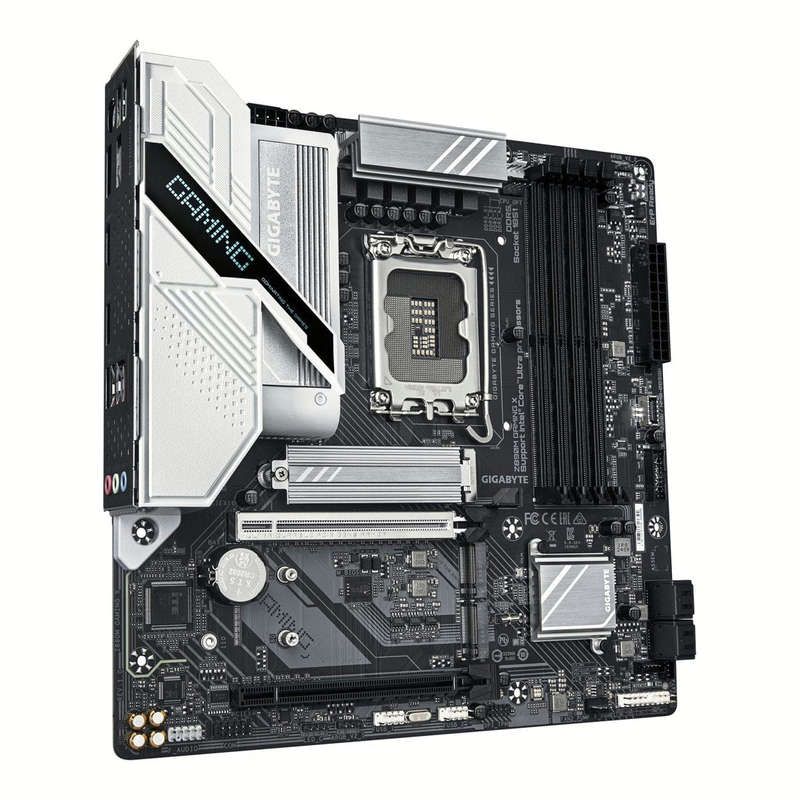

Gigabyte Z890M Gaming X Intel LGA1851 Micro ATX Motherboard
Key Features
- Supports Intel Core Ultra processors (Series 2)
- Digital 8+1+2 phases VRM solution
- D5 Bionic Corsa: for Infinite Memory Performance
- AI Perfdrive: Provides optimal and customized BIOS preset profile for users
- Premium Compatibility: 4*DDR5 with XMP Memory Module Support
- PCIe EZ-Latch: PCIe slots with Quick Release & Screwless Design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN
- Extended Connectivity: HDMI, DisplayPort
Infinite Memory Performance
Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
AI Overclocking
For peak performance
AI Design
For MB signal enhancement
Steady Power
Better Play GAMING Series, steady power keeps your gaming smooth.
Comprehensive Thermal
GAMING motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage solutions, delivering lightning-fast data transfer speeds.
Born from Ultra Durable
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.
Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.
Technical Specification
Product: Gigabyte Z890M Gaming X Motherboard
LGA1851 socket: Support for Intel Core Ultra Processors
Chipset: Intel Z890 Express
Memory: Support for DDR5 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
Memory Sockets: 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- Support CUDIMM memory module
Onboard Graphics: Integrated Intel Graphics Processor
Audio: Realtek Audio CODEC
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
- CPU: 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
- Chipset: 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface
- CPU: 1x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- Chipset: 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB) ; 1x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB) ; 4x SATA 6Gb/s connectors
USB
- 1x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 5x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x CPU fan header
- 1x CPU fan/water cooling pump header
- 1x system fan header
- 1x system fan/water cooling pump header
- 2x addressable RGB Gen2 LED strip headers
- 1x RGB LED strip header
- 3x M.2 Socket 3 connectors
- 4x SATA 6Gb/s connectors
- 1x front panel header
- 1x front panel audio header
- 1x USB Type-C header, with USB 3.2 Gen 1 support
- 1x USB 3.2 Gen 1 header
- 2x USB 2.0/1.1 headers
- 2x Thunderbolt add-in card connectors
- 1x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1x serial port header
- 1x Clear CMOS jumper

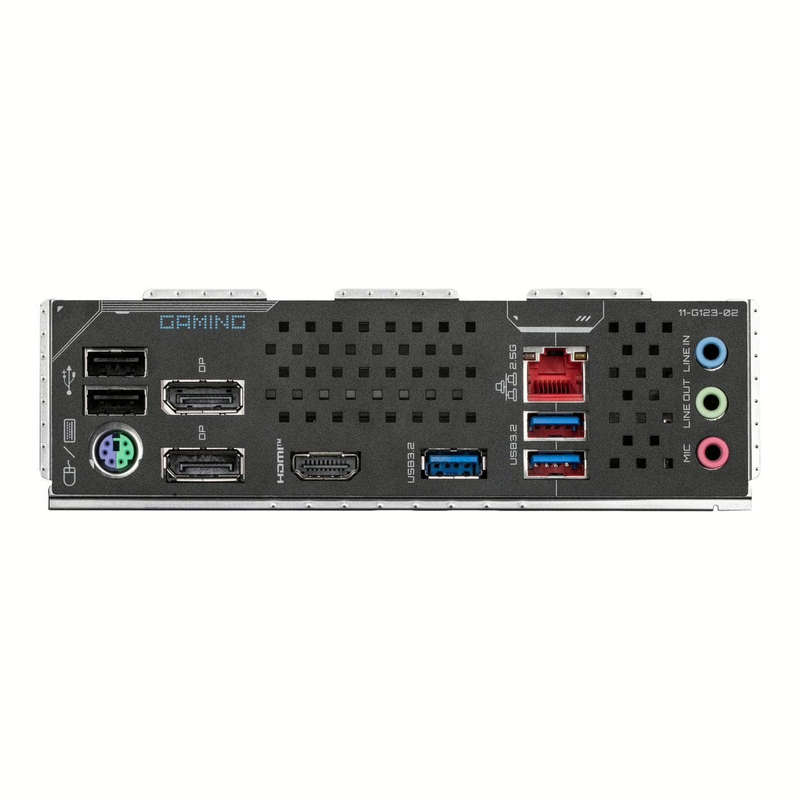

Back Panel Connectors
- 1x PS/2 keyboard/mouse port
- 3x USB 3.2 Gen 1 ports
- 2x USB 2.0/1.1 ports
- 1x HDMI port (Note)
- 2x DisplayPorts (Note)
- 1x RJ-45 port
- 3x audio jacks
- (Note) Actual support may vary by CPU.
I/O Controller: iTE I/O Controller Chip
Operating System suportted: Windows 11 64-bit / 10 64-bit
Form Factor: Micro ATX Form Factor
Dimensions: 24.4cm x 24.4cm
