| Gigabyte |

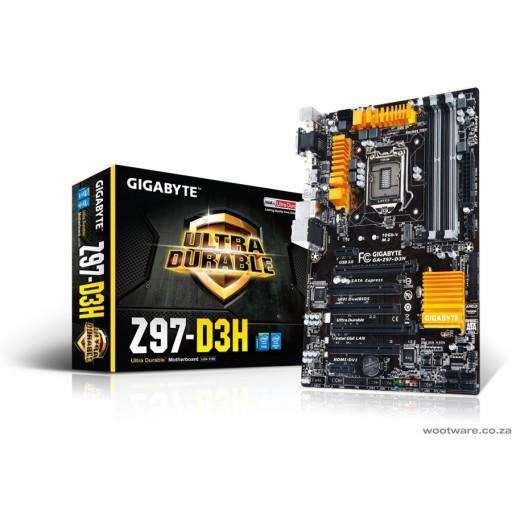

| GA-Z97-D3H |
| Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package |
| L3 cache varies with CPU |
| (Please refer "CPU Support List" for more information.) |
| Intel Z97 Express Chipset |
| 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory |
| * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. |
| Dual channel memory architecture |
| Support for DDR3 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules |
| Support for non-ECC memory modules |
| Support for Extreme Memory Profile (XMP) memory modules |
| 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60Hz |
| 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz |
| * The DVI-D port does not support D-Sub connection by adapter. |
| 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz |
| * Support for HDMI 1.4a version. |
| Support for up to 3 displays at the same time |
| Maximum shared memory of 1 GB |
| Realtek ALC1150 codec |
| High Definition Audio |
| 2/4/5.1/7.1-channel |
| Support for S/PDIF Out |
| Intel GbE LAN chip (10/100/1000 Mbit) |
| 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| (The PCIEX16 slot conforms to PCI Express 3.0 standard.) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| * The PCIEX4 slot shares bandwidth with all PCI Express x1 slots. All PCI Express x1 slots will become unavailable when a PCIe x4 expansion card is installed. |
| * When installing a x8 or above card in the PCIEX4 slot, make sure to set PCIE Slot Configuration in BIOS Setup to x4. (Refer to Chapter 2, "BIOS Setup," "Peripherals," for more information.) |
| 2 x PCI Express x1 slots |
| (The PCIEX4 and the PCI Express x1 slots conform to PCI Express 2.0 standard.) |
| 3 x PCI slots |
| Support for AMD CrossFire technology |
| 1 x M.2 PCIe connector |
| (Socket 3, M key, type 2242/2260/2280 SATA & PCIe SSD support) |
| 1 x SATA Express connector |
| 6 x SATA 6Gb/s connectors |
| (M.2, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed.) |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 |
| Chipset: |
| 6 x USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
| 8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers) |
| 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector |
| 1 x M.2 PCIe connector |
| 1 x SATA Express connector |
| 6 x SATA 6Gb/s connectors |
| 1 x USB 3.0/2.0 header |
| 3 x USB 2.0/1.1 headers |
| 1 x CPU fan header |
| 1 x water cooling fan header (CPU_OPT) |
| 3 x system fan headers |
| 1 x front panel header |
| 1 x front panel audio header |
| 1 x serial port header |
| 1 x Trusted Platform Module (TPM) header |
| 1 x S/PDIF Out header |
| 1 x Clear CMOS jumper |
| 1 x PS/2 keyboard/mouse port |
| 1 x D-Sub port |
| 1 x DVI-D port |
| 1 x HDMI port |
| 4 x USB 3.0/2.0 ports |
| 2 x USB 2.0/1.1 ports |
| 1 x RJ-45 port |
| 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In) |
