Specification:
Brand: GLEDOPTO
Model: GL-C-202P
Input Voltage: DC 12~24V
Output Current/Channel: 15A Max
Total Output Current: 20A Max
Net Weight (N.W): 53.7g
Gross Weight (G.W): 64.2g
LED Strip Type: RGBCCT, RGBW, RGB
Material: Flame Retardant PC
Size: 108x45x18mm
Features:
1. Multi-Control Methods: Supports ZigBee3.0, 2.4G, and Push switch control.

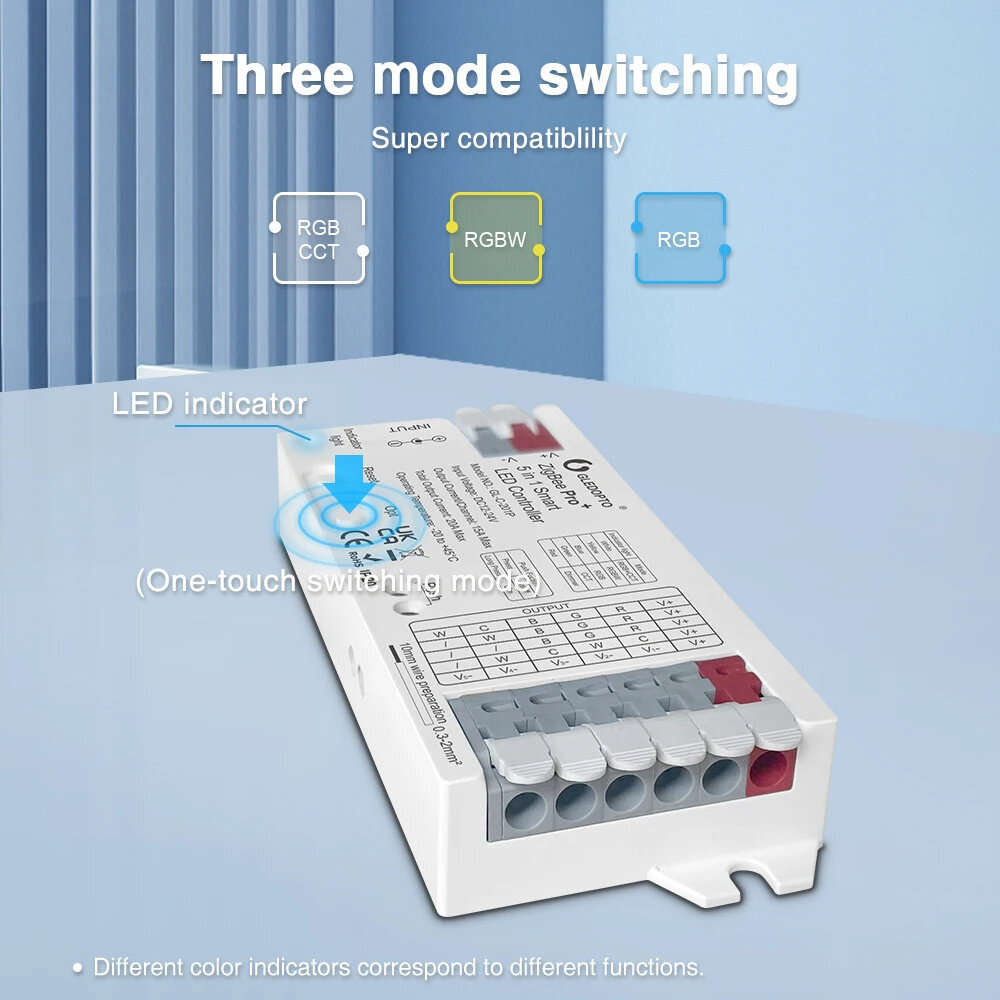

2. Universal LED Strip Support: Compatible with RGBCCT, RGBW, and RGB LED strips. Easily switch between different types using the OPT function.

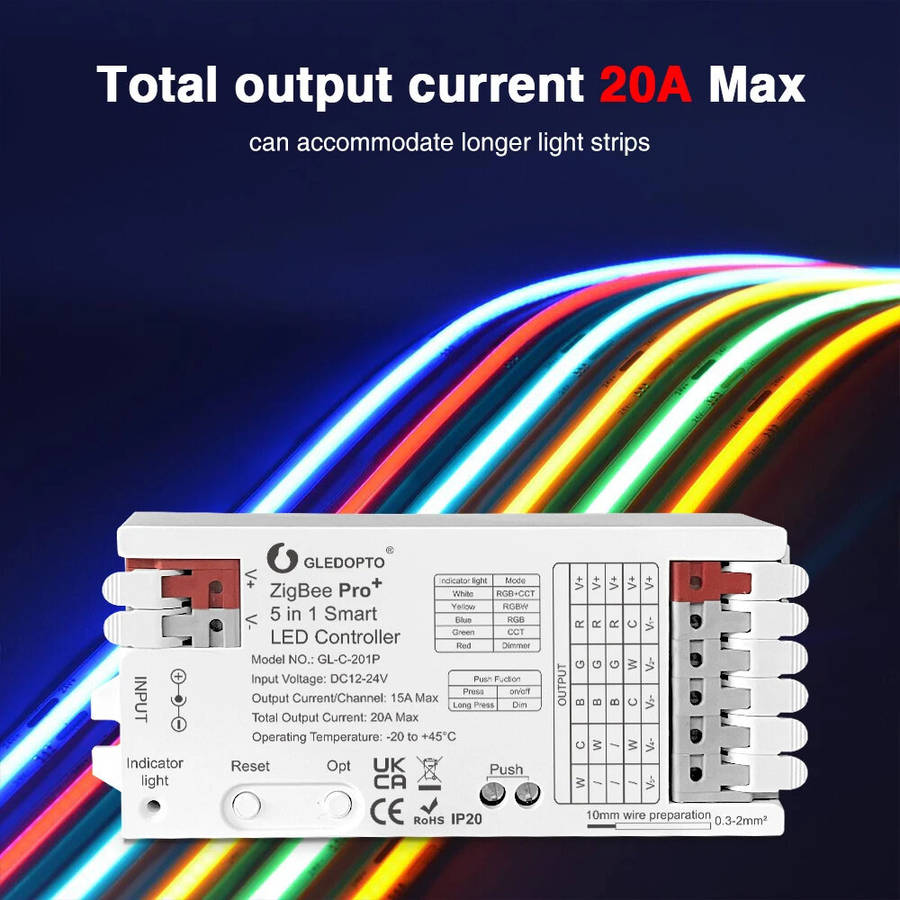

3. High Output Capacity: Single channel current up to 15A, total current up to 20A.
4. Frequency Adjustment: Allows frequency setting to reduce noise, with settings for power-on state and scene mode.

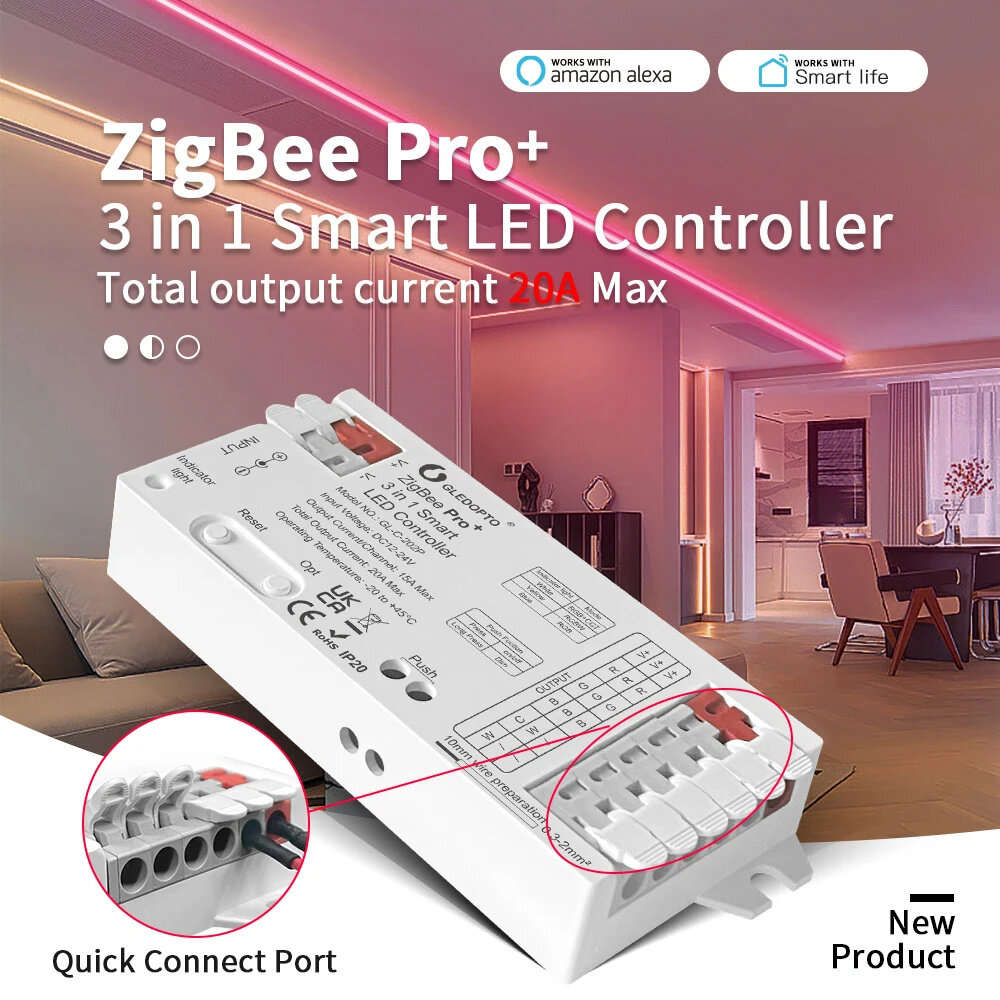

5. Easy Wiring: Quick connect port for simplified wiring, more convenient than traditional scr
