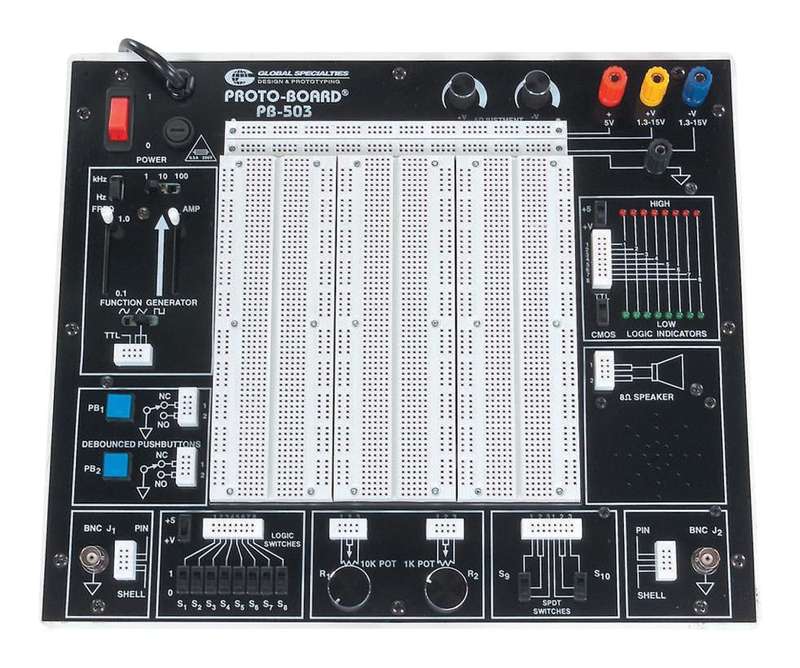

Global Specialties (PB-503) ProtoBoard Workstation, Analogue / Digital

Product Information:Board Type: Workstation, Analogue / Digital DesignBoard Material: -Hole Diameter: -External Height: 165.1mmExternal Width: 406.4mmBoard Thickness: -Product Overview:The PB-503 is an Analog and Digital Design Workstation with high-impact moldedcase enclosure. The robust design makes it a trainer suitable for all levels ofelectronics instruction and design. The PB-503 can be used to construct basicseries and parallel circuits up to the most complicated multi-stagemicrocomputer circuits, incorporating the latest in industrial technology. Itallows students to learn valuable hands-on lab experience by employing necessarybreadboarding techniques, which provide a solid foundation in circuitexperimentation, analyzing and troubleshooting. It is suitable for the mostadvanced and demanding design applications. It is ideal for analog, digital andmicroprocessor circuits. It includes built-in function generator withcontinuously variable waveforms. The removable breadboard plate allows theflexibility of building circuits away from the lab.- Capable and reliable instrument- Triple output power supply for a variety of DC voltage levels- Two digital pulsers for logic test circuits- High and low buffered logic indicators- 8-channel logic monitor- Audio experimentation speaker- Sine, square, triangle output waveformsApplications:Industrial
