GLUEDEVIL SUPER GLUE is a really, really, really strong clear liquid adhesive that bonds like lightning at room temperature. It is especially powerful on non-porous surfaces such as metal, ceramics, rubber, plastic, glass, china etc. Also potent on porous materials such as leather, wood, fabrics, cardboard and paper.
TYPICAL PROPERTIES OF UNCURED MATERIAL:
Base | Ethyl Cyanoacrylate |
Colour | Transparent, colourless to yellowish liquid |
Specific Gravity @ 25C | 1.10 |
Refractive Index (n D 20) | 1.439 |
Flash Point | See MSDS |
Vapor Pressure (hPa) | < 1 |
Viscosity (cP) 25 | 80 120 |
Shelf life | 12 months |
CURING PERFORMANCE:
There are many factors that can influence the rate of cure. These include: the types of substrates used, the condition of the surface to be bonded, the smoothness of the surface, the closeness of the surfaces, the atmospheric conditions etc.
Substrate/ Cure Speed
Steel to Steel | 10 30 seconds |
Stainless Steel | 30 60 seconds |
Aluminium | 5 15 seconds |
Zinc plated | 30 90 seconds |
ABS to ABS | 5 20 seconds |
ABS to NBR | 3 5 seconds |
ABS to Wood | 5 10 seconds |
NBR to NBR | 5 10 seconds |
Wood | 60 75 seconds |
Polycarbonate | 20 60 seconds |
Leather | 30 60 seconds |
ABS - Acrylonitrile Butadiene Styrene
NBR - nitrile butadiene rubber
Cure Speed / Humidity
The following graph shows the tensile strength developed at different levels of humidity.
Cure Speed / Bond Gap
The rate of cure depends on the bond-gap. A smaller bond-gap results in faster cure speeds.
TYPICAL PROPERTIES OF CURED MATERIAL:
Physical Properties | |
Color | Clear |
Coefficient of Thermal Expansion (K-1) | 100 x 10-6 |
Coefficient of Thermal Conductivity (W/m.K) | 0.10 |
Softening Point | 165C |
Electrical Properties | |
Volume Resistivity (.cm) | 1 x 1016 |
Surface Resistivity () | 1 x 1016 |
Dielectric Constant @ 10 kHz | 2.75 |
Dielectric Dissipation Factor @ 10 kHz | <0.02 |
Dielectric Breakdown Strength (kV/mm) | 25 |
ADHESIVE PERFORMANCE:
After 24 hours at 25C.
Tensile Strength | |
Steel | 190 210 Kg/ cm2 |
Stainless Steel | 250 450 Kg/ cm2 |
Aluminum | 170 190 Kg/ cm2 |
Copper | 150 170 Kg/ cm2 |
PVC | 40 60 Kg/ cm2 |
ABS | 50 70 Kg/ cm2 |
Polycarbonate | 80 120 Kg/ cm2 |
Polystyrene | 30 45 Kg/ cm2 |
NBR | 5 9 Kg/ cm2 |
SBR | 5 10 Kg/ cm2 |
TYPICAL ENVIRONMENTAL RESISTANCE:
Hot Strength:
Heat Ageing:
DIRECTIONS FOR USE:
Bond speed is very fast so ensure that parts are properly aligned before bonding. Activators may be required if there are gaps or porous surfaces. Some plastics may require application of a Primer.
HANDLING AND STORAGE:
Storage:
Keep products in the unopened container in a cool and dry place. Best when stored at 2C to 8C. Temperatures less than 2C can adversely affect product properties. Do not freeze. Keep container tightly closed until ready for use.
Handling:
Material removed from containers may be contaminated during use. Do not pour any of the product back into the original container. Misuse of the product will void all warrantees.
PACKAGING:

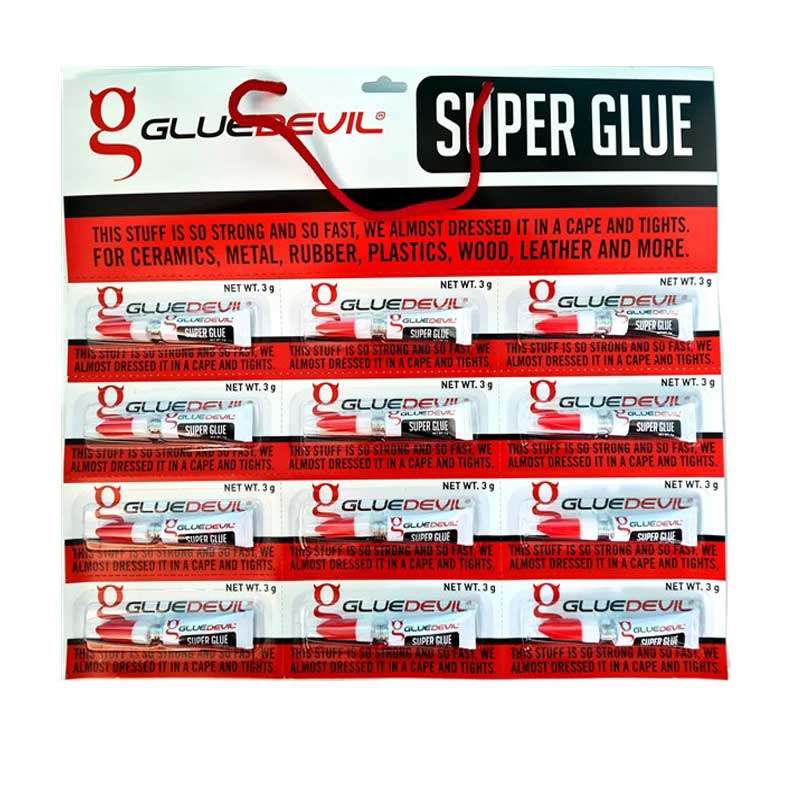

3g display card of 12
PRECAUTIONS:
HEALTH AND SAFETY:
For more information and advice on the safe handling, storage and disposal of chemical products, users shall refer to the most recent Material Safety Data Sheet containing, physical, ecological, and toxicological and other safety related data
Disclaimer: The data contained herein are furnished for informational purposes only and are believed to be reliable. However, National Adhesive Distributors CC does not assume responsibility for any results obtained by persons over whose methods National Adhesive Distributors CC has no control. It is the user's responsibility to determine the suita...
