Package weight: 1.07 kgDescription:
♦This ultrasonic thickness gauge is an intelligent handhold product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material.
♦This unit is widely used in various precise measurement for different hardware / parts in industrial realm; one of its important application is to monitor the level of thickness-de-creasing during operation of various and pressure container.

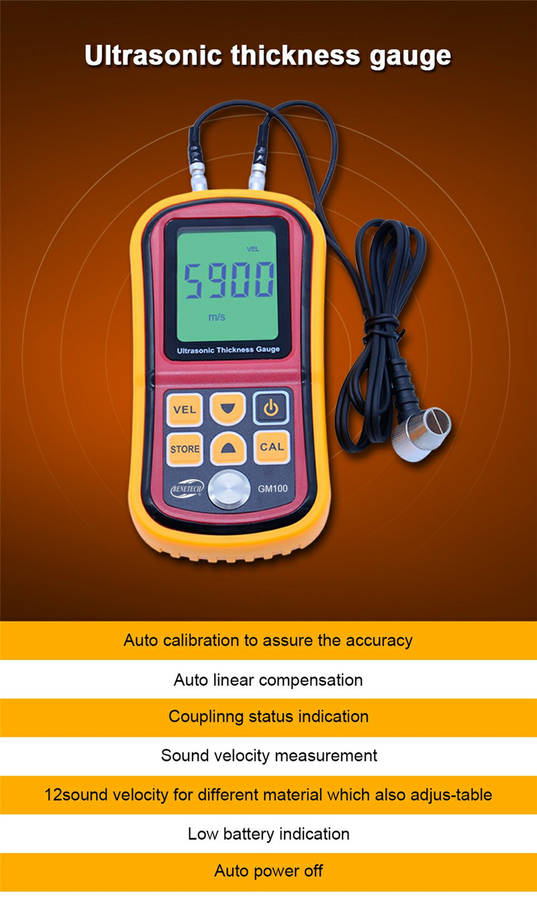

♦Diffusely applied in manufacture fields, metal processing, and commercial inspection. The material that conduct and reflect constant sonic velocity, this product is to be applicable to used.Features:
￢ﾖﾺAuto calibration to assure the accuracy.
￢ﾖﾺAuto linear compensation: this advanced software progr- am enhances the precision by correcting the non-linear accuracy of transducer.
￢ﾖﾺUse and keys to make a quick adjustment for the so- und velocity /thickness,and a quick recall to the stored data.
￢ﾖﾺCoupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not.
￢ﾖﾺ10 thickness measurement storage and recall function available, which facilitates the height work or working in wild area.
￢ﾖﾺSound velocity measurement: With a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table.
￢ﾖﾺ12 sound velocity for different material which also adjus- table.
￢ﾖﾺLow battery indication
￢ﾖﾺAuto power off mode designed to conserve battery life. More than 10000 times long lift keys.
￢ﾖﾺThe unit has a special memory that retains all of its setting even when the power is off.

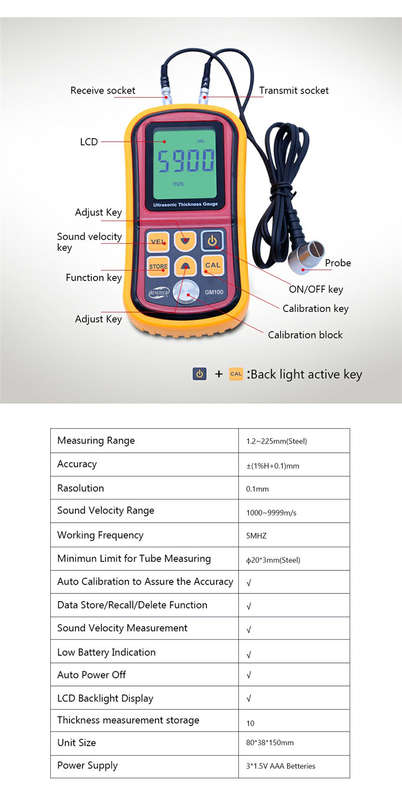

Specifications:Measuring range:1.2~225mm
Power Supply:3*1.5V AAA Batteries (Not Included)
Accuracy:±(1%H+0.1)mm
Resolution:0.1mm
Sound Velocity Range:1000~9999m/s
Working Frequency:5MHZ
Minimun Limit For Tube Measuring:Φ20*3mm(steel)
Auto Calibration to Assure the Accuracy :√
Data Store/Recall/Delate Function:√
Sound Velocity Mearsurement:√
Low Battery Indication:√
Auto Power Off:√
LCD Backlight Display:√
Thickness Measurement Storage:√

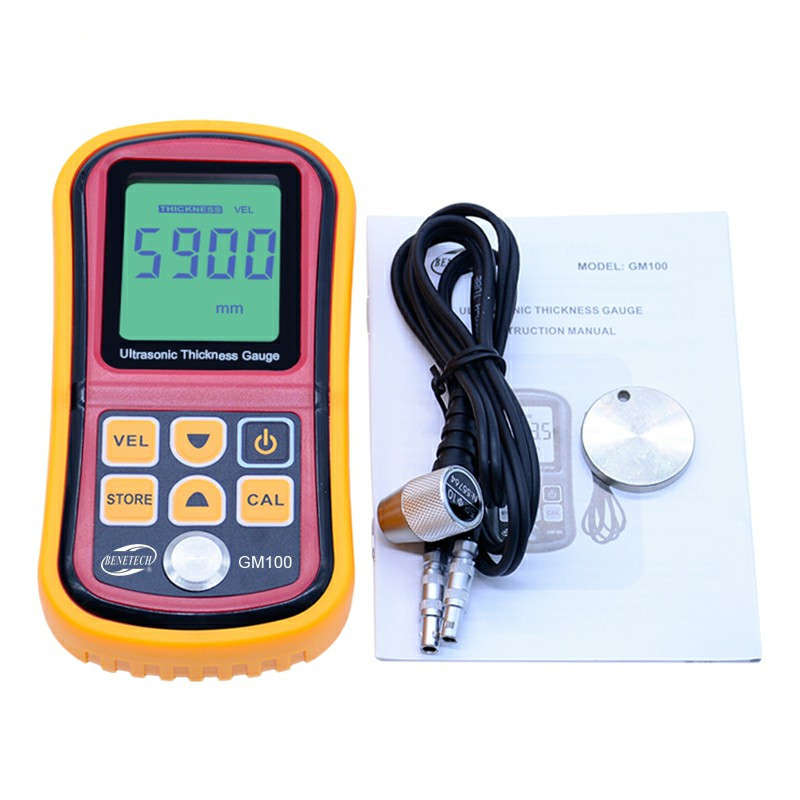

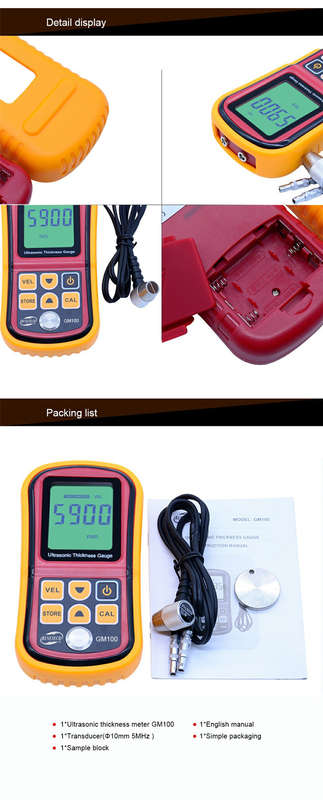

Package includes:
1 x Thickness Gauge
1 x User Manual

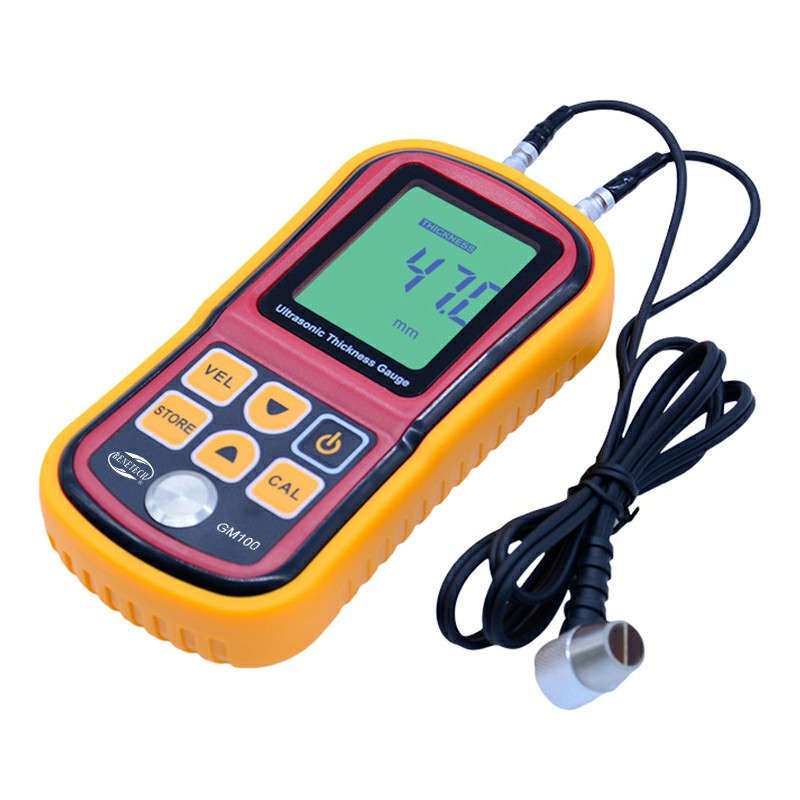

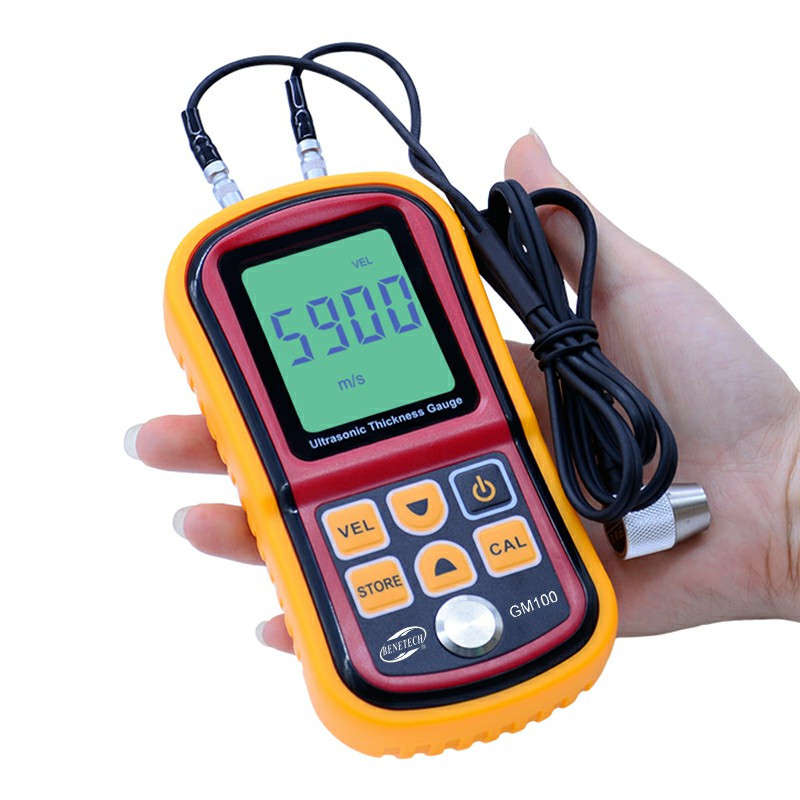

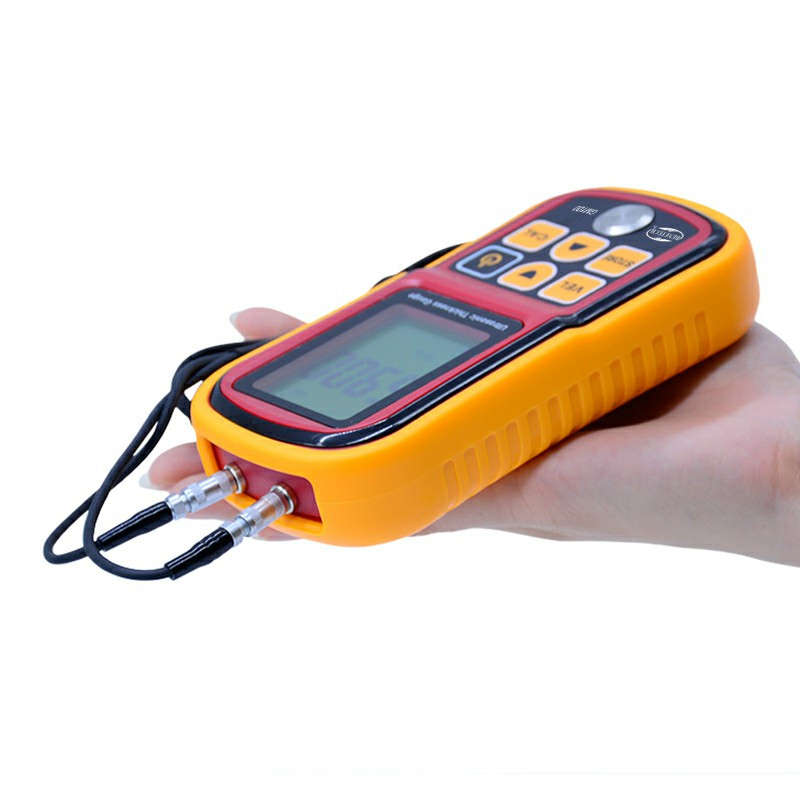

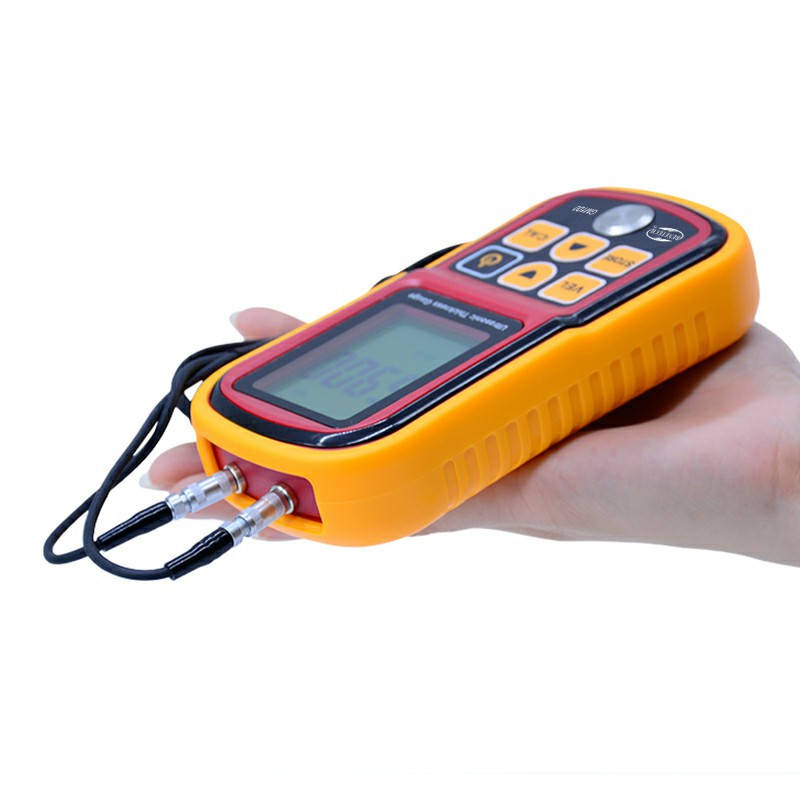

Detail pictures:
