GNSS Module, GPS Beidou, ATGM336H-5N

**** LOCAL STOCK ****

Description

ATGM336H-5N

• Based on the fourth generation of low-power GNSS SOC Chips AT6558
• All tracking system supported GPS/US, Beidou/CN, GLONASS/RU, Galileo/EU, QZSS/JP, SBAS/enhanced system, all in one.
• Contains 32 tracking channels that can receive GNSS signals from six satellite navigation systems simultaneously and enables joint positioning, navigation and timing.
• High sensitivity, low power consumption, low cost
• Suitable for car navigation, handheld positioning, wearable devices
• Can replace Ublox MAX, NEO-6M, 7M, 8M directly.
• Output standard NMEA0183 signal from serial.

More Features:

• Support A-GNSS
• Cold start capture sensitivity: -148dBm
• Tracking sensitivity: -162dBm
• Positioning accuracy: 2.5 meters (CEP50, open area)
• First positioning time: 32 seconds
• Low power consumption: continuous operation <25mA (@ 3.3V)
• Built-in antenna detection and antenna short-circuit protection

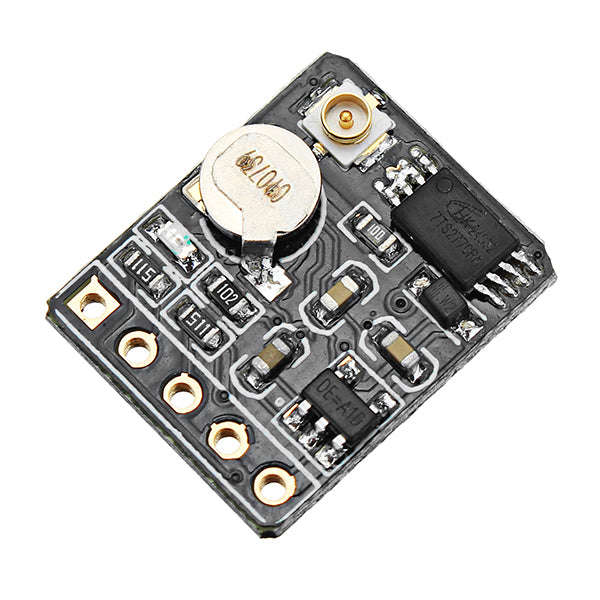

Board Features:

• Board size 15.7 x 13.1 mm

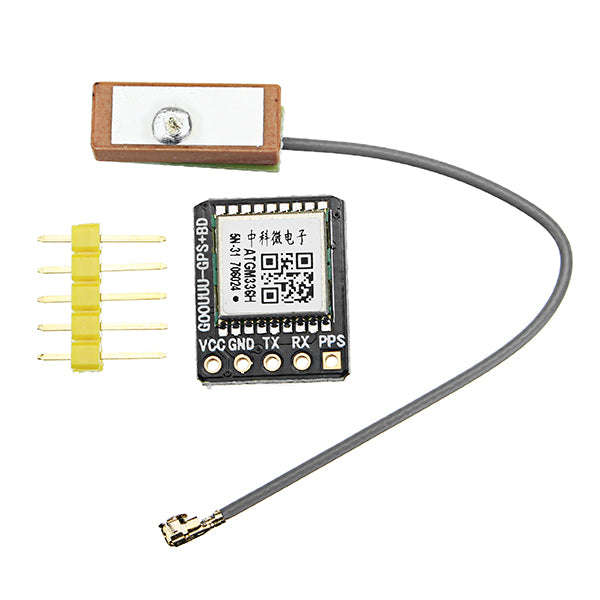

• Package include main board and ipex antenna.

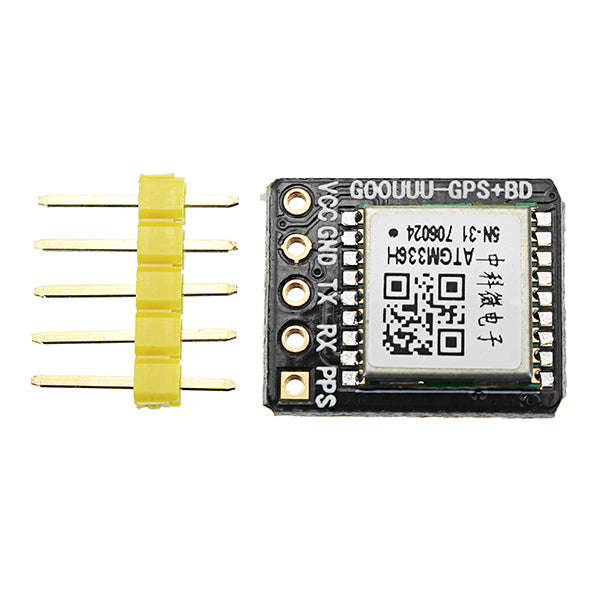

• Pin Definition 5V, GND, TXD, RXD, PPS. (PPS output time signal which can be connected to MCU IOs)

Datasheet, documentation please see wiki page.
