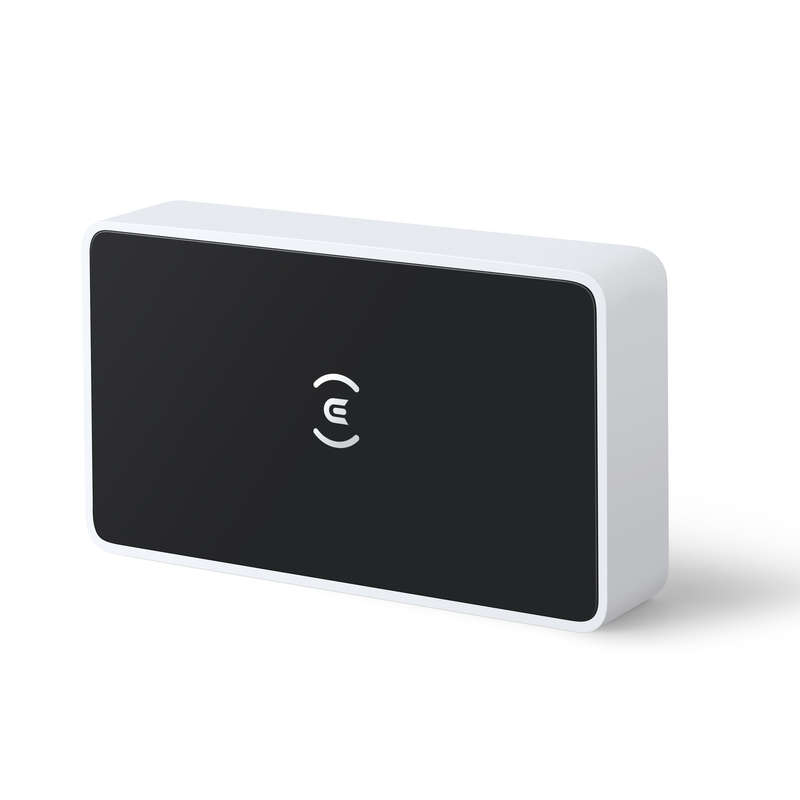

GOAT Cellular Module

Don't worry about the yard being too big, the cellular module uses a cellular connection, and after inserting the SIM card, even without Wi-Fi, GOAT can keep connected with the APP to complete the mowing task, and you can watch your yard through video at any time.

Connectivity with a multitude of cellular providers ensures the best possible signal at all times.

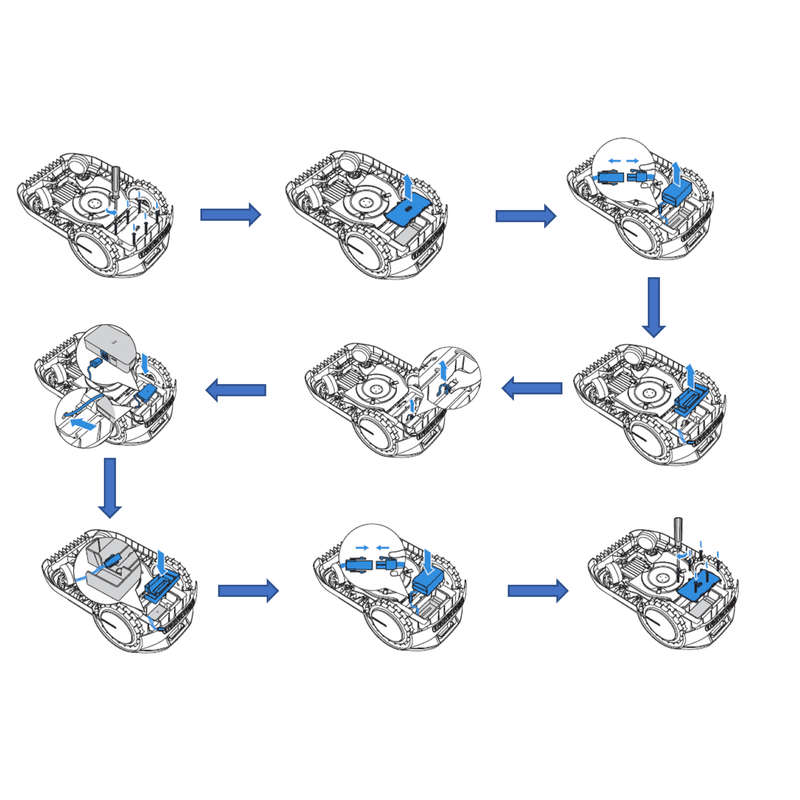

INSTALLATION:
1. Loosen the 6 screws by using the supplied screwdriver.
2. Pry the battery lid manually to open.
3. Unplug the battery connector, and take out the battery.
4. Put the cable which is connected to GOAT aside, and take out the battery tray.
5. Take out the Module connector.
6. Take out the Cellular Module from the package and keep the icon "e" upward. Use the needle (supplied) to take out the card tray. With the metal surface facing up, put the SIM card into the card tray as shown in the picture before inserting the card tray into slot.
7. Plug the Module connector into Cellular Module, and put it back with the icon "e" upward as shown in the picture. Put the extra cable back. Ensure the Module connector cable is well placed.
8. Install the battery tray, and put the cable that is connected to GOAT into slot.
9. Plug the battery connector, and install the battery.
10. Cover the lid and tighten the 6 screws.

Rated Voltage: 12V
Available Cellular Network Types: 2G/3G/4G
