GOAT G1 Navigation Beacon

��� No more manual boundary cable laying and embrace the wire-free cutting technology. Get used to the fast and efficient prep work by using Navigation Beacons instead of boundary cables ��� time and effort will be saved.

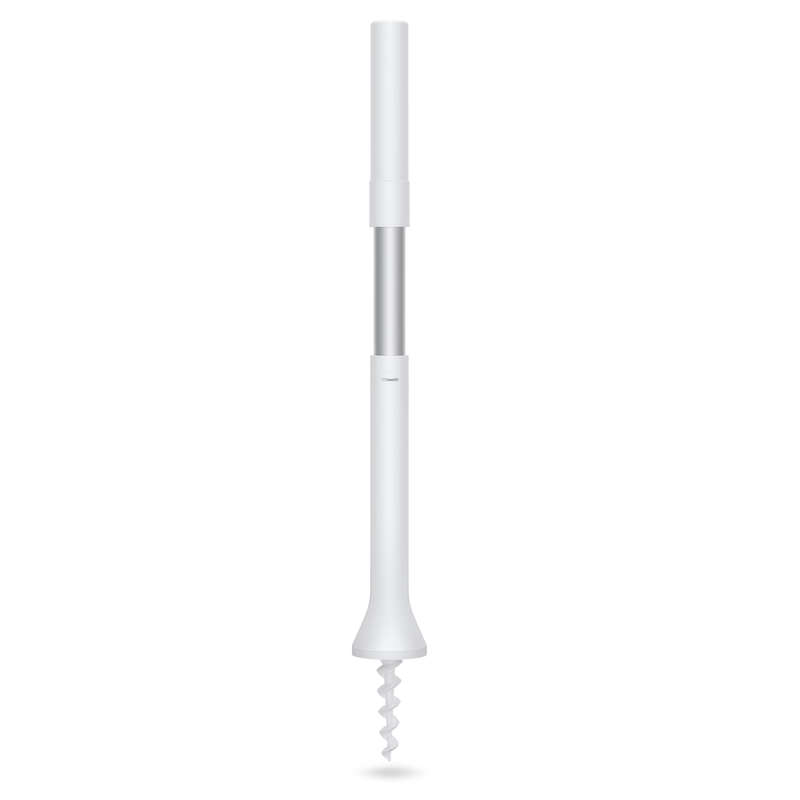

��� Navigation Beacon is composed of the Beacon and the Navigation-assisted Pole. Beacon uses UWB navigation technology to assist GOAT in intelligent navigation and mapping.

��� The signal receiver on GOAT and the Navigation Beacons on the lawn build a UWB network together so that the exact location of GOAT can be known. More stable signal transmission to ensure the mower���s performance.

Colour: White
Battery Type: D battery*3pcs

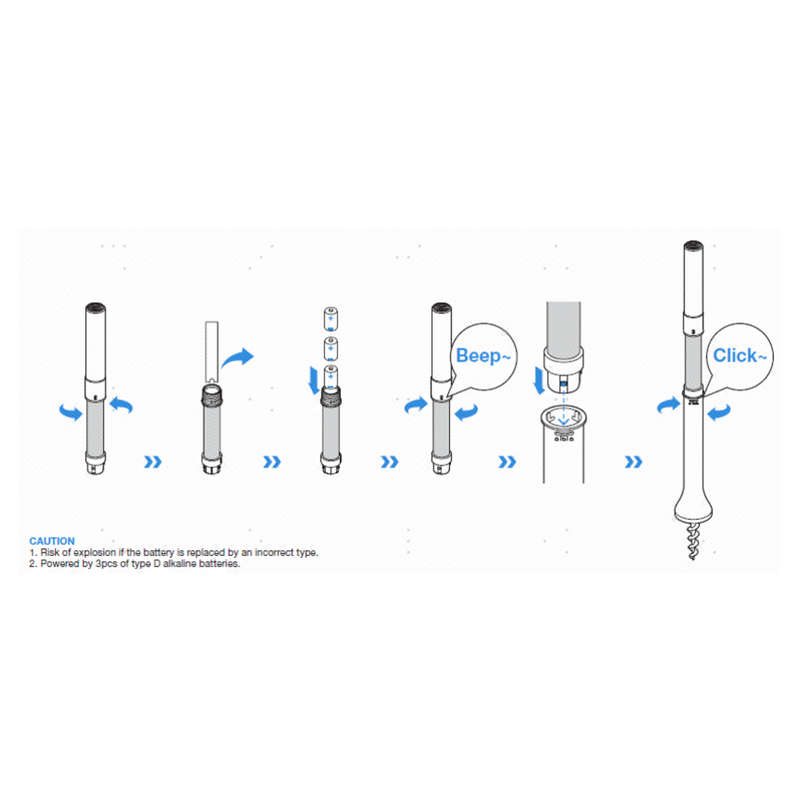

INSTALL THE NAVIGATION BEACON:

Note: Navigation Beacon is composed of the Beacon and the Navigation-assisted Pole.
1. Disassemble the Beacon by turning the upper Beacon counterclockwise.
2. Please remove the protection materials inside the Beacons and then install the Dry Cells.
3. Pay attention to the correct match of positive and negative polarity.
4. Assemble the Beacon by turning the upper Beacon clockwise. You will hear the sound of a ���beep��� if the Beacon is correctly connected.
5. Insert the Beacon into the Navigation-assisted Pole by aligning projections on the Beacon with grooves of the Navigation-assisted Pole.
6. Turn Beacon clockwise until you hear a ���click���.
