Program
1. Programming languages: EZPL, GEPL, GZPL, can be switched automatically
2. Random bundled software:
- Label layout software: GoLabel (only supports EZPL)
- Driver: Support Windows 2000, XP, Vista, 7, 8, Windows Server 2003 & 2008
- DLL: Support Windows 2000, XP and Vista
3. Built-in fonts:
- Bitmap font: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
- Bitmap font printing direction can be rotated at an angle of 0 degree, 90 degree, 180 degree, 270 degree, the font can be individually rotated at an angle of 0 degree, 90 degree, 180 degree, 270 degree
- Can be enlarged 8 times horizontally or vertically
- Scalable fonts, with rotatable angles of 0 degree, 90 degree, 180 degree, 270 degree
4. Download fonts
- Bitmap font can be downloaded, the printing direction can be rotated at 0 degree, 90 degree, 180 degree, 270 degree, the font can be individually rotated at 0 degree, 90 degree, 180 degree, 270 degree, and can enlarge 8 times horizontally or vertically
- Downloadable Asian fonts, the printing direction can be rotated at 0 degree, 90 degree, 180 degree, 270 degree, and can be enlarged 8 times horizontally or vertically
- Downloadable vector font (scalable font), the printing direction can be rotated at an angle of 0 degree, 90 degree, 180 degree, 270 degree
5. Barcode:
- 1-D Bar codes:
- Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A / E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC / EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1 DataBar
- 2-D Bar codes:
- PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code
6. Code page:
- CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
- WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
- Unicode (UTF8, UTF16)
Specifications
1. Print mode: Thermal
2. Resolution: 203 dpi (8 dot / mm)
3. Print speed: 4 IPS (100 mm / sec)
4. Print width: 54mm (2.12 inches)
5. Print length: Min. 4 mm (0.16 inch); Max. 1727mm (68 inch)
6. Processor: 32 Bit RISC CPU
7. Memory:
-4MB Flash (user available capacity is 2MB); 16MB
-SDRAM
8. Sensor form: Reflective sensor: Removable; Translucent sensor: Center-mounted fixed type
9. Paper specifications:
- Paper width: 15 mm (0.6 inches) ~ 60 mm (2.36 inches)
- Paper thickness: 0.06 mm (0.003 inch) ~ 0.20 mm (0.008 inch)
- Paper roll outer diameter: Maximum diameter 127 mm (5 inches)
- Paper roll core: 25.4 mm (1 inch) / 38.1 mm (1.5 inch)
10. Graphics processing: Monochrome PCX and BMP are supported by default, other image file types can be supported by software control

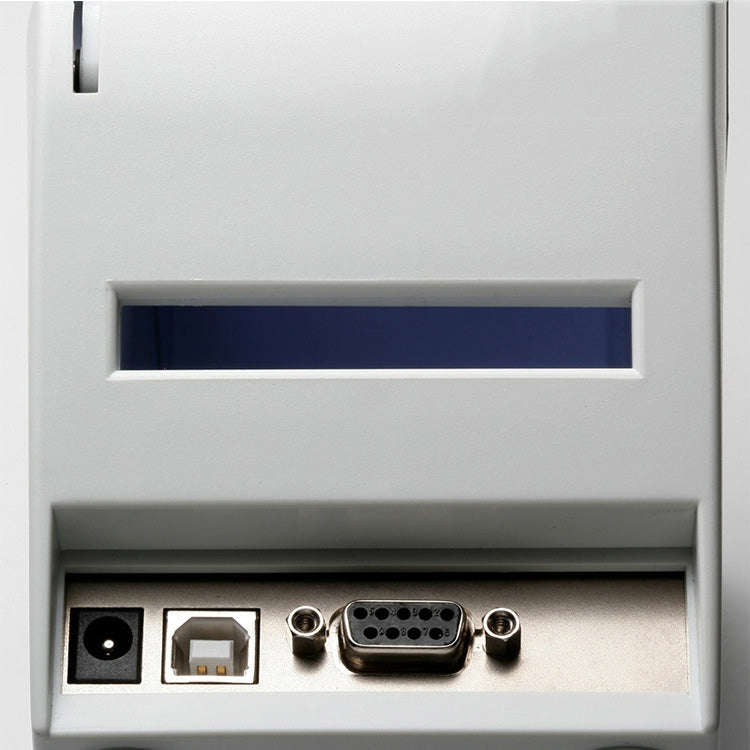

11. Transmission interface:
- USB Device (B-Type)
- Serial port: RS-232 (DB-9)
- IEEE 802.3 10 / 100Base-Tx Ethernet port (RJ-45)
12. Control panel:
-A set of three-color LED indicators: Power (red, orange, green lights)
-A set of multi-function hardware control keys: FEED
13. Timing device: Standard
14. Power supply: 100-240VAC, 50-60Hz (AC / DC automatic conversion power supply)
15. Working environment:
- Operating temperature: 41 degree F to 104 degree F (5 degree C to 40 degree C)
- Storage temperature: -4 degree F to 122 degree F (-20 degree C to 50 degree C)
- Humidity Operating humidity: 30-85%, non-condensing.
- Storage humidity: 10-90%, non-condensing.
16. Safety regulations: CE (EMC), FCC Class A, CB, cUL, CCC
17. Body size: Length: 218 mm (8.58 inches), Height: 172 mm (6.77 inches), Width: 100 mm (3.94 inches)
18. Body weight: The body does not contain other consumables or the optional equipment weighs 1.2 kg (2.65lb)
