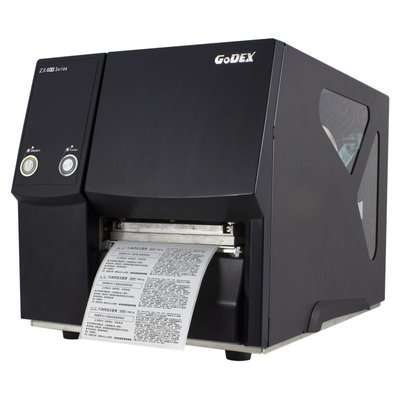

GoDEX ZX420 Thermal Transfer Industrial Printer

This item is sold brand new. It is ordered on demand from our supplier and is usually dispatched in 1 - 4 working days

• Large intuitive touch screen LCD allows the user to be in control.
• Three USB host ports standard allows integration with several devices.
• High performance printer designed for high volume applications in mind
• Up to 4 ips print speed
• New hardware ideal for both high volume or precision printing applications

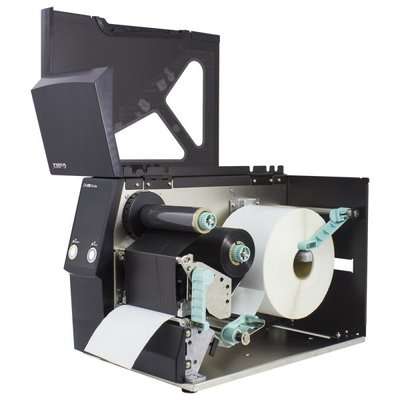

• Easy and fast ribbon/media loading.
• 600 DPI model
• Print Method: Thermal Transfer / Direct Thermal
• Resolution: 203 dpi (8 dots/mm)
• Print Speed: 6 ips (152 mm/s)
• Print Width: 4.25"" (108mm)
• Print Length: Min. 0.16" (4 mm)** ; Max . 157.44" ( 3999mm)
• Processor: 32-bit RISC CPU
• Memory: Flash 128 MB Flash (60 MB for user storage); SDRAM 32 MB
• Sensor Type: Adjustable reflective sensor and transmissive sensor, left aligned
• Media Type: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
• Tear Width: Min. 1" (25.4 mm) - Max. 4.64" (118 mm)
• Cutter Width: Max. 4.61" (117 mm)
• Dispenser / Rewind Width: Max. 4.64" (118 mm)
• Thickness
• Min. Thickness: 0.003" (0.076 mm) - Max. 0.01" (0.25 mm)
• Label roll diameter: Max. 8" (203.2 mm) with 3"" (76.2 mm) core; Max. 6" (152.4 mm) with 1.5"" (38.1 mm) core; Max. 5"" (127 mm) with 1"" (25.4 mm) core
• Core diameter: Min. 1 "" (25.4 mm) - Max. 3"" (76.2 mm)
• Ribbon Types: Wax, wax/resin, resin
• Length: Max. 1476' (450 m)
• Width: Min. 1.18" (30 mm) - Max. 4.33" (110 mm)
• Ribbon roll diameter: 3" (76.2 mm)
• Core diameter: 1" (25.4 mm)
• Printer Language: EZPL, GEPL, GZPL auto switch
• Label design software
• GoLabel (for EZPL only)
• Driver: Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008? MAC? Linux
• DLL: Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10
• Resident Fonts: Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B; Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
• Bitmap fonts 8 times expandable in horizontal and vertical directions; TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
• Download Fonts: Bitmap Fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable; Asian Fonts 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001) 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions; TTF Fonts TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
• Barcodes: 1-D Bar Codes
• China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2o-f 5 with Shipping Bearer Bars, ISBT - 128, ITF 14, Japanese
• Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart
• 2-D Bar Codes
• Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39
• Code Pages: Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8?UTF16BE?UTF16LE
• Graphics: Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
• Interfaces: USB 2.0 (B-Type)
• Control Panel: 1 Power on/standby button with green color LED backlight; 1 Calibration button at rear panel; 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready; (Green); Error (Red)
• Power: Auto Switching 100-240V AC, 50-60Hz
• Real Time Clock: Standard
• Operation temperature 41°F to 104°F (5°C to 40°C)
• Storage temperature -4°F to 140°F (-20°C to 60°C)
