Godox AD32– K2 Motorized Diffusion Panels

A motorized diffusion panel with precise 0100% control, dual diffusion modes, flicker-free operation up to 300fps, and flexible power options for professional video and cinema lighting.

The Godox AD32 Motorized Adjustable Diffusion Panel combines advanced technology with versatile design, making it an essential tool for cinematographers, videographers, and content creators who demand precise lighting control. Offering smooth, motorized adjustment, the diffusion level can be changed instantly from hard, defined shadows to ultra-soft illumination using a dial, remote, app, or DMX, enabling dynamic lighting changes exactly when needed on set.

The AD32 supports two professional diffusion modes. Level Mode provides intuitive 0100% visualized control for fast adjustments, while Light Reduction Mode offers a -0.1 to -2.0 EV range designed to integrate seamlessly into professional exposure workflows. Patented frequency adjustment technology supports five frequency levels, ensuring flicker-free performance at frame rates up to 300fps.

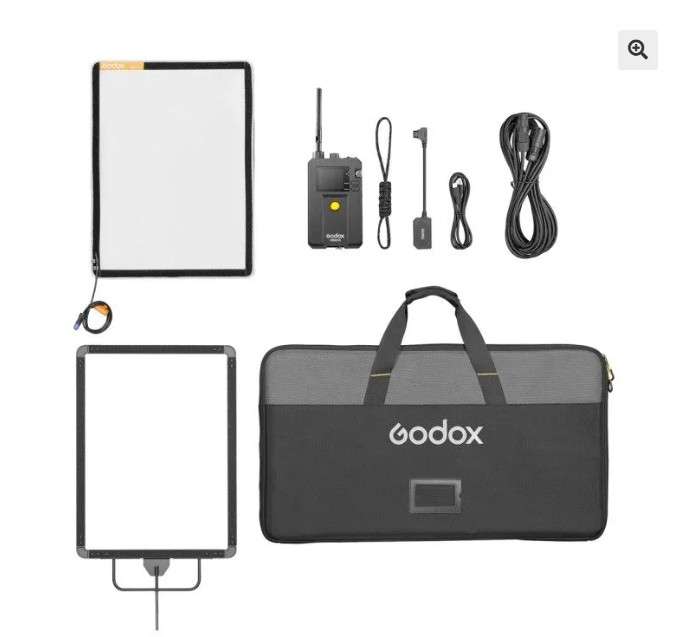

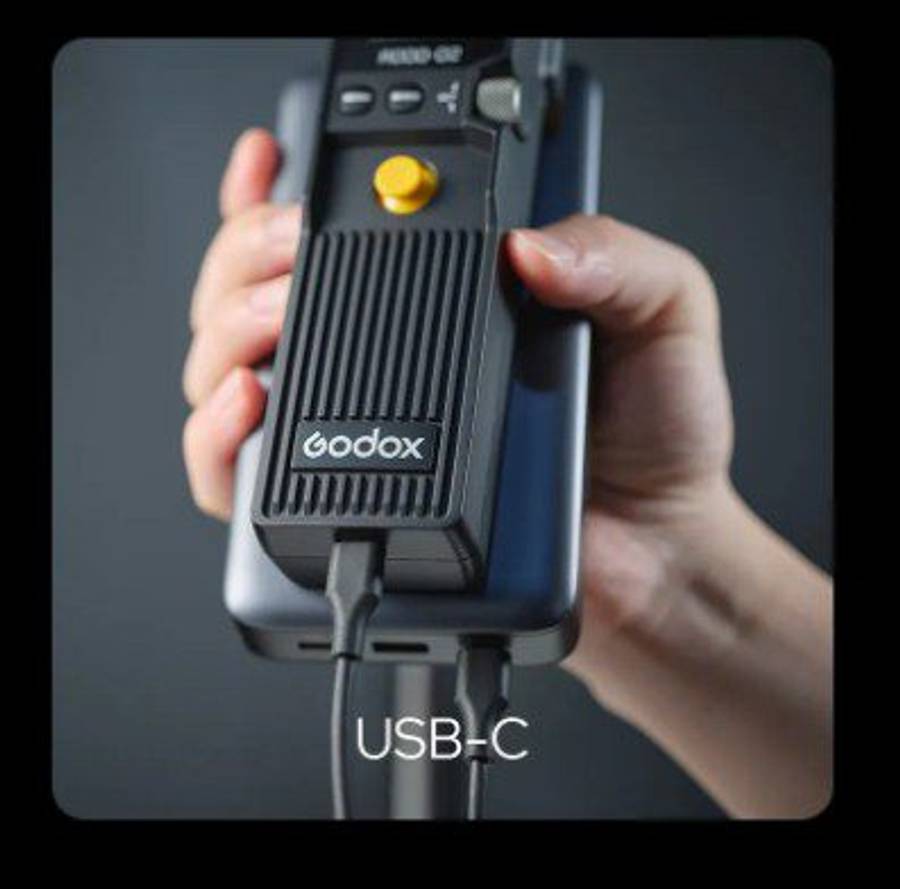

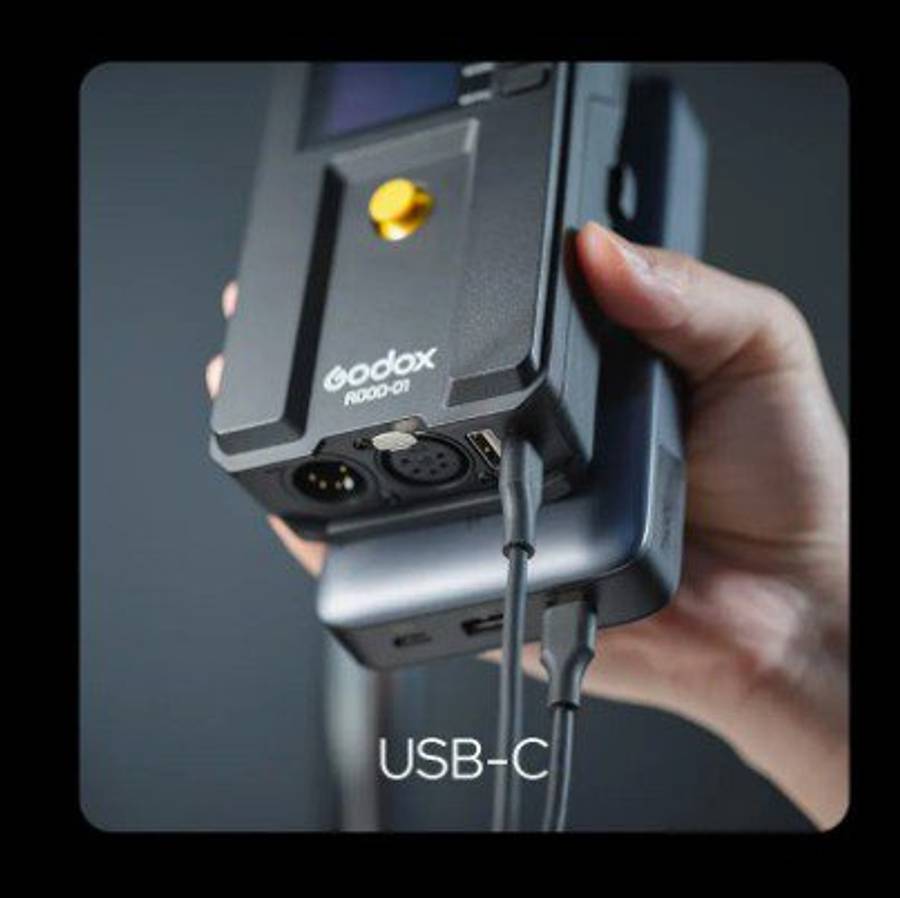

Designed for maximum flexibility, the AD32 can be powered via USB-C, V-mount batteries, or NPF batteries, delivering up to 20 hours of continuous operation at full load with a single 100Wh battery. The collapsible frame allows for compact storage and rapid deployment, while the removable Velcro-attached diffusion panel offers quick replacement and IP54-rated protection for reliable all-weather use. Control is supported via onboard controllers, Bluetooth app, and DMX, with the AD00-01 controller featuring a built-in CRMX transceiver for stable, low-latency wireless operation and Lead/Follow mode for synchronized multi-unit control.

Godox AD32 K2 Specs

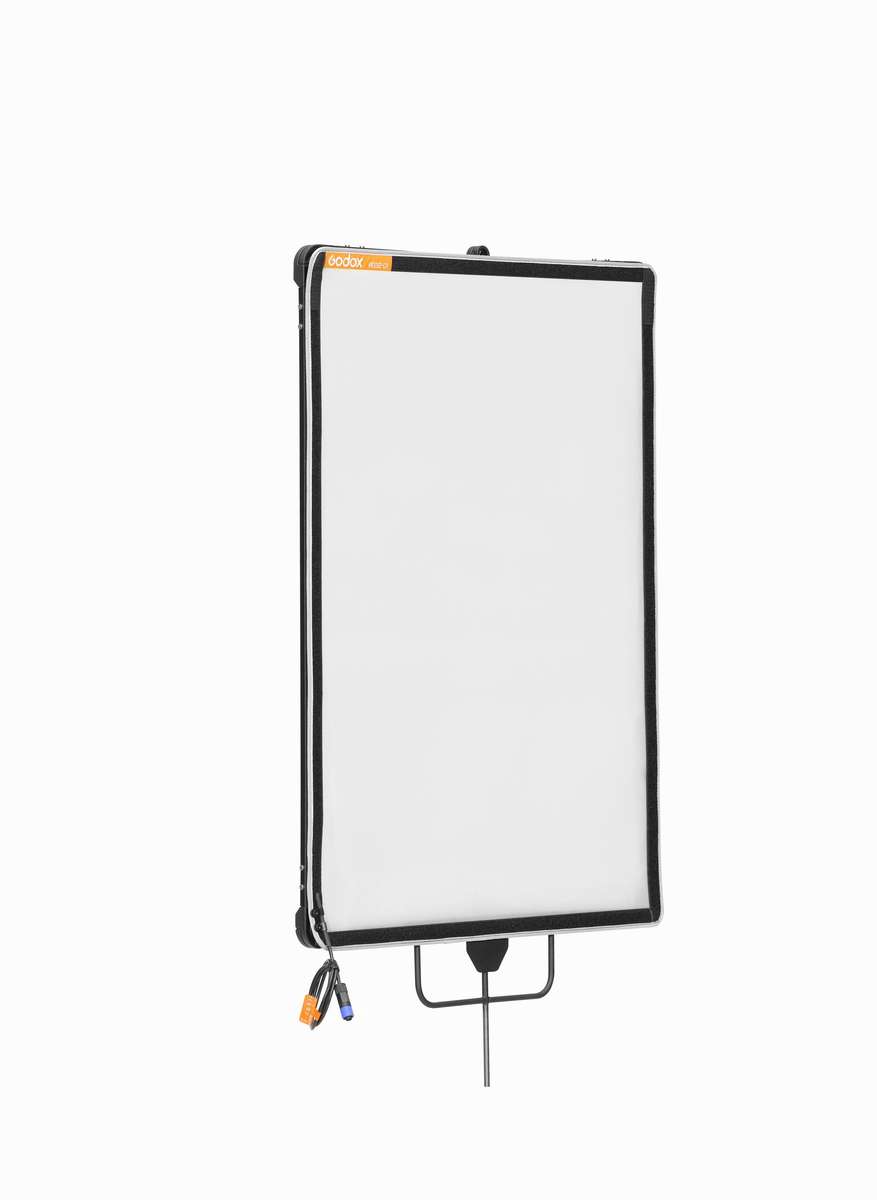

Technical Data of the Adjustable Diffusion Panel

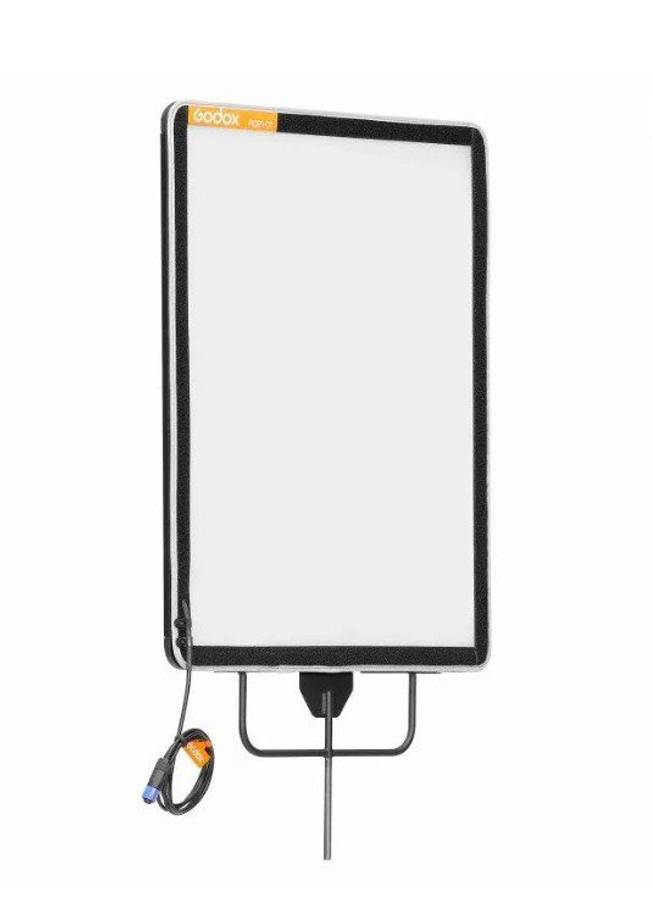

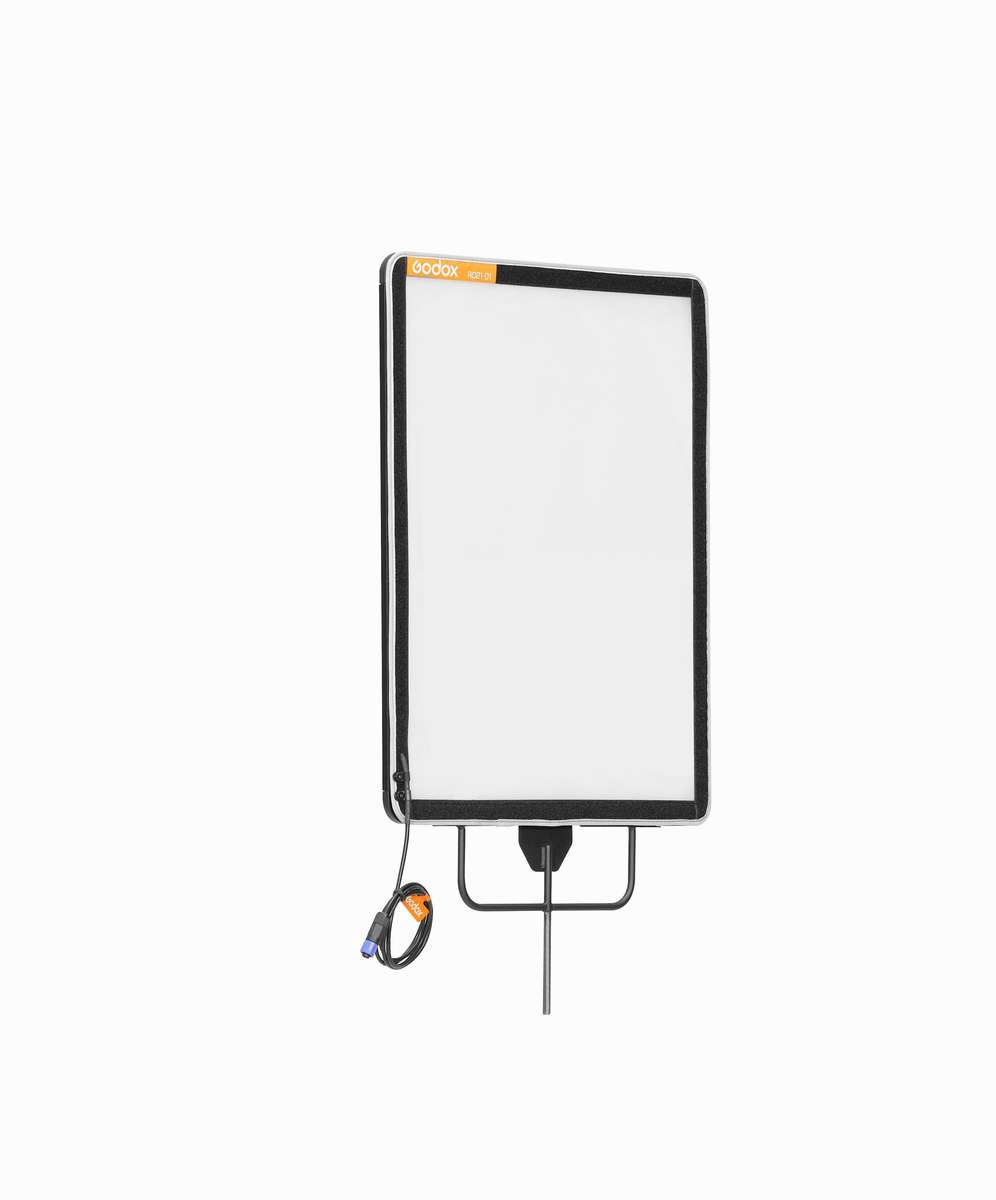

Model                        AD32-01
AC Input                   0V-28V~, 3W
Dimension             64 x 92 cm
Net Weight            0.5kg

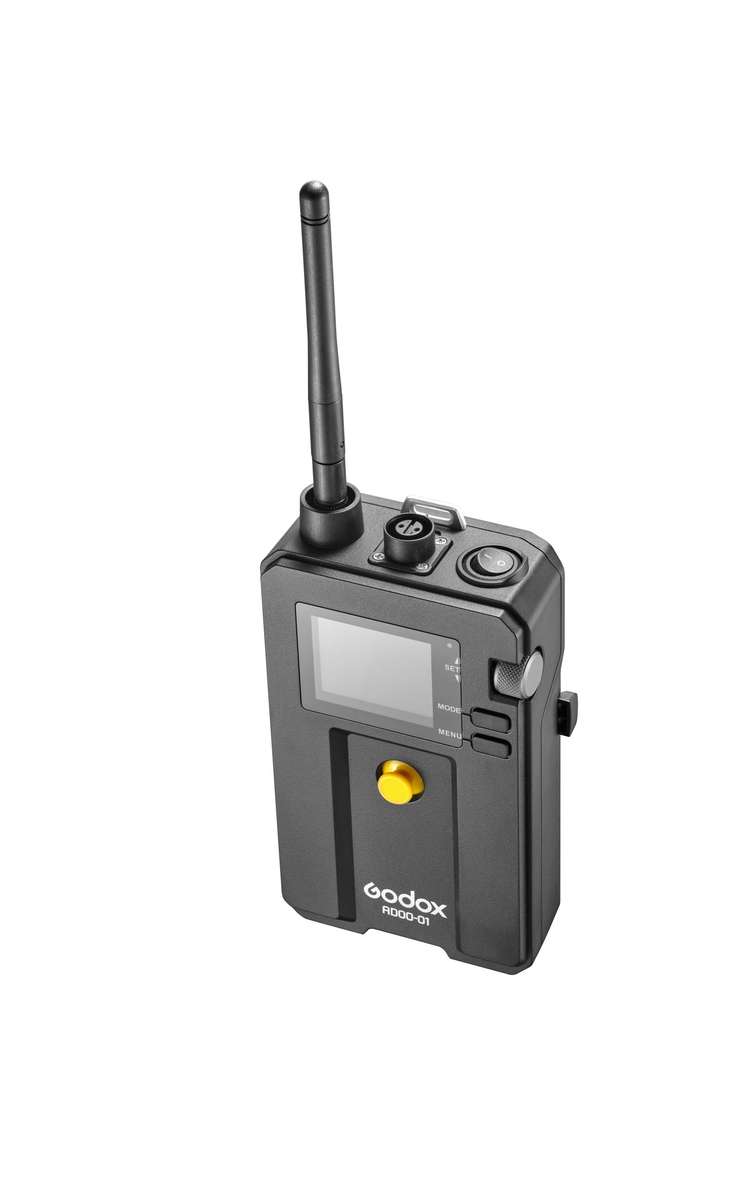

Technical Data of the Controller

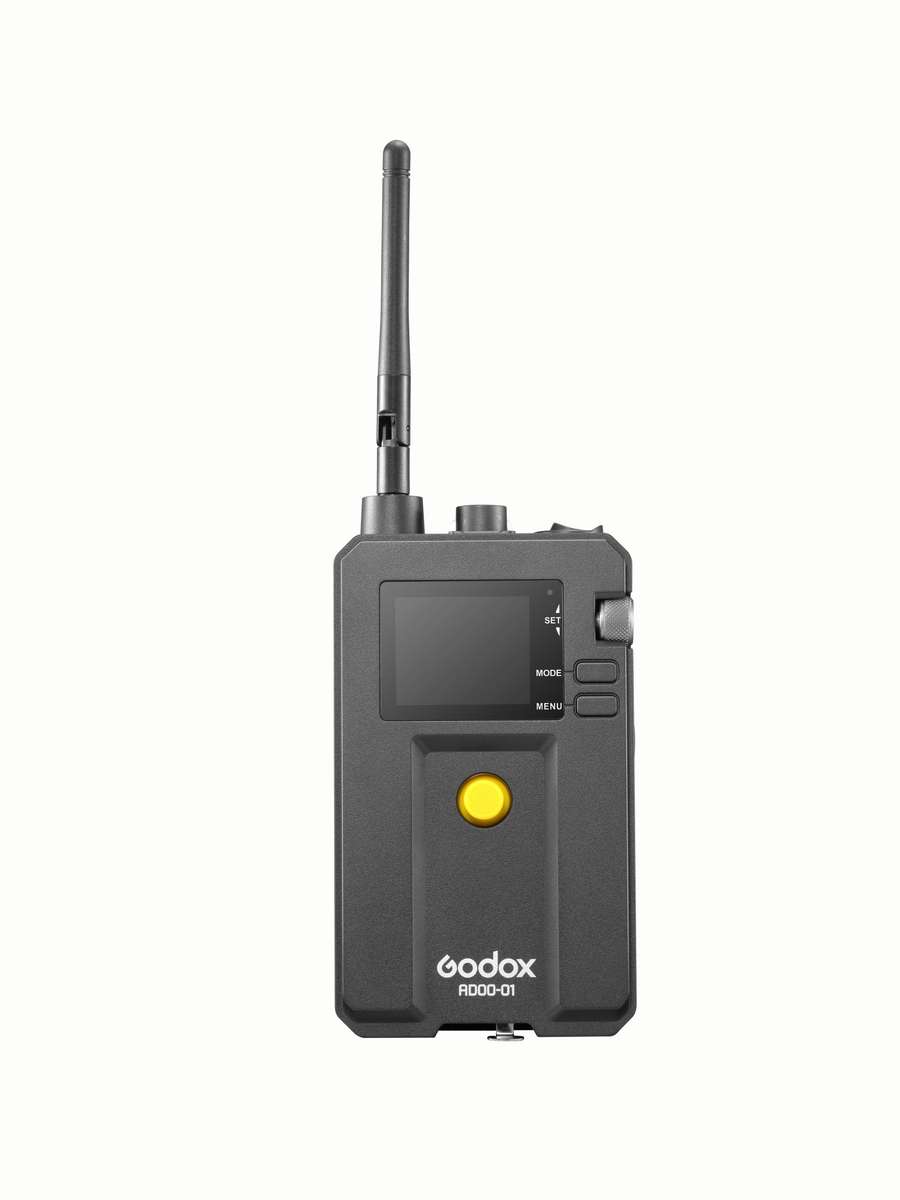

Model AD00-01

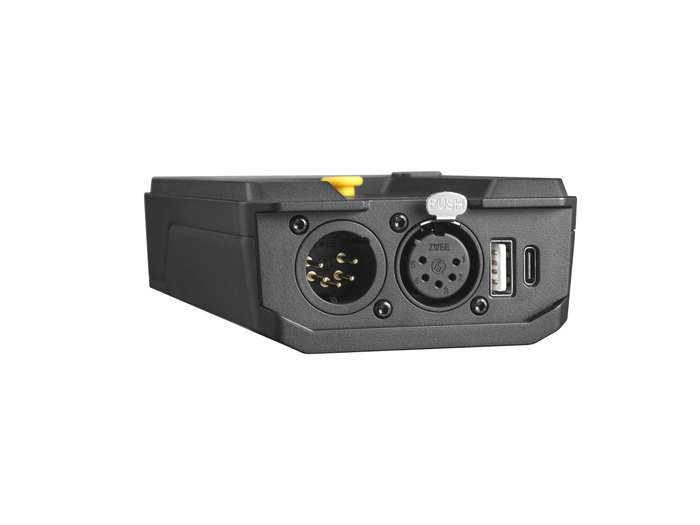

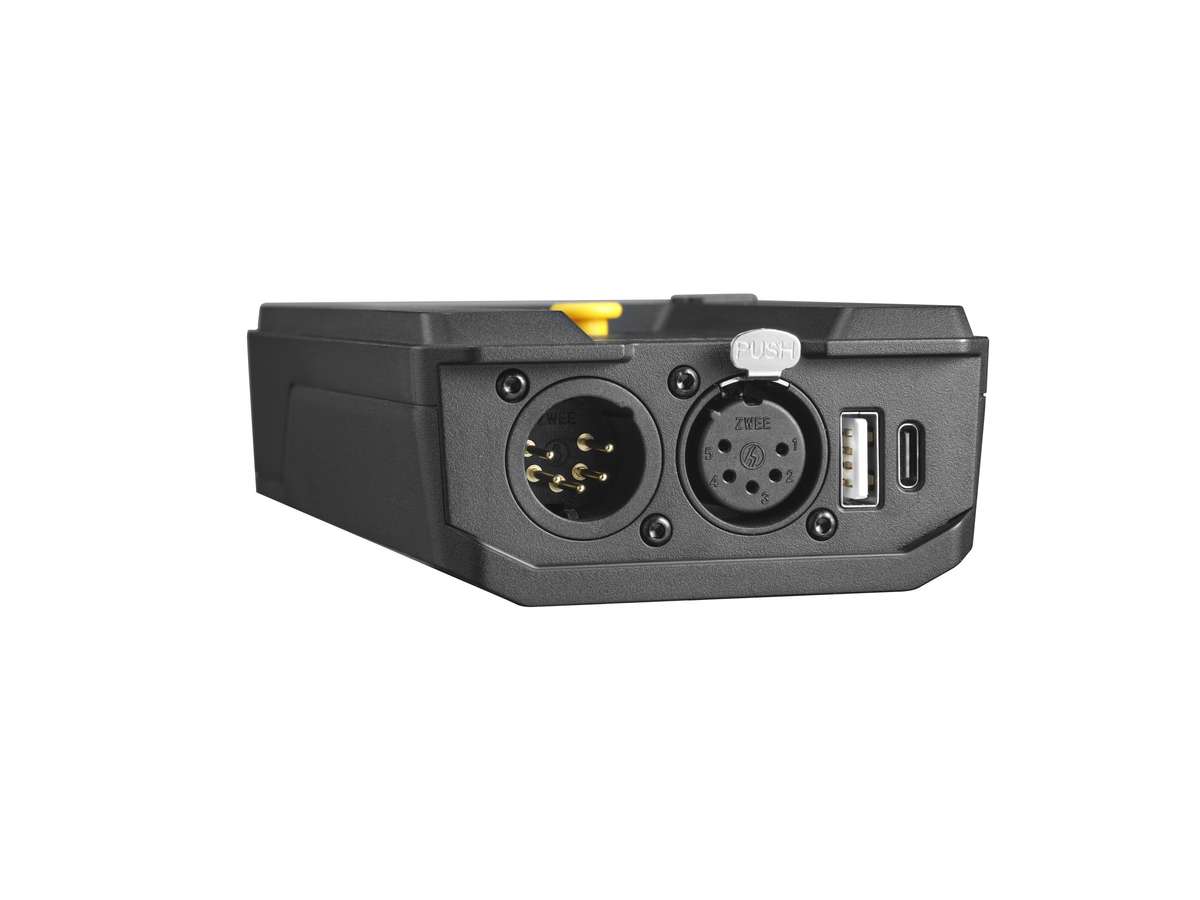

USB-C Port lnput:                                       12V-20V6.5A
AC Output Port Output:                             0V-28V ~
USB-A Port                                                   Firmware Upgrade/5V1.5A Power Supply

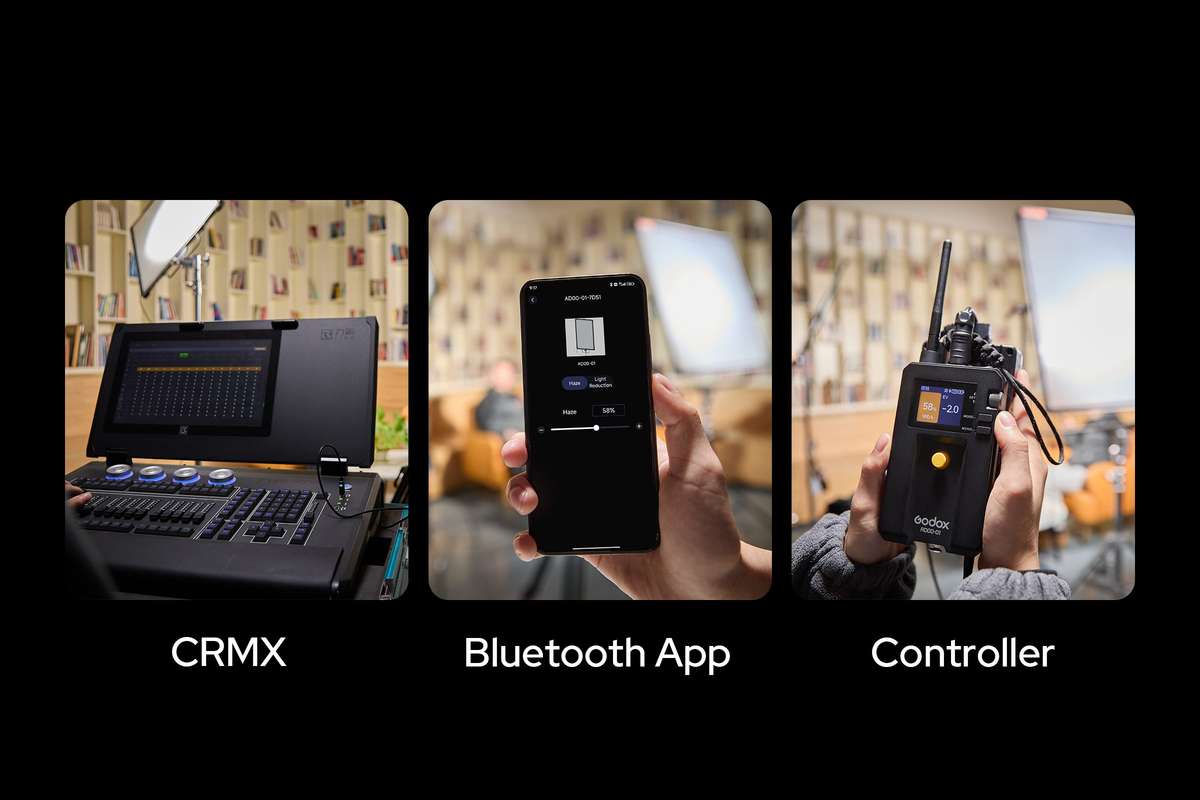

Controlling Methods                                  DMX/RDM, CRMX, Bluetooth app, controller control
Bluetooth Controlling Distance               30m
Working Environment Temperature     -20~40 -
Dimension                                                    8.3 x 4.6 x 15cm
Net Weight                                                    259g
