Godox AI2C 2-Channel USB Audio Interface for Windows Computers

Perfectly Portable Interface for Gaming, Streaming, and Recording
Designed for podcasters, streamers, and gamers allowing them to achieve better sound for productions, the Godox AI2C is a portable two-channel USB-B 2.0 audio interface for Windows computers. Housed in an attractive and durable silicone housing, the unit is capable of 24-bit / 192 kHz recordings, helping to ensure clear, quality sound for your streaming audience.

Godox AI2C 2-Channel USB Audio Interface for Windows Computers

Godox AI2C Key Features

For Gaming, Streaming, and Recording
XLR/ TRS Mic/Instrument Input
Microphone Preamp with Gain Knob
48V Phantom Power for Condenser Mics
3.5mm Headphone Jack with Volume Knob
Stereo 3.5mm Input, Two 1/4 Line Outputs
3.5mm Microphone Input
3.5mm Streaming Output for Mobile Device
Supports Rates up to 24-Bit / 192 kHz
USB-B 2.0 Connection to Windows Computer

Godox AI2C Overview

Perfectly Portable Interface for Gaming, Streaming, and Recording
Designed for podcasters, streamers, and gamers allowing them to achieve better sound for productions, the AI2C from Godox is a portable two-channel USB-B 2.0 audio interface for Windows computers. Housed in an attractive and durable silicone housing, the unit is capable of 24-bit / 192 kHz recordings, helping to ensure clear, quality sound for your streaming audience.

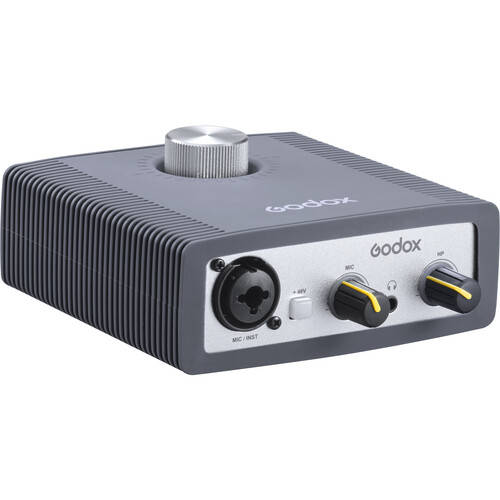

Easy-to-Access Front Panel Connections & Controls

Front panel features a single XLR/TRS combo connector that accepts an input from a microphone or instrument.
Engage the phantom-power switch to send 48V phantom power to condenser mics or leave if off when connecting dynamic microphones.
The control knob allows you to dial in gain from the built-in preamp for the mic signal. Connect headphones to the 3.5mm jack and dial in volume using the easy-to-reach knob.

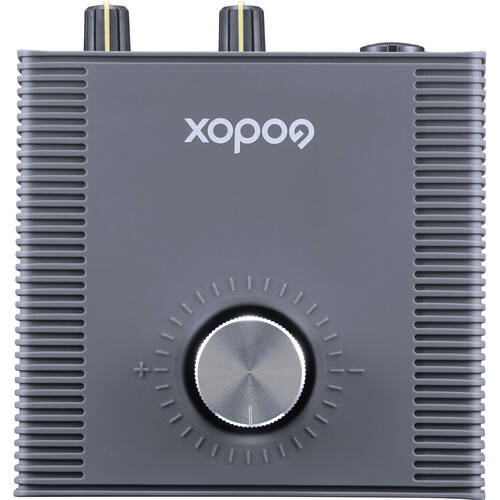

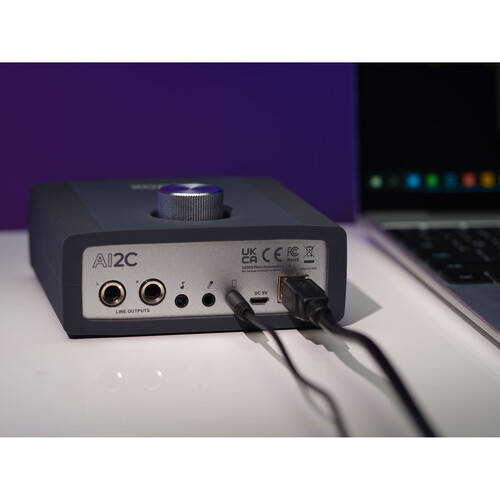

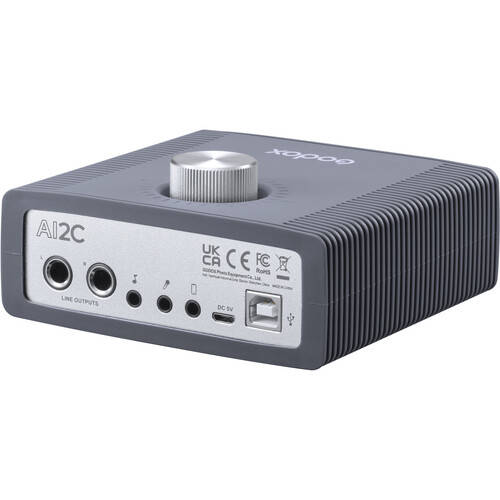

Additional Rear-Panel Connections and Large Top-Panel Volume Dial

The rear panel features two 1/4" TRS outputs to connect to powered monitor speakers.
Control the line output level using the large top-panel dial.
The 3.5mm line input connector allows you to connect a mobile device or similar audio source.
A second 3.5mm input is used to connect microphones that don't require power.
Use the 3.5mm output jack here to stream to a mobile device.
The micro-USB port and included cable can supply additional power when required.
A Perfect Companion to the XMic10L Microphone
Connect the Godox XMic10L XLR microphone (available separately) to the AI2C for a wide variety of podcasting, streaming, and recording applications.
The XMic10L is a condenser mic that offers a crisp, clear sound, and runs on phantom power from the interface.
Working as a team, they are ready to turn your location into a small studio.

What's in the box

Godox AI2C 2-Channel USB Audio Interface for Windows Computers
2 x 3.5mm Audio Cable
USB-A to USB-B Cable
Micro-USB Charging Cable

Godox AI2C Specs

Form Factor Desktop
Display None
Channels of I/O Analog:
2 Inputs
Built-In DSP None
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Preamps 1 Preamp
Built-In Microphone None
Input Level Adjustment 1 x Knob
Expansion Slots None
Signal Processing
Pad None
Gain/Trim Range 34 dB
Solo/Mute None
Connectivity
Analog Audio I/O 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
1 x 3.5 mm TRS Unbalanced Mic Input
1 x 3.5 mm TRS Unbalanced Line Input
1 x 3.5 mm TRS Unbalanced Headphone Output
2 x TRS Balanced Line Output
1 x 3.5 mm TRS Unbalanced Line/Smartphone Output
Phantom Power 48 / 5 V, Selectable On/Off
Digital Audio I/O None
Host Connection / USB 1 x USB-B (on Interface)
Host Connection Protocol USB 2.0
USB (Non-Host) 1 x Micro-USB (Power Input)
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Performance
Frequency Response 22 Hz to 22 kHz
Maximum Output Level +11 dB
Impedance 75 Ohms
Dynamic Range Mic Inputs:
101 dBA
Line Outputs:
105 dBA
SNR Line Outputs:
-100 dBA
Headphone Outputs:
-90 dBA
Mic Inputs:
-94 dBA
Crosstalk Mic Inputs:
-87 dB
Line Inputs:
-100 dB
Sample Rates Up to 192 kHz
Sample Rate Conversion None
Bit Depths 24-Bit
Sync Sources None
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility Windows 7 (32/64-Bit)
Windows 8 (32/64-Bit)
Windows 8.1 (32/64-Bit)
Windows 10 (32/64-Bit)
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Included Software None
Included Plug-Ins None
Supported Drivers/API & Plug-Ins ASIO
Mobile App Compatible No
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Required Hardware USB 2.0 Port
Power
Power Requirements USB Bus Power
