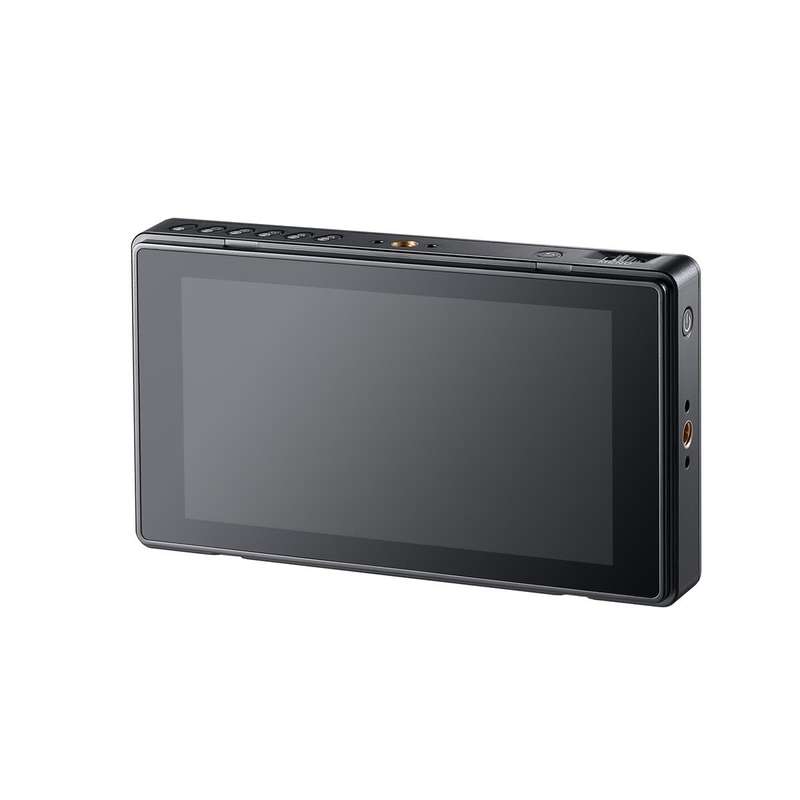

The Godox GM55 4K HDMI Touchscreen Monitor is a compact 15cm on-camera display designed for videographers, filmmakers, and content creators. Supporting up to DCI 4K24 and UHD 4K30 signals, it features a 1080p IPS touchscreen, waveform and focus assist tools, HDMI input/output, and power options for professional monitoring on set.
Godox GM55 Display
- Panel Type: IPS-Type LCD
- Display Size: 14.0 cm (5.5)
- Resolution: 1920 × 1080 (Full HD)
- Aspect Ratio: 16:9
- Brightness: 410 cd/m²
- Contrast Ratio: 1000:1
- Viewing Angle: 160° (Horizontal/Vertical)
- Colour Depth: 8-bit (16.7 million colours)
- Pixel Density: 400 ppi
- Touchscreen: Yes (capacitive)
Monitoring Tools
- Colour Space: Rec.709
- Exposure Tools: False Colour, Zebra, Waveform, Vectorscope, Histogram
- Focus Tools: Focus Assist, Zoom
- Framing Tools: Grid Lines, Safety Marker, Centre Marker
- Other Functions: Audio Meters, Aspect Ratio (up to 2.35:1 Anamorphic), Image Flip
Inputs/Outputs
- Video: 1 × HDMI Type-A Input, 1 × HDMI Type-A Output
- Audio: 1 × 3.5 mm Headphone Output
- Power: 1 × Barrel DC Input, 1 × DC Output
- Control: 1 × Proprietary Camera Control Port
Format Support
- HDMI Signal Support:
- - DCI 4K: 24/23.98 fps
- - UHD 4K: 30/29.97/25/24/23.98 fps
- - 1080p: 60/59.94/50/30/29.97/25/24/23.98 fps
- - 1080i: 60/50 fps
- - 720p: 60/50 fps
- - 576p/480p/576i/480i: 5060 fps
- Gamma Curve: Rec.709
Power
- Battery Type: Sony L-Series
- Power Consumption: 7 W
- DC Input: via barrel connector
- DC Output: supports camera power pass-through
Mounting
- Mount Points: 3 × 1/4-20 Female Threads
- Included Mount: Tilting Shoe Mount with 1/4-20 Adapter
General
- Material: Plastic housing
- Dimensions: 154 × 90 × 34 mm (with sun hood)
- Weight: 318 g (with sun hood)
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
