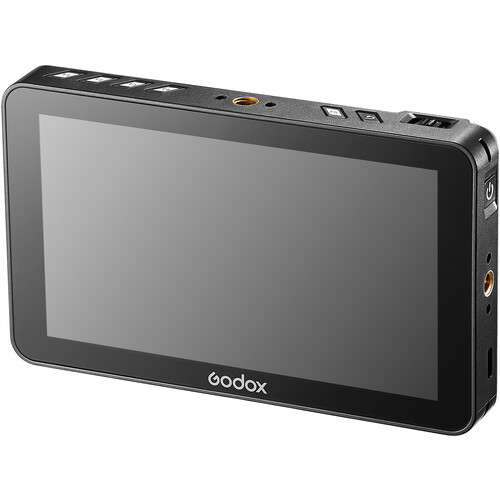

Godox GM6S 4K HDMI Touchscreen Ultrabright On-Camera Monitor (14cm)

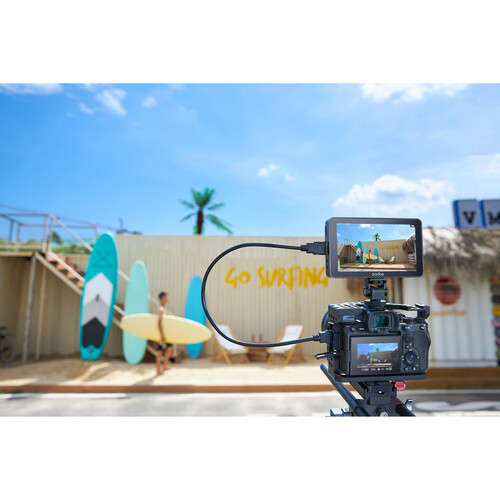

Like its predecessor, the Godox GM6S On-Camera Monitor is a compact, 140cm device with a lightweight design, featuring an updated screen with 1200 cd/m² brightness. HDMI input and output to support both DCI and UHD 4K video. The camera control interface is available to communicate settings to the camera from the monitor with separately available proprietary cables. A 3.5mm headphone jack outputs audio for monitoring on set. Up to twenty-five 3D LUTS can be loaded into the monitor using the SD card slot.
Godox GM6S 4K HDMI Touchscreen Ultrabright On-Camera Monitor (14cm)
Key Features
1200 cd/m² Brightness
14cm IPS Touchscreen Display
DCI and UHD 4K Video Support
HDMI Input and Output
Headphone and Camera Control Ports
3D LUT Import via SD Card Slot
Various Image Monitoring Tools

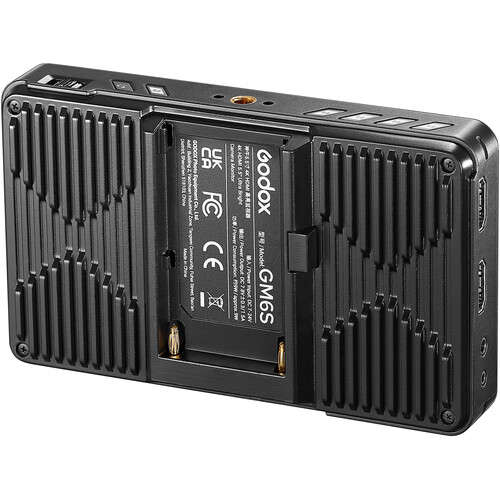

L-Series Battery Plate, USB Type-C Port
DC Input and Output Power Ports
Sun Hood and Cold Shoe Mount Included
Godox GM6S Overview
Like its predecessor, the Godox GM6S On-Camera Monitor is a compact, 140cm device with a lightweight design, featuring an updated screen with 1200 cd/m² brightness. HDMI input and output to support both DCI and UHD 4K video. The camera control interface is available to communicate settings to the camera from the monitor with separately available proprietary cables. A 3.5mm headphone jack outputs audio for monitoring on set. Up to twenty-five 3D LUTS can be loaded into the monitor using the SD card slot.
Multiple function buttons can be configured to toggle between different settings and image monitoring tools. A single L-series battery plate, DC input, or USB Type-C port can power the monitor depending on your needs. The GM6S also has a DC output port to supply 7.8V of power to additional accessories. Included with the monitor is a sun hood to improve outdoor visibility and a cold shoe mount that attaches to any of the three 1/4"-20 threads.
Features at a Glance

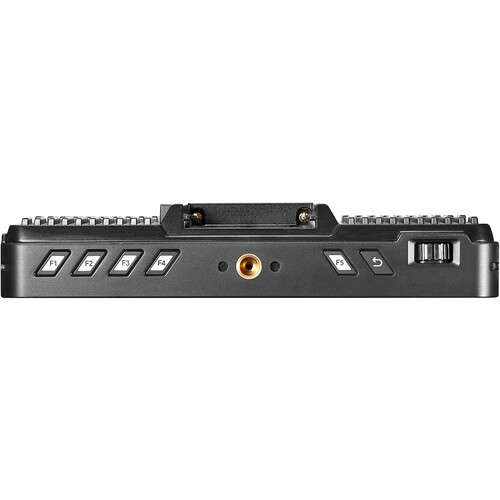

Five function keys can be custom programmed to toggle between various settings
Supports up to twenty-five 3D LUTs via SD card and compatible 17/32/33/64/65 cubic files
DC power input, USB Type-C power input, and L-series battery plate
Three 1/4"-20 mounting threads for accessories
Rec.709 colour space
Image Monitoring Tools
Focus assist
Zebra
Waveform
LUT management
Video aspect ratio
Centre marker
Safety marker
Image flip
Grid
Audio meter
False colours
Monochrome
Pixel-to-pixel
Zoom

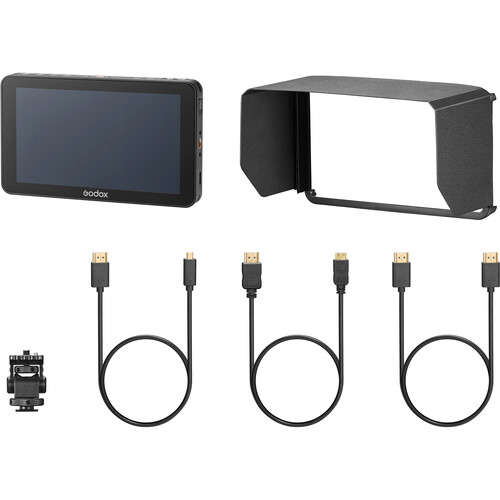

What's In the Box
Godox GM6S 4K HDMI Touchscreen Ultrabright On-Camera Monitor
Sun Hood
Tilting Cold Shoe Mount
HDMI to HDMI Cable
HDMI to Micro-HDMI Cable
HDMI to Mini-HDMI Cable
Screen Cloth
Limited 2-Year Godox SA Warranty
Godox GM6S Specs
Display
Panel Type IPS-Type LCD
Display Size 14.0 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 160°
Vertical: 160°
Touchscreen Yes
Maximum Brightness 1200 cd/m2
Contrast Ratio 1000:1
Bit Depth / Colour Support 8-Bit (16.7 million Colours)
HDR Compatibility None
Pixels Per Inch (ppi) 400 ppi
Image Controls Focus Assist, Image Flip, Waveform, Zebra

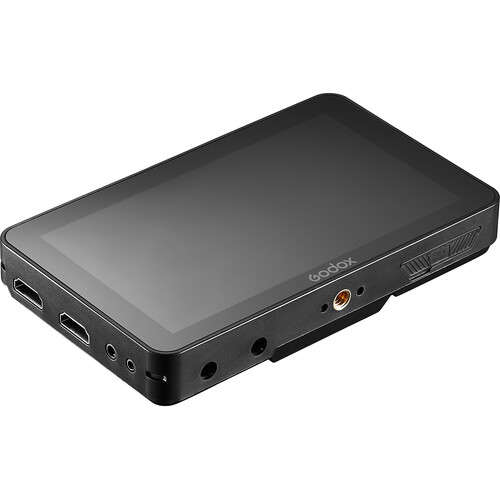

I/O
Video 1 x HDMI Type A (HDMI 1.4) Input
. 1 x HDMI Type A (HDMI 1.4) Output
Embedded Audio HDMI
Audio 1 x 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x USB Type-C Input
. 1 x Barrel 5.5 mm (24 VDC) Input
. 1 x Barrel 5.5 mm (1.5 A / 7.8 VDC) Output
Other I/O 1 x 2.5 mm Input
Media/Memory Card Slot Single Slot: SD/SDHC
Wi-Fi None
Format Support
Video Format HDMI
. DCI 4K: 30/29.97/25/24/23.98
. UHD 4K: 30/29.97/25/24/23.98
. 1080p: 60/59.94/50/30/29.97/25/24/23.98
. 1080i: 60/50
. 720p: 60/50
. 576p: 60/50
. 576i: 60/50
Gamma Curve Rec709
Power
DC Input Power 7 to 24 VDC
Battery Type 1 x L-Series
Power Consumption 9 W
Mounting
Mounting 3 x 1/4"-20 Female
Environmental
Operating Temperature 14 to 122°F / -10 to 50°C
General
Material of Construction Metal, Plastic
Dimensions 14.5 x 8.7 x 2.8 cm
Weight 273 g
