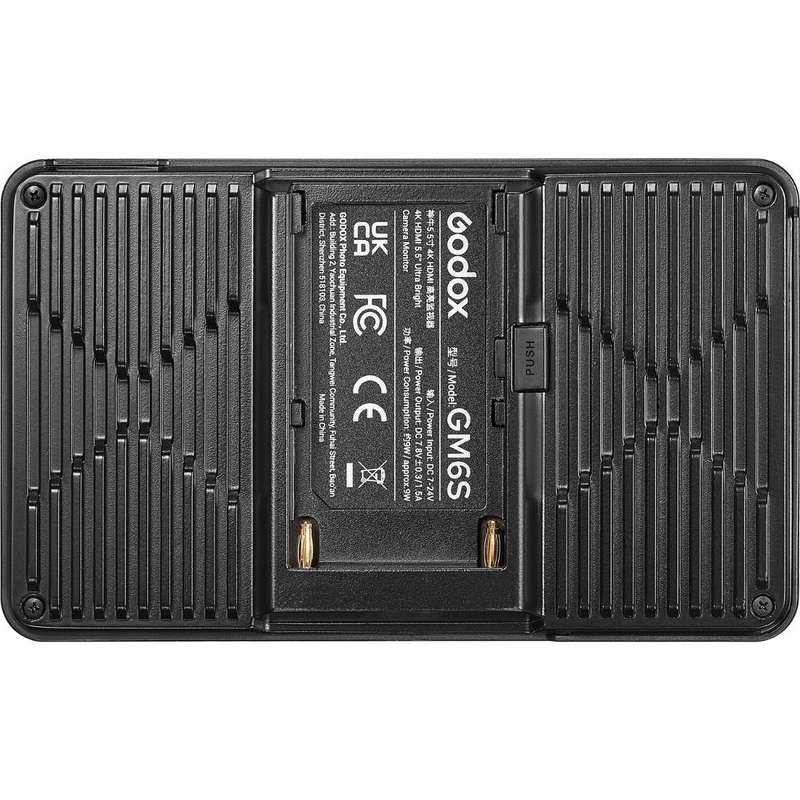

Multiple function buttons can be configured to toggle between different settings and image monitoring tools. A single L-series battery plate, DC input, or USB Type-C port can power the monitor depending on your needs on set. The GM6S also has a DC output port to supply 7.8V of power to additional accessories. Included with the monitor is a sun hood to improve outdoor visibility and a cold shoe mount that attaches to any of the three 1/4"-20 threads.
Features

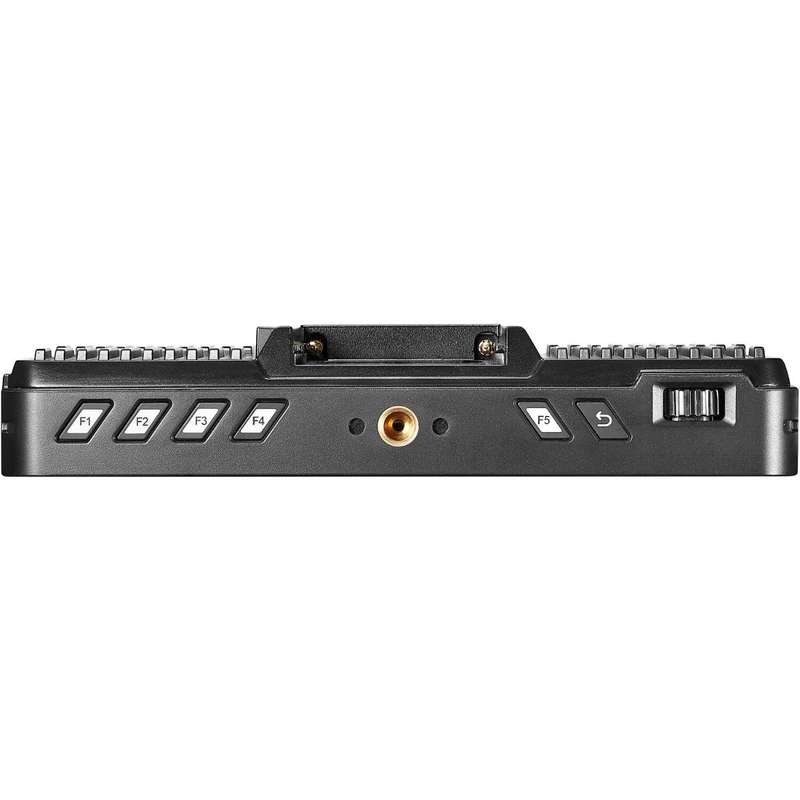

Five function keys can be custom programmed to toggle between various settings.
Supports up to twenty-five 3D LUTs via SD card and compatible 17/32/33/64/65 cubic files.
DC power input, USB Type-C power input, and L-series battery plate
Three 1/4"-20 mounting threads for accessories.
Rec.709 color space
Image Tools
Focus assist
Zebra
Waveform
LUT management
Video aspect ratio
Center marker
Safety marker
Image flip
Grid
Audio meter
False colors
Monochrome
Pixel-to-pixel
Zoom
Display
Panel Type IPS-Type LCD
Display Size 5.5" / 14.0 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 160°
Vertical: 160°
Touchscreen Yes
Maximum Brightness 1200 cd/m2
Contrast Ratio 1000:1
Bit Depth / Color Support 8-Bit (16.7 million Colors)
HDR Compatibility None
Pixels Per Inch (ppi) 400 ppi
Image Controls Focus Assist, Image Flip, Waveform, Zebra
Video I/O 1 x HDMI 1.4 Input
1 x HDMI 1.4 Output
Embedded Audio HDMI
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x USB-C Input
1 x Barrel 5.5 mm (24 VDC) Input
1 x Barrel 5.5 mm (1.5 A / 7.8 VDC) Output
Other I/O 1 x 2.5 mm Input
Media/Memory Card Slot Single Slot: SD/SDHC
Wi-Fi None
Format Support
Video Format HDMI
DCI 4K: 30/29.97/25/24/23.98
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/50
720p: 60/50
576p: 60/50
576i: 60/50
Gamma Curve Rec709
Power
DC Input Power 7 to 24 VDC
Battery Type 1 x L-Series
Power Consumption 9 W
Mounting
Mounting 3 x 1/4"-20 Female
Environmental
Operating Temperature 14 to 122°F / -10 to 50°C
General
Material of Construction Metal, Plastic
Dimensions 5.7 x 3.4 x 1.1" / 14.5 x 8.7 x 2.8 cm
Weight 9.6 oz / 273 g
