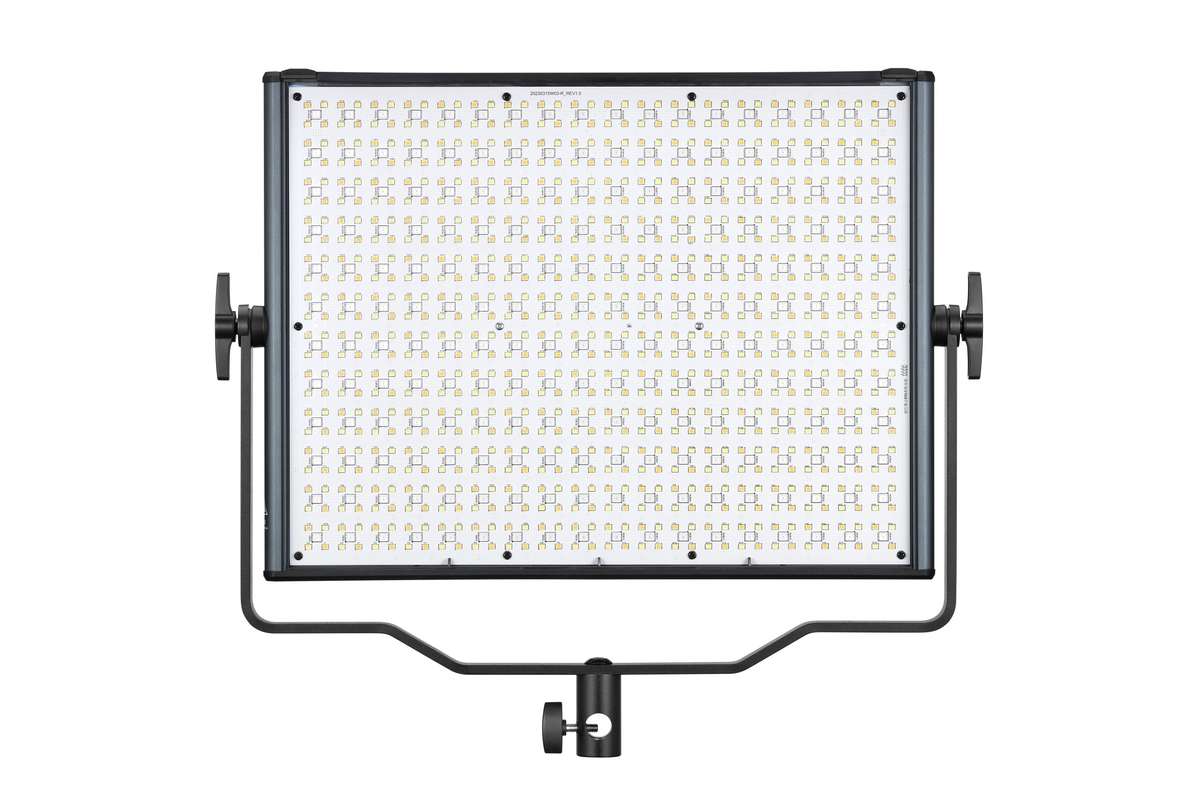

Godox LDX100R RGBWW LED Light Panel

Godox LDX100R RGBWW LED Light Panel

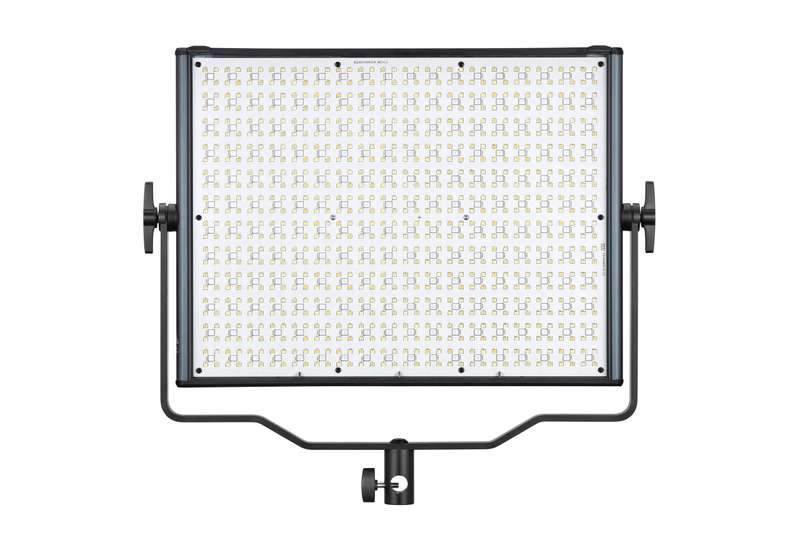

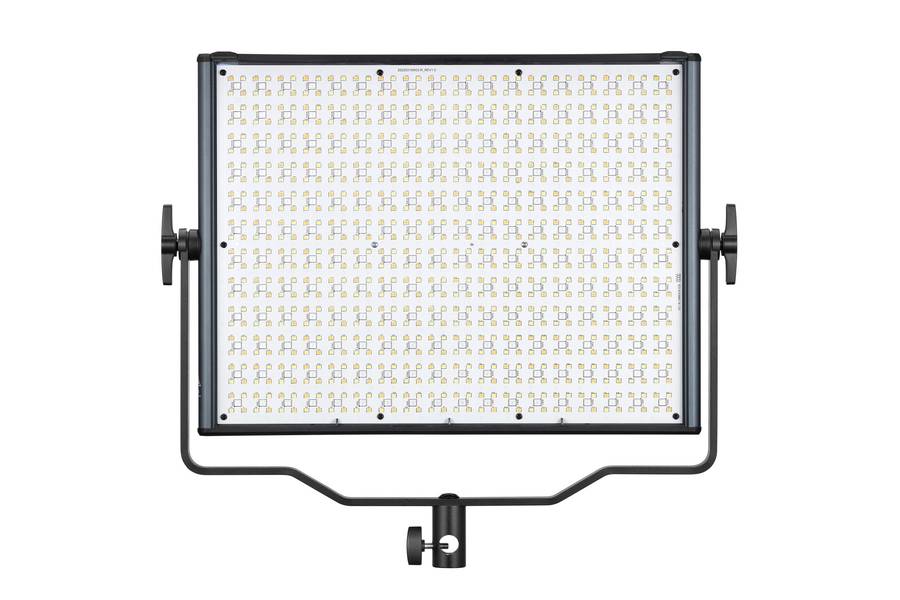

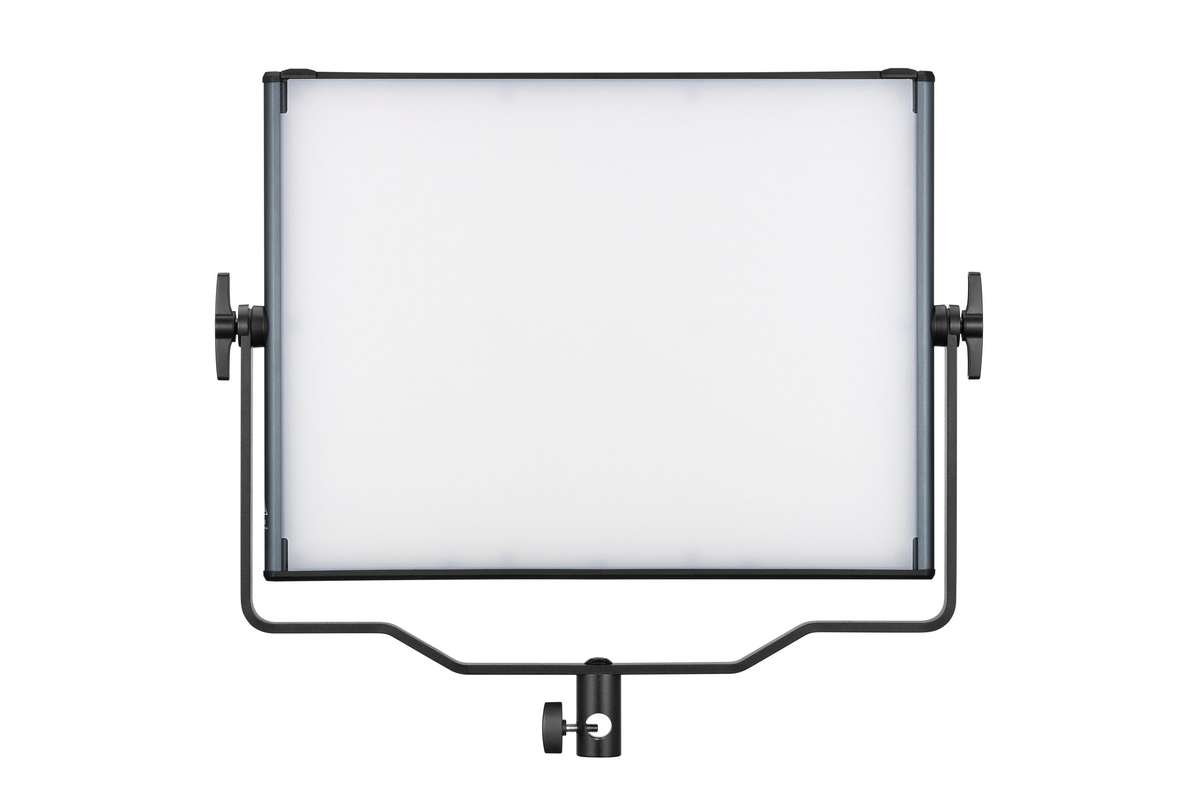

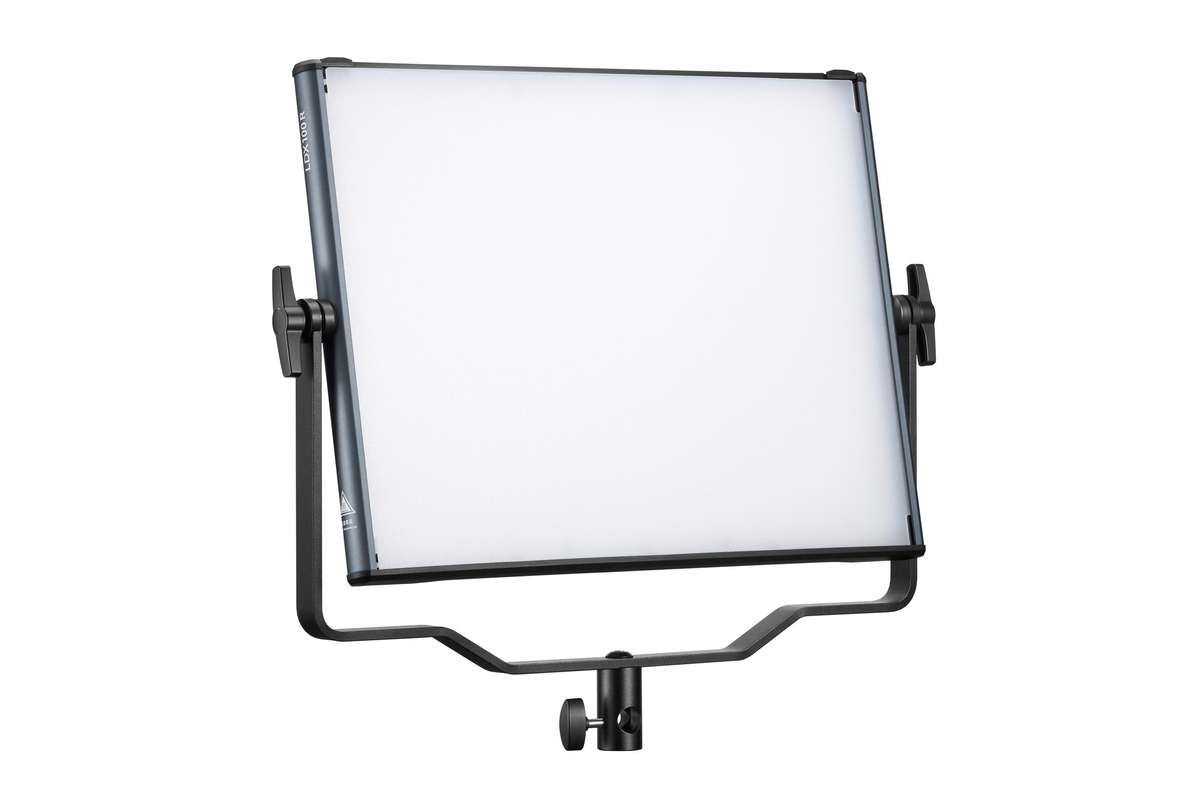

The LDX100R RGB LED Light Panel from Godox is a compact 47 x 42cm fixture with RGBWW capability to enable you to quickly adjust the colour temperature from 2500 to 10,000K. The light can be dimmed from 0 to 100% throughout its CCT range, giving you high CRI/TLCI ratings of 96 as indicators of advanced accuracy in colour rendering. Furthermore, this panel provides a soft light well suited for video use with 14 special effects to lend realism to your shoot. Adjustments can be made either onboard, remotely through an optional wireless remote control, or via an app directly from your smartphone.

Godox LDX100R RGBWW LED Light Panel

Key Features

For Video Production and Vlogging
Output: 4620 Lux at 1m (5600K)
2500-10,000K CCT; RGB Colour Control
47 x 42cm; AC/DC Operation
CRI 96 | TLCI 96
Onboard, Wireless & App Control
0-100% Dimming, 14 Lighting Effects
Optional Remote Control & Barndoors
Includes Diffuser
Includes Power Supply & Carry Case

Godox LDX100R Overview

The LDX100R RGB LED Light Panel from Godox is a compact 47 x 42cm fixture with RGBWW capability to enable you to quickly adjust the colour temperature from 2500 to 10,000K. The light can be dimmed from 0 to 100% throughout its CCT range, giving you high CRI/TLCI ratings of 96 as indicators of advanced accuracy in colour rendering. Furthermore, this panel provides a soft light well suited for video use with 14 special effects to lend realism to your shoot. Adjustments can be made either onboard, remotely through an optional wireless remote control, or via an app directly from your smartphone.
The LDX100R is rated for output up to 4620 lux at 1m and 5600K, drawing a maximum of 118W of power. For powering the panel, an AC adapter is included for connecting to a wall socket. Additionally, those looking to take the light outdoors can run it on a separately available V-mount battery. Godox includes a carry bag for storage and transportation.
Bright, Soft Light Source
Designed to illuminate your creative vision, the LDX100R gives you access to literally millions of colour combinations. For enhanced versatility, you can easily switch between CCT and FX modes. By short-pressing the built-in analogue dials of the unit, quickly select and customize the intensity or lighting effect.
RGB mode with four mixed colours
HSI colour mode allows for full-colour control over hue, saturation, and intensity
Gel mode allows for a variety of 60 popular colour filters.
14 Customizable Lighting Effects
RGB cycle, party, police car, flash, lightning, cloudy, broken bulb, TV, candle, fire, fireworks, explosion, welding, and SOS. These 14 customizable creative lighting effects will help you achieve different looks.
Greater Control
The Godox Light app from your mobile device controls the light via Bluetooth from up to 30m away.

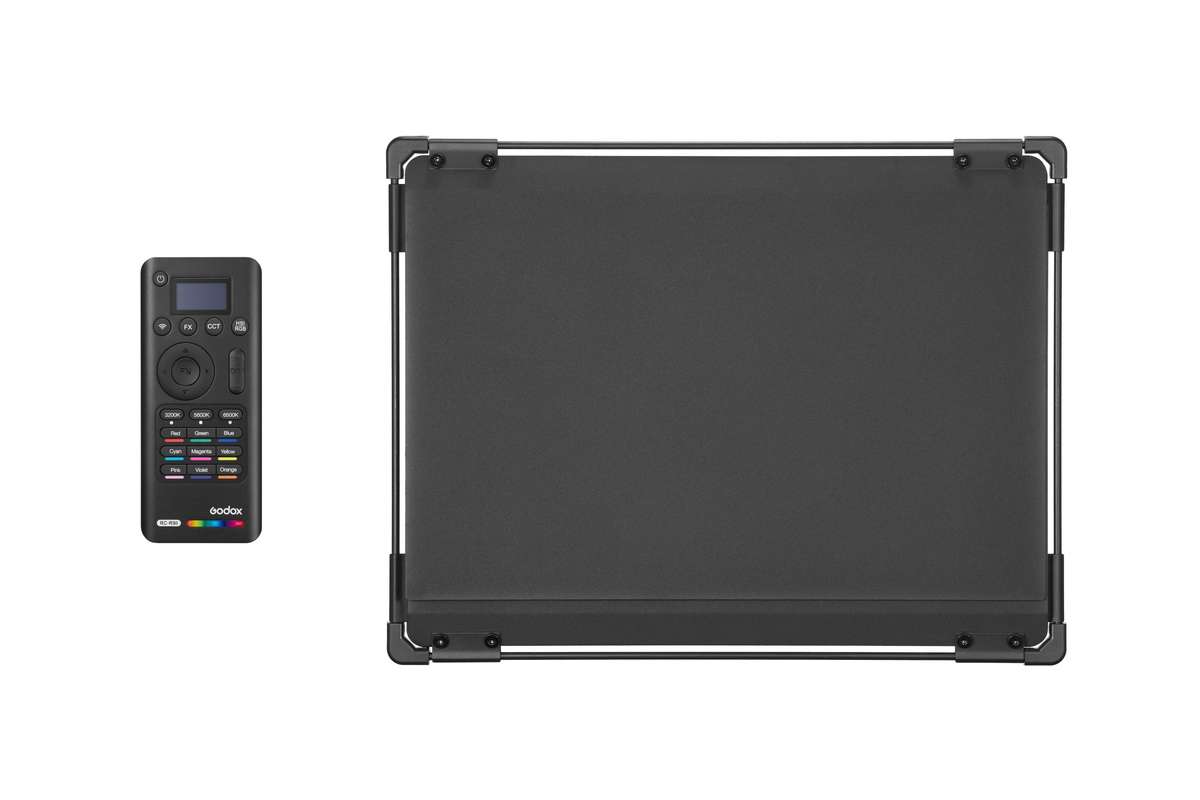

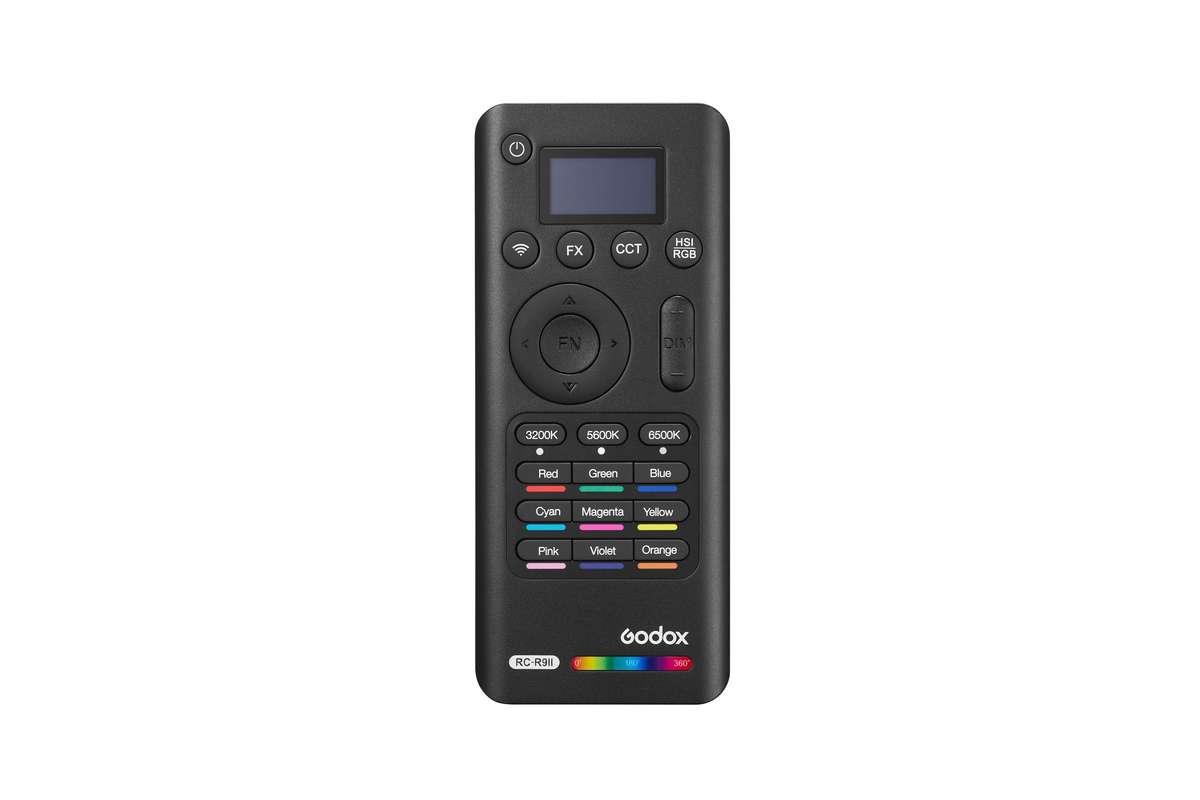

Optional RC-R9II remote controls the light via 2.4 GHz from up to 50m away.
Construction Details

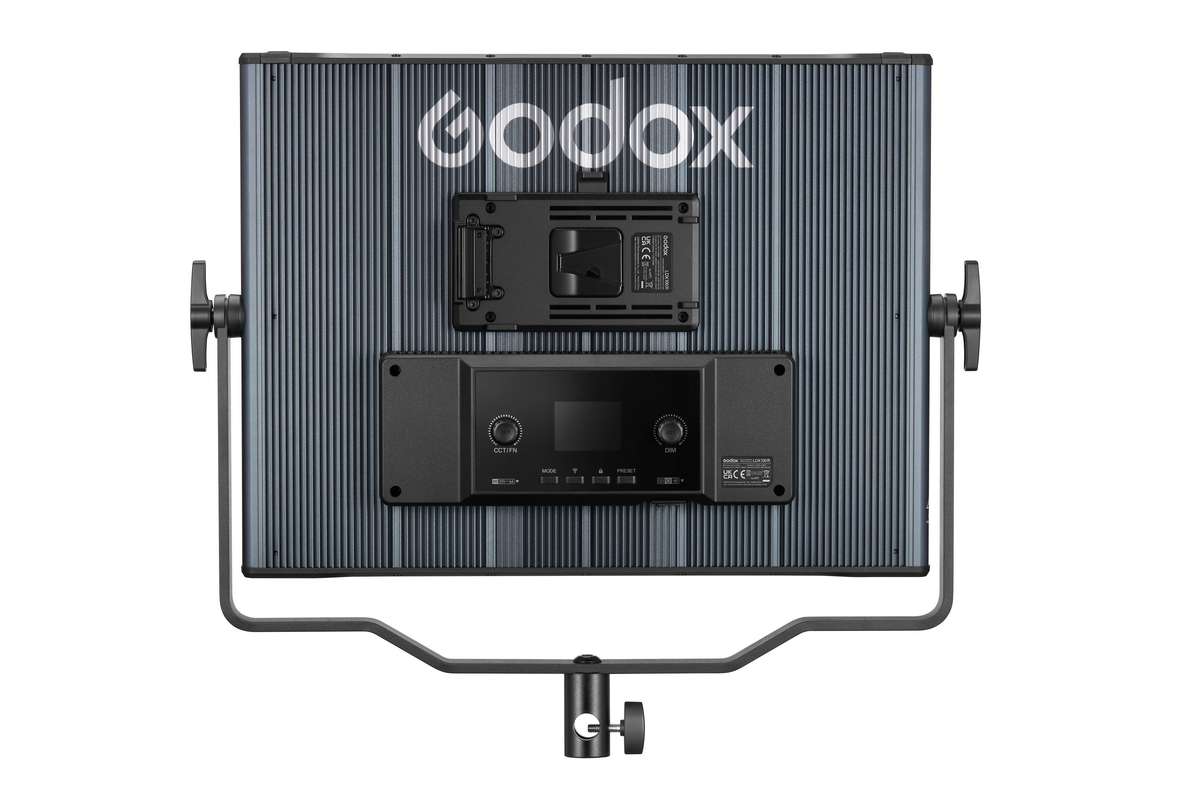

Integrated screen for viewing settings.

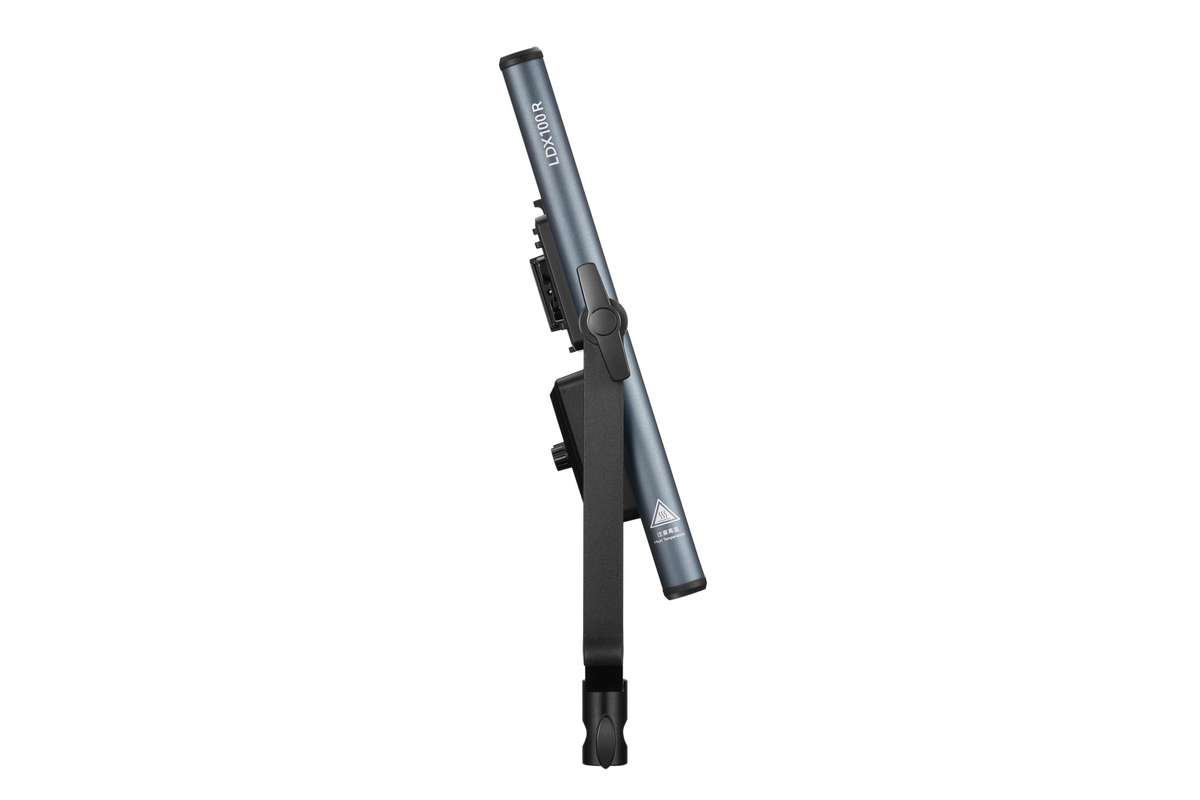

Built-in V-mount plate.

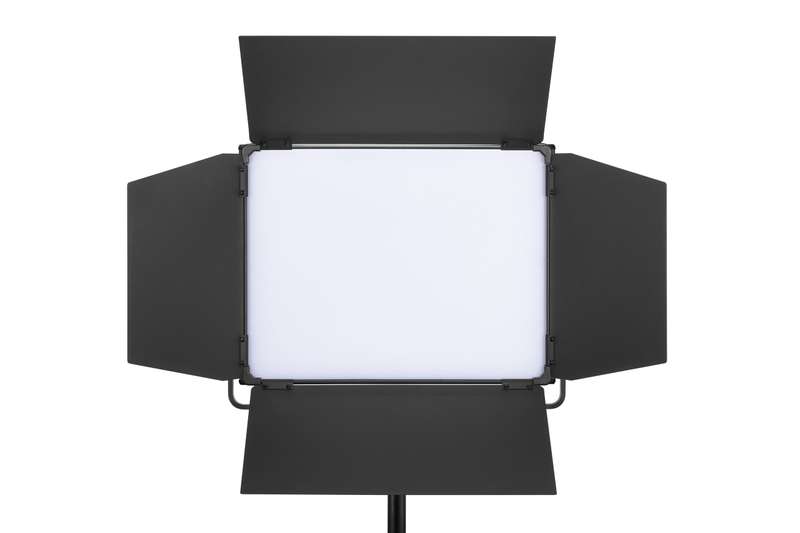

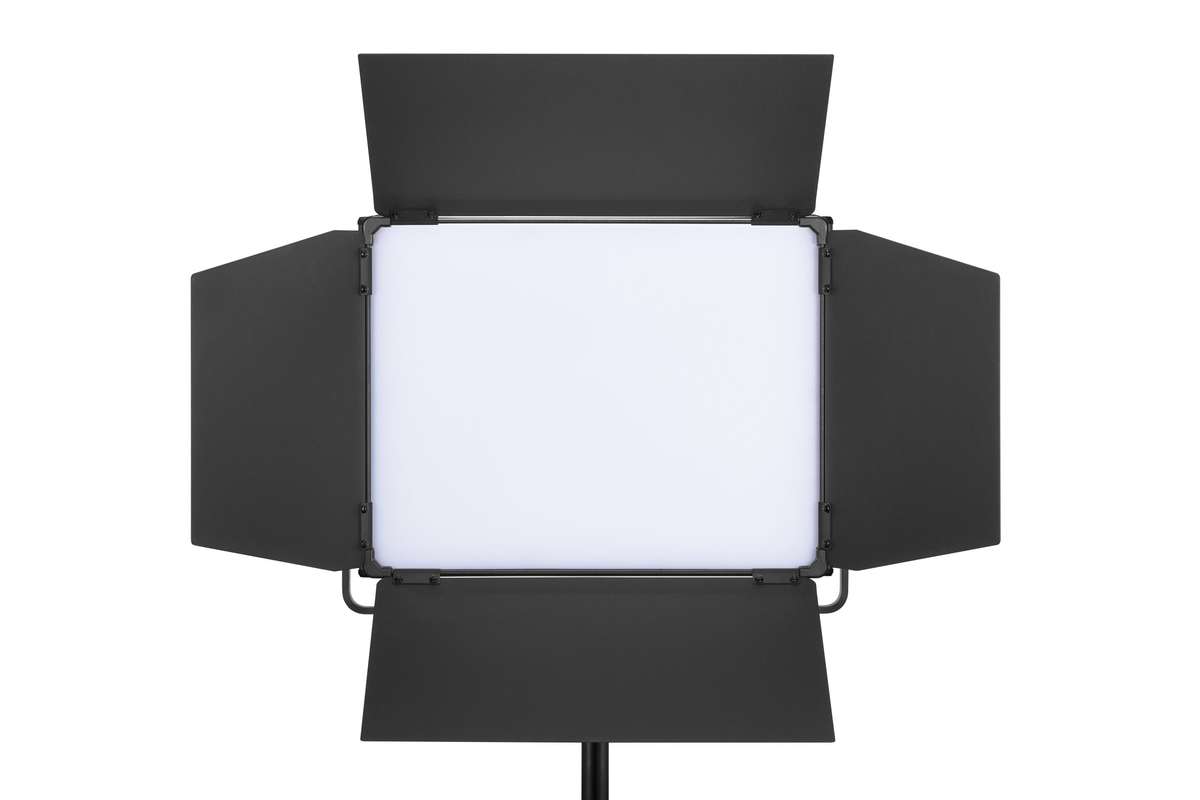

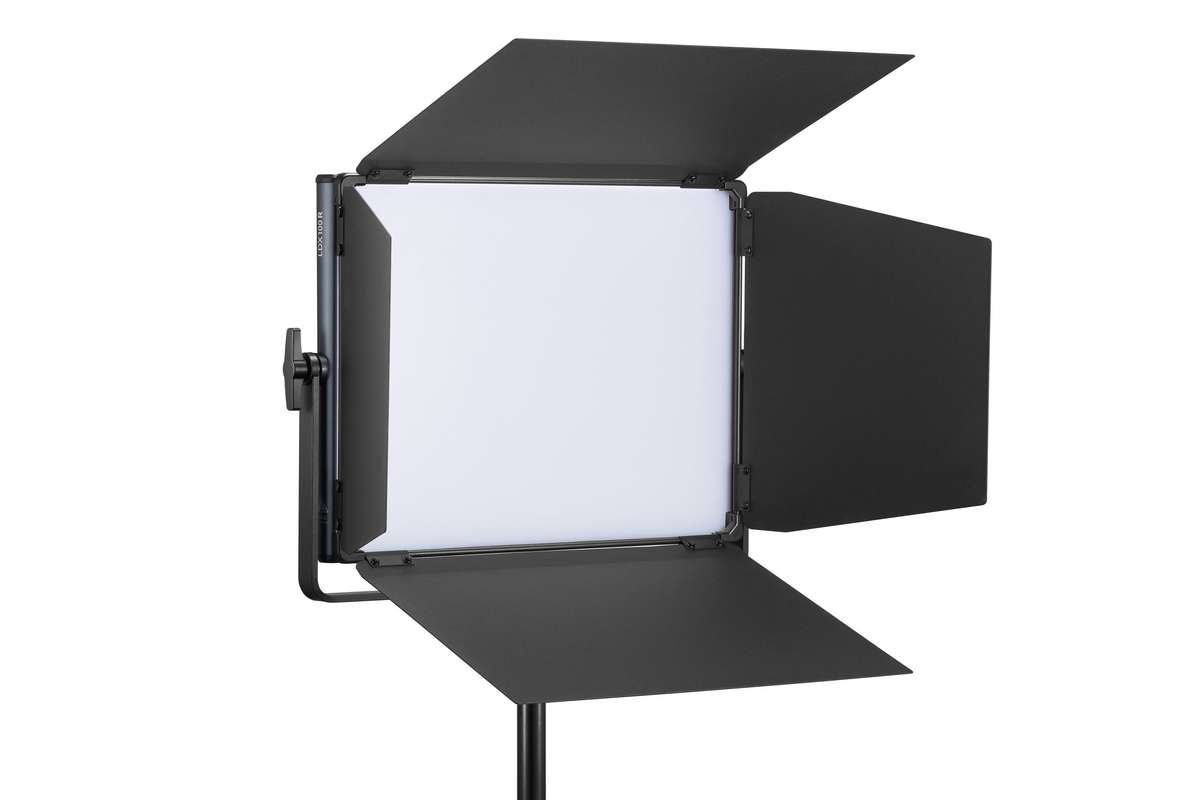

Detachable diffuser and optional barndoors produce a soft and controllable quality of light.

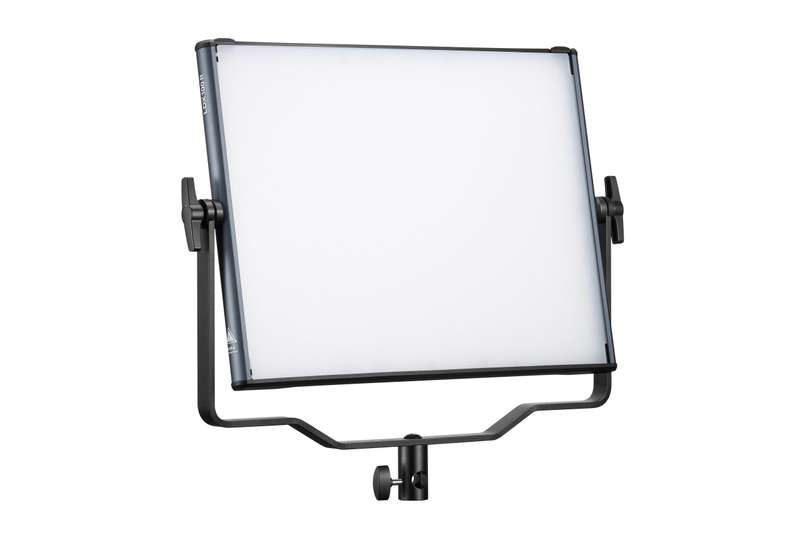

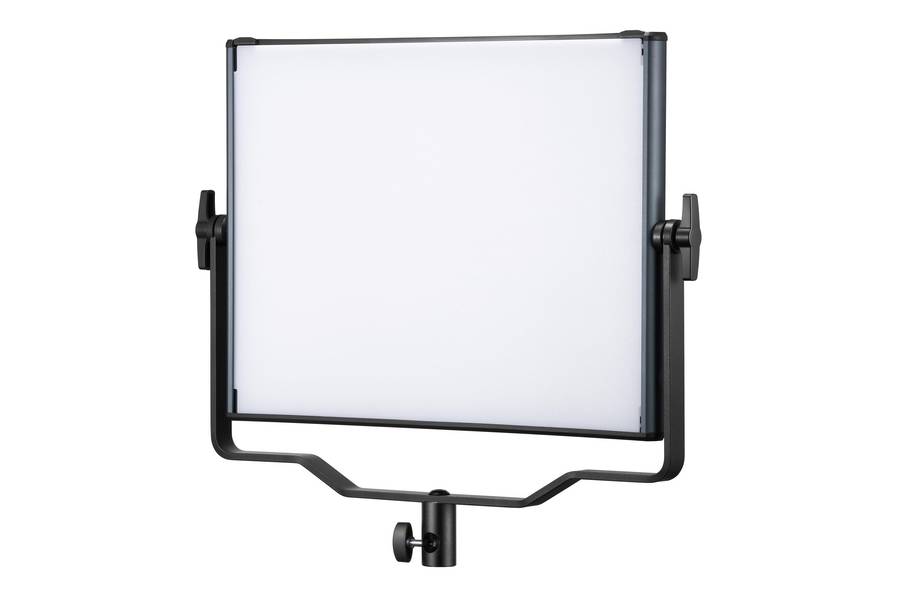

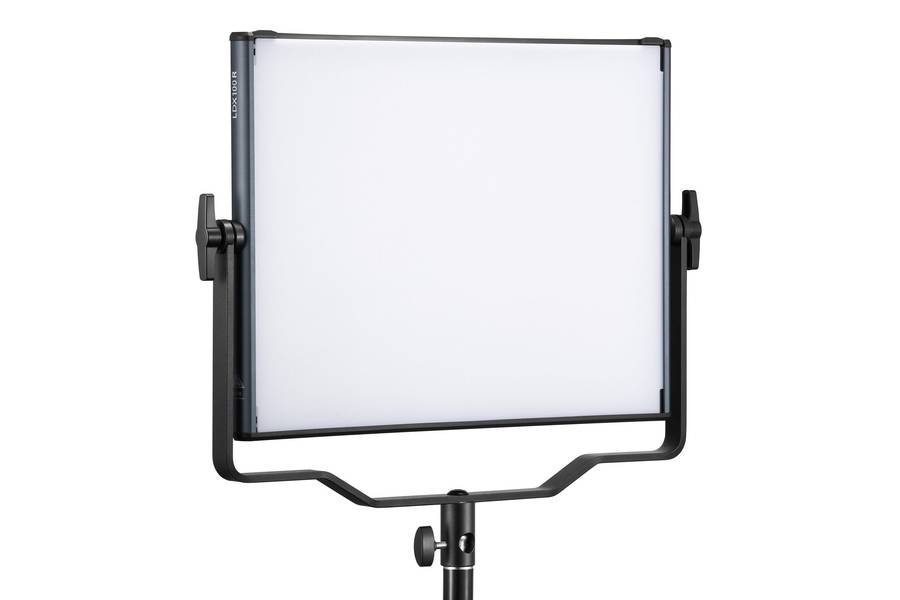

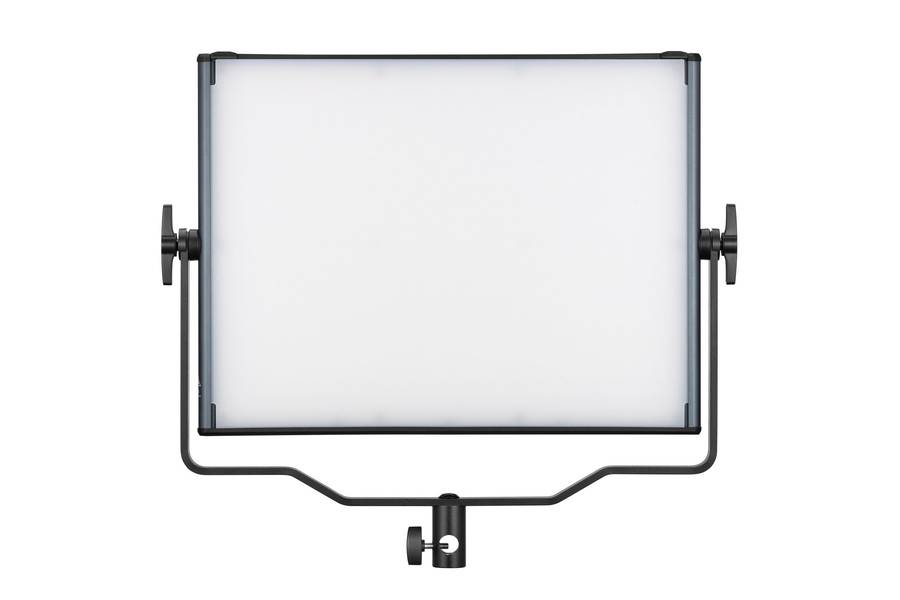

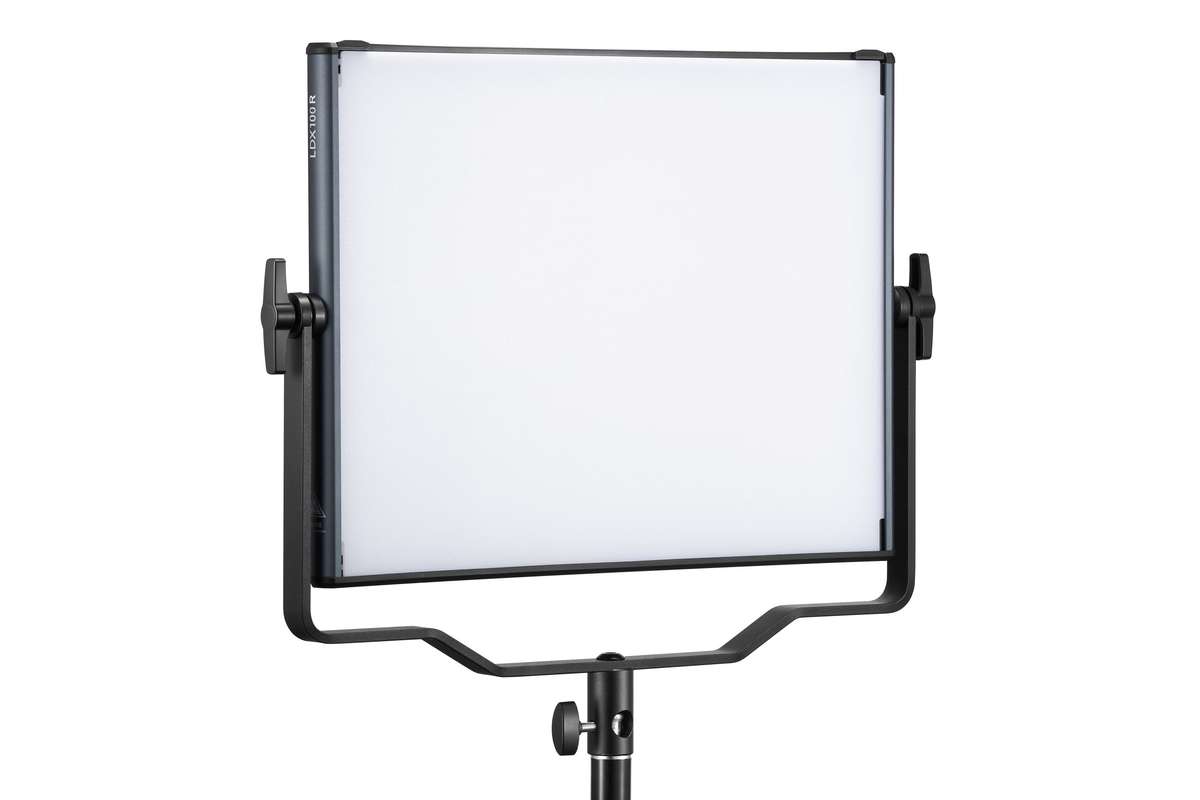

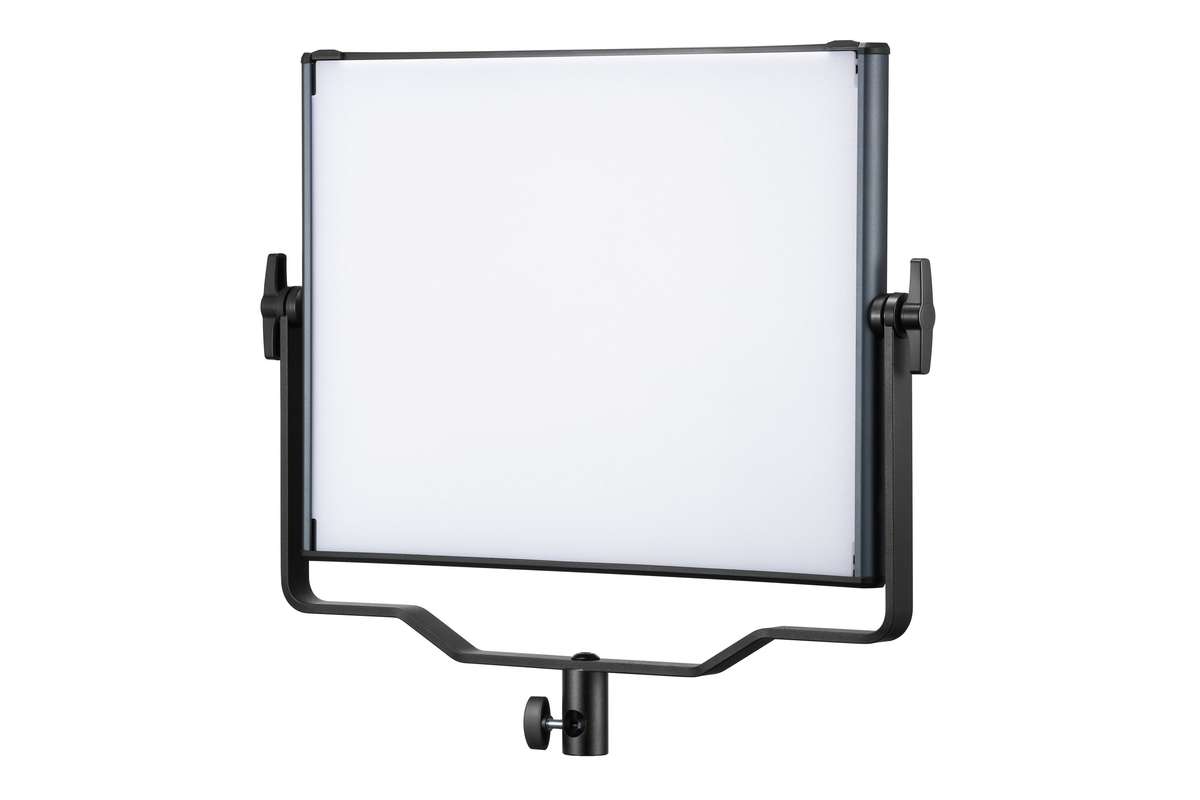

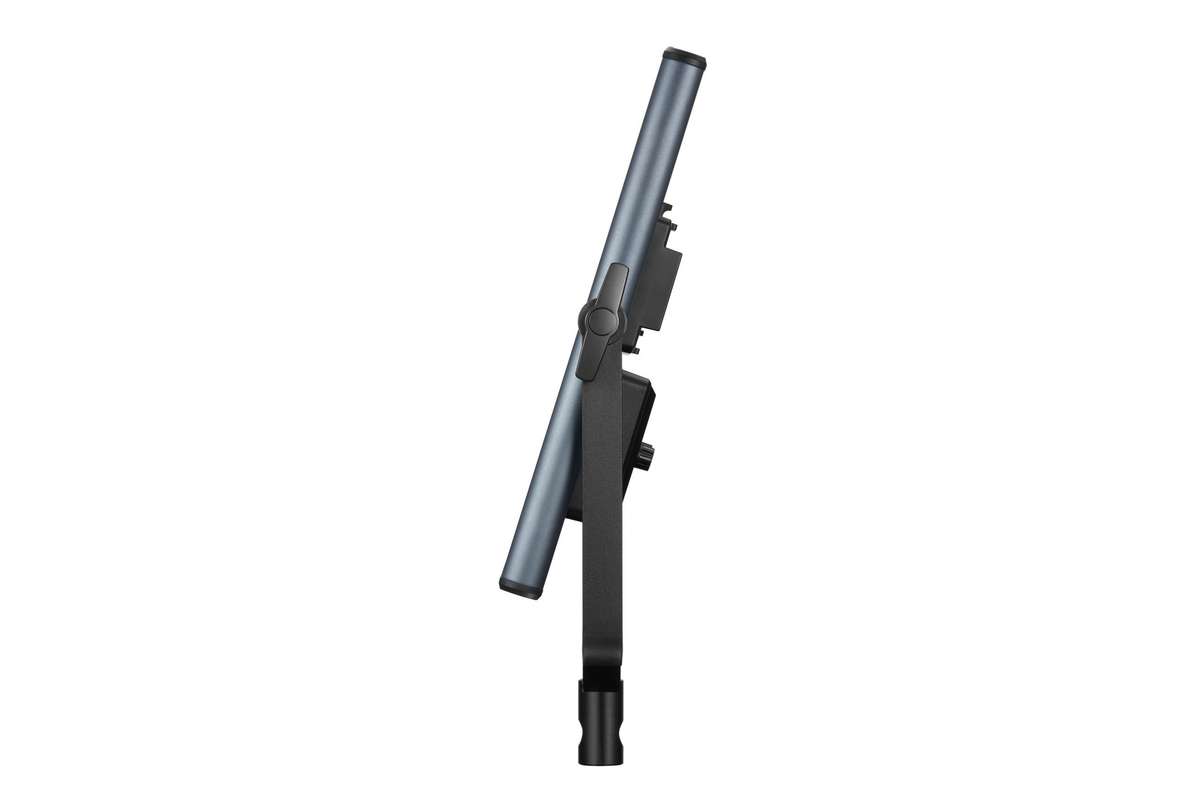

360 U-type yoke for flexibility.
Metal housing.

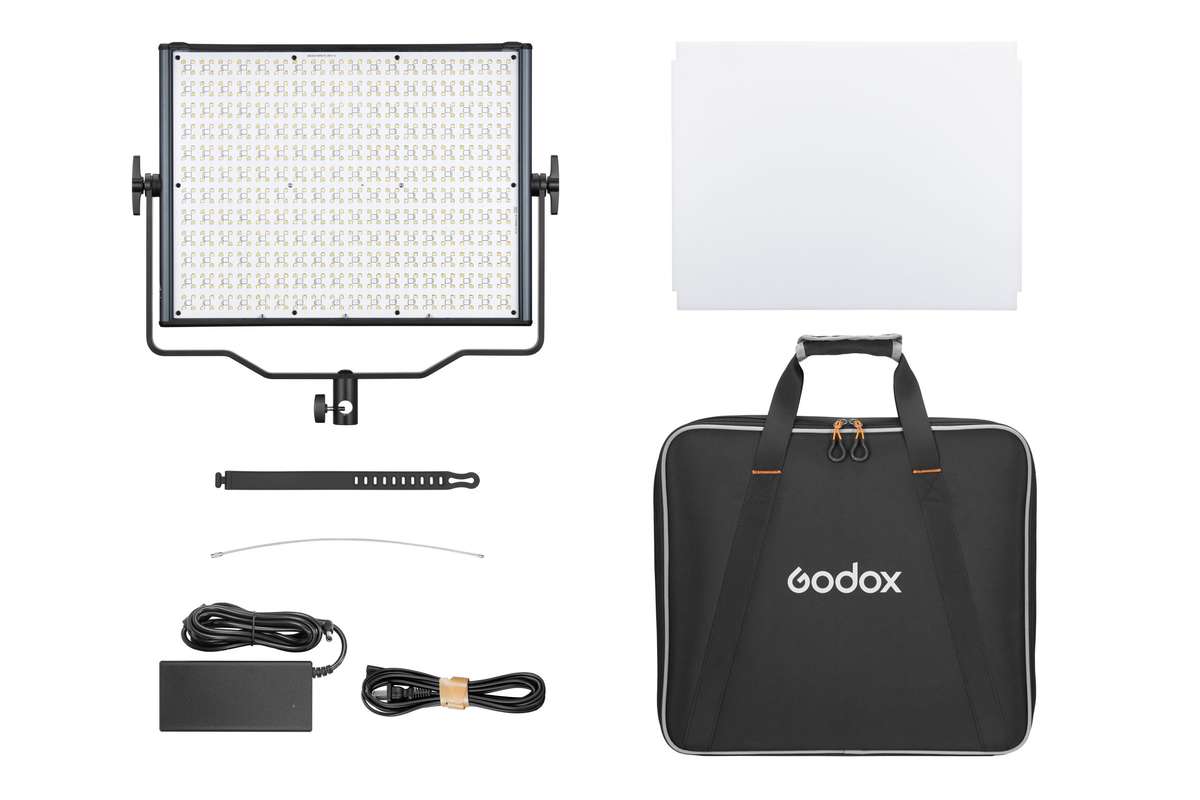

What's In the Box:

Godox LDX100R RGB LED Light Panel
Diffuser
Adapter Fixing Band
Steel Rope
Power Cable
Power Adapter
Carry Bag
Limited 2-Year Godox SA Warranty

Godox LDX100Bi Specs

Light Fixture
Item Type 1 x LED Light Panel
Included Filters Diffusion
Included Storage Case 1 x Case
Photometrics         3200K:   379 fc / 4090 Lux at 1 m*
99 fc / 1070 Lux at 2 m
46 fc / 504 Lux at 3 m
4300K:   392 fc / 4230 Lux at 1 m*
103 fc / 1110 Lux at 2 m
48 fc / 520 Lux at 3 m
5600K:    429 fc / 4620 Lux at 1 m*
110 fc / 1190 Lux at 2 m
52 fc / 561 Lux at 3 m
6500K:    409 fc / 4410 Lux at 1 m*
104 fc / 1130 Lux at 2 m
49 fc / 528 Lux at 3 m

*Standardized Measurement Supplied by the Manufacturer
Colour Temperature 2500 to 10,000K
Colour Modes RGB
Colour Accuracy Standard CRI 96   TLCI 96
Cooling System None
Dimming Yes, Built-In Dimmer  0 to 100%
Umbrella Mount No
Front Accessory Mount None
Connectivity
Wireless Remote Control Type Bluetooth
Radio/RF *Remote Not Included
Mobile App Compatible Yes: Android & iOS
App Name: Godox Light   *As of May, 2023: Check with manufacturer for the most up-to-date compatibility
Wireless Channels 32
Wireless Groups 16
Wireless Frequency 2.4 GHz
Wireless Range 30 m (Bluetooth)
50 m (Radio/RF)
Power & I/O
Power Source AC to DC Adapter (Included)
Battery (Not Included)
Battery Plate Type 1 x V-Mount (Built-In)
Battery 1 x V-Mount Rechargeable (Not Included)
DC Input Power 20 VDC
Power Consumption 118 W
Mounting
Yoke Type Manually-Operated Yoke
Fixture Mounting Not Specified by Manufacturer
Environmental
Environmental Protection None
General
Display Yes
Materials Metal
Dimensions 46.8 x 41.7 x 6.3 cm
Weight 3.24 kg
