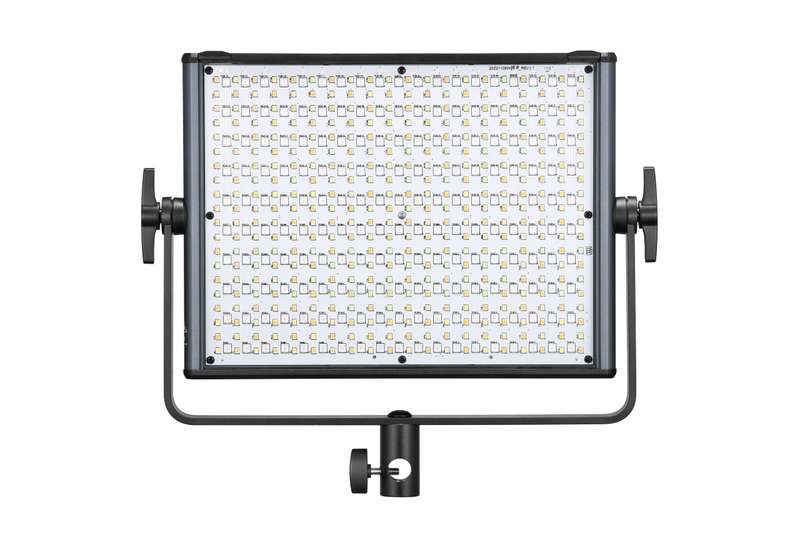

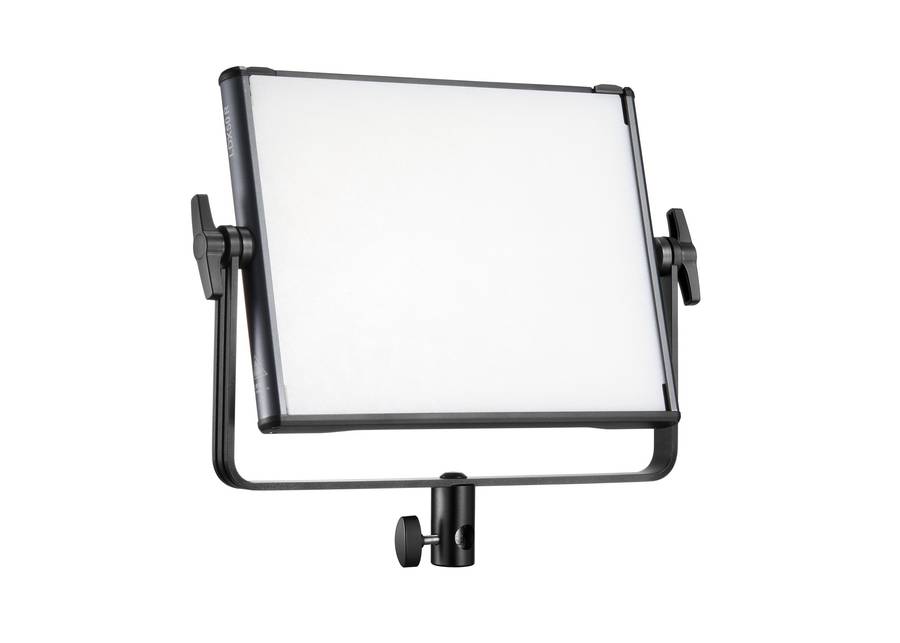

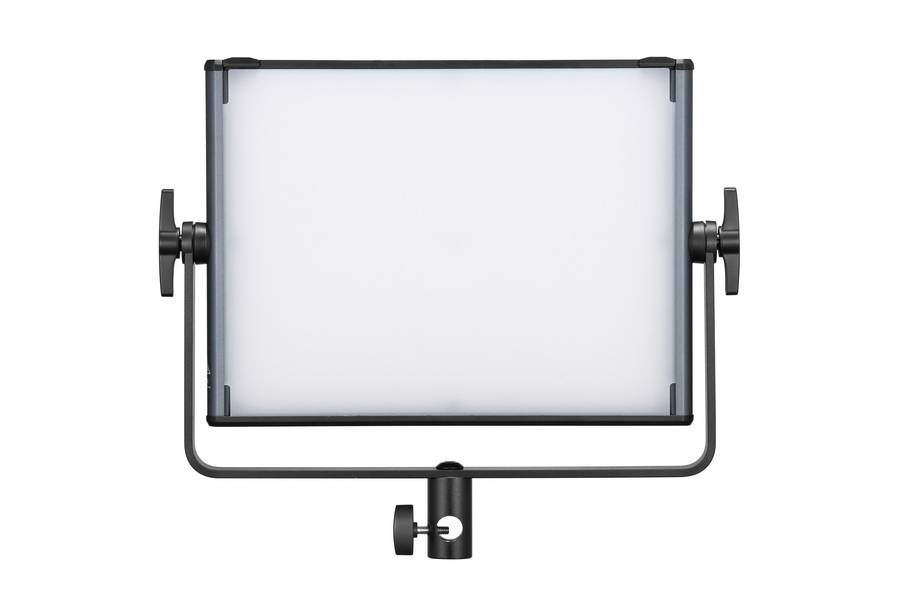

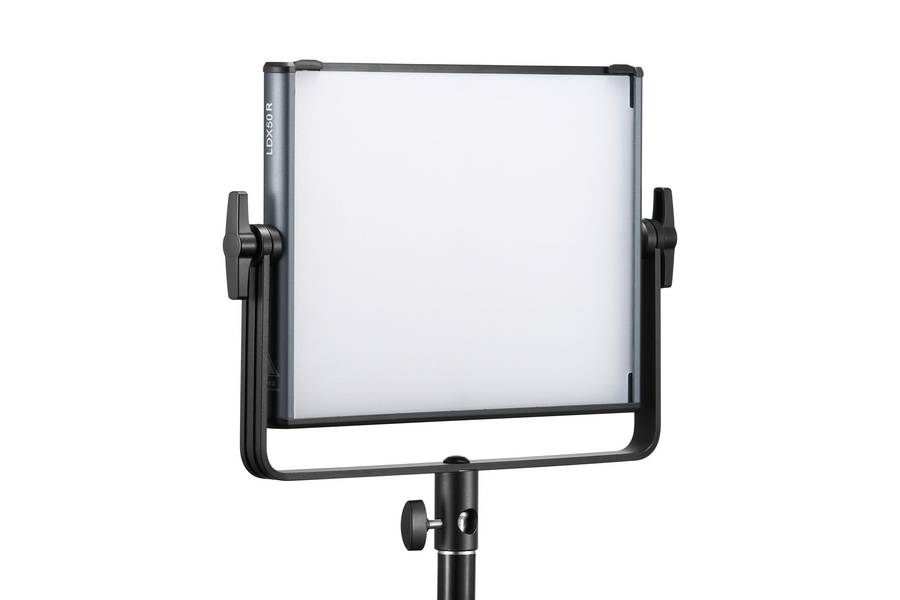

Godox LDX50R RGBWW LED Light Panel
The LDX50R RGB LED Light Panel from Godox is a compact 35.7 x 30.5 x 7.5 cm fixture with RGBWW capability to enable you to quickly adjust the colour temperature from 2500 to 10,000K. This light can be dimmed from 0 to 100% throughout its CCT range, giving you high CRI/TLCI ratings of 96 indicating advanced accuracy in colour rendering. Furthermore, this panel provides a soft light well suited for video use plus 14 special effects to enhance and add realism to your shoot. Adjustments can be made either onboard, remotely through an optional wireless remote control, or via an app directly from your smartphone.
Godox LDX50R RGBWW LED Light Panel
Godox LDX50R Key Features
For Video Production and Vlogging
Output: 2340 Lux at 1m (5600K)
2500-10,000K CCT; RGB Colour Control
35.7 x 30.5 x 7.5 cm; AC/DC Operation
CRI 96 | TLCI 96
Onboard, Wireless & App Control
0-100% Dimming, 14 Lighting Effects

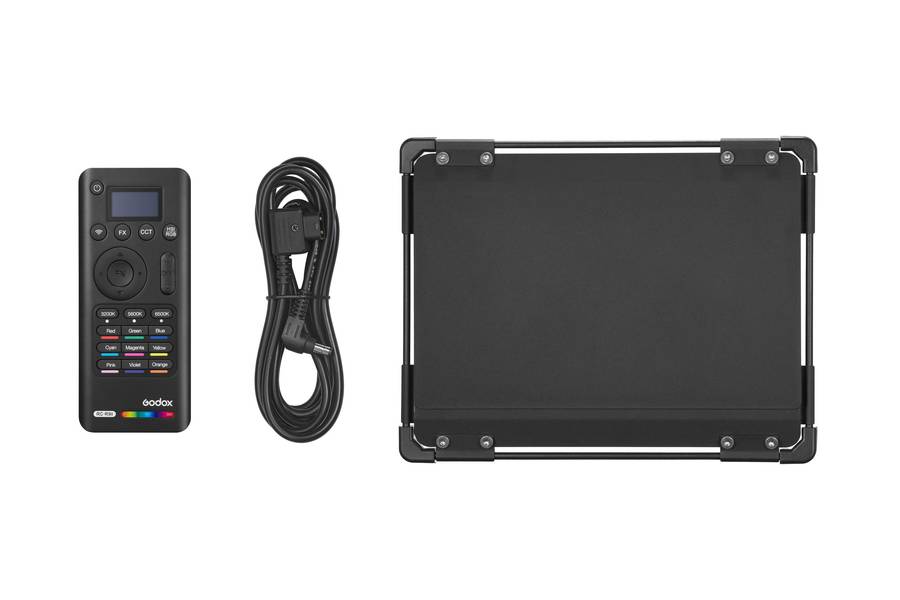

Optional Remote Control & Barndoors
Includes Diffuser
Includes Power Supply & Carry Case

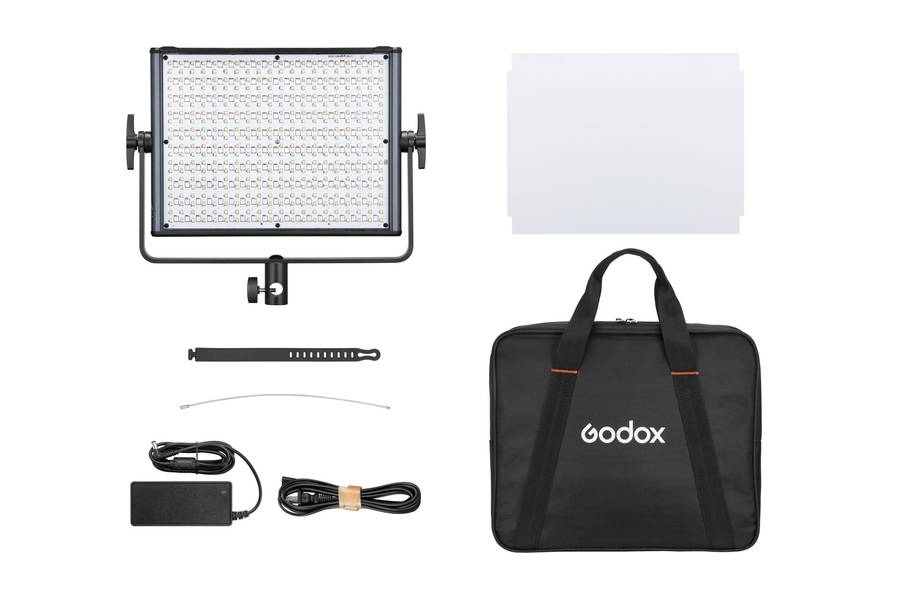

What's In the Box
Godox LDX50R RGB LED Light Panel
Diffuser
Adapter Fixing Band
Steel Rope
Power Cable
Power Adapter
Carry Bag
Limited 2-Year Godox SA Warranty
Godox LDX50R Overview
The LDX50R RGB LED Light Panel from Godox is a compact 35.7 x 30.5 x 7.5 cm fixture with RGBWW capability to enable you to quickly adjust the colour temperature from 2500 to 10,000K. This light can be dimmed from 0 to 100% throughout its CCT range, giving you high CRI/TLCI ratings of 96 indicating advanced accuracy in colour rendering. Furthermore, this panel provides a soft light well suited for video use plus 14 special effects to enhance and add realism to your shoot. Adjustments can be made either onboard, remotely through an optional wireless remote control, or via an app directly from your smartphone.

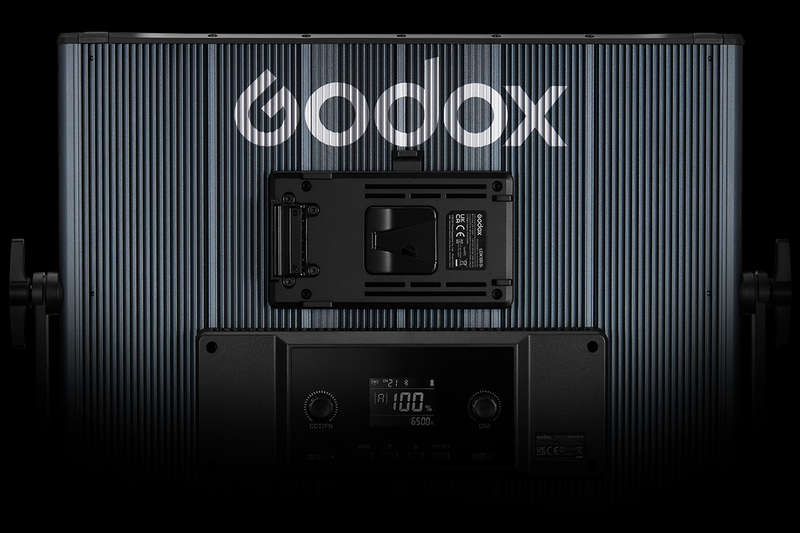

The LDX50R is rated for output up to 2340 lux at 1m and 5600K, drawing a maximum of 63W of power. An AC adapter is included for connecting to a wall socket for powering the panel. For portability and adaptability you are able to run it on two optional NP-F batteries or a separately available V-mount battery connected by an optional D-Tap cable. Steady output and colour stability helps better maintain visual continuity for a smooth shoot even during extended use. The specially designed metal structure on the back increases the heat dissipation area, enabling the lights to achieve great heat dissipation without the need for fans. This design effectively eliminates noise interference caused by the lights, ensuring uncompromised audio quality during shooting. Moreover, the robust metal material enhances the lights' durability, allowing for long-term usage.
A carry bag is included for storage and transportation.
Bright, Soft Light Source
Designed to illuminate your creative vision, the LDX50R gives you access to literally millions of colour combinations. For enhanced versatility, you can easily switch between CCT and FX modes. By short-pressing the built-in analogue dials of the unit, quickly select and customize the intensity or lighting effect.
RGB mode with four mixed colours
HSI colour mode allows for full-colour control over hue, saturation, and intensity
Gel mode allows for a variety of 60 popular colour filters
14 Customizable Lighting Effects
RGB cycle, party, police car, flash, lightning, cloudy, broken bulb, TV, candle, fire, fireworks, explosion, welding, and SOS. These 14 customizable creative lighting effects will help you achieve different looks.
Greater Control
The Godox Light app from your mobile device controls the light via Bluetooth from up to 30m away.
Optional RC-R9II remote controls the light via 2.4 GHz from up to 50m away.
Construction Details

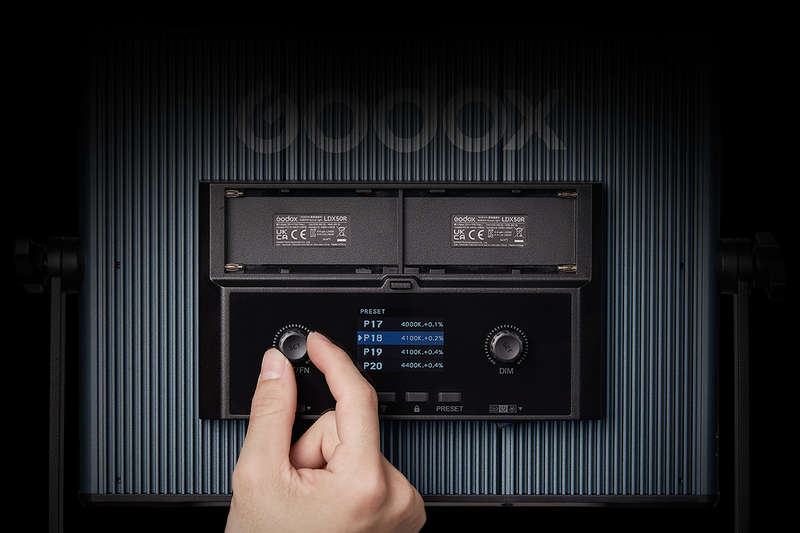

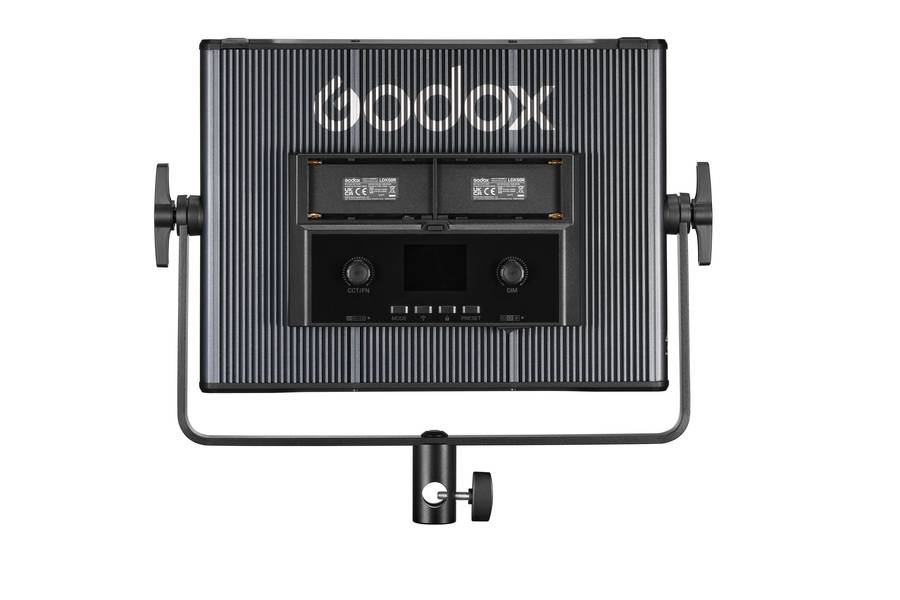

Integrated screen for viewing settings.
Built-in dual NP-F plate.

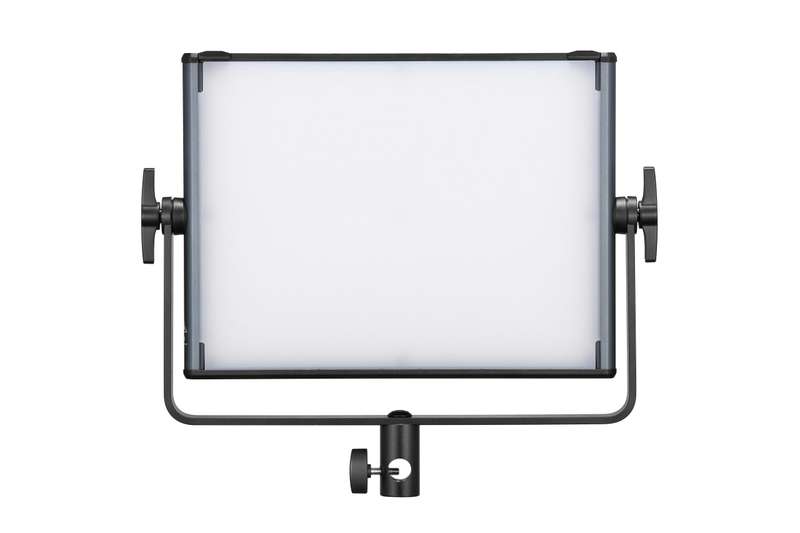

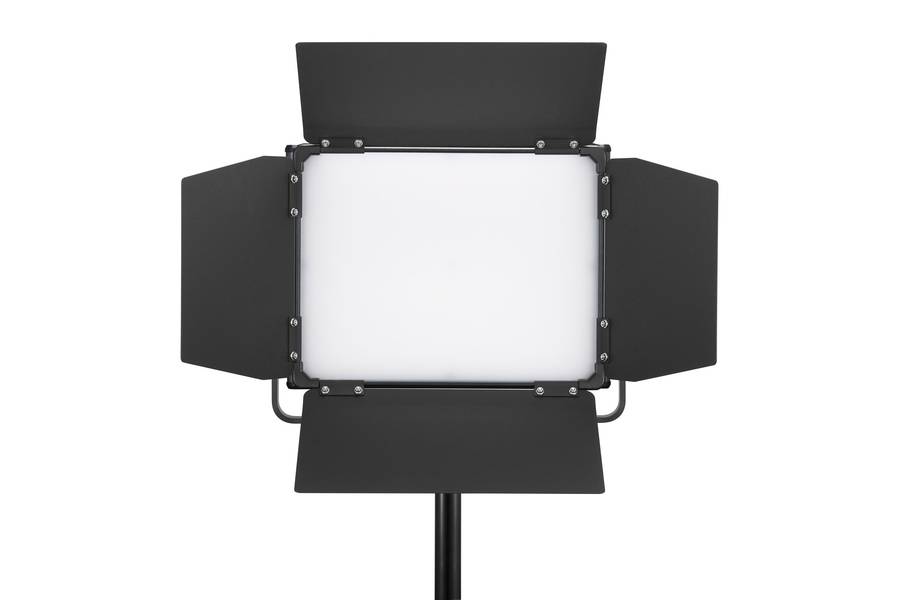

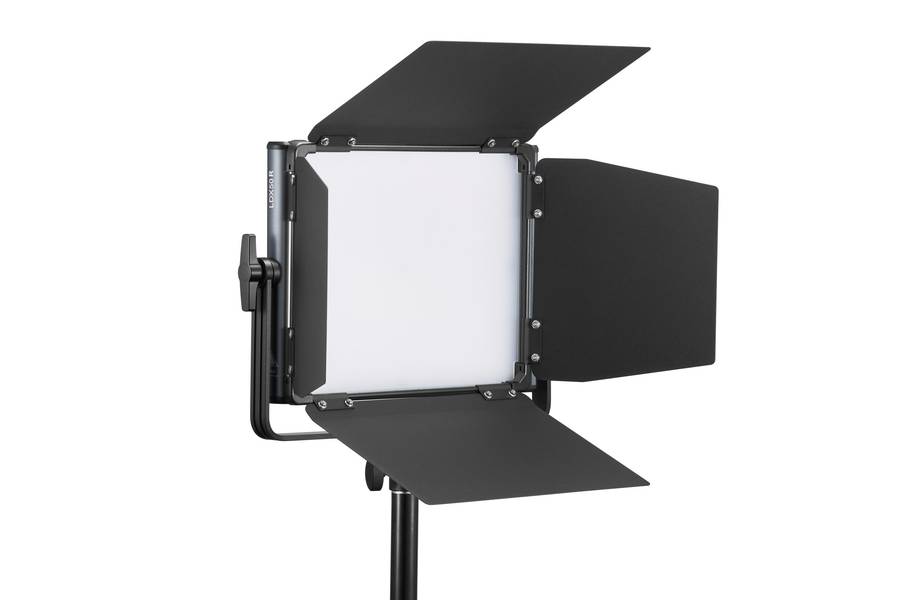

Detachable diffuser and optional barndoors produce a soft and controllable quality of light.

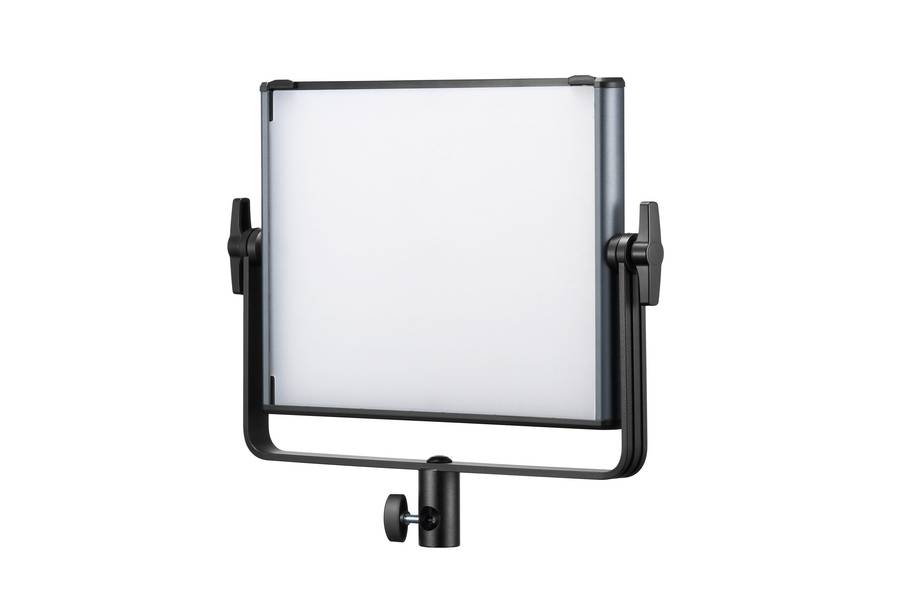

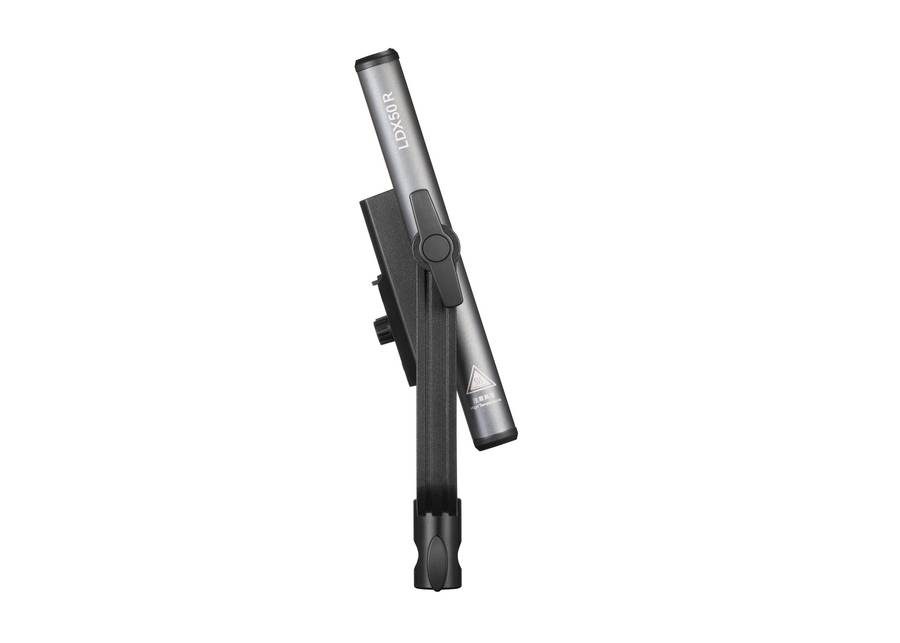

360° U-type yoke for flexibility.
Metal housing
Godox LDX50R Specs
Light Fixture
Photometrics 3200K: 204 fc / 2200 Lux at 1 m*
760 fc / 8190 Lux at 0.5 m
55 fc / 594 Lux at 2 m
4300K: 208 fc / 2240 Lux at 1 m*
777 fc / 8370 Lux at 0.5 m
56 fc / 606 Lux at 2 m
5600K: 217 fc / 2340 Lux at 1 m*
808 fc / 8700 Lux at 0.5 m
58 fc / 633 Lux at 2 m
6500K: 223 fc / 2410 Lux at 1 m*
830 fc / 8940 Lux at 0.5 m
60 fc / 650 Lux at2 m
*Standardized Measurement Supplied by the Manufacturer
Colour Temperature 2500 to 10,000K
Colour Modes RGB
Colour Accuracy Standard CRI 96
TLCI 96
Dimming Yes, Built-In Dimmer 0 to 100%
Wireless Remote Control Type Bluetooth
Radio/RF *Remote Not Included
Power Source AC to DC Adapter (Included)
Battery (Not Included)
Battery Plate Type 2 x Sony L-Series / NP-F (Built-In)
Battery 2 x Sony-Type L-Series / NP-F Rechargeable (Not Included)
or
1 x V-Mount Rechargeable (Not Included)
DC Input Power 20 VDC
Power Consumption 63 W
