The Godox RX1 is a dual-channel UHF wireless receiver for WMicS1 transmitters, featuring 96 selectable channels, a 100m operating range, OLED display, headphone monitoring, and dual power options.

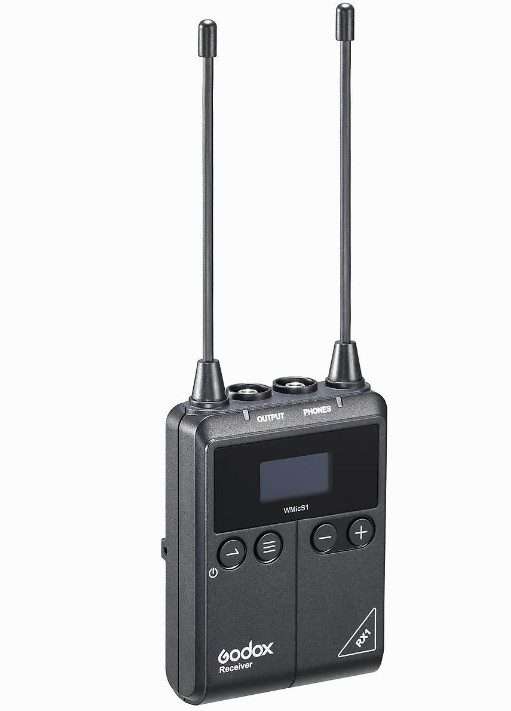

The Godox RX1 Dual-Channel Wireless Receiver is a versatile UHF wireless receiver designed to work with Godox WMicS1 transmitters, providing professional-quality wireless audio for filmmakers, videographers, journalists, educators, and content creators. Supporting up to two wireless transmitters simultaneously, the RX1 simplifies multi-person recording while keeping your camera setup compact and uncluttered.
Ideal for interviews, weddings, documentaries, corporate productions, livestreams, and vlogging, the RX1 allows you to record two presenters without requiring multiple receivers or complex camera rigs.
Dual-Channel Wireless Reception
The RX1 supports dual-channel UHF reception, enabling two compatible WMicS1 transmitters to connect to a single receiver. When recording with one transmitter, the audio is automatically duplicated to both the left and right channels for balanced recordings. When using two transmitters, each speaker is recorded on an independent channel, allowing separate adjustment of each voice during post-production for greater editing flexibility.
Stable UHF Performance
Operating on the dependable UHF frequency band, the RX1 delivers clear, reliable wireless audio with an operating range of up to 100 metres. With 96 selectable wireless channels, users can quickly locate a clean frequency, helping minimise interference in busy wireless environments such as conferences, live events, and public venues.
OLED Display & Audio Monitoring
A bright OLED display provides clear visibility of system status and settings, allowing fast adjustments even in challenging lighting conditions. The receiver's intuitive menu system makes channel selection and configuration simple during production.
For added confidence while recording, the RX1 includes a dedicated 3.5mm headphone output, enabling real-time audio monitoringan especially valuable feature for cameras that do not offer a headphone monitoring jack.
Flexible Power Options
The Godox RX1 can be powered using either two AA batteries or via USB-C, providing flexible power solutions for studio work, location shoots, and extended productions.
Compact, reliable, and easy to operate, the Godox RX1 Dual-Channel Wireless Receiver is an excellent choice for creators who need professional wireless audio performance with flexible dual-channel recording capabilities.
Specifications:
Wireless Transmission
- Technology: Analog UHF
- RF Channels: 96
- Diversity: Non-Diversity
- Frequency Band: 514596 MHz
- Channel Scanning: Manual
- Max Range: 100 m (Line of Sight)
- Latency: 12 ms
Receiver
- Form Factor: Camera-Mount
- Mounting: Belt Clip, Shoe-Mount (included)
- Antennas: 2 × 1/4-wave fixed external (top-mounted)
- Audio Channels: 2
- Outputs:
- 1 × 3.5mm TRS (Unbalanced, Lockable)
- 1 × 3.5mm TRS Headphone Output
- Frequency Response: 40 Hz 18 kHz
- USB Connectivity: 1 × USB-C (Bus Power)
- Power Requirements: 2 × AA batteries (not included) or USB-C
- Display: OLED (AF level, battery, channel, output level)
- Dimensions: 63 × 190 × 25 mm
- Weight: 79 g (without batteries)
