Godox TX3XLR The Godox TX3-XLR is a plug-on wireless transmitter compatible with the WMicS1 wireless system. The lightweight design is comfortable to hold and can accommodate any handheld or shotgun XLR microphone (available separately). The transmitter provides 48V phantom power for condenser mics and offers reliable transmission at a range up to 197 line-of-sight.
Godox TX3-XLR Plug-On Wireless Transmitter (514 to 596 MHz)
Godox TX3-XLR Key Features
For WMicS1 Wireless Systems
Use with XLR Handheld or Shotgun Mic
For Interviews & Wireless Boom Work
XLR Connector with 48V Phantom
96 User-Selectable Frequencies
20/50mW Switchable Transmission Power
Easy-to-Read OLED Screen
Rugged Metal Housing
Powered by Two AA Batteries
197' Line-of-Site Range
Godox TX3-XLR Overview

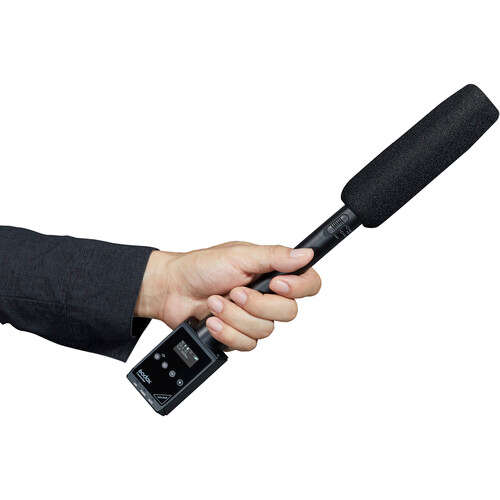

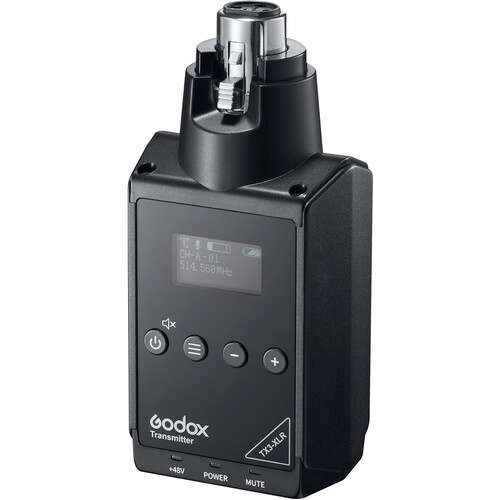

The Godox TX3-XLR is a plug-on wireless transmitter compatible with the WMicS1 wireless system. The lightweight design is comfortable to hold and can accommodate any handheld or shotgun XLR microphone (available separately). The transmitter provides 48V phantom power for condenser mics and offers reliable transmission at a range up to 60 m line-of-sight.

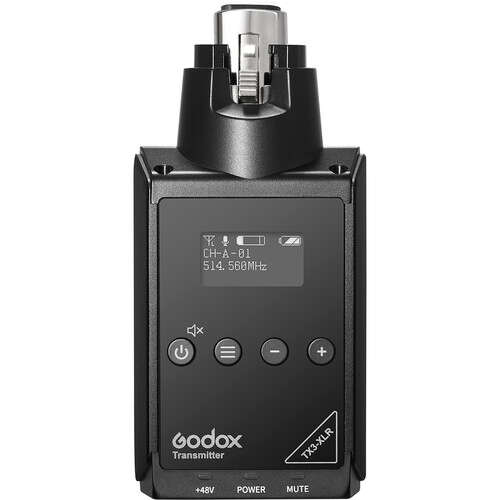

The TX3-XLR operates on two AA batteries and is equipped with an On/Off switch that doubles as a mute button. An easy-to-read backlit OLED screen with adjustable brightness shows the transmitter's frequency, channel/group, input level, muting, and battery life.
The system offers 96 manually selectable frequencies to choose from in order to create an interference-free transmission channel for wireless transmission to the RX1 receiver (available separately). The transmitter has two levels of RF transmission power: The high 50mW setting improves signal quality when working at greater distances, while the low 20mW setting offers maximum battery life when working at close range.
What's In the Box
Godox TX3-XLR Plug-On Wireless Transmitter (514 to 596 MHz)
Godox TX3-XLR Specs
Wireless Technology Analog UHF
RF Frequency Band 514 to 596 MHz
RF Channel Scanning Manual
Max Operating Range 196.9' / 60 m (Line of Sight)
Built-In Recorder No
Latency 12 ms
Encryption None
Transmitter
Transmitter Type Plug-On
RF Output Power 20 / 50 mW (Switchable)
Audio I/O 1 x XLR 3-Pin Female Balanced Input (Lockable)
Included Cable Connector None
Phantom Power +48 V
Muting Off/On Switch
Auto-Level Control No
Frequency Response 40 Hz to 18 kHz
Sync Method Manual
Antenna 1 x 1/4 Wave Internal
Power Requirements Battery
Battery Type 2 x AA (Not Included)
Display & Indicators 1 x OLED (Audio Level, Battery Status, Channel, Mute, RF Output Power)
Housing Metal
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature 14 to 104°F / -10 to 40°C
Dimensions 51 x 107 x 34 mm
Weight 158 g (without Batteries)
