Goldtool 3 in 1 Tracer , Toner and Cable Tester Kit - Designed to test for Sending , Tracing a tone, Cable continuity, Coaxial , Polarity or to Verify a line Detection cable and wire continuity, cables in walls, Multi-function cable tester for RJ45 LAN, BNC/F coaxial cables, Retail Box, 1 year warranty
Product Overview

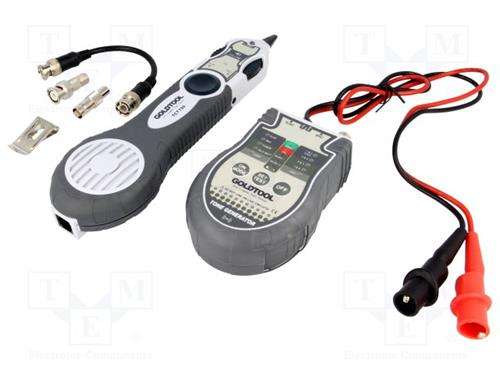

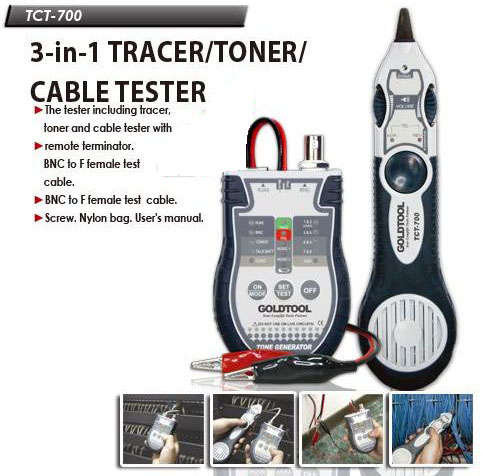

The Goldtool 3 IN 1 Tracer , Toner and Cable Tester Kit is a multi-function cable tester for RJ45 LAN, BNC/F coaxial cable, tone generator, talk battery, continuity and 6P2C/4P2C jack test. The TCT-700 is designed to test for Sending/Tracing a tone, Cable continuity, Coaxial, Polarity or to Verify a line. The LAN Tracer is designed to identify and trace wires or cables within a group without damaging the insulation.
Features
•Automatic Power-Off
•Connection Map Test: Discontinuity, Short Circuit, Reversed Pairs, Crossed Pairs
•Transmitter Interfaces: Rj45, BNC
•Measures Cable Length Up To 1000m With 5% Accuracy
•Possibility Of Identifying And Tracing Wires Or Cables With No Damage To Insulation
•Tracing A Tone, Cable Continuity, Polarity, Verifying A Line
•Alligator Clips To Connect Open Wires And For Direct Connection Of Internet And Telephone Cables
•Test For Sending/Tracing A Tone, Cable Continuity, Coaxial, Polarity, Verify A Line.
•The Lan Tracer Is Designed To Identify And Trace Wires Or Cables Within A Group Without Damaging The Insulation.
•Works With Any Tone Generator To Identify Wires.
•Red And Black Test Leads Are Provided, And Has A Standard 4 Conductor Modular Cord And Plug.
•Composite Tip Reduces Shock Risk.
•Led Signal Strength Indication.
•Adjustable Volume Control.
Specifications
• Stock Code TCT-700
• Description Goldtool 3 IN 1 Tracer , Toner and Cable Tester Kit
• Tester type Wiring system tester
• Display 15 LED (receiver), 3 LED (transmitter)
• Detection cable and wire continuity, cables in walls
• Signal frequency 500...781 Hz
• Receiver weight 137.2 g
• Transmitter weight 115 g
• Power supply 1 battery 9V 6F22 (transmitter), 1 battery 9V 6F22 (receiver)
