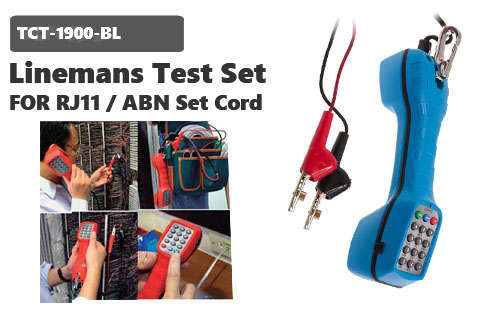

Goldtool Linemans Test Set For RJ11 and ABN Cord set -Three test modes Talk / Ring / Monitor, Switchable tone or pulse dialling, Protection against over voltage-Blue, Retail Packaging, 3 Months Warranty
Product Overview

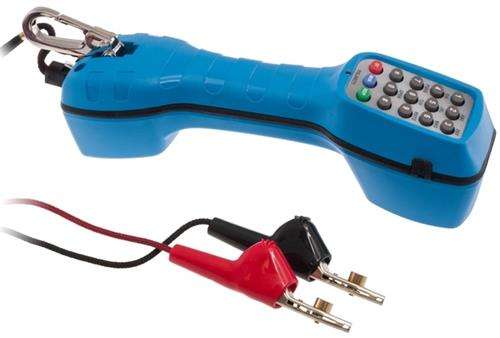

This Goldtool Lineman's Test Set For RJ11 is a new design to provide both DTMF and dial pulse output. The Lineman's Test Set features line-powered operation, so no extended power is required unless operating on low voltage or dry circuits. It is used by installers, repair technicians and other authorized personnel for line testing and temporary communications. The polarity LED provides immediate visual indication for Tip (+) and Ring () polarity.
Highlights
Three test modes Talk / Ring / Monitor
Switchable tone or pulse dialling
High impedance monitor will not interrupt data, conversation or signalling
LED indicator for reversed polarity
Memory for 10 numbers to be stored
Last number redial 31 digits maximum
Protection against over voltage
Transients ringer signals
Direct connection to most batteries and power supplies
Volume control 3-postition control for up to 12dB of gain
Spring loaded belt clip for easy carrying
Durable cloth covered cord equipped with securely anchored strain relief, modular RJ11X plug, and two five way test clips
Water-resistant; extra protection against severe weather conditions
Space connector cord included
Features:
Offer the latest in integrated circuit design, provide the industry standard packed with popular features.
Talk/Ring/Monitor three kind of tests function, its switch located on inside of handgrip.
Switchable tone or pulse dialling. TONE/PULSE switch are located on inside of handgrip.
The Hi impedance monitor will not disturb data, conversation, or signalling.
LED indicates reversed polarity.
Last number redial(31 digits maximum).
Protection against excessive voltage, transients ringer signals, and direct connection to most batteries and power supplies.
Specifications
Stock Code TCT1900B
Description Goldtool Lineman Test Set Blue Colour
Loop Limit
5k max at 48VDC
(5k meter - 26Ga non loaded) nominal 15mA
minimum loop current
DC Resistance
150 Typical at 80mA current
Monitor Impedance
Low impedance(Ring mode)600 typical at 1kHz
High impedance (Monitor mode)
100k typical at 1kHz
Rotary Dial Output -Pulsing Rate
10 ± 0.5 pulses a second
Percent Break- 60% ± 2%
Interdigital Pause
8.5ms Typical
Leakage During Break
>50k
DTMF Output
Tone Frequency Error - ± 1.5%
Level Of Tone Pair- +2dBm max / -8dBm min
Low vs. High Tone Difference--4dBm max
Dimensions and Weight
Dimensions (LxWxH) 22.4x7.12x7.0 cm
Weight 380g
